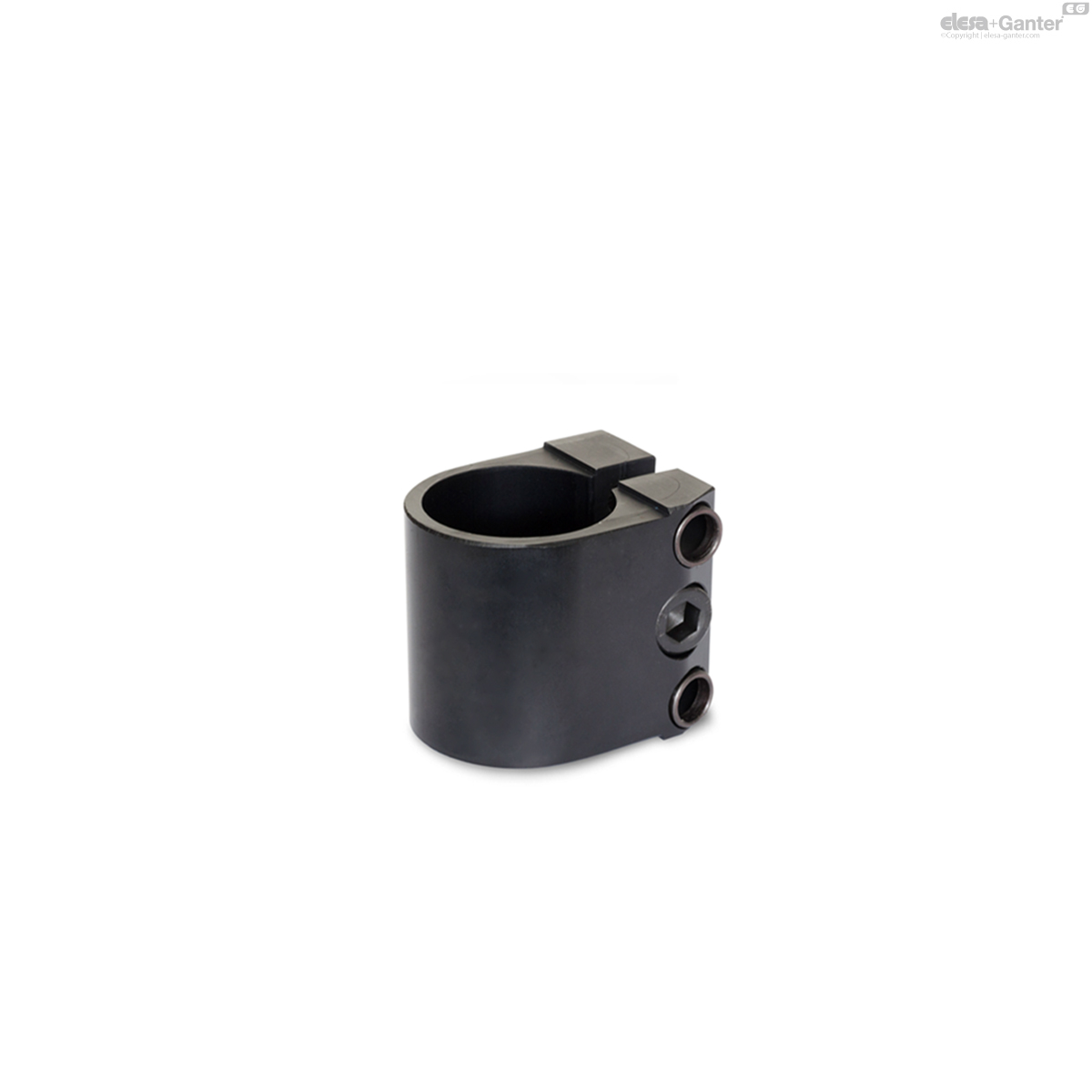

GN 873
Clamp mounting bracket accessories
for GN 864 / GN 865 / GN 866 pneumatic fastening clamps
Description
Specification
Aluminum
Black anodized
Centering guide bushings
Steel, blackened
Information
GN 873 clamp mounting bracket accessories greatly increase the mounting possibilities and, with that, the field of applications for pneumatic fastening clamps is vastly increased.
The abutting shoulder can be used for precise positioning of the pneumatic fastening clamps thus allowing a problem free exchange of the latter.
The use of the two centering guide bushing accessories ensures an exact and stable installation of the clamp mounting bracket accessories as well as the pneumatic fastening clamps.
Other clamp mounting bracket accessories for the sizes d1 = 40 (piston Ø 32) and d1 = 50 (piston Ø 40) are shown under the tube clamp connector range.
Centering guide bushing accessories are included.
Technical Information
- ISO-Fundamental TolerancesÂ

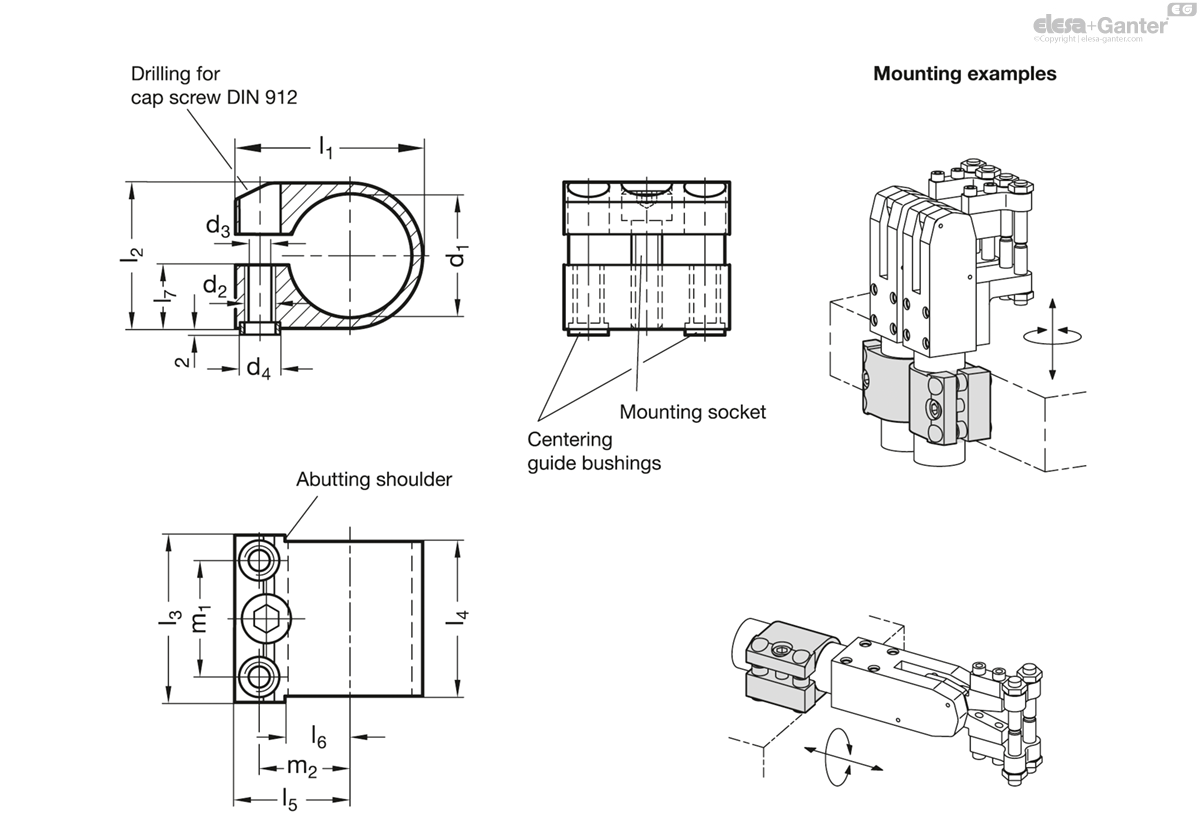

GN 873
| For power clamps Size |
d1 | d2 | d3 | d4 H8/h6 | l1 | l2 | l3 | l4 | l5 | l6 | l7 | m1 | m2 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||||
| GN 873-28 | 20 | 28 | M 8 | 6.5 | 11 | 51.35 | 38 | 39 | 36 | 35 | 16 | 16 | 26 | 25.85 | 100 |
|
| GN 873-40 | 32 | 40 | M 10 | 8.5 | 13 | 61.35 | 48 | 54 | 51 | 39 | 21 | 21 | 38 | 29.35 | 150 |
|
| GN 873-50 | 40 | 50 | M 12 | 10.5 | 16 | 72.35 | 58 | 64 | 61 | 47 | 26 | 26 | 45 | 33.85 | 250 |
|
