GN 872

Clamping Jaws

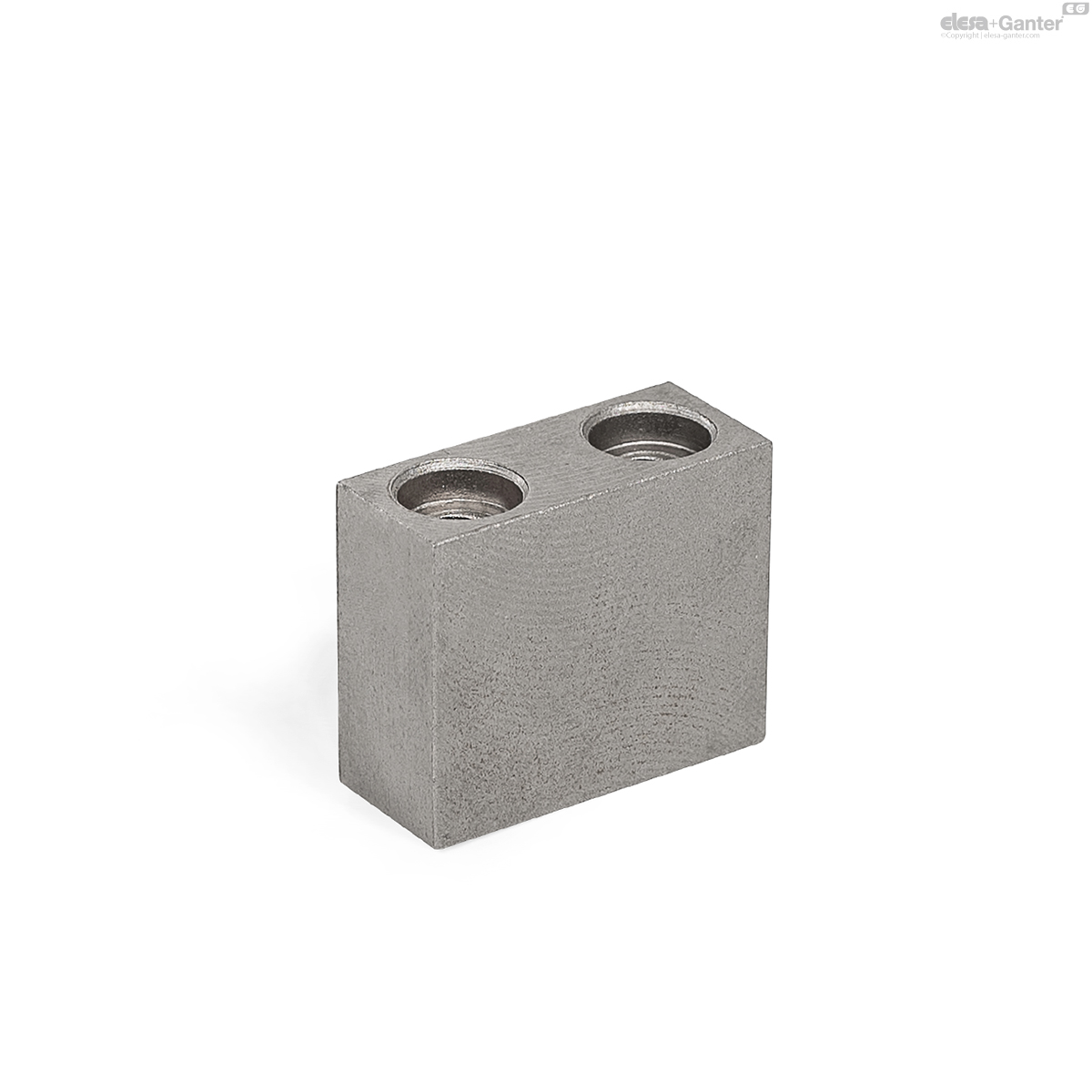

for Power Clamps GN 864 / GN 865 / GN 866, Steel

Enquire Now

Description

Specification

Steel C45

Chemically nickel plated NC

Information

Clamping jaws GN 872 are designed to be modified by the user into individual clamping designs, such as prisms and radii. They are also suitable for welding.

The fastening thread and centering bores are adapted to the dimensions of the clamping arms and static holders to enable quick and easy assembly.

Centering guide bushings GN 870 are not included.

Accessory

Centering Guide Bushings GN 870

Technical information

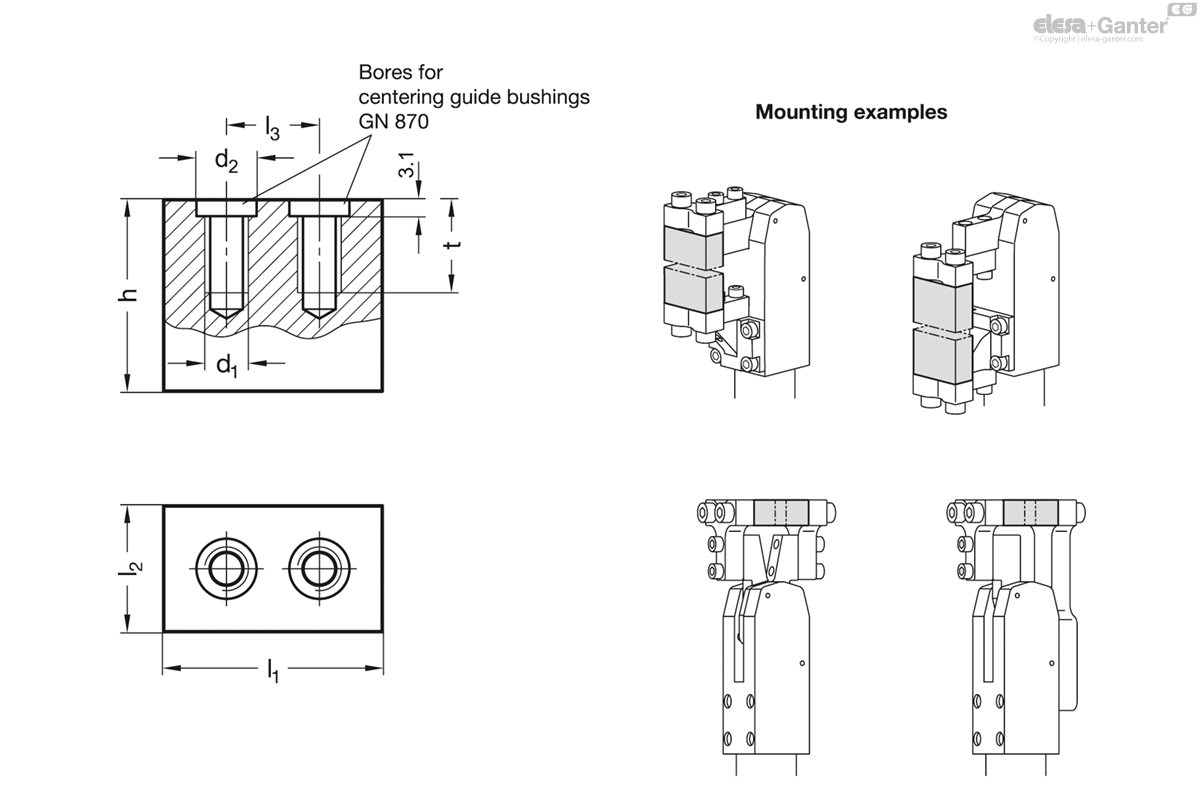

ISO-Fundamental Tolerances

GN 872

	l₁	h	d₁	d₂ H8/h6	l₂	l₃ ±0.01	t
Code									Actions
GN 872-30-25-NC	30	25	M 6	9	13	17	8	80
GN 872-30-50-NC	30	50	M 6	9	13	17	8	150
GN 872-40-35-NC	40	35	M 8	11	17	23	12	180
GN 872-40-70-NC	40	70	M 8	11	17	23	12	370
GN 872-50-45-NC	50	45	M 10	13	20	30	15	350
GN 872-50-80-NC	50	80	M 10	13	20	30	15	620
GN 872-60-50-NC	60	50	M 10	13	20	40	15	470
GN 872-60-85-NC	60	85	M 10	13	20	40	15	800
