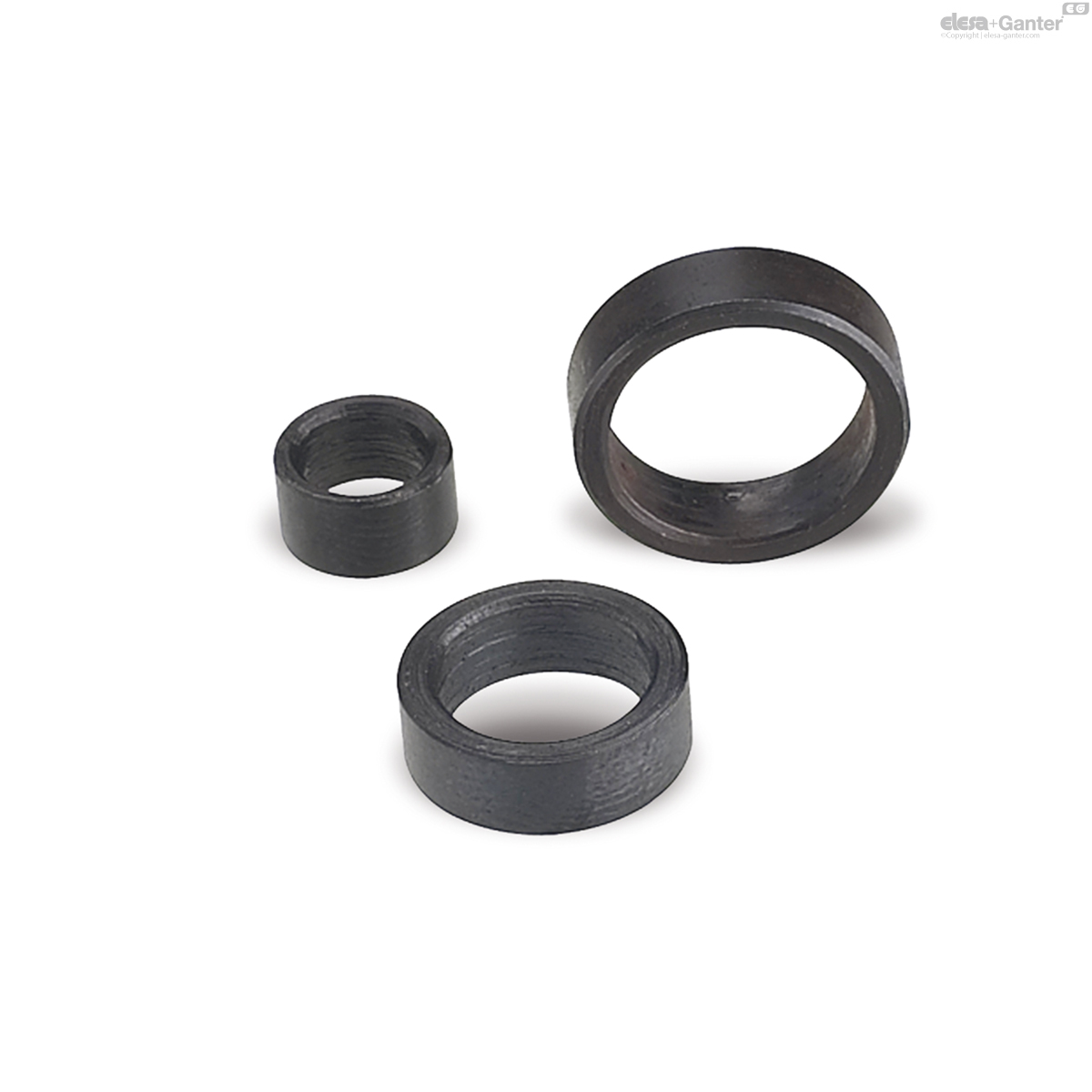

GN 870
Centering guide bushing accessories
for pneumatic fastening clamps
Description
Specification
Steel
blackened
Information
GN 870 centering guide bushing accessories ensure accurate location of the jaw block accessories and static holders, as well as the pneumatic fastening clamps.
At the same time they absorb side thrust and eliminate excessive load on the mounting screws.
Technical Information
- ISO-Fundamental Tolerances -

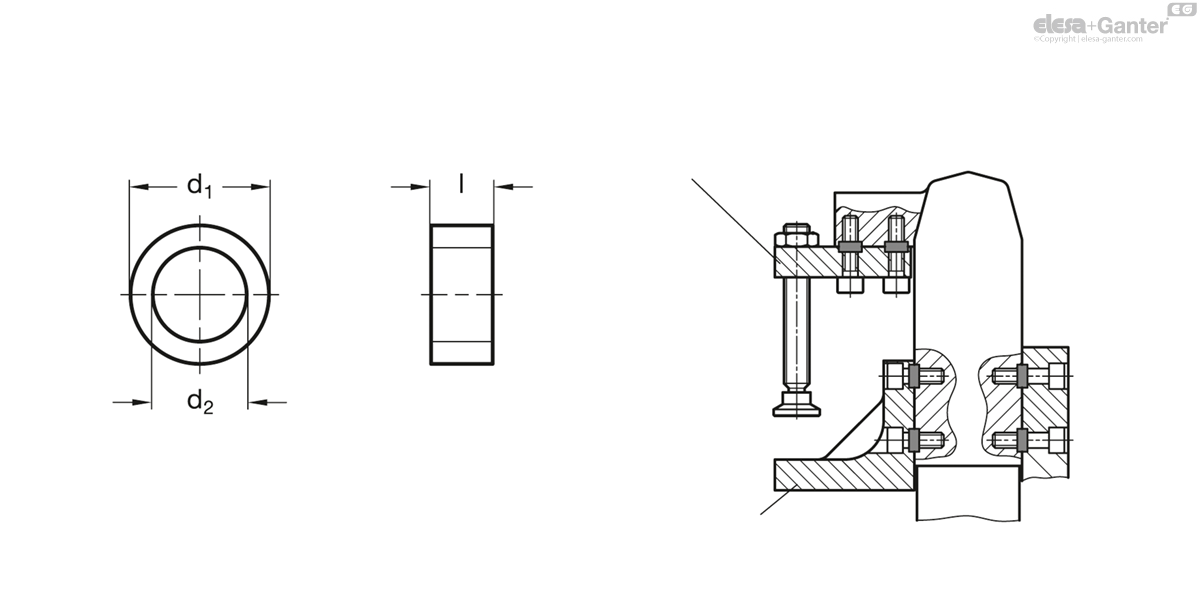

GN 870
| d1 h6 | d2 | l |  |
||
|---|---|---|---|---|---|
| Code | Actions | ||||
| GN 870-7 | 7 | 5.1 | 4 | 1 |
|
| GN 870-9 | 9 | 6.1 | 4 | 1 |
|
| GN 870-11 | 11 | 8.1 | 4 | 1 |
|
| GN 870-13 | 13 | 10.1 | 4 | 2 |
|
