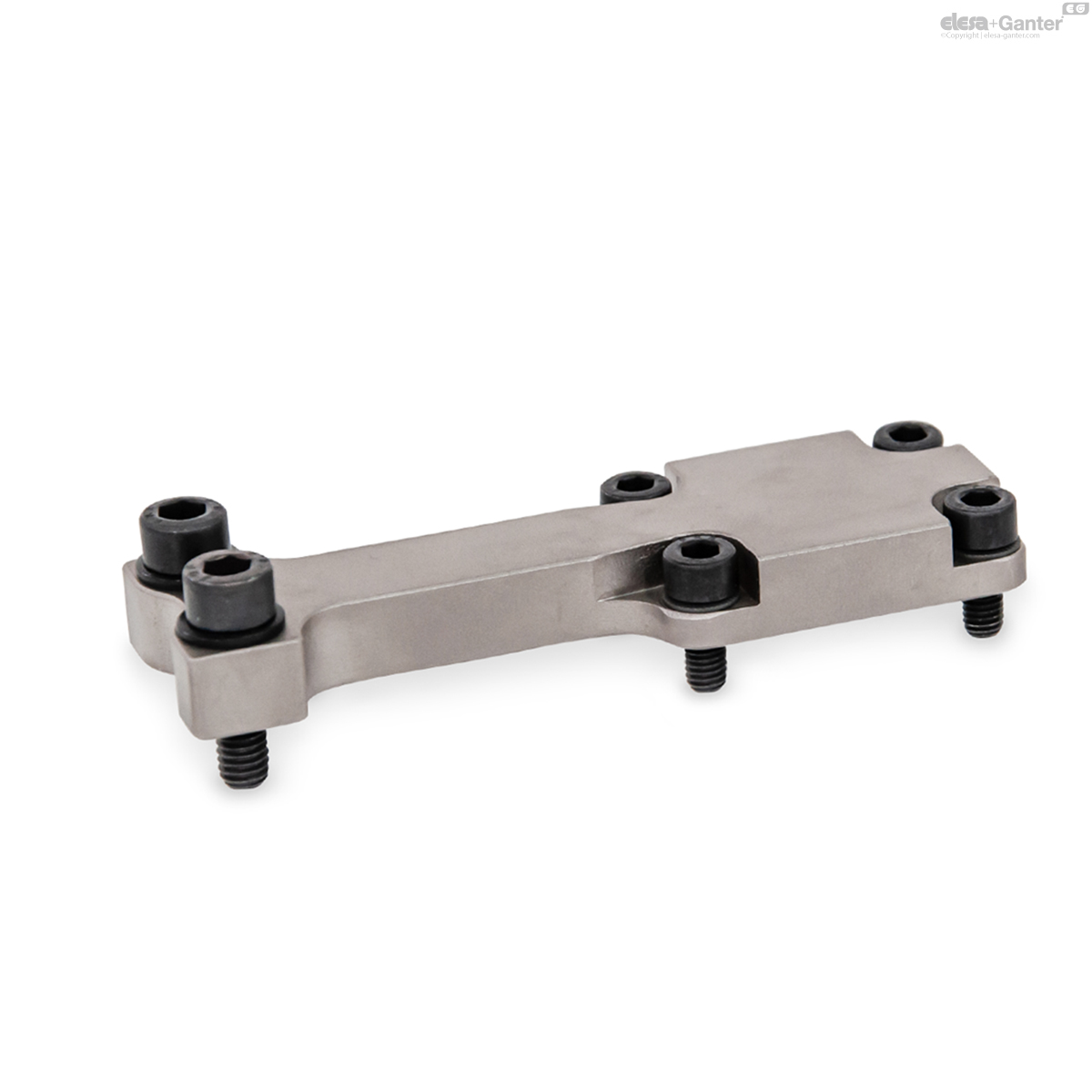

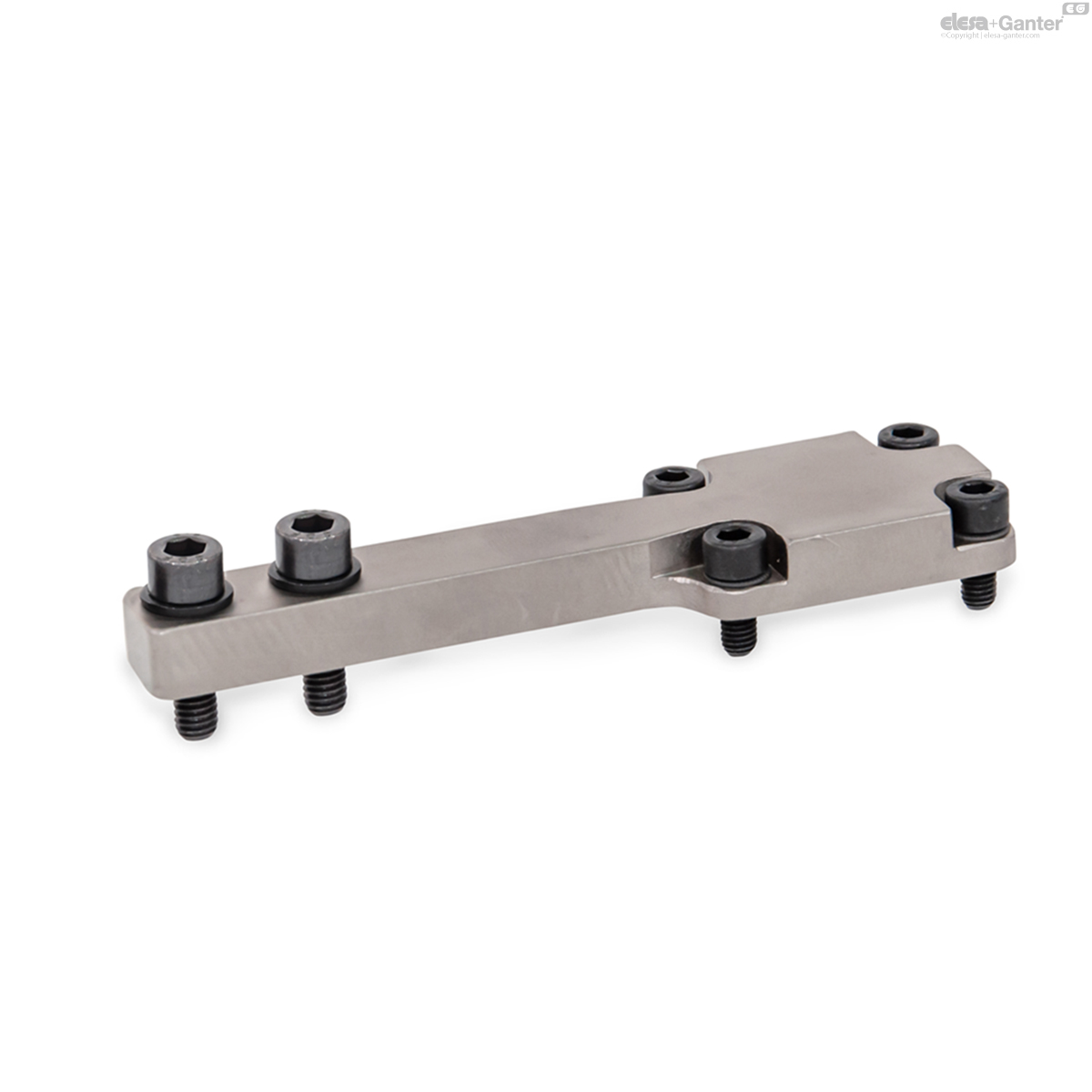

GN 869.2

Holders for Clamping Jaws

Static Holder

Enquire Now

Description

Specification

Steel C 45

Chemically nickel plated NC

Socket cap screws DIN 912

Centering guide bushings

Steel, blackened

Information

Holders for clamping jaws GN 869.2 have been designed for use with power clamps GN 865 .

Holders for clamping jaws are equally precisely positioned on the clamping arm as are the clamping jaws GN 872 on the holders themselves.

Socket cap screws and centering guide bushings are included.

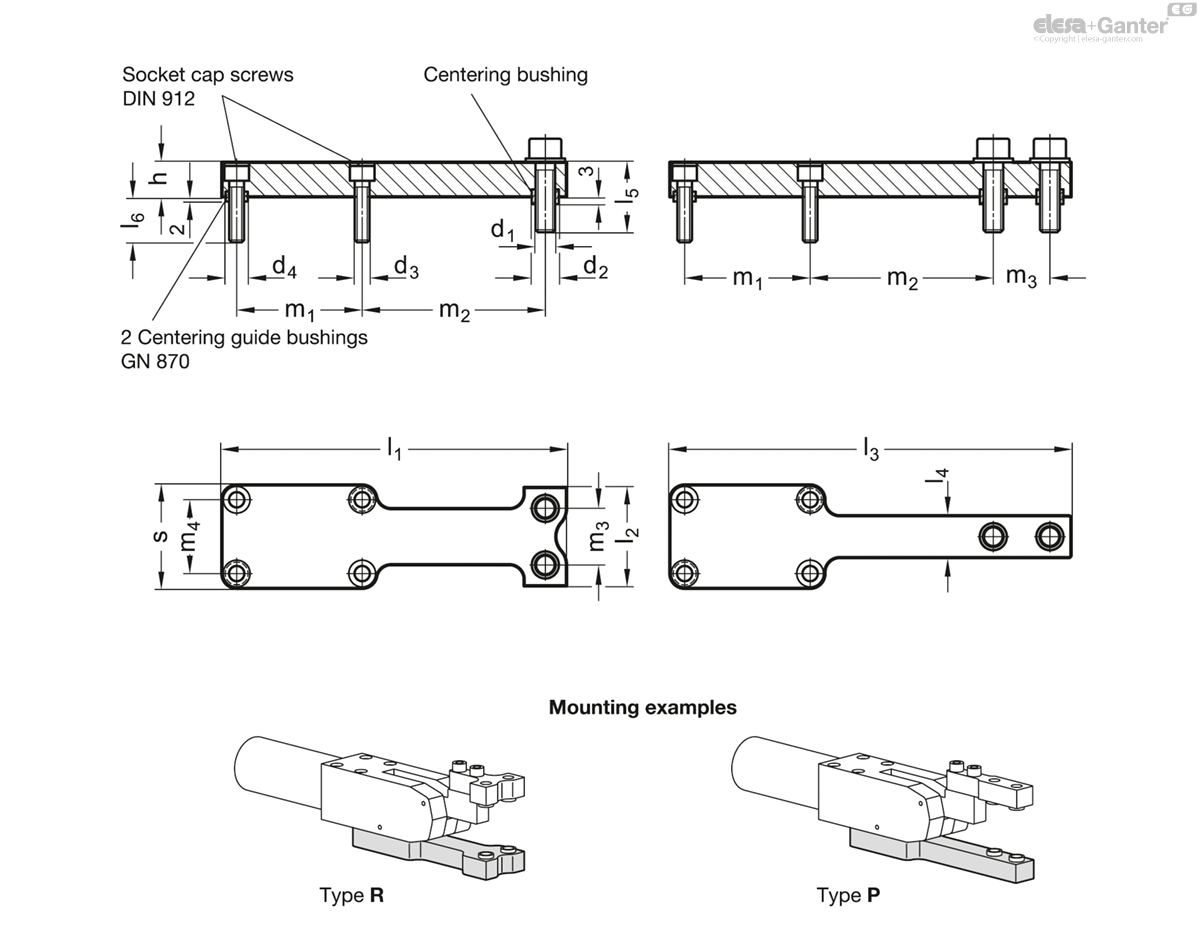

Technical Information

	For power clamps Size	s -0.2	d₁	d₂ H8/h6	d₃	d₄ H8/h6	h	l₁	l₂	l₅	l₆	m₁	m₂	m₃	m₄
Code																	Actions
GN 869.2-32-R-NC	20	32	M 6	9	M 5	7	10	98.5	30	18.5	8	34	53	17	22	150
GN 869.2-42-R-NC	32	42	M 8	11	M 6	9	14	140	40	23.5	8.5	51	74.4	23	30	400
GN 869.2-52-R-NC	40	52	M 10	13	M 8	11	16	168	50	28	12.5	62	88.5	30	37	900
GN 869.2-62-R-NC	50	62	M 10	13	M 10	13	18	192.5	60	28	12.5	71.5	102	40	44	1030
