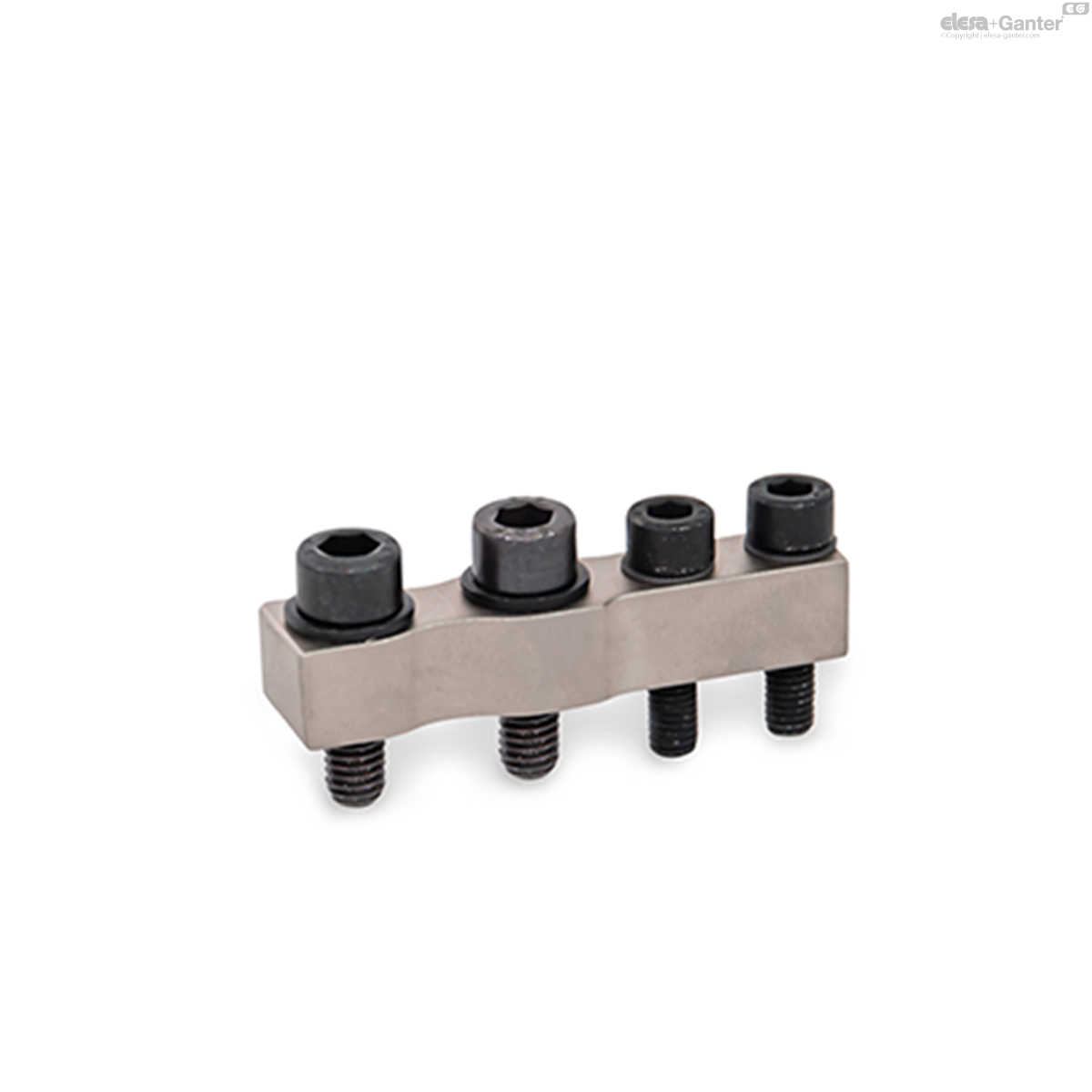

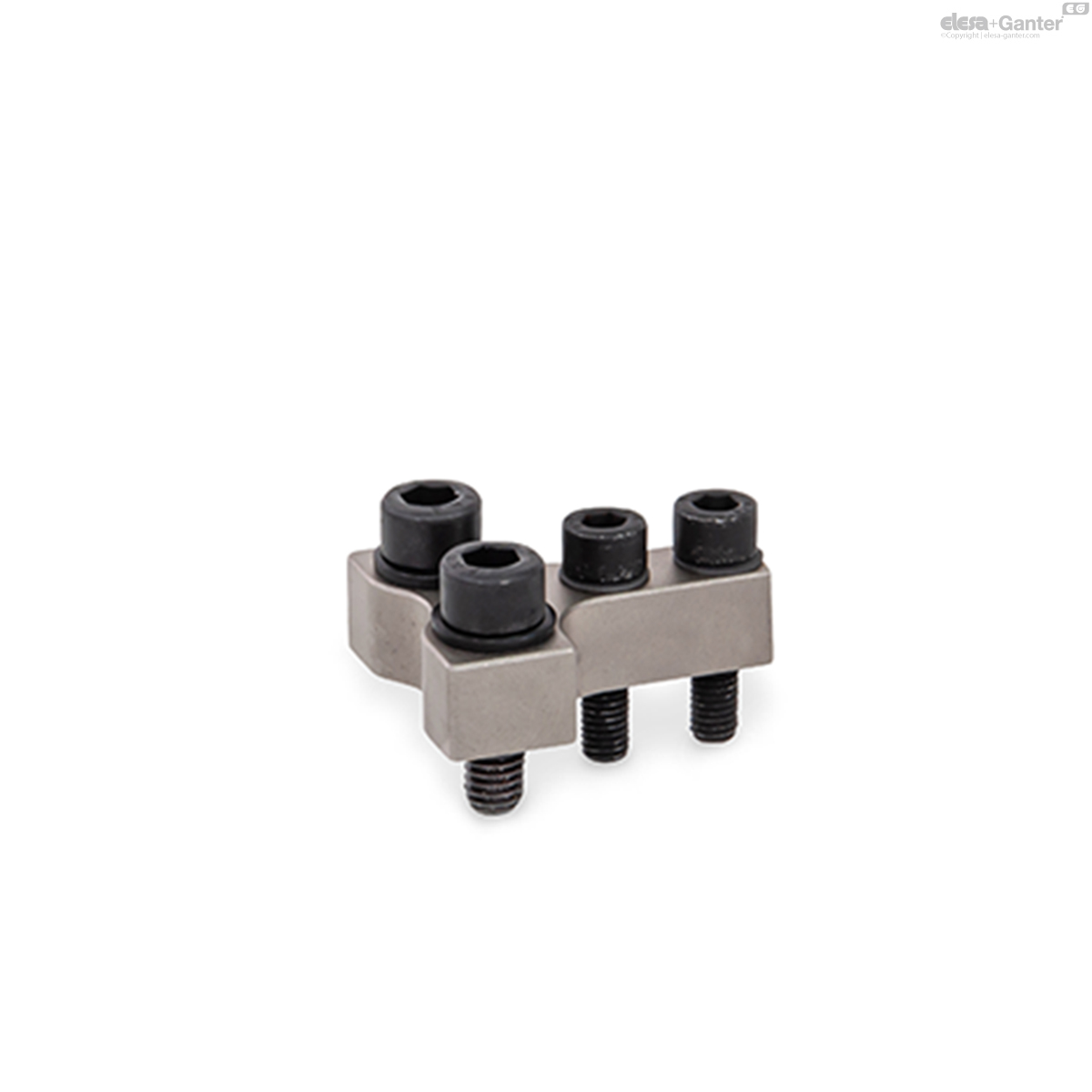

GN 868

Holders for Clamping Jaws

Enquire Now

Description

Specification

Steel C 45

Chemically nickel plated NC

Socket cap screws DIN 912

Centering guide bushings

Steel, blackened

Information

Holders for clamping jaws GN 868 are suitable for the clamping arms of the power clamps GN 864 / GN 865 / GN 866.

Holders for clamping jaws are equally precisely positioned on the clamping arm as are the clamping jaws GN 872 on the holders themselves.

When using type P, power clamps may be operated at up to a maximum of 6 bar.

Socket cap screws and centering guide bushings are included.

Technical Information

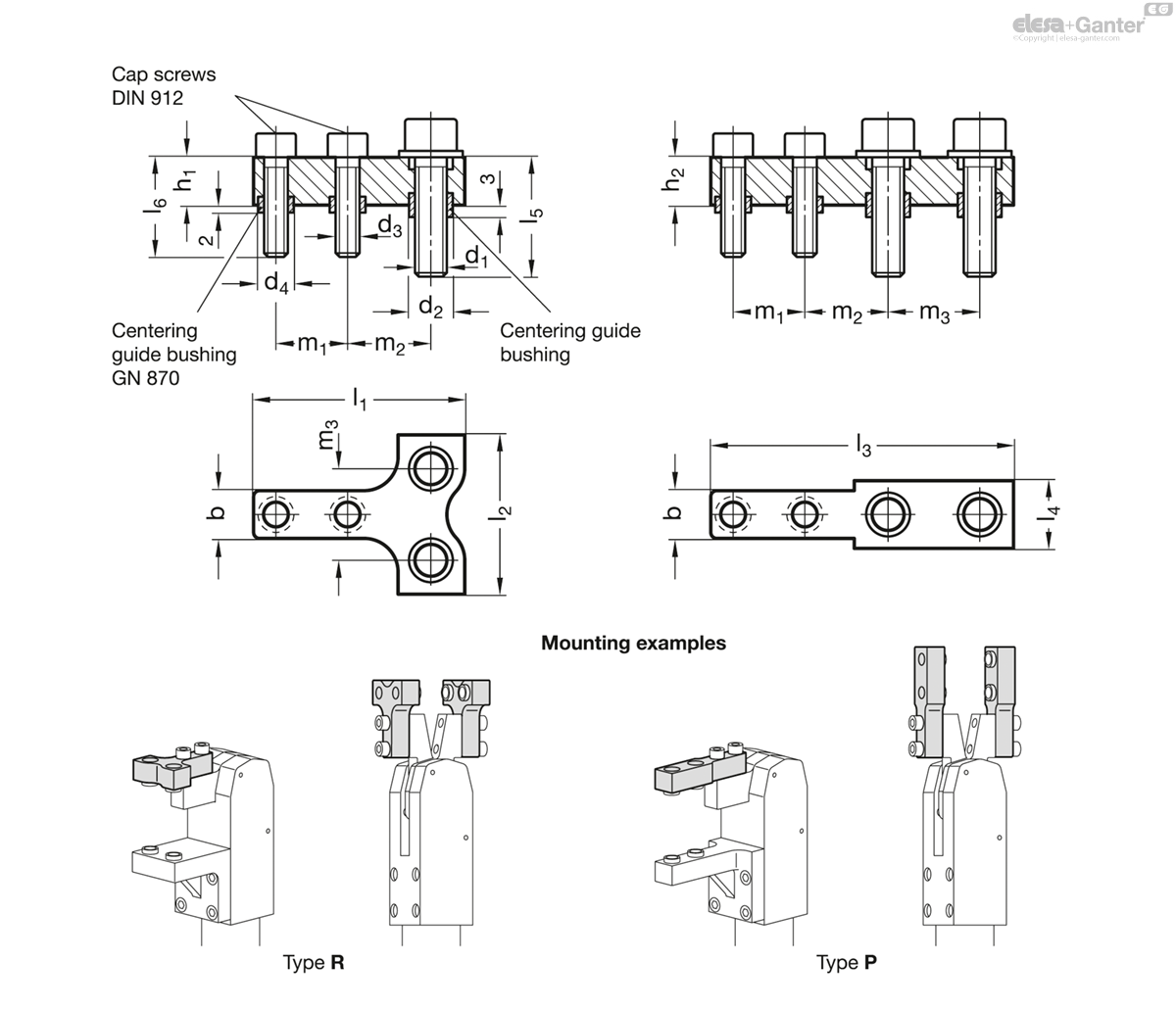

	For power clamps Size	b -0.2	d₁	d₂ H8/h6	d₃	d₄ H8/h6	h₁	l₁	l₂	l₅	l₆	m₁	m₂	m₃
Code																Actions
GN 868-10-R-NC	20	10	M 6	9	M 5	7	10	37	30	18.5	19.5	12	14.5	17	33
GN 868-12-R-NC	32	12	M 8	11	M 6	9	12	53	40	23.5	29.5	18	20.9	23	120
GN 868-16-R-NC	40	16	M 10	13	M 8	11	14	63	50	28	34	22	23.5	30	190
GN 868-18-R-NC	50	18	M 10	13	M 10	13	16	73	60	28	34	27	28.5	40	200
