GN 867

Holders for Clamping Bolts

Enquire Now

GN 867-E

Holders for Clamping Bolts

for one clamping bolt

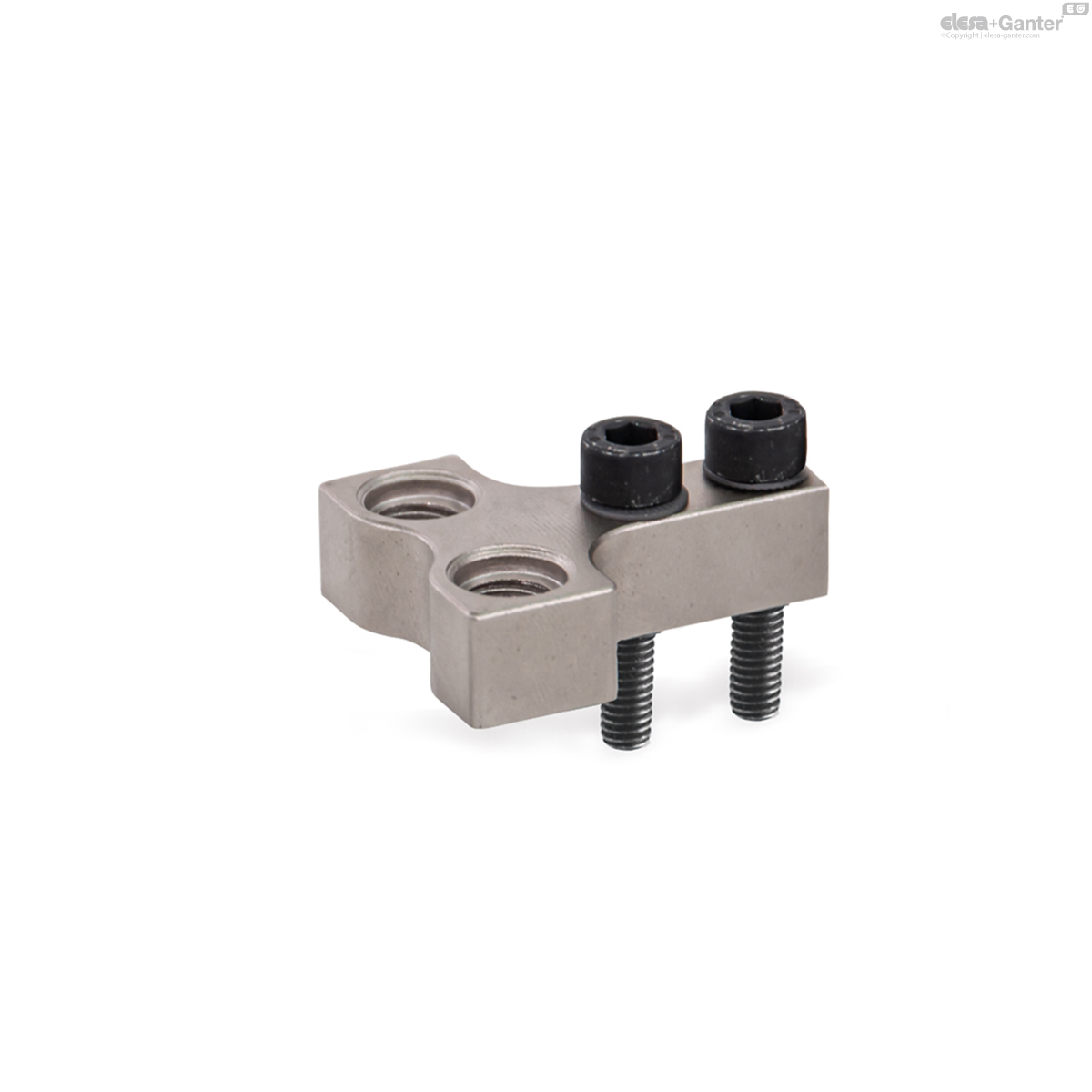

GN 867-Z

Holders for Clamping Bolts

for two clamping bolts

Description

Specification

Types

Type E: For one clamping bolt

Type Z: For two clamping bolts

Steel C 45

Chemically nickel plated NC

Socket cap screws DIN 912

Centering guide bushings

Steel, blackened

Information

Holders for clamping bolts GN 867 are suitable for use on clamping arms of the power clamps GN 864 / GN 865 / GN 866.

Holders for two clamping bolts (type Z) are preferably used in such applications where absolutely rigid clamping of a sheet metal component is essential. For the same purpose ball point screws GN 605 with serrated ball pads are ideally suited.

Socket cap screws and centering guide bushings are included.

Technical Information

ISO-Fundamental Tolerances

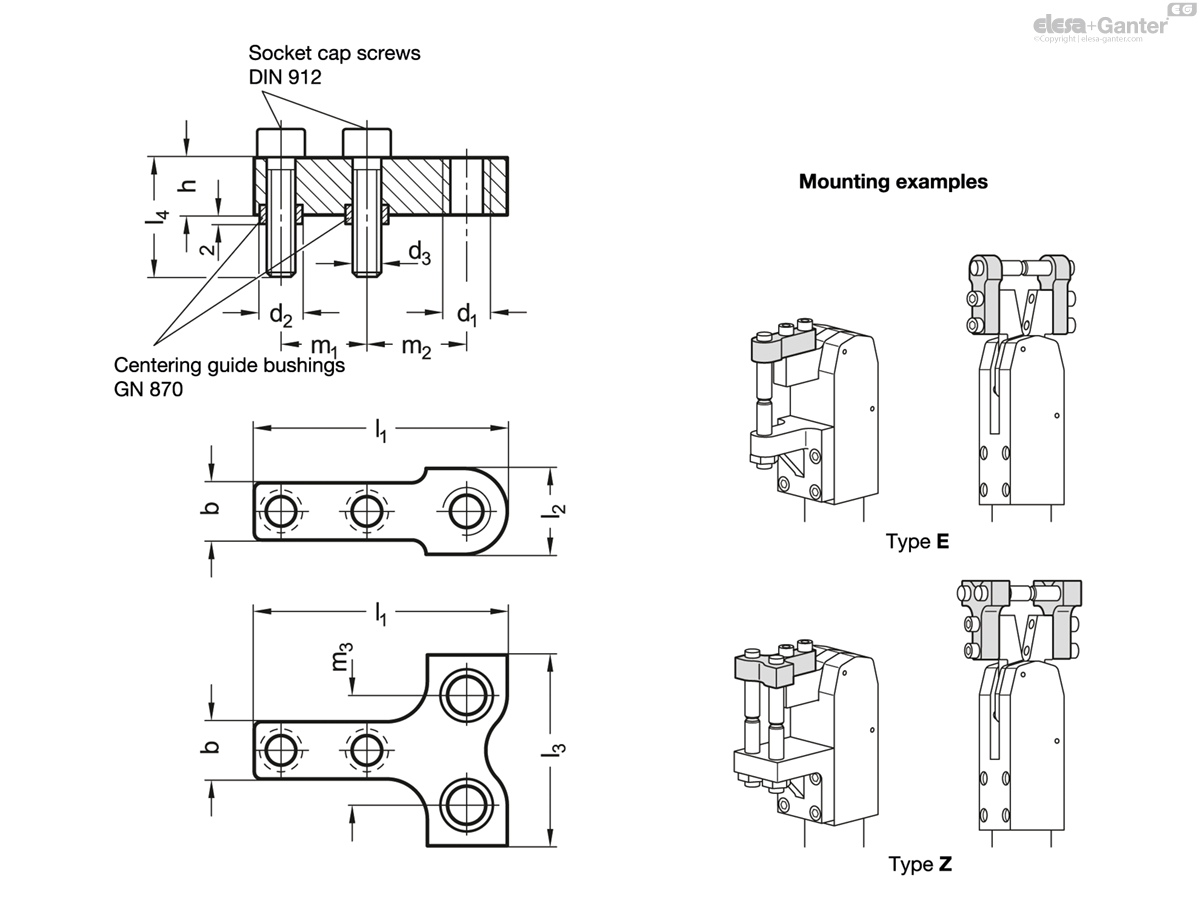

GN 867-E

	For power clamps Size	b -0.2	d₁	d₂ H8/h6	d₃	h	l₁	l₂	l₄	m₁	m₂
Code													Actions
GN 867-10-M8-E-NC	20	10	M 8	7	M 5	10	37	13	19.5	12	14.5	20
GN 867-12-M10-E-NC	32	12	M 10	9	M 6	12	53	17	29.5	18	20.9	90
GN 867-16-M12-E-NC	40	16	M 12	11	M 8	14	63	20	34	22	23.5	110
GN 867-18-M12-E-NC	50	18	M 12	13	M 10	16	73	20	34	27	28.5	130
