GN 864.1

Protective covers

for power clamps GN 864

Enquire Now

Description

Specification

Aluminum

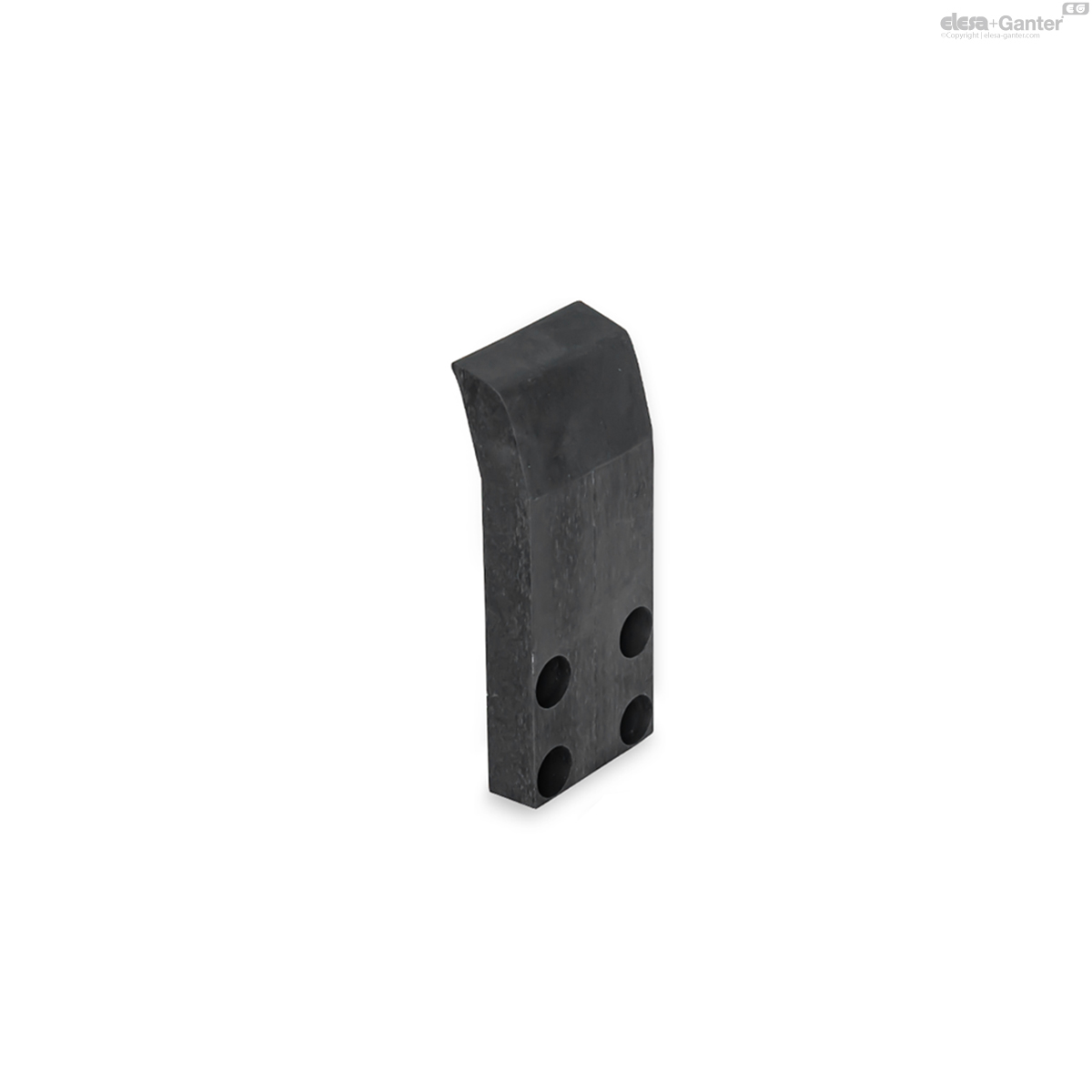

black anodized ES

anti-stick coating, fluoropolymer (PTFE), green FG

Socket cap screws DIN 912,

centering guide bushings

Steel, blackened

Information

Protective covers GN 864.1 are designed for power clamps GN 864 and protect the tensioning mechanism from penetrating dirt by covering the back side of the power clamp.

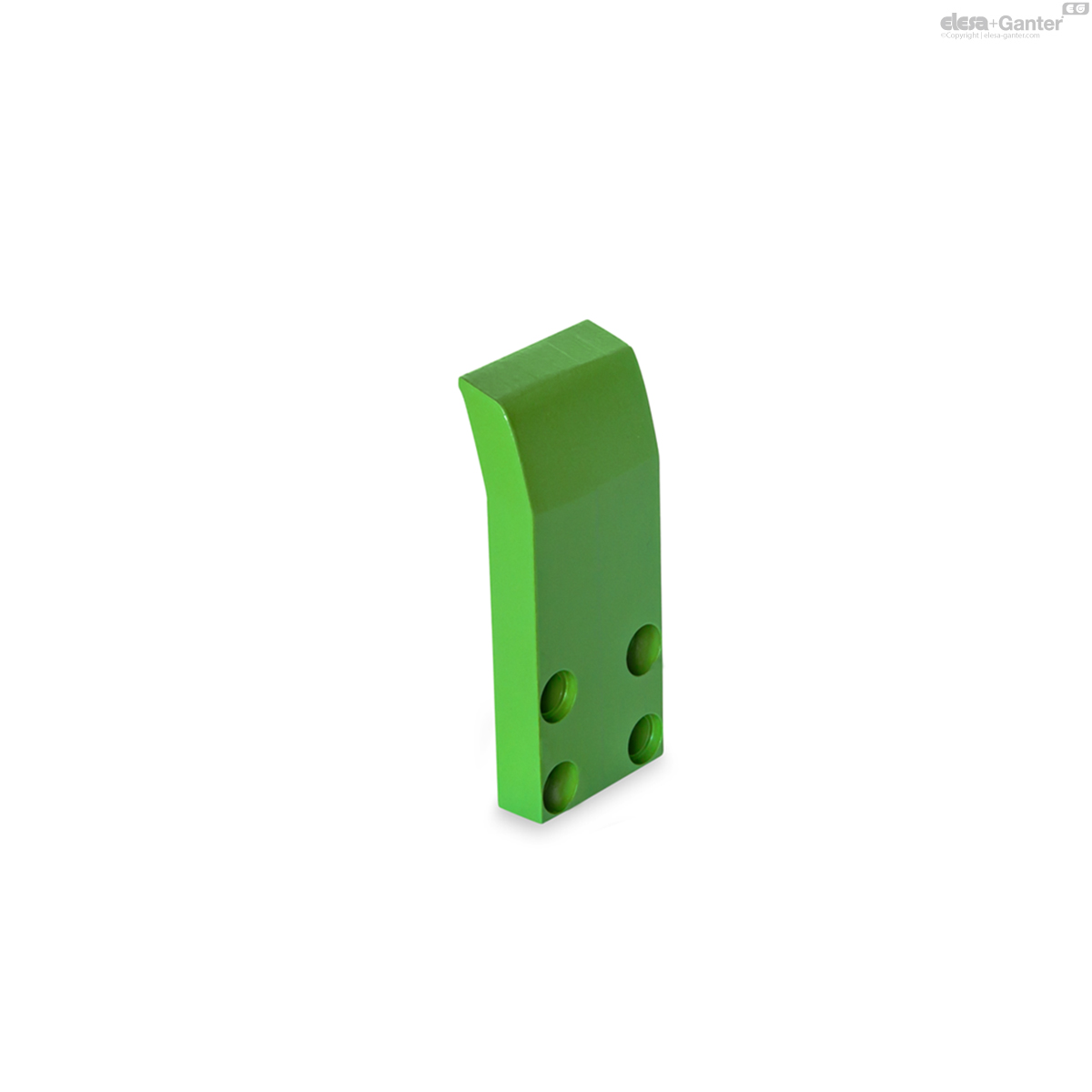

The type FG is equipped with an anti-stick coating of fluoropolymer (PTFE) for protection against welding spray and corrosion.

Socket cap screws and centering guide bushings are included.

Technical information

ISO-Fundamental Tolerances

GN 864.1

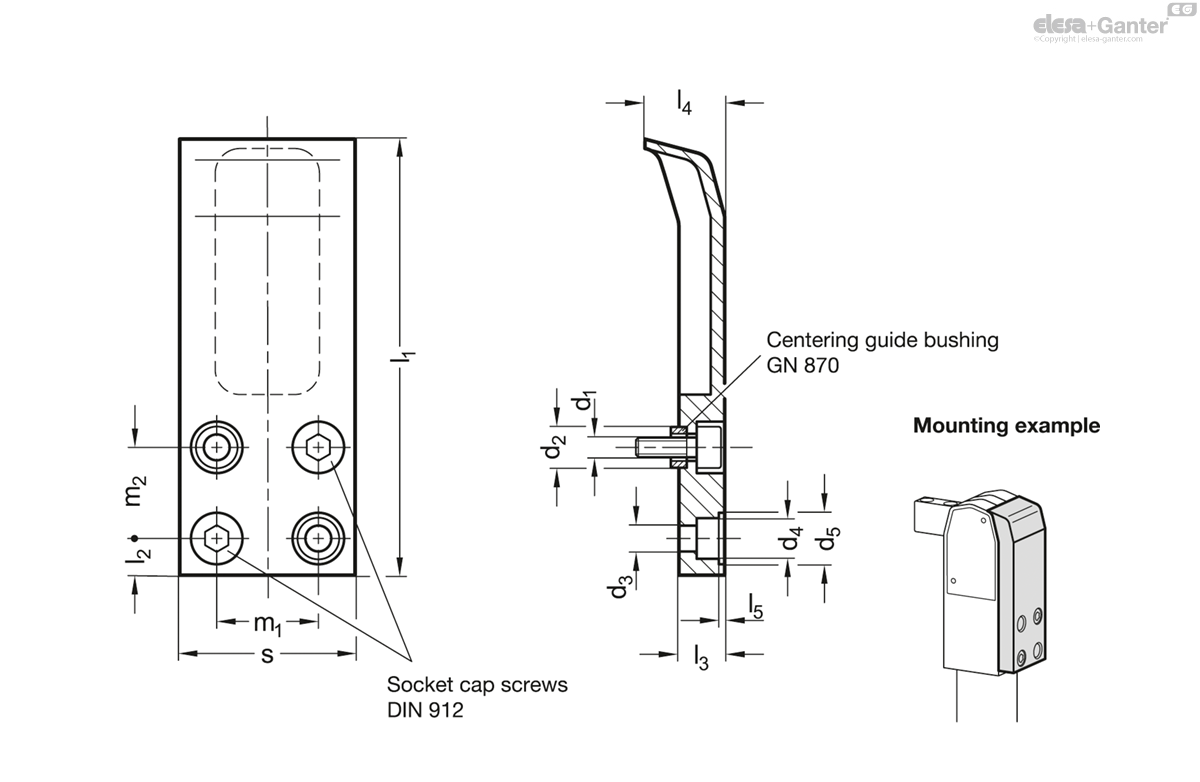

	For power clamps GN 864 Size	s	d₁	d₂ H8/h6	d₃	d₄	d₅	l₁	l₂	l₃	l₄	l₅	m₁	m₂
Code																Actions
GN 864.1-32-ES	20	32	M5	7	5.5	7	9	76	5	10	15.5	2.1	22	17	57
GN 864.1-32-FG	20	32	M5	7	5.5	7	9	76	5	10	15.5	2.1	22	17	57
GN 864.1-42-ES	32	42	M6	9	6.5	9	11	109	6.5	12	20	2.1	30	25	105
GN 864.1-42-FG	32	42	M6	9	6.5	9	11	109	6.5	12	20	2.1	30	25	105
GN 864.1-52-ES	40	52	M8	11	8.5	11	13	131	7.5	14	23	2.1	37	30	230
GN 864.1-52-FG	40	52	M8	11	8.5	11	13	131	7.5	14	23	2.1	37	30	230
GN 864.1-62-ES	50	62	M10	13	10.5	13	16	162	9	16	27	3.1	44	47	639
GN 864.1-62-FG	50	62	M10	13	10.5	13	16	162	9	16	27	3.1	44	47	639
