GN 862

Pneumatic Toggle Clamps

with Vertical Mounting Base

Enquire Now

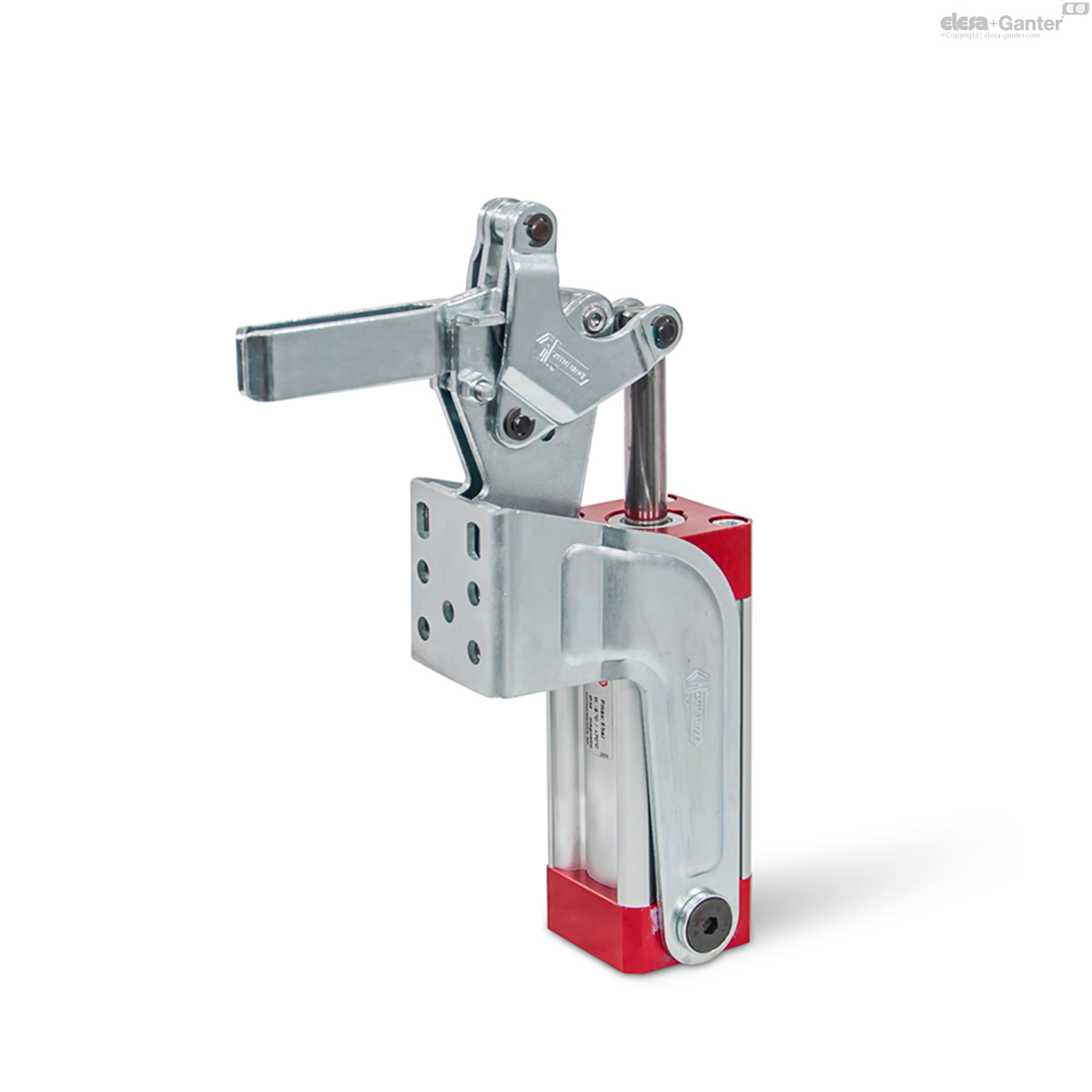

GN 862-APV

Pneumatic Toggle Clamps

Forked clamping arm, with two flanged washers

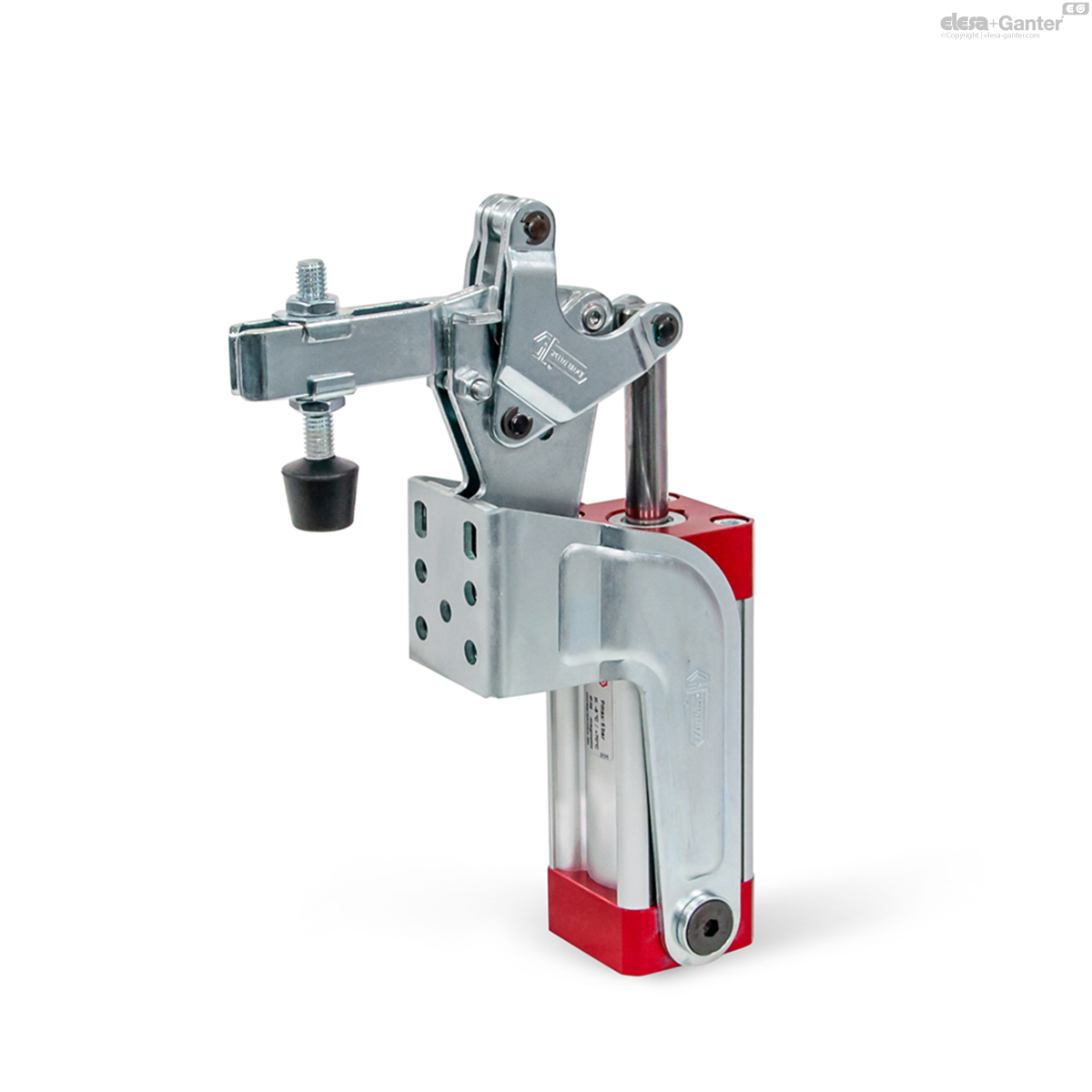

GN 862-CPV

Pneumatic Toggle Clamps

Forked clamping arm, with two flanged washers and clamping screw GN 708.1

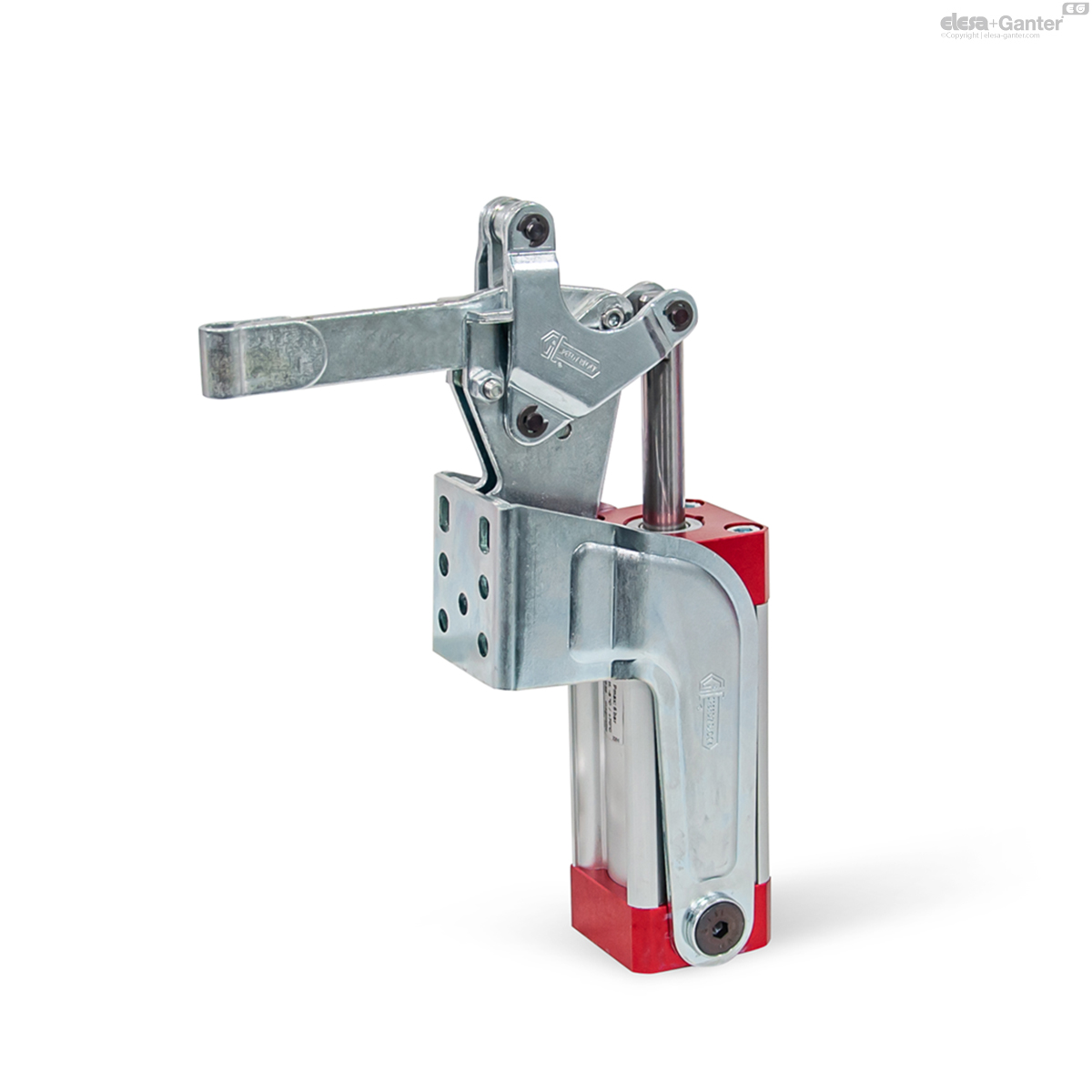

GN 862-EPV

Pneumatic Toggle Clamps

Solid clamping arm, with clasp for welding

Description

Specification

Types

Type APV: Forked clamping arm, with two flanged washers

Type CPV: Forked clamping arm, with two flanged washers and clamping screw GN 708.1

Type EPV: Solid clamping arm, with clasp for welding

Coding

Coding M: Magnetic piston

Sheet metal parts

Case-hardened steel C10

Zinc plated, blue passivated

Bearing pins hardened

Bearing rivets

Case-hardened

Air cylinder bearing pins

Case-hardened

Double-action air cylinder

Max. pressure 6 bar

All moving parts

Lubricated with special grease

Clamping screw GN 708.1, type A

Steel, zinc plated, blue passivated

Rubber thrust pad 85 Shore A

Information

The clamping principle of toggle clamps GN 862 is identical in construction and dimensions to the manually operated vertical toggle clamps GN 812.

To ensure an extended life of the mechanical parts as well as the air cylinders the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.

Toggle clamps GN 862 have a permanent magnet integrated into the piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.

Technical information

General information for toggle clamps

List of pneumatic clamps

Accessory

Clamping Screws

Holders for Clamping Screws GN 801 (for Type AP)

Holders for Clamping Screws GN 809 (for Type EP)

Sensor GN 3380

GN 862-APV

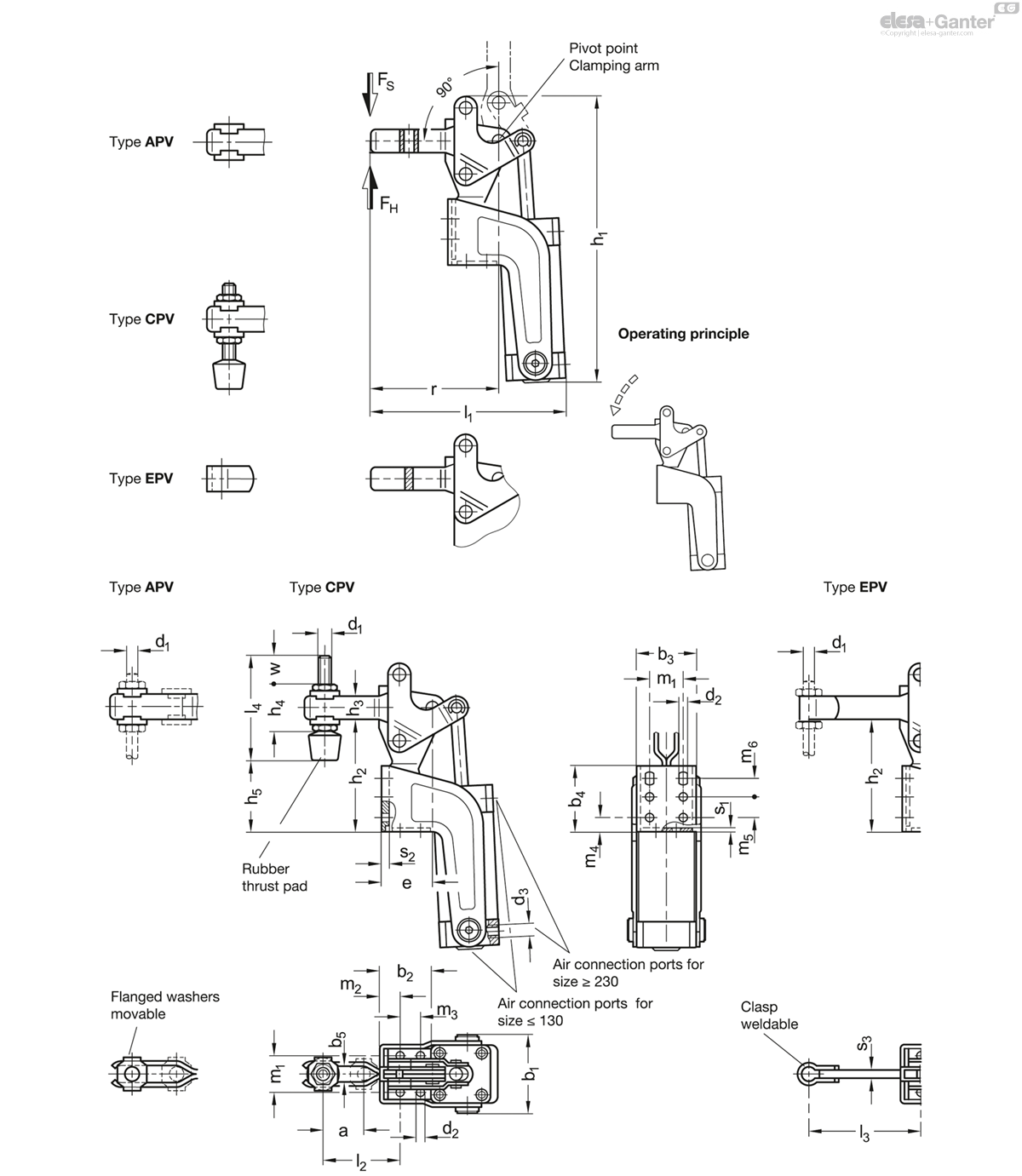

	Size	F_H in N	F_S in N	a	b₁	b₂	b₃	b₄	b₅	d₁	d₂	d₃	Inside Ø connection tube	e	h₁ ≈	h₂	h₃	l₁ ≈	l₂ ≈	m₁	m₂	m₃	m₄	m₅	m₆	r ≈
Code																												Actions
GN 862-75-APV-M	75	750	570	20	47	25.5	40	30	5.2	M 5	4.5	M 5	4	28	154	43	11	99	36.5	24	8.5	12.5	10	12.5	-	62.5	500
GN 862-130-APV-M	130	1100	610	28	51	33	47	49	6.2	M 6	5.6	G 1/8	4	38	167	70	16	118	47	27	13	12.5	16	12.5	12.5	79	750
GN 862-230-APV-M	230	2200	1260	40	58	38	46	51	8.5	M 8	6.5	G 1/8	4	41.5	218	87	18	153	67	26	14	16	11	16	14.2	104	1250
GN 862-330-APV-M	330	2600	1800	45	70	52.5	56	79	10.5	M 10	8.5	G 1/4	6	52.5	263	108	22	182	72	30	16	28	19	30	20	121	2200
