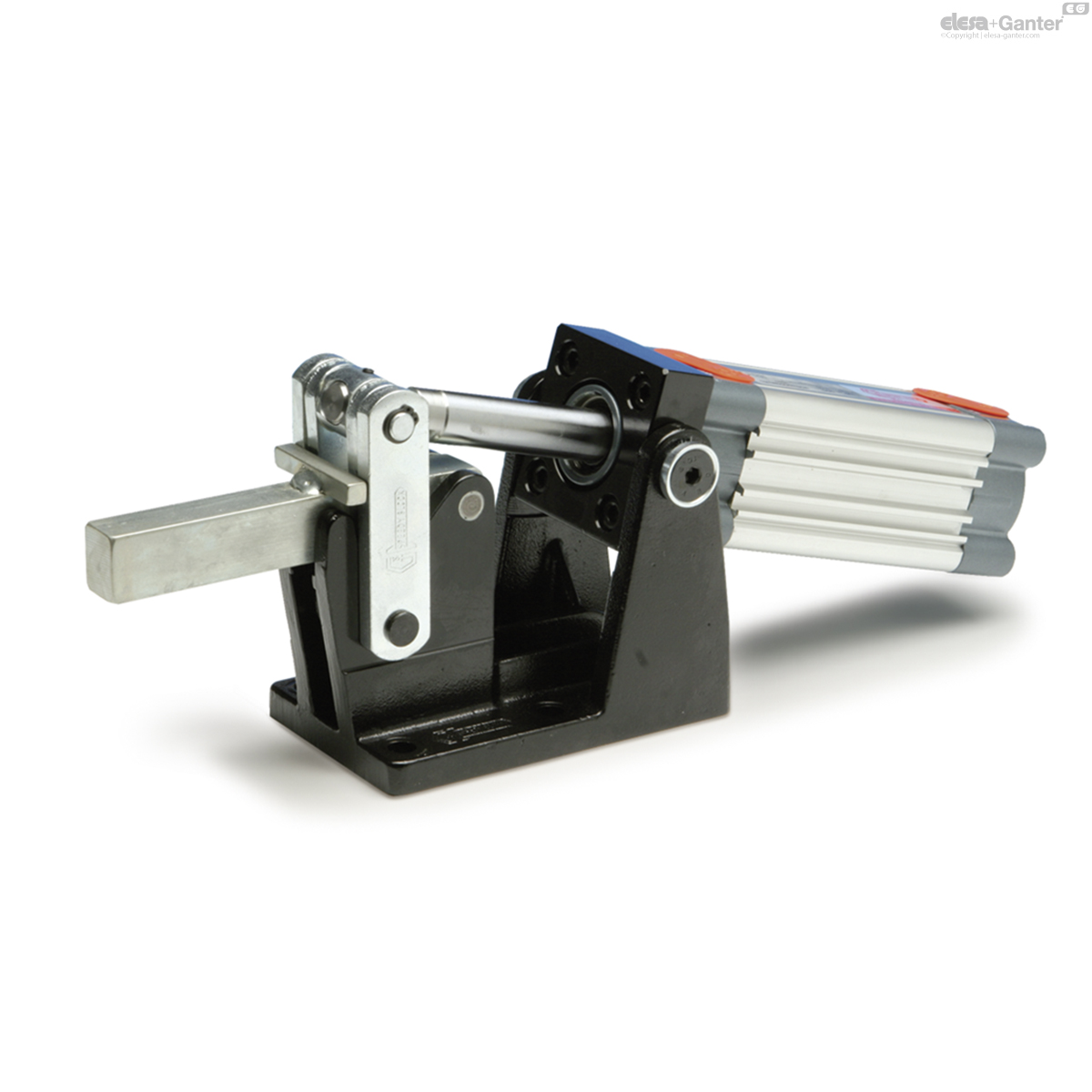

GN 861

Toggle Clamps

Steel, Pneumatic, Heavy Duty

Enquire Now

Description

Specification

Type

Type EP: Solid clamping arm, with clasp for welding

Coding

Coding M: Magnetic piston

Base

Cast steel

Black lacquered

Other parts

Steel St 60

Zinc plated, blue passivated

Bearing pins

Case-hardened

Double-action air cylinder

with adjustable cushioning

Max. pressure 6 bar

All moving parts

Lubricated with special grease

Information

Toggle clamps GN 861 have been constructed in such a way as to make them easy to unmount. The bearing pins are axially fixed with circlips. This allows the clamping arm to be modified to suit any particular application.

To ensure an extended life of the mechanical parts as well as the air cylinders, the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.

Toggle clamps GN 861 have a magnetic piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.

General information for toggle clamps

Technical information

List of Pneumatic Clamps

Accessory

Sensor GN 3380

GN 861

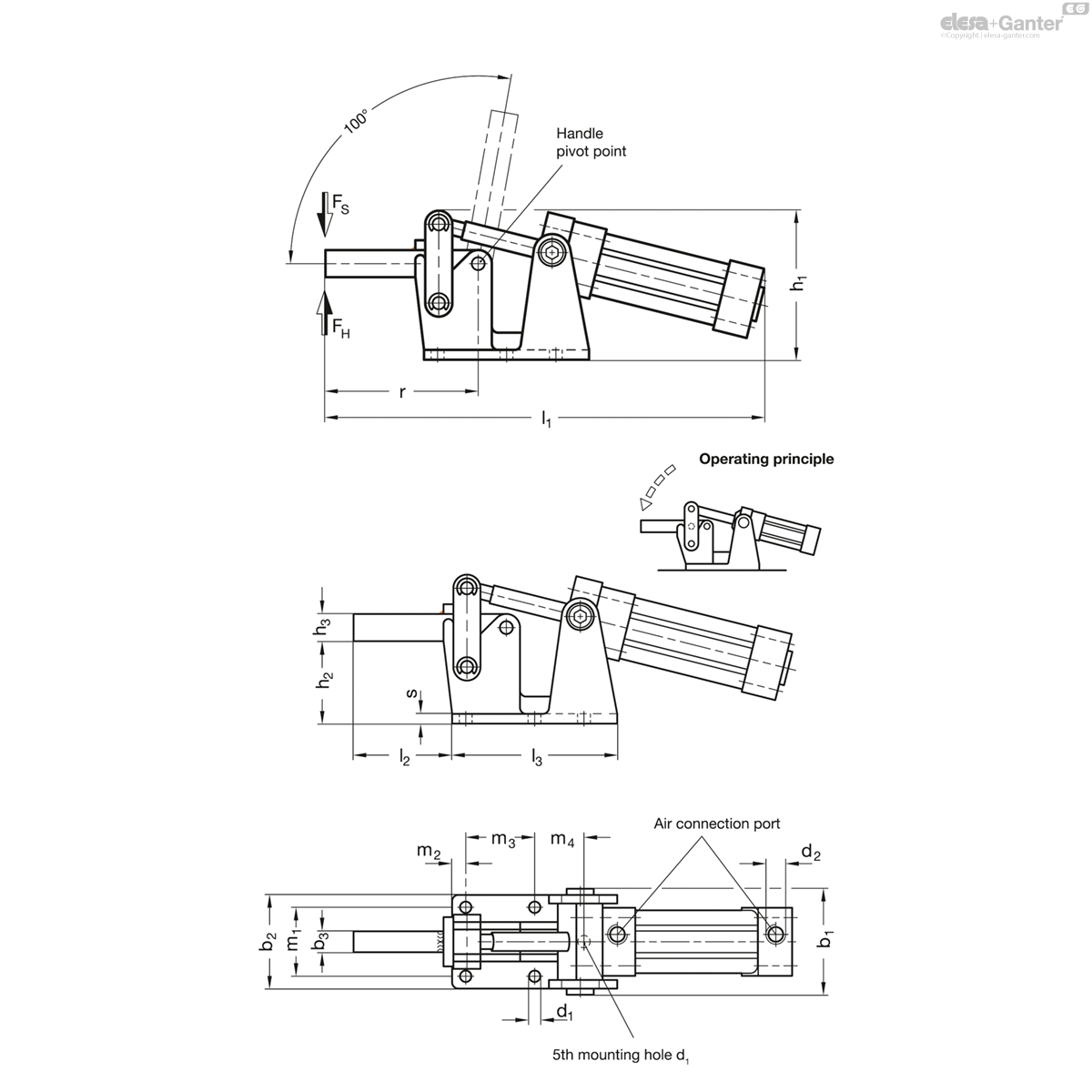

	F_H in N	Size	F_S in N	F_H in N Clamping force at 4 bar ≈	b₁	b₂	b₃	d₁	d₂	Inside Ø connection tube	h₁ ≈	h₂	h₃	l₁ ≈	l₂ ≈	l₃ ≈	m₁	m₂	m₃	m₄	r ≈	s
