GN 852.1

Vertical hook type toggle clamps

heavy duty type

Enquire Now

Description

Specification

Types

Type T: with mounting holes, without U-bolt latch, with catch

Type T3: with mounting holes, with U-bolt latch, with catch

Type TS: for welding, without U-bolt latch, with catch

Type T3S: for welding, with U-bolt latch, with catch

Base / operating handle

Steel C22

forged

blackened

Catch

Sheet metal

blackened

U-bolt latch / bearing pins

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

Information

The U-bolt latch of GN 852.1 vertical hook type toggle clamps is adjustable within the adjusting range.

Once in the clamping position, the latch bolt is perpendicular to the clamping arm and to the mounting base of the toggle clamp.

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.2 series.-

General information for toggle clamps -

GN 852.1

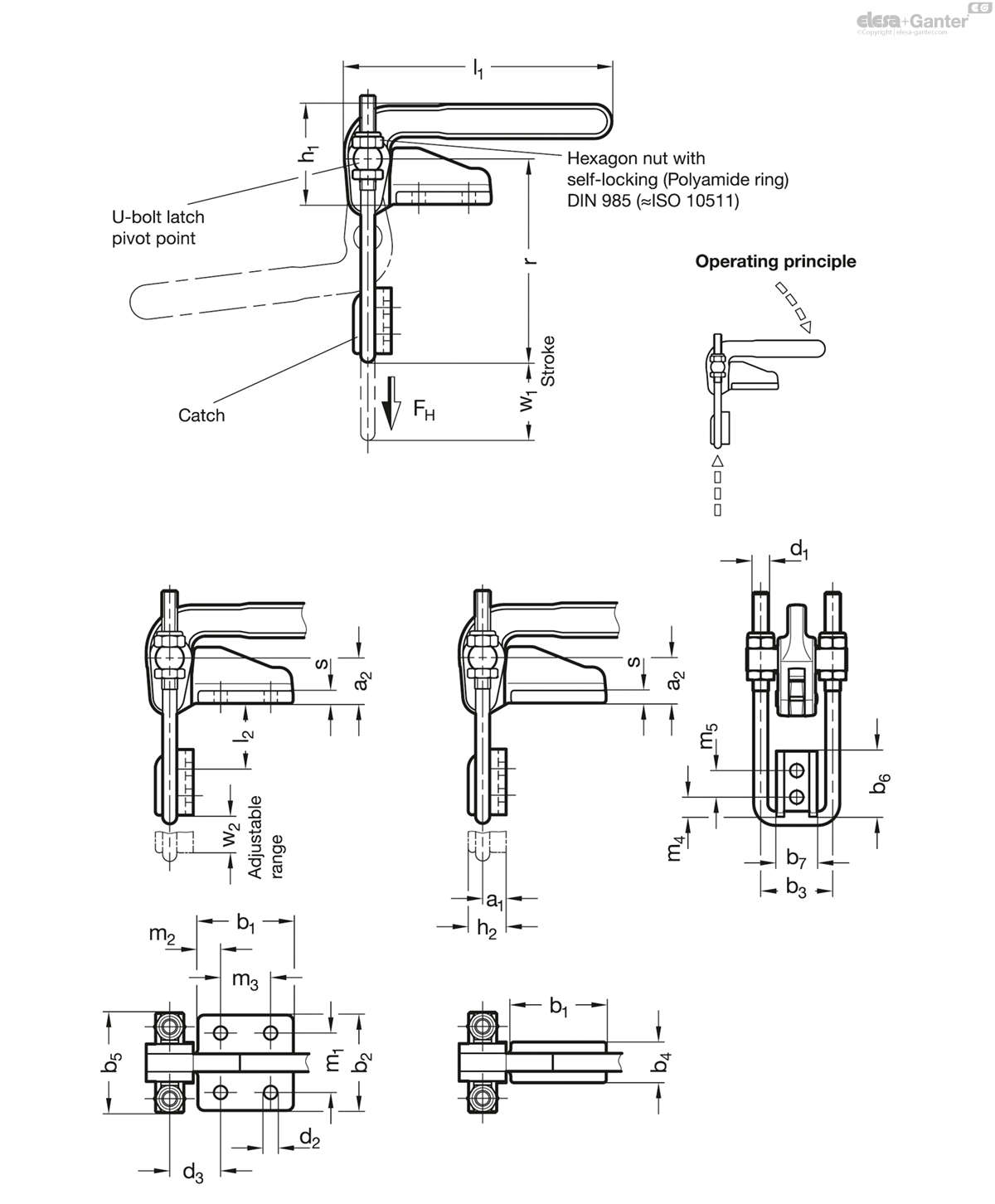

	Size	F_H in N	F_h in N	a₁	a₂	b₁	b₂	b₃	b₄	b₅	b₆	b₇	d₁	d₂	d₃	h₁ ≈	h₂	l₁ ≈	l₂ min.	m₁	m₂	m₃	m₄	m₅	r ≈	s	w₁	w₂ ≈
Code																														Actions
GN 852.1-1400-T	1400	12000	12000	-	29	61	61	46	-	64	42	26	-	8.5	32.5	64	24	171	-	38	14.5	32	12.5	17	-	8	-	-	954
GN 852.1-1400-T3	1400	12000	12000	15	29	61	61	46	-	64	42	26	M10	8.5	32.5	64	24	171	42	38	14.5	32	12.5	17	109	8	50	22	1045
GN 852.1-1400-T3S	1400	12000	12000	-	29	61	-	46	26	64	42	26	M10	-	-	64	24	171	42	-	-	-	12.5	17	109	8	50	22	1018
GN 852.1-1400-TS	1400	12000	12000	15	29	61	-	46	26	64	42	26	-	-	-	64	24	171	-	-	-	-	12.5	17	-	8	-	-	838
