GN 851
Horizontal latch type toggle clamps
Steel / Stainless Steel, for pulling action
GN 851
Horizontal latch type toggle clamps
Steel
GN 851-NI
Horizontal latch type toggle clamps
Stainless Steel
Description
Specification
Types
- Type T2: with U-bolt latch, with catch
- Type T: without U-bolt latch, with catch

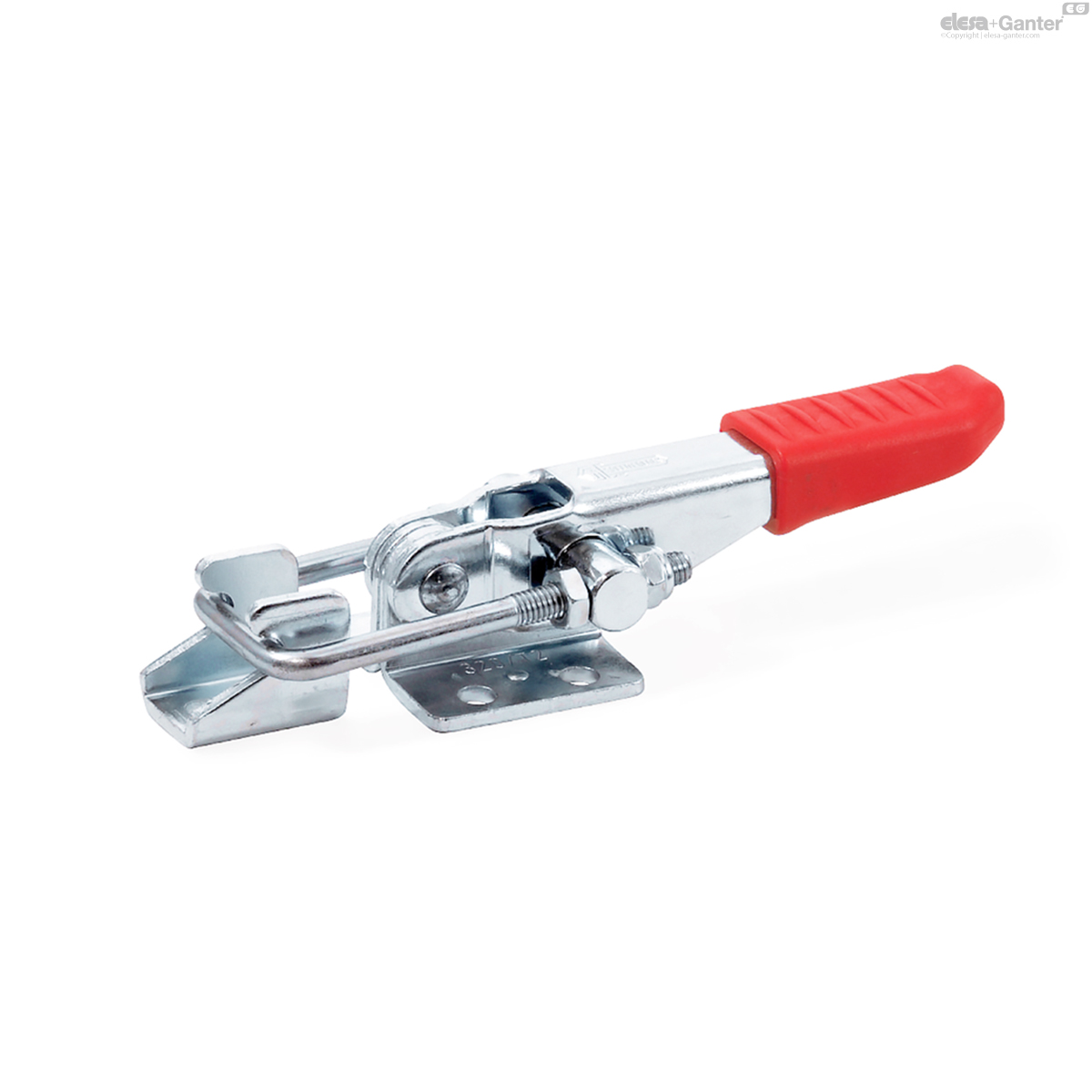

Version in Steel
Case-hardened Steel C10
zinc plated, blue passivated
U-bolt latch
Steel St 37
zinc plated, blue passivated
All moving parts
lubricated with special grease
Handle with plastic sleeve
red, oil resistant

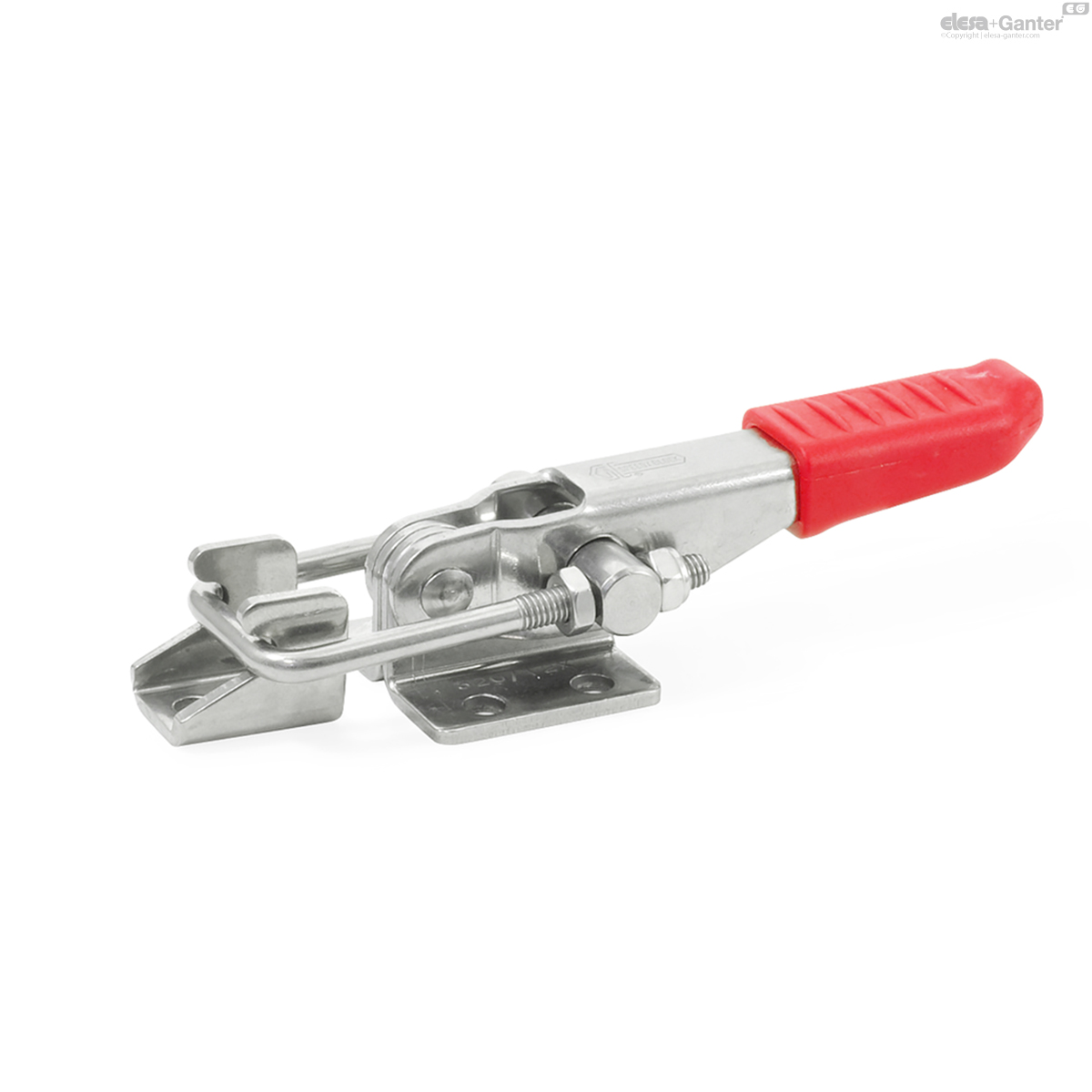

Version in Stainless Steel NI
Parts in sheet metal / U-bolt latch
Stainless Steel AISI 304
Pin
Stainless Steel AISI 303
All moving parts
lubricated with special grease
Handle with plastic sleeve
red, oil resistant
Information
The stroke of the U-bolt latch of GN 851 latch type toggle clamps can be adjusted within its range.
In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.
In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.1 series.
- General information for toggle clampsÂ
Technical information
- Stainless Steel characteristicsÂ
GN 851

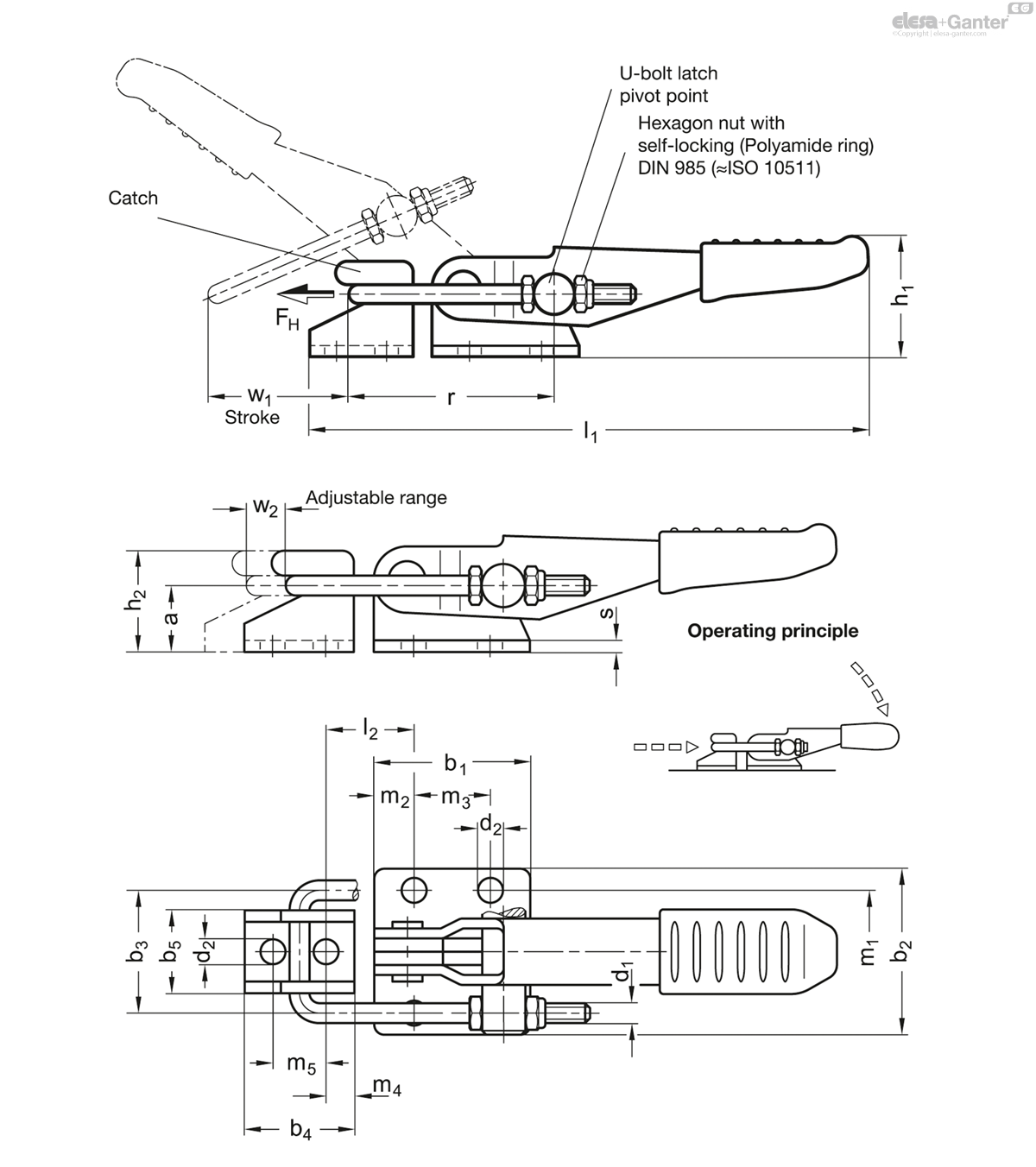

| Size | FH in N | a | b1 | b2 | b3 | b4 | b5 | d1 | d2 | h1 ≈ | h2 | l1 ≈ | l2 min. | m1 | m2 | m3 | m4 | m5 | r ≈ at w2 |
s | w1 Stroke | w2 ≈ Adjustable range |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||||||||||||
| GN 851-160-T | 160 | 1600 | 12 | 26 | 28 | 21 | 20 | 14 | M 4 | 4.3 | 26 | 18 | - | - | 19 | 5 | 16 | 5 | 10 | - | 2 | - | - | 72 |
|
| GN 851-160-T2 | 160 | 1600 | 12 | 26 | 28 | 21 | 20 | 14 | M 4 | 4.3 | 26 | 18 | 98 | 11 | 19 | 5 | 16 | 5 | 10 | 35 | 2 | 25 | 11 | 84 |
|
| GN 851-320-T | 320 | 3200 | 16 | 40 | 44 | 32 | 28 | 22 | M 6 | 6.5 | 30 | 25 | - | - | 32 | 10.5 | 19 | 7 | 14.3 | - | 3 | - | - | 225 |
|
| GN 851-320-T2 | 320 | 3200 | 16 | 40 | 44 | 32 | 28 | 22 | M 6 | 6.5 | 30 | 25 | 152 | 19 | 32 | 10.5 | 19 | 7 | 14.3 | 54 | 3 | 48 | 13 | 262 |
|
| GN 851-700-T | 700 | 7500 | 24 | 60 | 54 | 38 | 38 | 26 | M 8 | 8.5 | 42 | 36 | - | - | 38 | 9.5 | 41.5 | 9.5 | 19 | - | 3.5 | - | - | 528 |
|
| GN 851-700-T2 | 700 | 7500 | 24 | 60 | 54 | 38 | 38 | 26 | M 8 | 8.5 | 42 | 36 | 220 | 21 | 38 | 9.5 | 41.5 | 9.5 | 19 | 70 | 3.5 | 58 | 26 | 616 |
|
