GN 841.3
Push-Pull Type Toggle Clamps
Stainless Steel, Horizontal Operating Lever, for Push Clamping

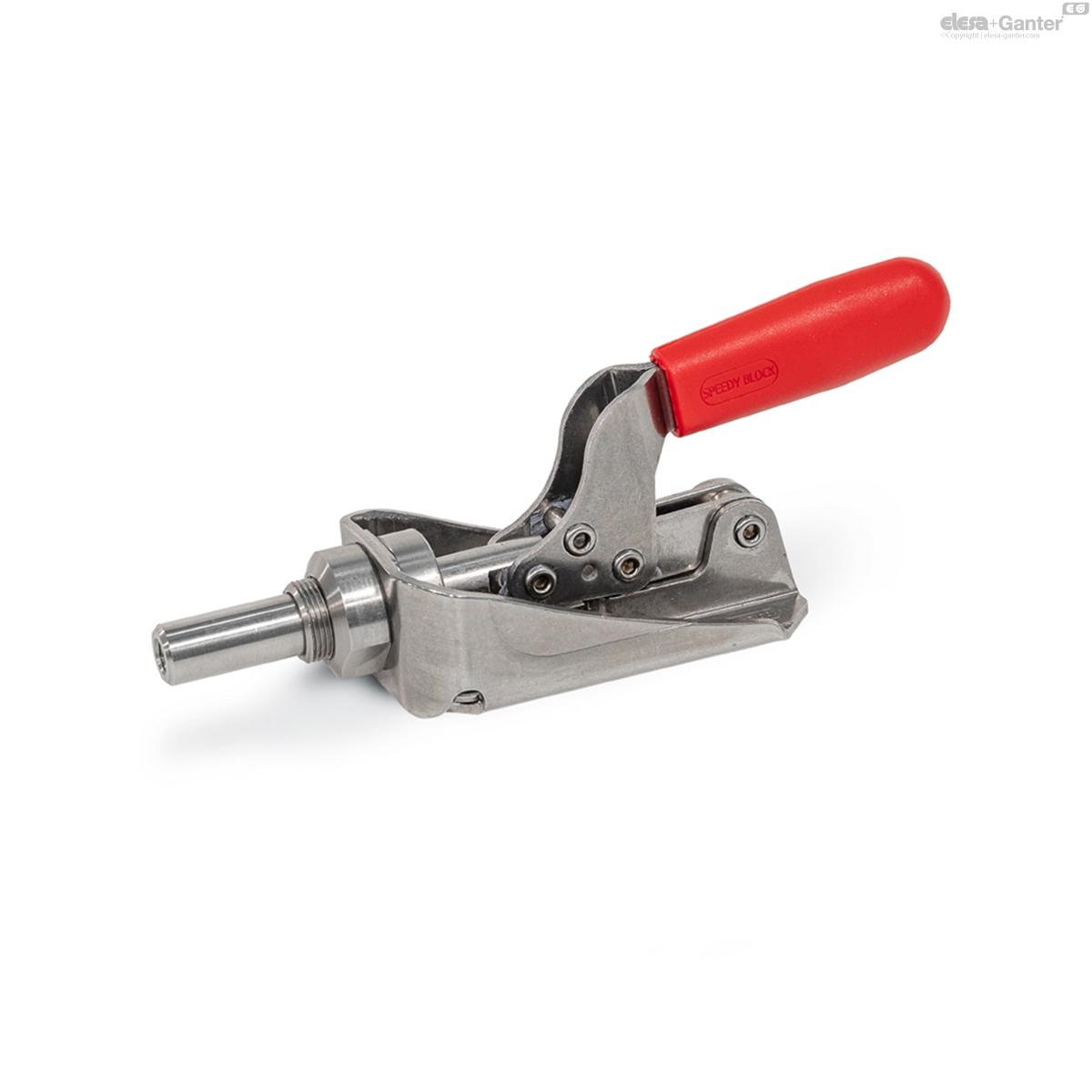

GN 841.3-ASX
Push-Pull Type Toggle Clamps
Without locking mechanism
GN 841.3-ASLX
Push-Pull Type Toggle Clamps
With locking mechanism
Description
Specification
Types
- Type ASX: Without locking mechanism
- Type ASLX: With locking mechanism
Tensioning mechanism
Stainless steel NI
- Sheet metal parts AISI 304
- Plunger AISI 303
- Bearing pins (bearing rivets) AISI 304
- Moving parts lubricated with special grease
Handle
Plastic
Red, oil resistant
Information

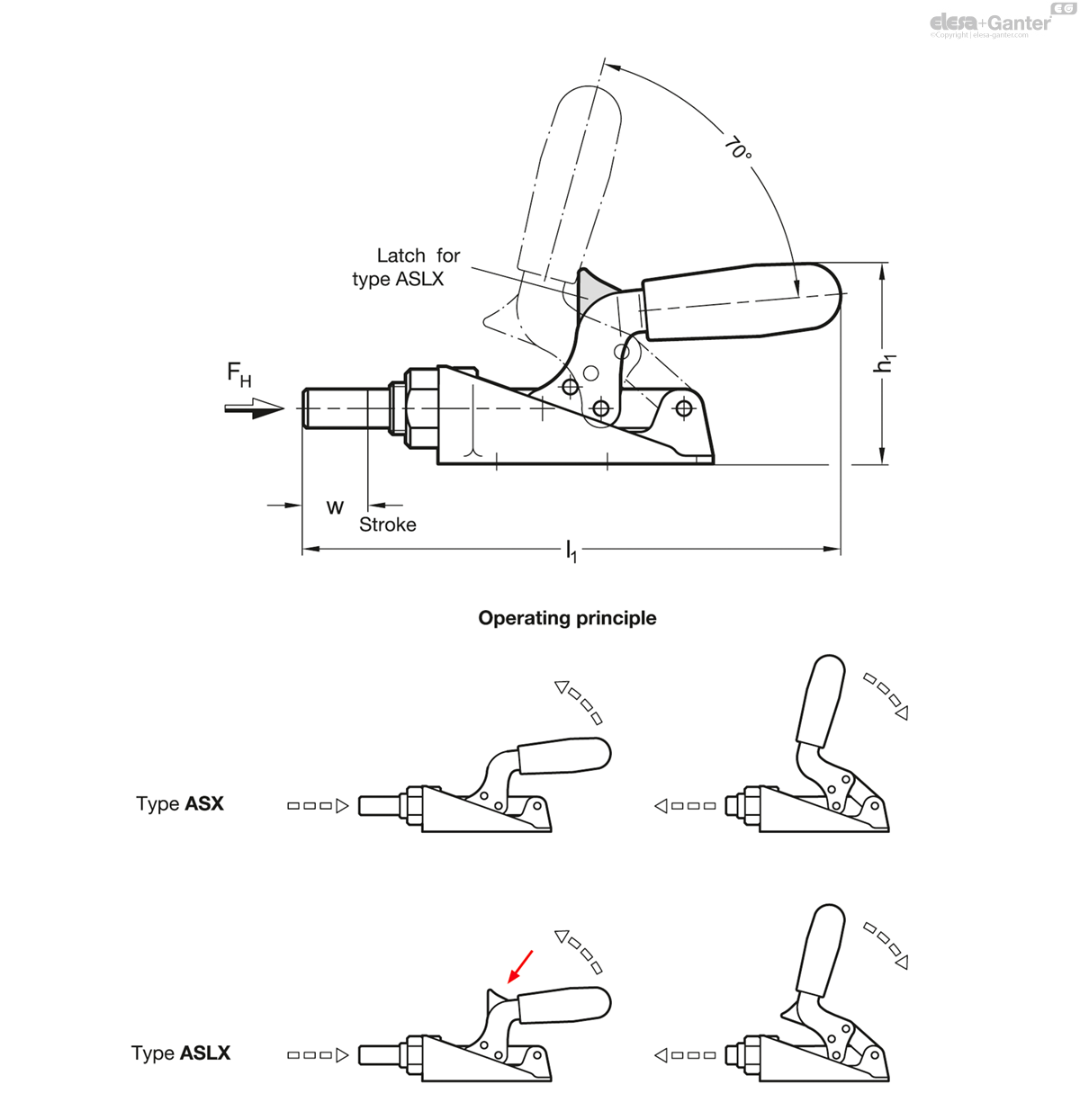

Push-pull type toggle clamps GN 841.3 can be used in applications requiring very high clamping forces. In the clamped position, the operating lever is in its horizontal position.
Type ASLX is securely locked while in the clamped position to prevent it from loosening by accident or due to vibrations. The lock can be released again with a single hand.
Accessory
- GN 708.1Â Clamping Screws (Rubber Thrust Pad)
- GN 802Â Clamping Screws (Steel Thrust Pad, Movable)
- GN 804Â Clamping Screws (Steel Spring Element, Adjustable)
Technical information
- General information for Toggle ClampsÂ
- Stainless Steel CharacteristicsÂ
GN 841.3-ASX

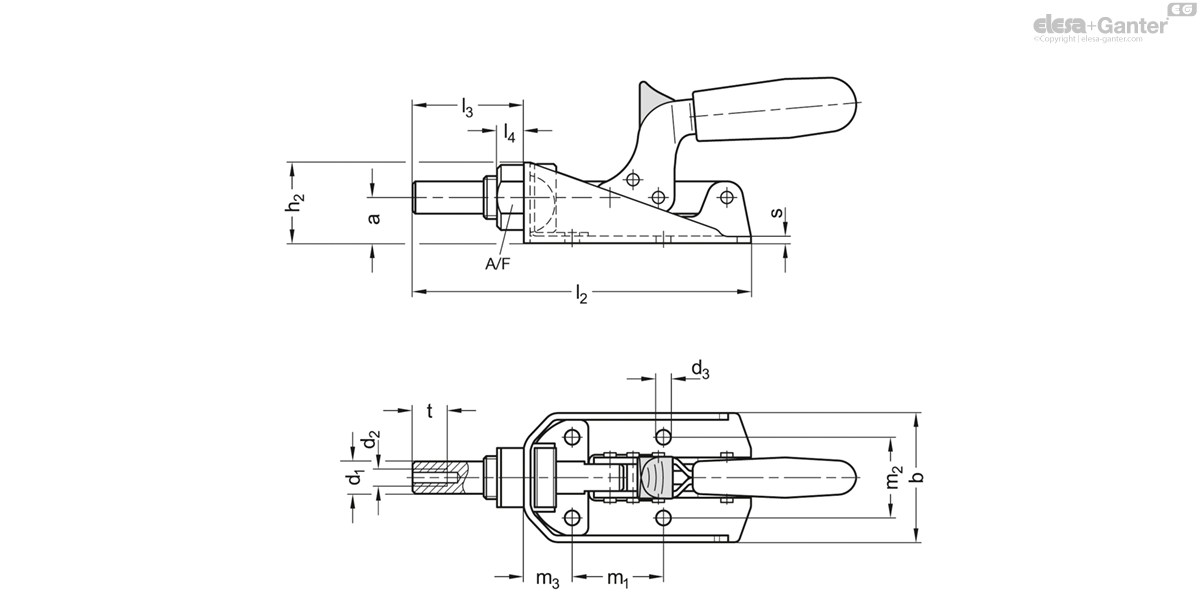

| Size | FH in N | a | b | d1 | d2 | d3 | h1 ≈ | h2 ≈ | l1 | l2 ≈ | l3 | l4 | m1 | m2 | m3 | s | A/F | t | w Stroke |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||||||||||
| GN 841.3-85-ASX-NI | 85 | 4000 | 12.7 | 38 | 8 | M 5 | 4.3 | 46 | 22.5 | 112 | 98 | 31.5 | 8 | 24 | 24 | 12 | 2 | 16 | 10 | 15 | 142 |
|
| GN 841.3-125-ASX-NI | 125 | 5200 | 17 | 48 | 12 | M 6 | 5.5 | 62 | 30 | 165 | 126 | 41 | 10 | 34 | 30 | 18 | 2.5 | 22 | 12 | 19 | 343 |
|
| GN 841.3-305-ASX-NI | 305 | 6750 | 20 | 58 | 14 | M 8 | 6.5 | 74 | 36 | 197 | 158 | 53 | 12 | 50 | 50 | 18 | 3 | 24 | 16 | 25 | 615 |
|
