GN 8350
Wing Screws
Stainless Steel
Description
Specification
Stainless steel precision casting AISI 316

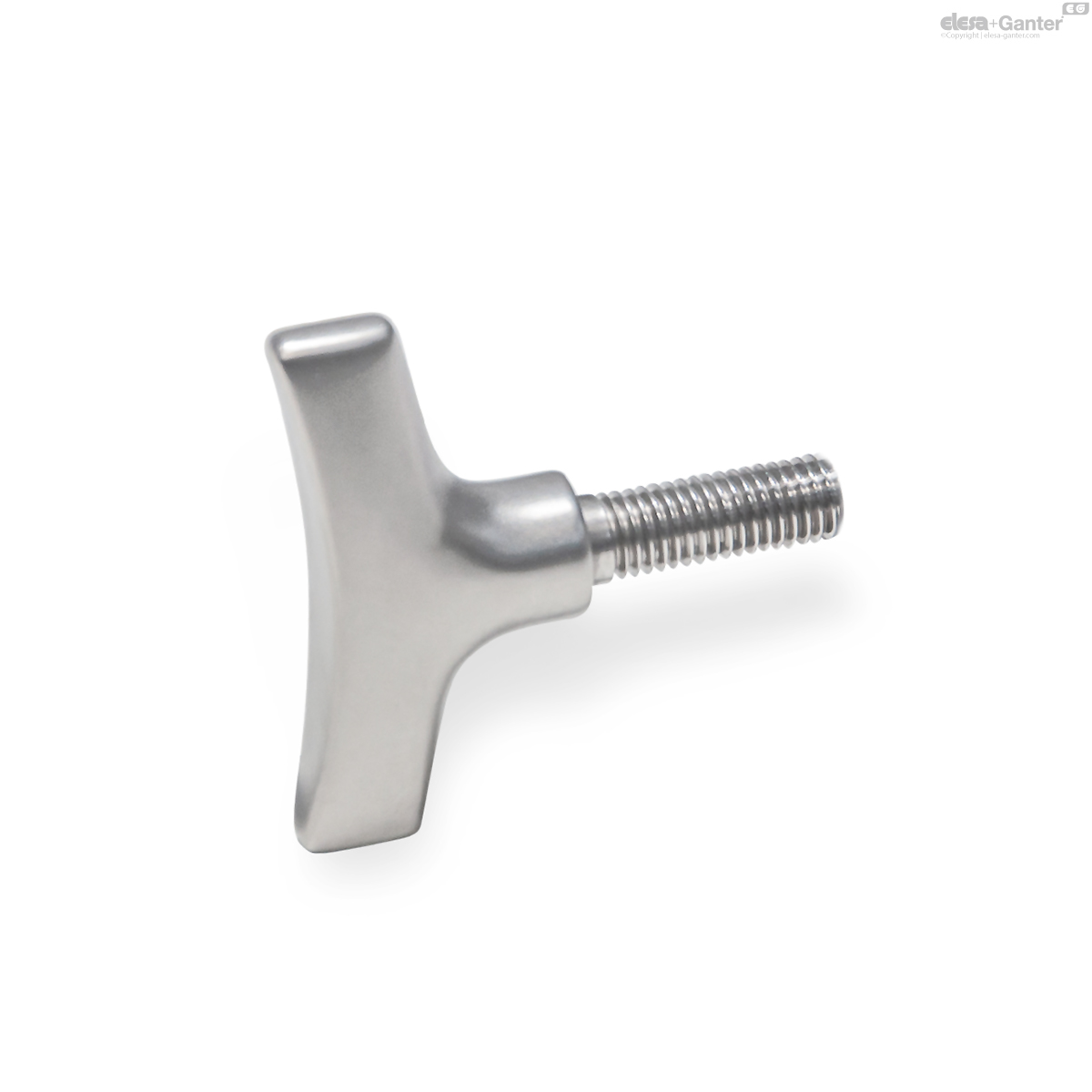

- Matte shot-blasted finish MT

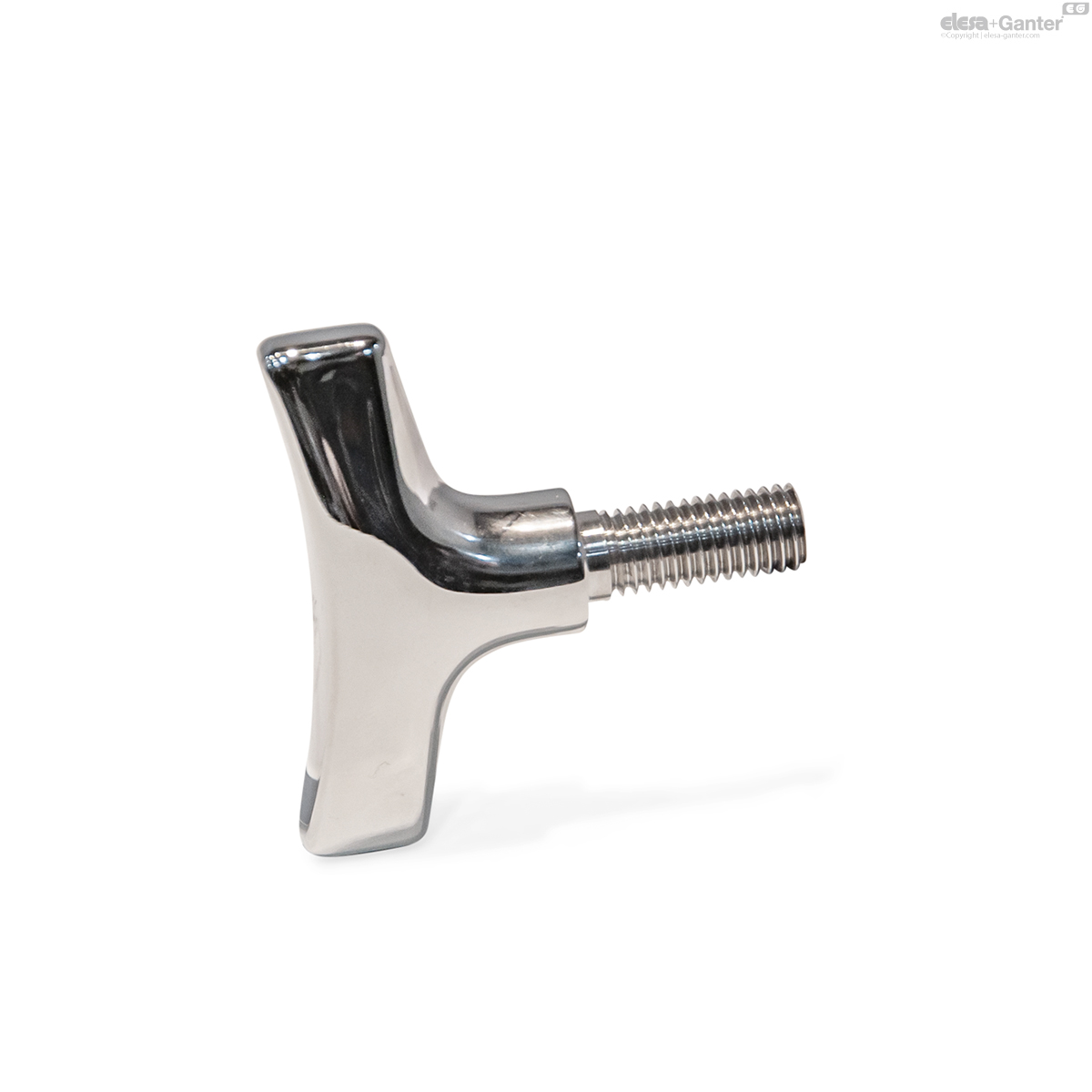

- Polished PL
Information
Wing screws GN 8350 clamp and fasten parts easily without tools. The ergonomic shape allows for high tightening forces.
The wing screws can also be used in particularly aggressive environments thanks to the material used.
Technical information
- Stainless Steel CharacteristicsÂ
GN 8350

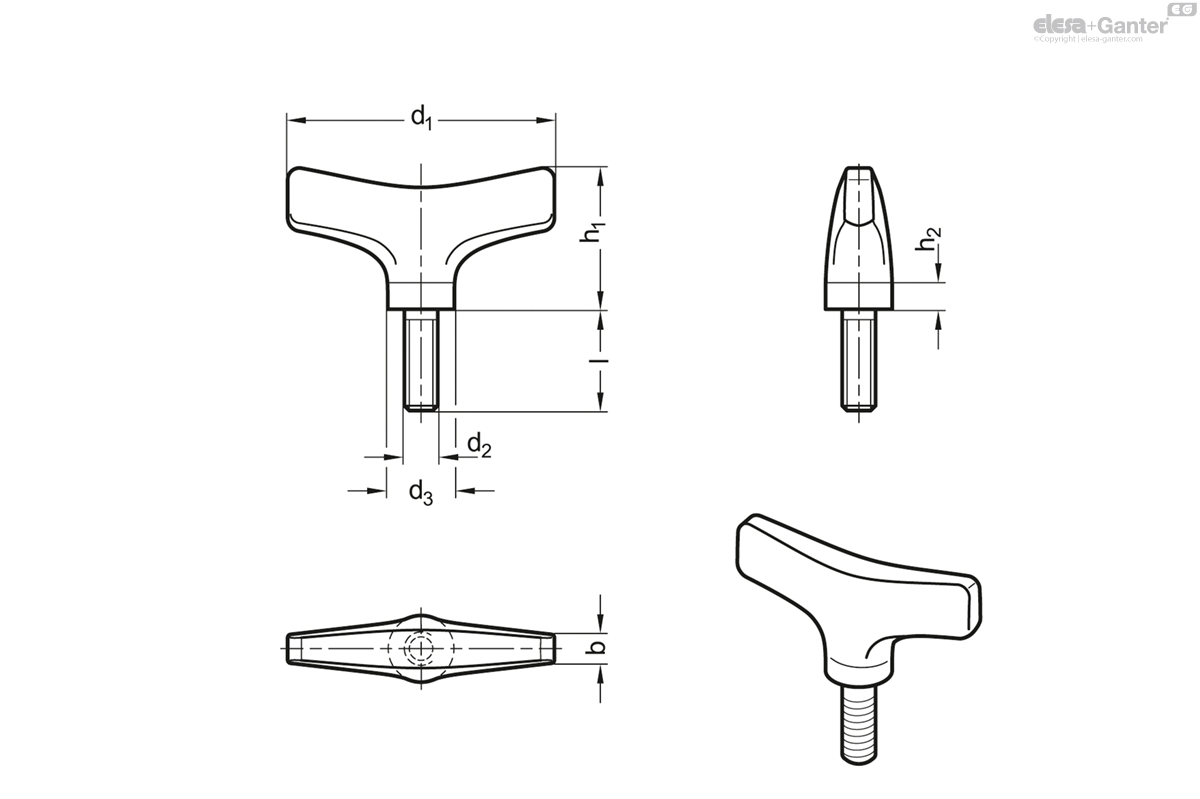

| Color | d1 | d2 | l | b | d3 | h1 | h2 ≈ |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 8350-32-M5-10-MT | MT - Matte finish | 32 | M 5 | 10 | 4 | 9 | 18 | 3 | 18 |
|
| GN 8350-32-M5-10-PL | PL - Polished | 32 | M 5 | 10 | 4 | 9 | 18 | 3 | 18 |
|
| GN 8350-32-M5-12-MT | MT - Matte finish | 32 | M 5 | 12 | 4 | 9 | 18 | 3 | 18 |
|
| GN 8350-32-M5-12-PL | PL - Polished | 32 | M 5 | 12 | 4 | 9 | 18 | 3 | 18 |
|
| GN 8350-32-M5-16-MT | MT - Matte finish | 32 | M 5 | 16 | 4 | 9 | 18 | 3 | 19 |
|
| GN 8350-32-M5-16-PL | PL - Polished | 32 | M 5 | 16 | 4 | 9 | 18 | 3 | 19 |
|
| GN 8350-32-M5-20-MT | MT - Matte finish | 32 | M 5 | 20 | 4 | 9 | 18 | 3 | 19 |
|
| GN 8350-32-M5-20-PL | PL - Polished | 32 | M 5 | 20 | 4 | 9 | 18 | 3 | 19 |
|
| GN 8350-32-M6-12-MT | MT - Matte finish | 32 | M 6 | 12 | 4 | 9 | 18 | 3 | 19 |
|
| GN 8350-32-M6-12-PL | PL - Polished | 32 | M 6 | 12 | 4 | 9 | 18 | 3 | 19 |
|
| GN 8350-32-M6-16-MT | MT - Matte finish | 32 | M 6 | 16 | 4 | 9 | 18 | 3 | 20 |
|
| GN 8350-32-M6-16-PL | PL - Polished | 32 | M 6 | 16 | 4 | 9 | 18 | 3 | 20 |
|
| GN 8350-32-M6-20-MT | MT - Matte finish | 32 | M 6 | 20 | 4 | 9 | 18 | 3 | 21 |
|
| GN 8350-32-M6-20-PL | PL - Polished | 32 | M 6 | 20 | 4 | 9 | 18 | 3 | 21 |
|
| GN 8350-32-M6-25-MT | MT - Matte finish | 32 | M 6 | 25 | 4 | 9 | 18 | 3 | 22 |
|
| GN 8350-32-M6-25-PL | PL - Polished | 32 | M 6 | 25 | 4 | 9 | 18 | 3 | 22 |
|
| GN 8350-40-M6-12-MT | MT - Matte finish | 40 | M 6 | 12 | 4 | 11 | 21 | 3 | 32 |
|
| GN 8350-40-M6-12-PL | PL - Polished | 40 | M 6 | 12 | 4 | 11 | 21 | 3 | 32 |
|
| GN 8350-40-M6-16-MT | MT - Matte finish | 40 | M 6 | 16 | 4 | 11 | 21 | 3 | 33 |
|
| GN 8350-40-M6-16-PL | PL - Polished | 40 | M 6 | 16 | 4 | 11 | 21 | 3 | 33 |
|
| GN 8350-40-M6-20-MT | MT - Matte finish | 40 | M 6 | 20 | 4 | 11 | 21 | 3 | 34 |
|
| GN 8350-40-M6-20-PL | PL - Polished | 40 | M 6 | 20 | 4 | 11 | 21 | 3 | 34 |
|
| GN 8350-40-M6-25-MT | MT - Matte finish | 40 | M 6 | 25 | 4 | 11 | 21 | 3 | 35 |
|
| GN 8350-40-M6-25-PL | PL - Polished | 40 | M 6 | 25 | 4 | 11 | 21 | 3 | 35 |
|
| GN 8350-40-M8-16-MT | MT - Matte finish | 40 | M 8 | 16 | 4 | 11 | 21 | 3 | 36 |
|
| GN 8350-40-M8-16-PL | PL - Polished | 40 | M 8 | 16 | 4 | 11 | 21 | 3 | 36 |
|
| GN 8350-40-M8-20-MT | MT - Matte finish | 40 | M 8 | 20 | 4 | 11 | 21 | 3 | 37 |
|
| GN 8350-40-M8-20-PL | PL - Polished | 40 | M 8 | 20 | 4 | 11 | 21 | 3 | 37 |
|
| GN 8350-40-M8-25-MT | MT - Matte finish | 40 | M 8 | 25 | 4 | 11 | 21 | 3 | 39 |
|
| GN 8350-40-M8-25-PL | PL - Polished | 40 | M 8 | 25 | 4 | 11 | 21 | 3 | 39 |
|
| GN 8350-40-M8-30-MT | MT - Matte finish | 40 | M 8 | 30 | 4 | 11 | 21 | 3 | 41 |
|
| GN 8350-40-M8-30-PL | PL - Polished | 40 | M 8 | 30 | 4 | 11 | 21 | 3 | 41 |
|
| GN 8350-50-M8-16-MT | MT - Matte finish | 50 | M 8 | 16 | 6 | 13 | 26 | 3 | 61 |
|
| GN 8350-50-M8-16-PL | PL - Polished | 50 | M 8 | 16 | 6 | 13 | 26 | 3 | 61 |
|
| GN 8350-50-M8-20-MT | MT - Matte finish | 50 | M 8 | 20 | 6 | 13 | 26 | 3 | 62 |
|
| GN 8350-50-M8-20-PL | PL - Polished | 50 | M 8 | 20 | 6 | 13 | 26 | 3 | 62 |
|
| GN 8350-50-M8-25-MT | MT - Matte finish | 50 | M 8 | 25 | 6 | 13 | 26 | 3 | 64 |
|
| GN 8350-50-M8-25-PL | PL - Polished | 50 | M 8 | 25 | 6 | 13 | 26 | 3 | 64 |
|
| GN 8350-50-M8-30-MT | MT - Matte finish | 50 | M 8 | 30 | 6 | 13 | 26 | 3 | 66 |
|
| GN 8350-50-M8-30-PL | PL - Polished | 50 | M 8 | 30 | 6 | 13 | 26 | 3 | 66 |
|
| GN 8350-50-M10-20-MT | MT - Matte finish | 50 | M 10 | 20 | 6 | 13 | 26 | 3 | 67 |
|
| GN 8350-50-M10-20-PL | PL - Polished | 50 | M 10 | 20 | 6 | 13 | 26 | 3 | 67 |
|
| GN 8350-50-M10-25-MT | MT - Matte finish | 50 | M 10 | 25 | 6 | 13 | 26 | 3 | 70 |
|
| GN 8350-50-M10-25-PL | PL - Polished | 50 | M 10 | 25 | 6 | 13 | 26 | 3 | 70 |
|
| GN 8350-50-M10-30-MT | MT - Matte finish | 50 | M 10 | 30 | 6 | 13 | 26 | 3 | 73 |
|
| GN 8350-50-M10-30-PL | PL - Polished | 50 | M 10 | 30 | 6 | 13 | 26 | 3 | 73 |
|
| GN 8350-50-M10-40-MT | MT - Matte finish | 50 | M 10 | 40 | 6 | 13 | 26 | 3 | 79 |
|
| GN 8350-50-M10-40-PL | PL - Polished | 50 | M 10 | 40 | 6 | 13 | 26 | 3 | 79 |
|
| GN 8350-63-M10-20-MT | MT - Matte finish | 63 | M 10 | 20 | 11 | 16 | 33 | 4 | 113 |
|
| GN 8350-63-M10-20-PL | PL - Polished | 63 | M 10 | 20 | 11 | 16 | 33 | 4 | 113 |
|
| GN 8350-63-M10-25-MT | MT - Matte finish | 63 | M 10 | 25 | 11 | 16 | 33 | 4 | 116 |
|
| GN 8350-63-M10-25-PL | PL - Polished | 63 | M 10 | 25 | 11 | 16 | 33 | 4 | 116 |
|
| GN 8350-63-M10-30-MT | MT - Matte finish | 63 | M 10 | 30 | 11 | 16 | 33 | 4 | 119 |
|
| GN 8350-63-M10-30-PL | PL - Polished | 63 | M 10 | 30 | 11 | 16 | 33 | 4 | 119 |
|
| GN 8350-63-M10-40-MT | MT - Matte finish | 63 | M 10 | 40 | 11 | 16 | 33 | 4 | 125 |
|
| GN 8350-63-M10-40-PL | PL - Polished | 63 | M 10 | 40 | 11 | 16 | 33 | 4 | 125 |
|
| GN 8350-63-M12-25-MT | MT - Matte finish | 63 | M 12 | 25 | 11 | 16 | 33 | 4 | 123 |
|
| GN 8350-63-M12-25-PL | PL - Polished | 63 | M 12 | 25 | 11 | 16 | 33 | 4 | 123 |
|
| GN 8350-63-M12-30-MT | MT - Matte finish | 63 | M 12 | 30 | 11 | 16 | 33 | 4 | 127 |
|
| GN 8350-63-M12-30-PL | PL - Polished | 63 | M 12 | 30 | 11 | 16 | 33 | 4 | 127 |
|
| GN 8350-63-M12-40-MT | MT - Matte finish | 63 | M 12 | 40 | 11 | 16 | 33 | 4 | 136 |
|
| GN 8350-63-M12-40-PL | PL - Polished | 63 | M 12 | 40 | 11 | 16 | 33 | 4 | 136 |
|
| GN 8350-63-M12-50-MT | MT - Matte finish | 63 | M 12 | 50 | 11 | 16 | 33 | 4 | 145 |
|
| GN 8350-63-M12-50-PL | PL - Polished | 63 | M 12 | 50 | 11 | 16 | 33 | 4 | 145 |
|
