GN 835

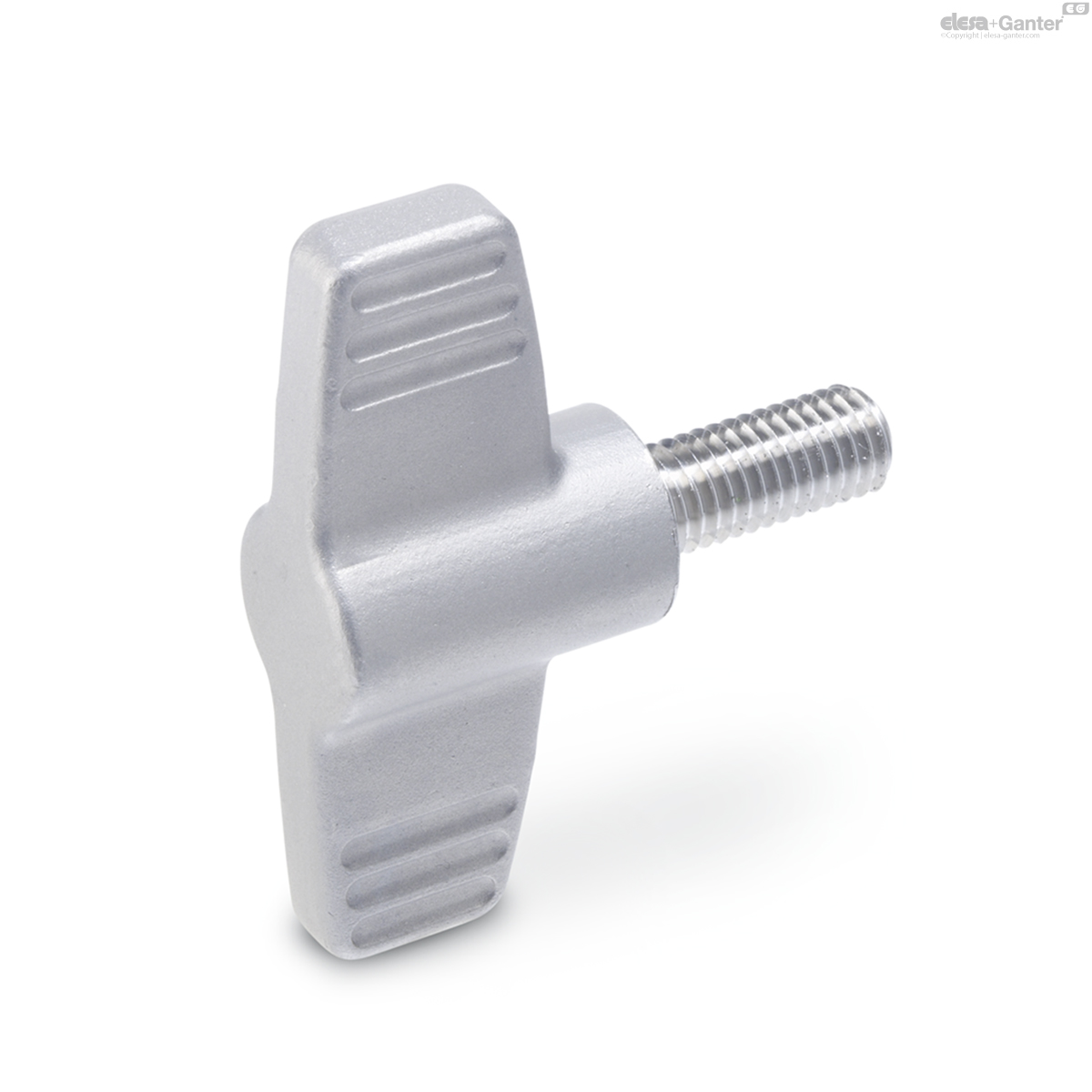

Stainless Steel-Wing screws

__logo__INOX__

__logo__RoHS__

Enquire Now

Description

Specification

Stainless Steel AISI CF-8 (Precision casting)

matt shot-blasted MT

Technical information

Stainless Steel characteristics

GN 835

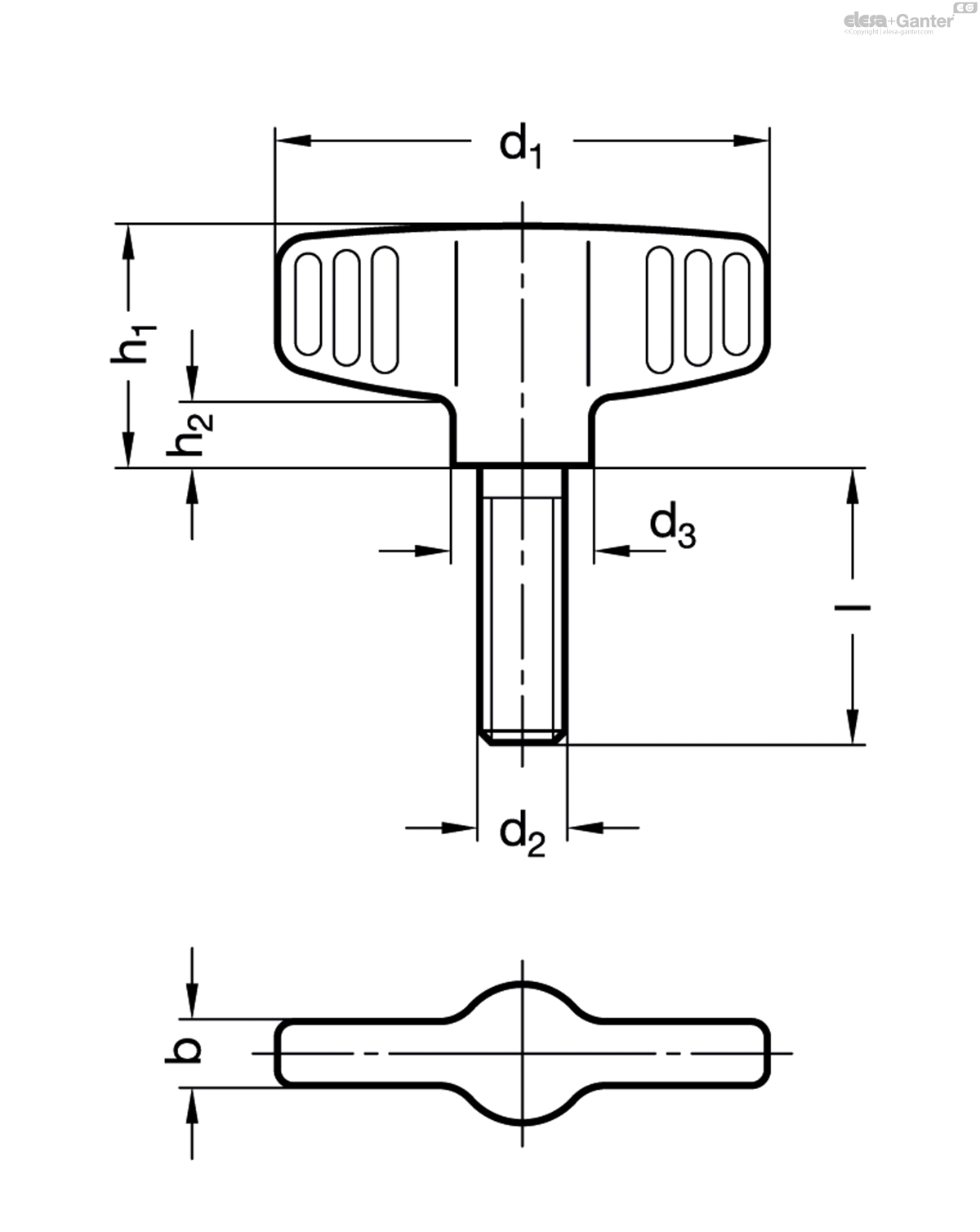

	d₁	d₂	l	d₃	b	h₁	h₂
Code									Actions
GN 835-46-M6-16-MT	46	M 6	16	13	6	22.5	6	40
GN 835-46-M6-20-MT	46	M 6	20	13	6	22.5	6	41
GN 835-46-M6-25-MT	46	M 6	25	13	6	22.5	6	42
GN 835-46-M8-16-MT	46	M 8	16	13	6	22.5	6	50
GN 835-46-M8-20-MT	46	M 8	20	13	6	22.5	6	50
GN 835-46-M8-25-MT	46	M 8	25	13	6	22.5	6	52
GN 835-58-M8-20-MT	58	M 8	20	16	7	26.5	7	83
GN 835-58-M8-25-MT	58	M 8	25	16	7	26.5	7	84
GN 835-58-M8-30-MT	58	M 8	30	16	7	26.5	7	85
GN 835-58-M10-20-MT	58	M 10	20	16	7	26.5	7	80
GN 835-58-M10-25-MT	58	M 10	25	16	7	26.5	7	81
GN 835-58-M10-30-MT	58	M 10	30	16	7	26.5	7	82
