GN 8340

Stainless Steel Wing Nuts

AISI 316

Enquire Now

Description

Specification

Stainless steel precision casting

Information

Stainless steel wing nuts GN 8340 clamp and fasten parts easily without tools. The ergonomic shape allows for high tightening forces.

The wing nuts can also be used in particularly aggressive environments thanks to the material used.

Technical information

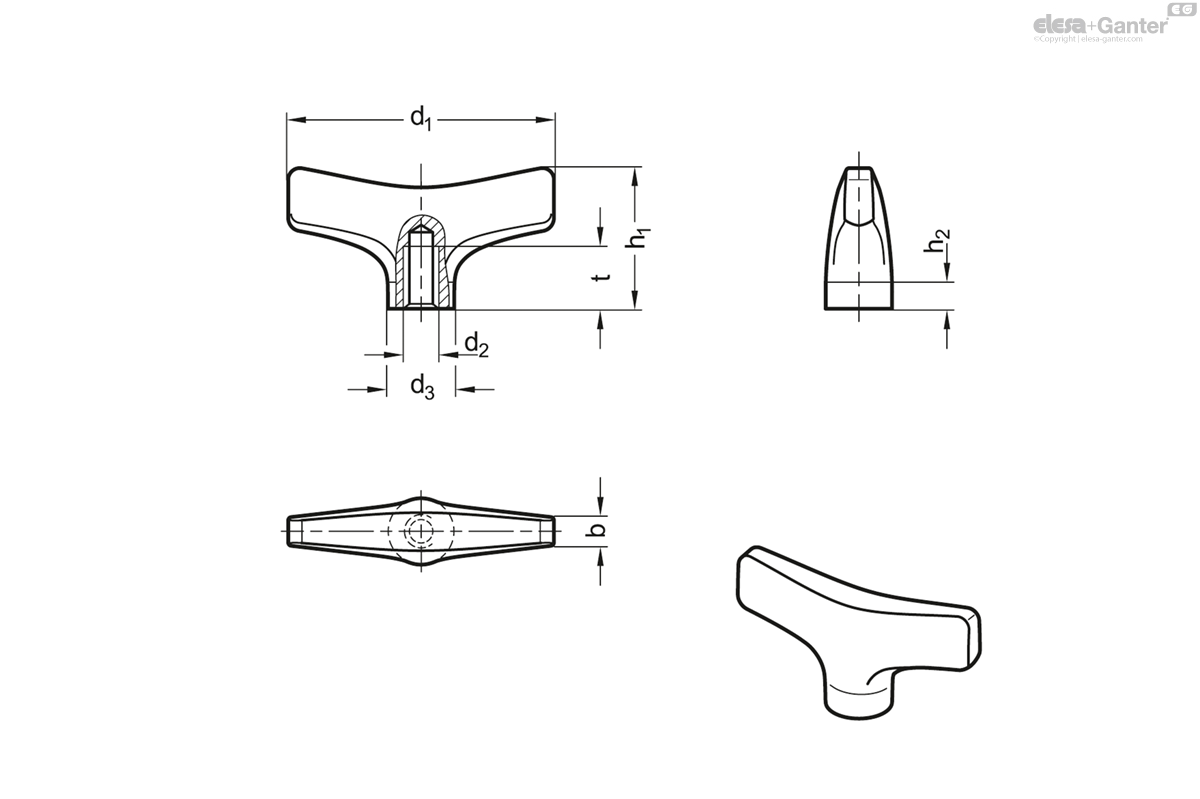

	Color	d₁	d₂	b	d₃	h₁	h₂ ≈	t min.
Code										Actions

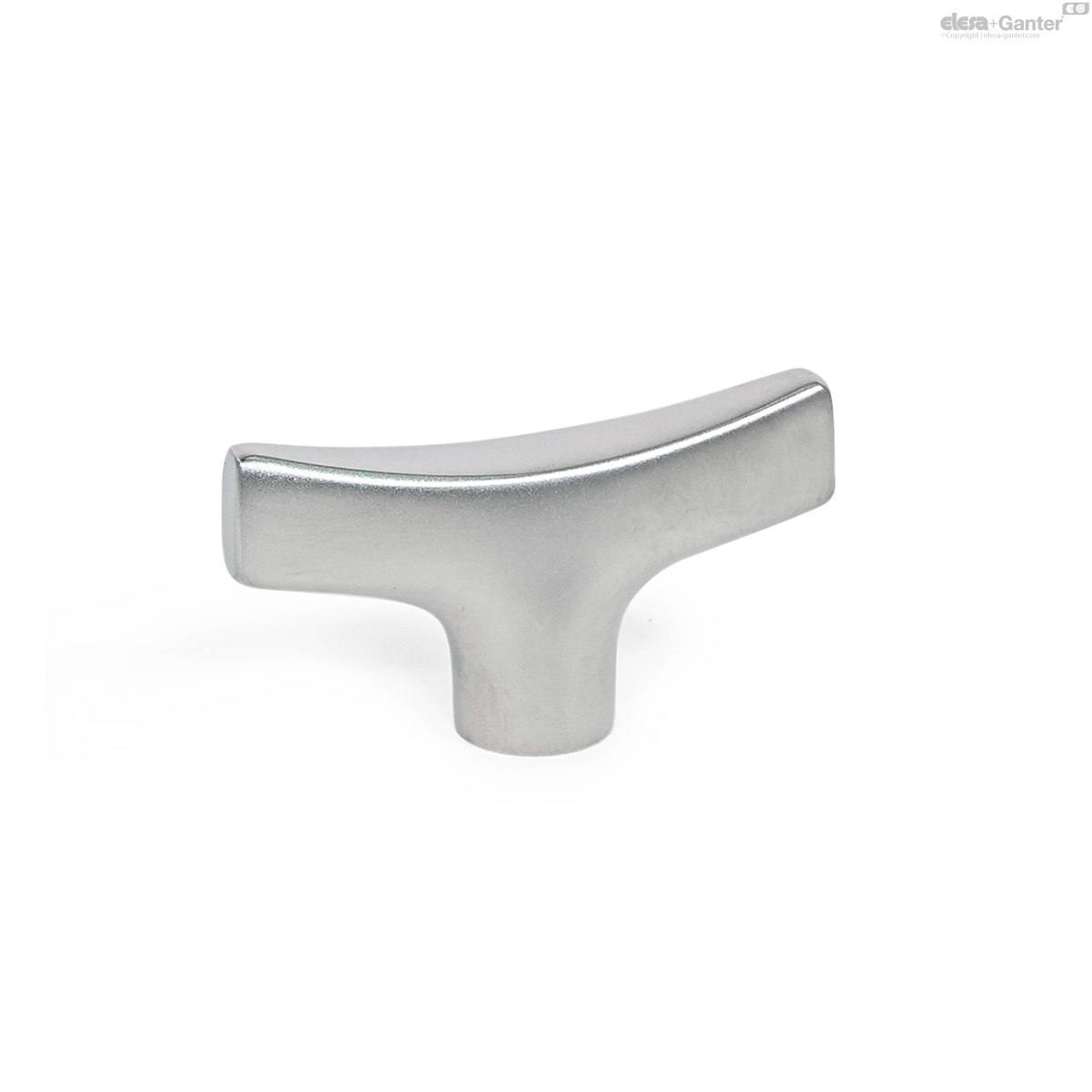

GN 8340-32-M5-MT	MT - Matte finish	32	M 5	4	9	18	3	8	15
GN 8340-32-M5-PL	PL - Polished	32	M 5	4	9	18	3	8	15
GN 8340-32-M6-MT	MT - Matte finish	32	M 6	4	9	18	3	9	15
GN 8340-32-M6-PL	PL - Polished	32	M 6	4	9	18	3	9	15
GN 8340-40-M6-MT	MT - Matte finish	40	M 6	4	11	21	3	9	28
GN 8340-40-M6-PL	PL - Polished	40	M 6	4	11	21	3	9	28
GN 8340-40-M8-MT	MT - Matte finish	40	M 8	4	11	21	3	12	25
GN 8340-40-M8-PL	PL - Polished	40	M 8	4	11	21	3	12	25
GN 8340-50-M8-MT	MT - Matte finish	50	M 8	6	13	26	3	12	50
GN 8340-50-M8-PL	PL - Polished	50	M 8	6	13	26	3	12	50
GN 8340-50-M10-MT	MT - Matte finish	50	M 10	6	13	26	3	15	46
GN 8340-50-M10-PL	PL - Polished	50	M 10	6	13	26	3	15	46
GN 8340-63-M10-MT	MT - Matte finish	63	M 10	11	16	33	4	15	92
GN 8340-63-M10-PL	PL - Polished	63	M 10	11	16	33	4	15	92
GN 8340-63-M12-MT	MT - Matte finish	63	M 12	11	16	33	4	18	87
GN 8340-63-M12-PL	PL - Polished	63	M 12	11	16	33	4	18	87
