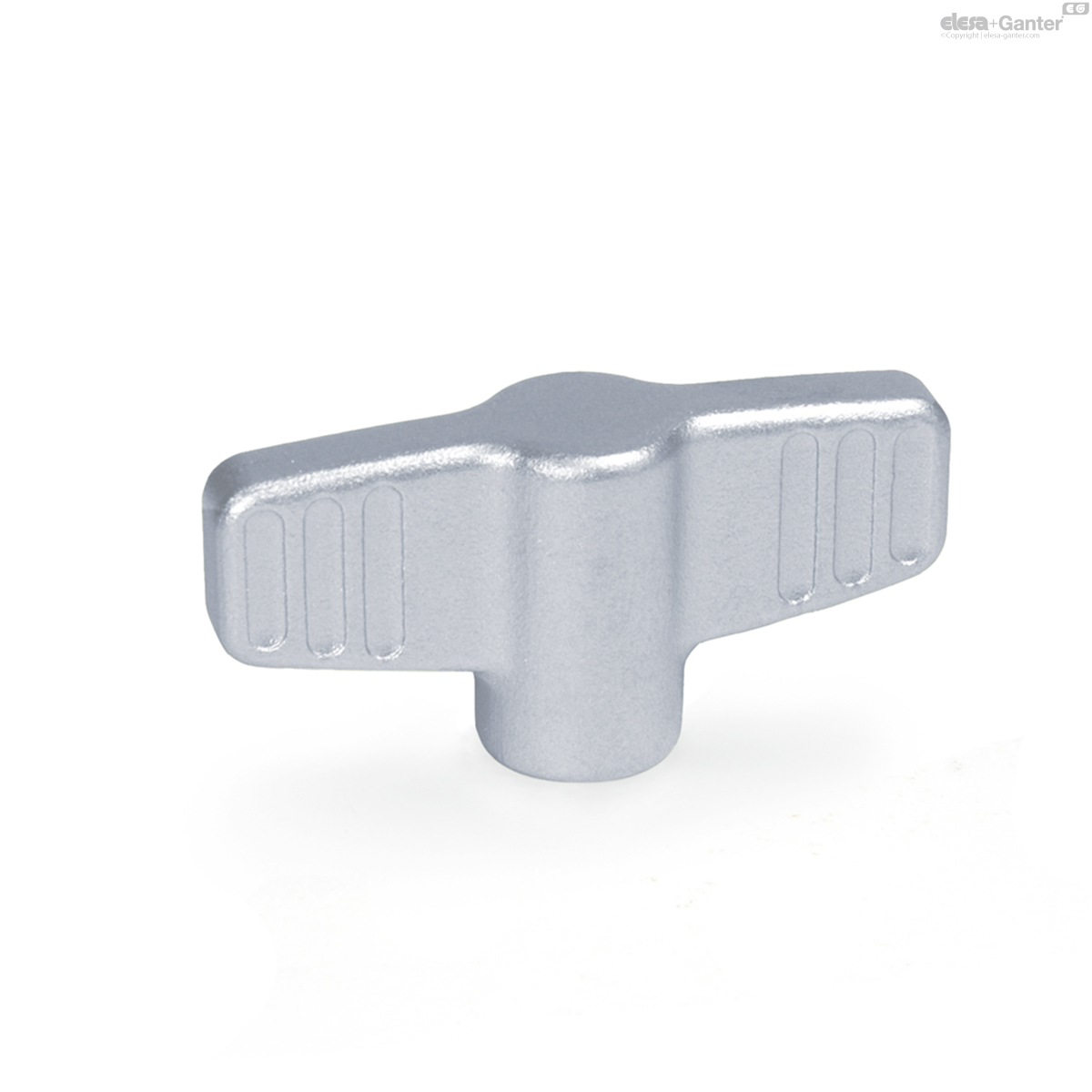

GN 834

Stainless Steel-Wing nuts

Enquire Now

Description

Specification

Stainless Steel AISI CF-8 (Precision casting)

matt shot-blasted MT

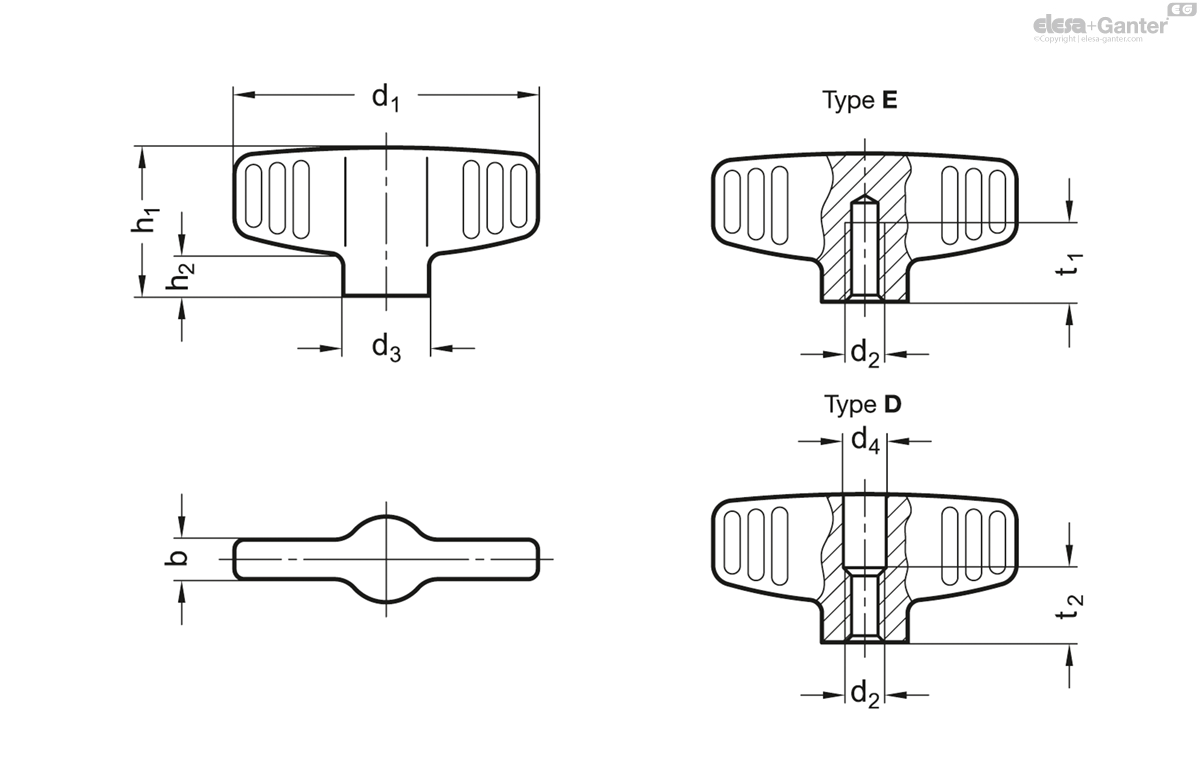

Technical information

	d₁	d₂	d₃	d₄	b	h₁	h₂	t₁ min.	t₂
Code											Actions
GN 834-46-M6-D-MT	46	M 6	13	6.5	6	22.5	6	-	10	37
GN 834-46-M6-E-MT	46	M 6	13	-	6	22.5	6	12	-	41
GN 834-46-M8-D-MT	46	M 8	13	8.5	6	22.5	6	-	13	30
GN 834-46-M8-E-MT	46	M 8	13	-	6	22.5	6	15	-	35
GN 834-58-M8-D-MT	58	M 8	16	8.5	7	26.5	7	-	13	65
GN 834-58-M8-E-MT	58	M 8	16	-	7	26.5	7	15	-	72
GN 834-58-M10-D-MT	58	M 10	16	10.5	7	26.5	7	-	16	55
GN 834-58-M10-E-MT	58	M 10	16	-	7	26.5	7	18	-	60
