GN 828
Bearing blocks
for Stainless Steel-Adjusting screws GN 827

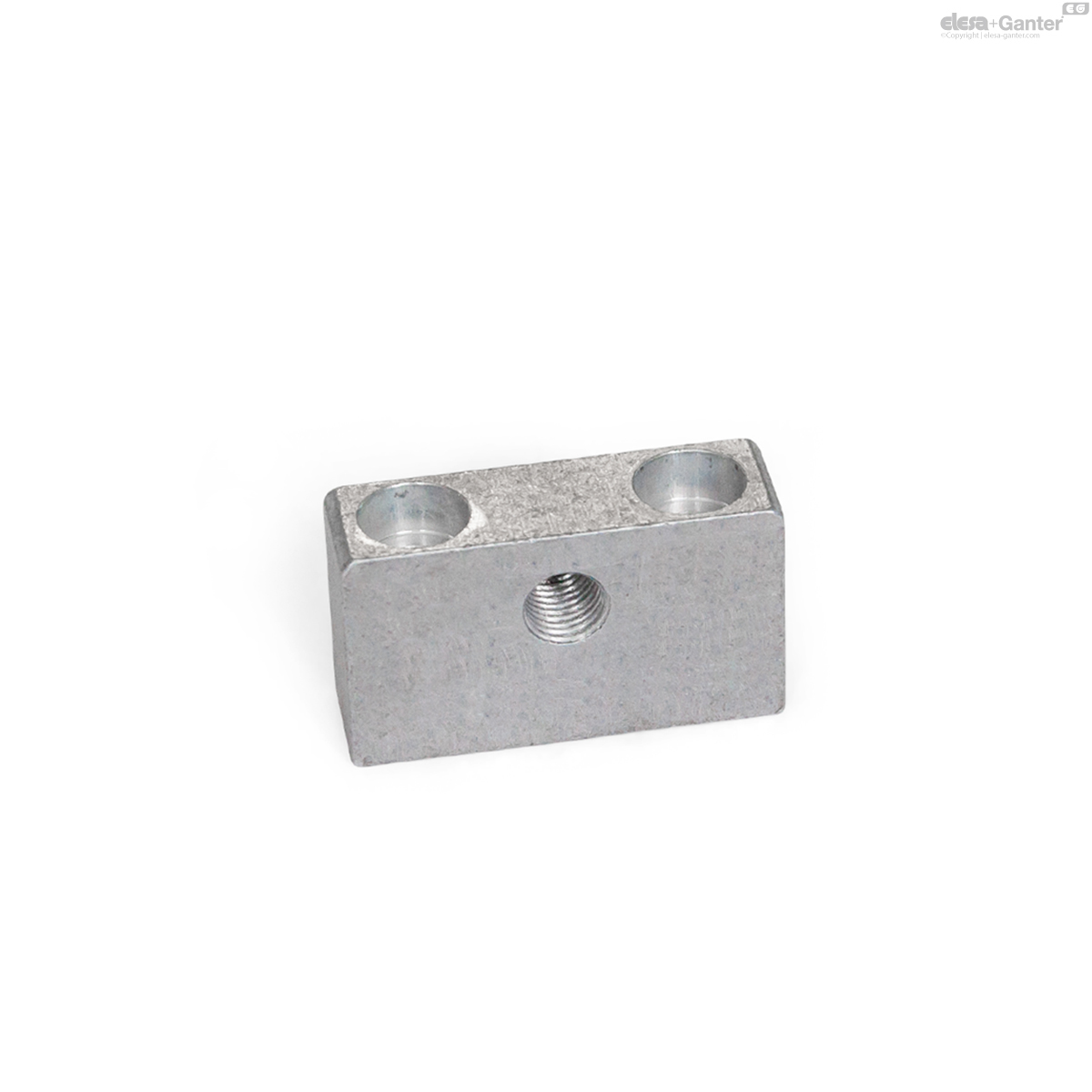

GN 828-A
Bearing blocks
with thread, mounting from above

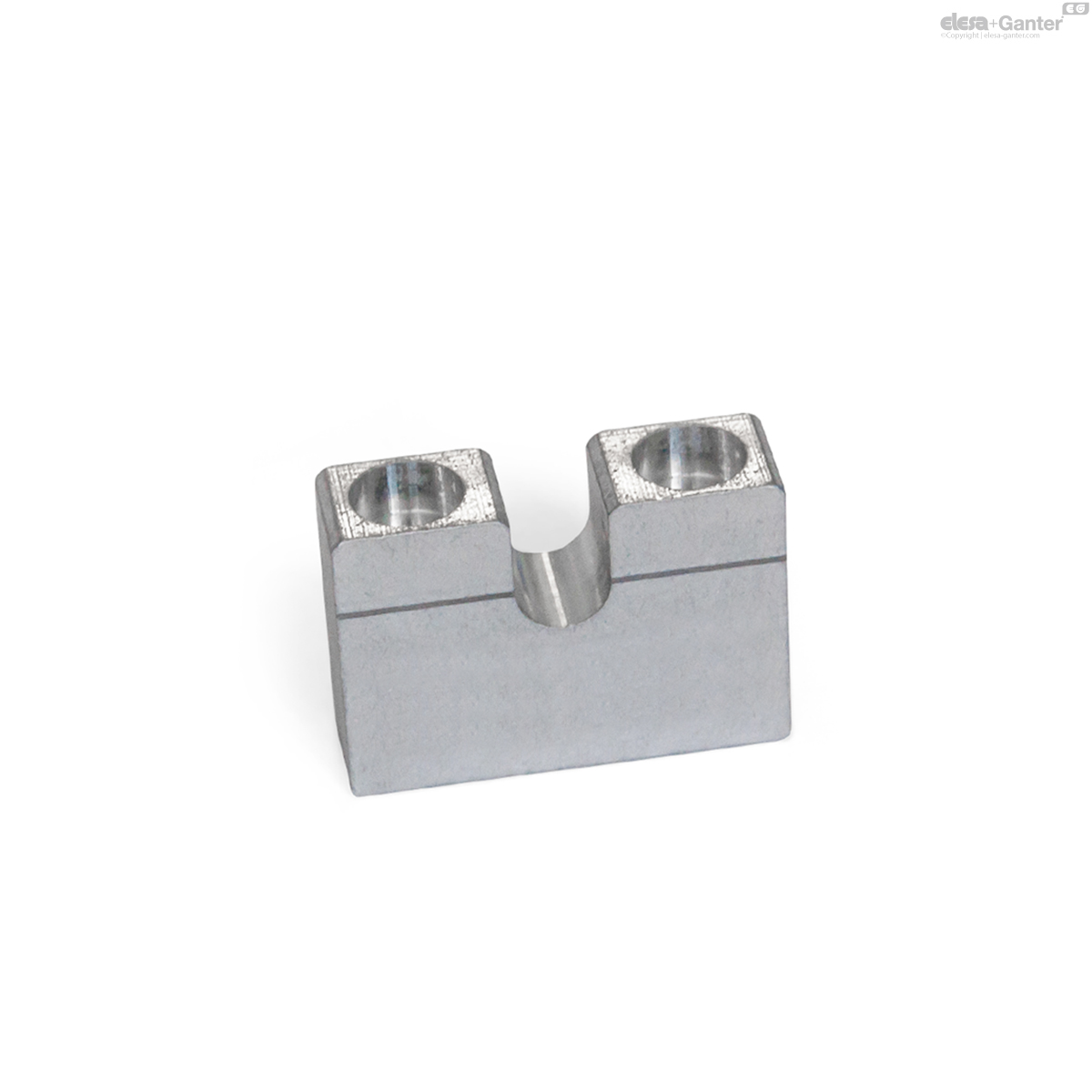

GN 828-UA
Bearing blocks
with groove, mounting from above

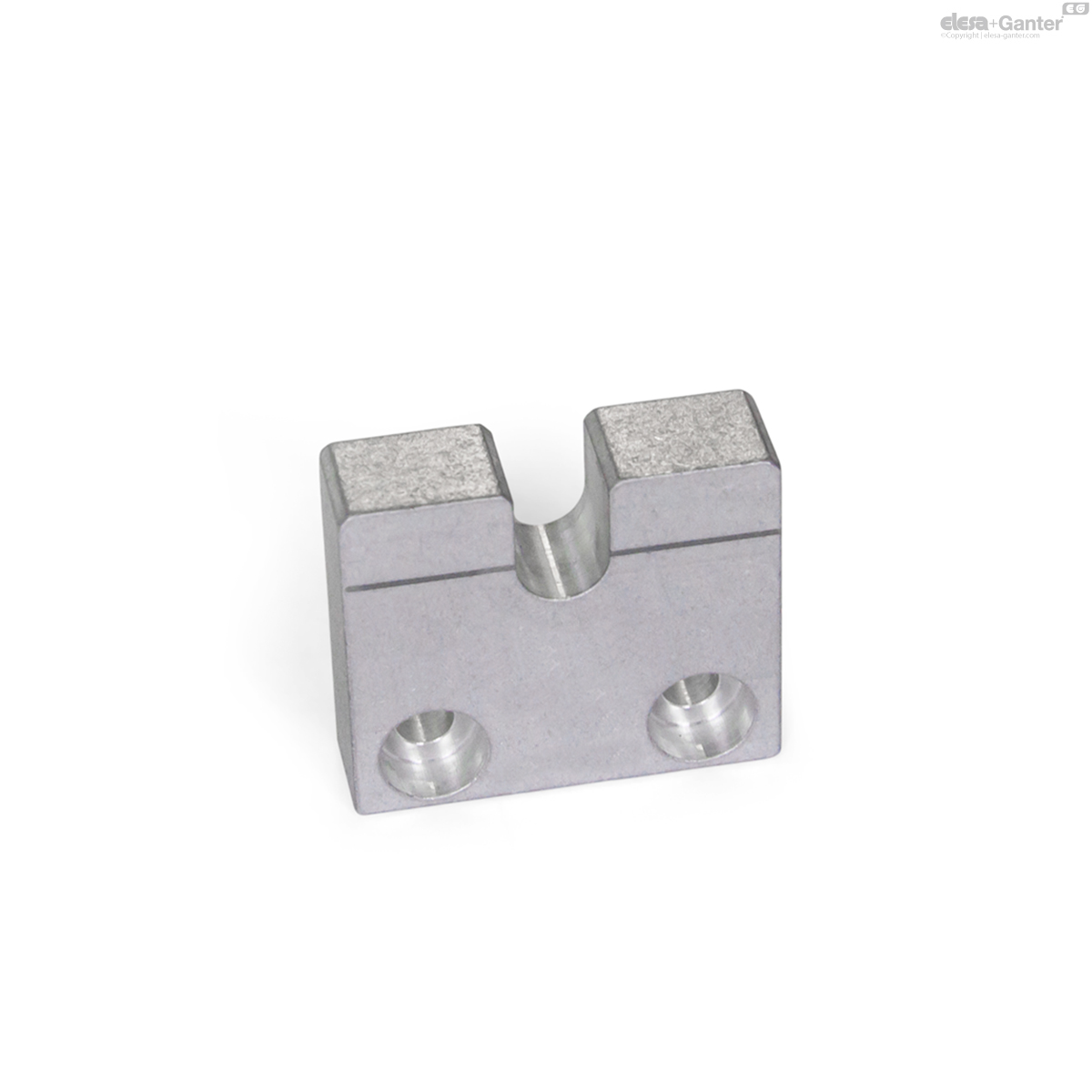

GN 828-UB
Bearing blocks
with groove, mounting from the front
Description
Specification

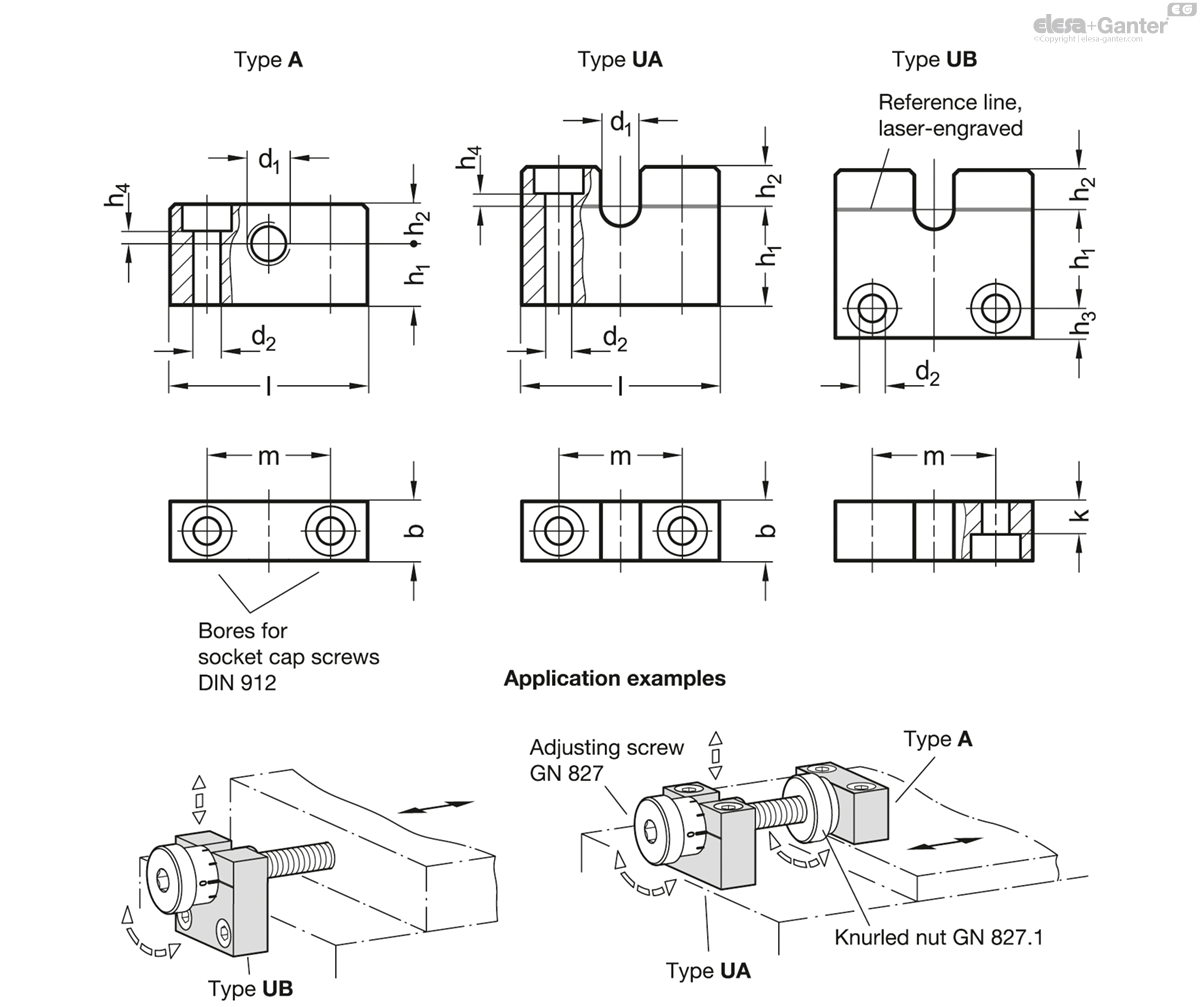

Types
- Type A: with thread, mounting from above
- Type UA: with groove, mounting from above
- Type UB: with groove, mounting from the front
Aluminum AM
matte ground
Reference line
laser-engraved, black discharged
Information
Bearing blocks GN 828 are used in combination with Stainless Steel-Adjusting screws GN 827 for simple adjustment and positioning tasks.
For processing and assembly equipment on which attachments and mechanisms must be regularly exchanged, particularly simple adjustments can be achieved by combining adjusting screws GN 827 knurled nuts GN 827.1 and bearing blocks GN 828 of the types UA and UB to ensure that settings are retained even between uses.
On the opposing part, type A or threading already present in the mounting plate can be used.
Accessory
- Stainless Steel-Adjusting screws GN 827
- Stainless Steel-Knurled nuts GN 827.1
Technical information
- ISO-Fundamental TolerancesÂ
GN 828-A
| d1 | h1 | b h11 | d2 | h2 | h4 | l | m |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 828-M6x1-A-5-AM | M6x1 | 5 | 10 | 4.5 | 6 | 1.6 | 35 | 22 | 8 |
|
| GN 828-M6x1-A-10-AM | M6x1 | 10 | 10 | 4.5 | 6 | 1.6 | 35 | 22 | 13 |
|
| GN 828-M6x1-A-20-AM | M6x1 | 20 | 10 | 4.5 | 6 | 1.6 | 35 | 22 | 21 |
|
| GN 828-M8x1-A-8-AM | M8x1 | 8 | 12 | 5.5 | 8 | 2.6 | 40 | 25 | 16 |
|
| GN 828-M8x1-A-15-AM | M8x1 | 15 | 12 | 5.5 | 8 | 2.6 | 40 | 25 | 24 |
|
| GN 828-M8x1-A-20-AM | M8x1 | 20 | 12 | 5.5 | 8 | 2.6 | 40 | 25 | 30 |
|
| GN 828-M10x1-A-10-AM | M10x1 | 10 | 15 | 6.5 | 10 | 3.6 | 45 | 30 | 28 |
|
| GN 828-M10x1-A-20-AM | M10x1 | 20 | 15 | 6.5 | 10 | 3.6 | 45 | 30 | 44 |
|
| GN 828-M10x1-A-30-AM | M10x1 | 30 | 15 | 6.5 | 10 | 3.6 | 45 | 30 | 61 |
|
