GN 827.1

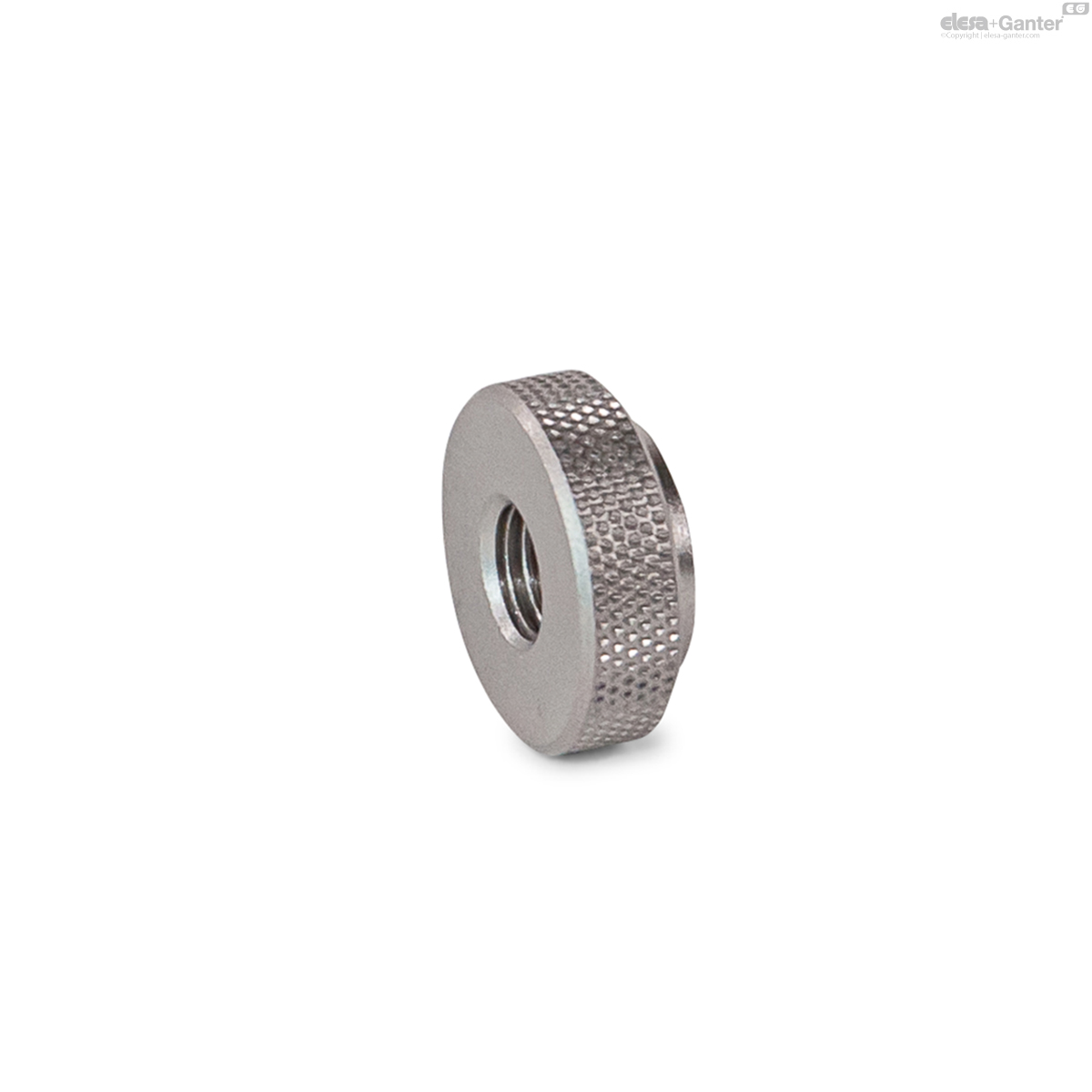

Stainless Steel-Knurled nuts
for Stainless Steel-Adjusting screws GN 827
Description
Specification
Stainless Steel AISI 304 NG
matte shot-blasted
Information
Stainless Steel-Knurled nuts GN 827.1 are used with Stainless Steel-Adjusting screws GN 827 to secure settings and positions in place by counterlocking.
For processing and assembly equipment on which attachments and mechanisms must be regularly exchanged, particularly simple adjustments can be achieved by combining adjusting screws GN 827 knurled nuts GN 827.1 and bearing blocks GN 828 of the types UA and UB to ensure that settings are retained even between uses.
Technical information
- Stainless Steel characteristicsÂ

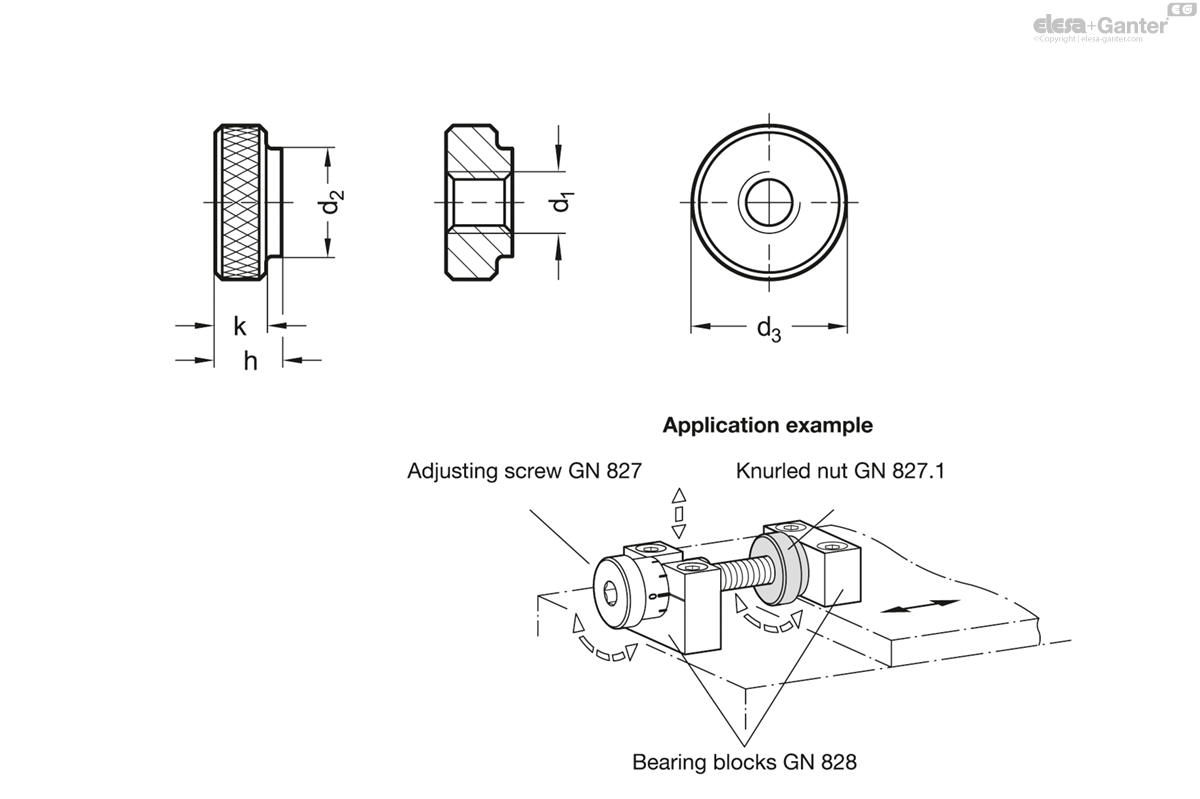

GN 827.1
| d1 | d2 | d3 | h | k |  |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 827.1-M6x1-NG | M6x1 | 10 | 16 | 6 | 5 | 8 |
|
| GN 827.1-M8x1-NG | M8x1 | 14 | 20 | 8 | 6 | 15 |
|
| GN 827.1-M10x1-NG | M10x1 | 16 | 24 | 9 | 7 | 23 |
|
