GN 822.8

Mini indexing plungers

with and without rest position

Enquire Now

Description

Specification

Guide

Zinc die casting

plastic coated

black, textured finish

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Knob

Plastic (Polyamide PA)

Information

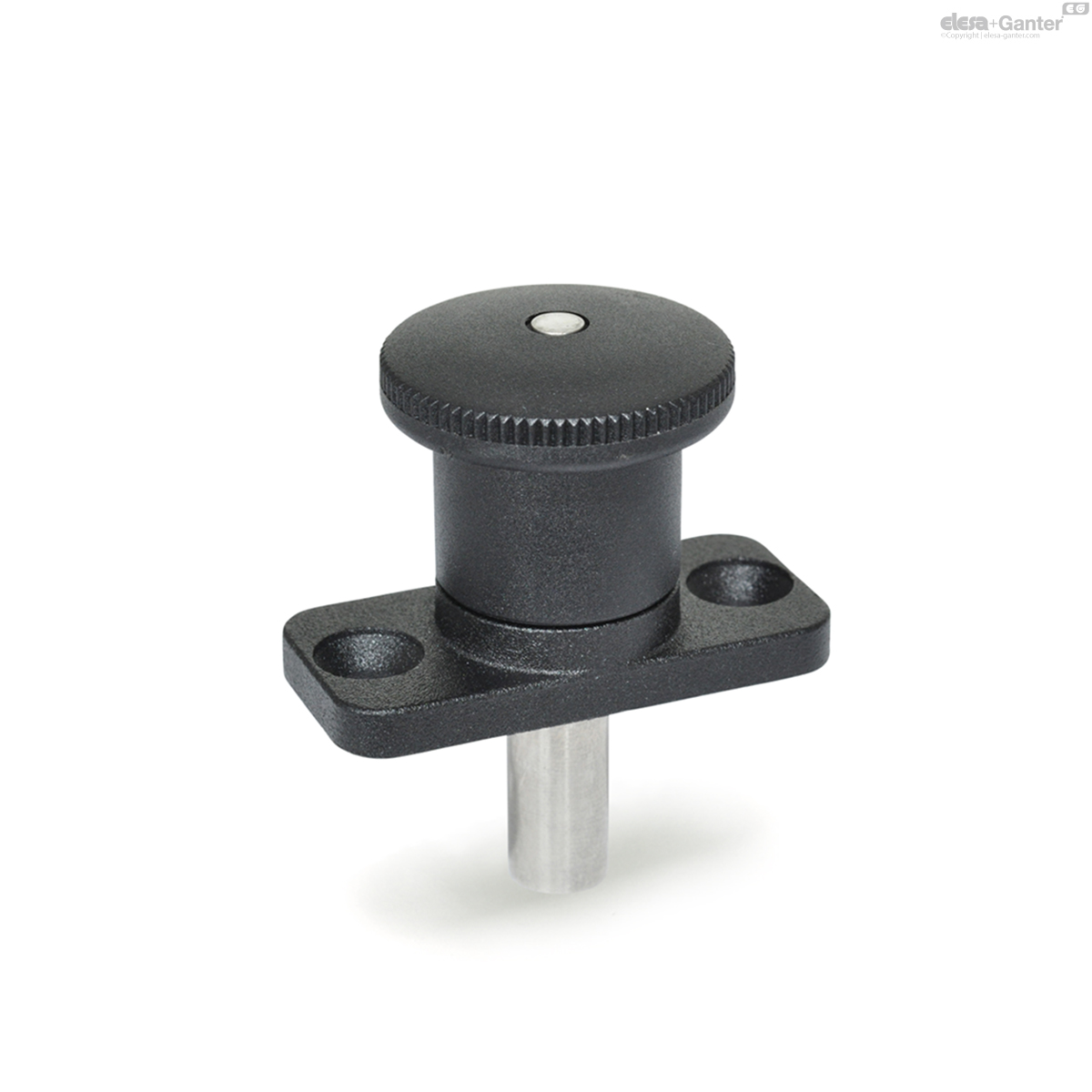

Mini indexing plungers GN 822.8 are distinguished for their small dimensions. They are mounted by countersunk screws.

The mini indexing plungers present an affordable alternative to the GN 608 GN 608.1 andGN 608 GN 608.1indexing plungers.

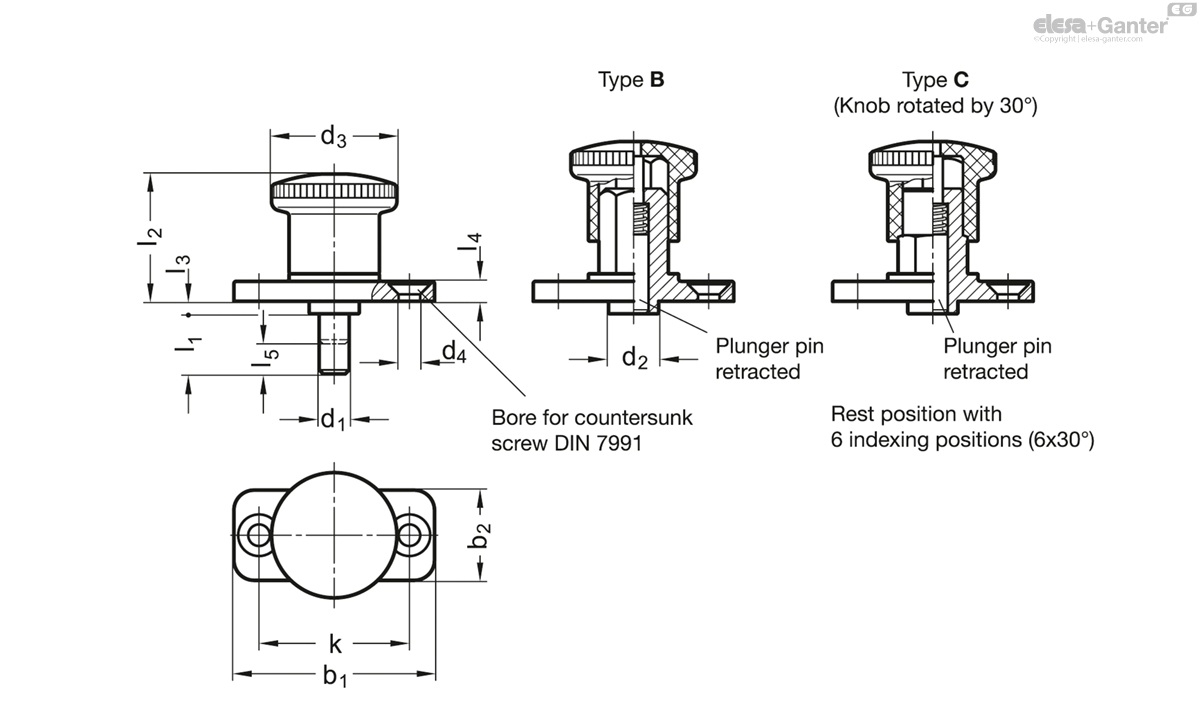

In type C, the button can be turned by 30° after retracting the indexing pin, holding it in the “retraced” position using the indexing lock.

On request

Technical information

	d₁ Bore +0.03/+0.08 Pin h9	l₁	b₁	b₂	d₂ -0.15	d₃	d₄	k	l₂	l₃	l₄	l₅	Spring load in N ≈ initial	Spring load in N ≈ end
Code																Actions
GN 822.8-4-5-B	4	5	35	15	8	21	4.3	25	20.5	2	4	5	4	12	24
GN 822.8-4-5-C	4	5	35	15	8	21	4.3	25	20.5	2	4	5	4	12	23
GN 822.8-4-10-B	4	10	35	15	8	21	4.3	25	20.5	2	4	5	4	12	23
GN 822.8-4-10-C	4	10	35	15	8	21	4.3	25	20.5	2	4	5	4	12	23
GN 822.8-5-6-B	5	6	40	18	10	25	4.3	30	25.5	2.5	4	6	6	16	39
GN 822.8-5-6-C	5	6	40	18	10	25	4.3	30	25.5	2.5	4	6	6	16	39
GN 822.8-5-12-B	5	12	40	18	10	25	4.3	30	25.5	2.5	4	6	6	16	40
GN 822.8-5-12-C	5	12	40	18	10	25	4.3	30	25.5	2.5	4	6	6	16	39
GN 822.8-6-6-B	6	6	40	18	10	25	4.3	30	25.5	2.5	4	6	6	16	39
GN 822.8-6-6-C	6	6	40	18	10	25	4.3	30	25.5	2.5	4	6	6	16	39
GN 822.8-6-12-B	6	12	40	18	10	25	4.3	30	25.5	2.5	4	6	6	16	41
GN 822.8-6-12-C	6	12	40	18	10	25	4.3	30	25.5	2.5	4	6	6	16	39
GN 822.8-8-10-B	8	10	50	23	14	33	5.3	38	35	2.5	5	10	11	35	94
GN 822.8-8-10-C	8	10	50	23	14	33	5.3	38	35	2.5	5	10	11	35	93
GN 822.8-8-20-B	8	20	50	23	14	33	5.3	38	35	2.5	5	10	11	35	98
GN 822.8-8-20-C	8	20	50	23	14	33	5.3	38	35	2.5	5	10	11	35	97
GN 822.8-10-10-B	10	10	50	23	14	33	5.3	38	35	2.5	5	10	11	35	96
GN 822.8-10-10-C	10	10	50	23	14	33	5.3	38	35	2.5	5	10	11	35	96
GN 822.8-10-20-B	10	20	50	23	14	33	5.3	38	35	2.5	5	10	11	35	90
GN 822.8-10-20-C	10	20	50	23	14	33	5.3	38	35	2.5	5	10	11	35	102
