GN 822.7

Stainless Steel-Mini indexing plungers

with and without rest position

Enquire Now

GN 822.7

Stainless Steel-Mini indexing plungers

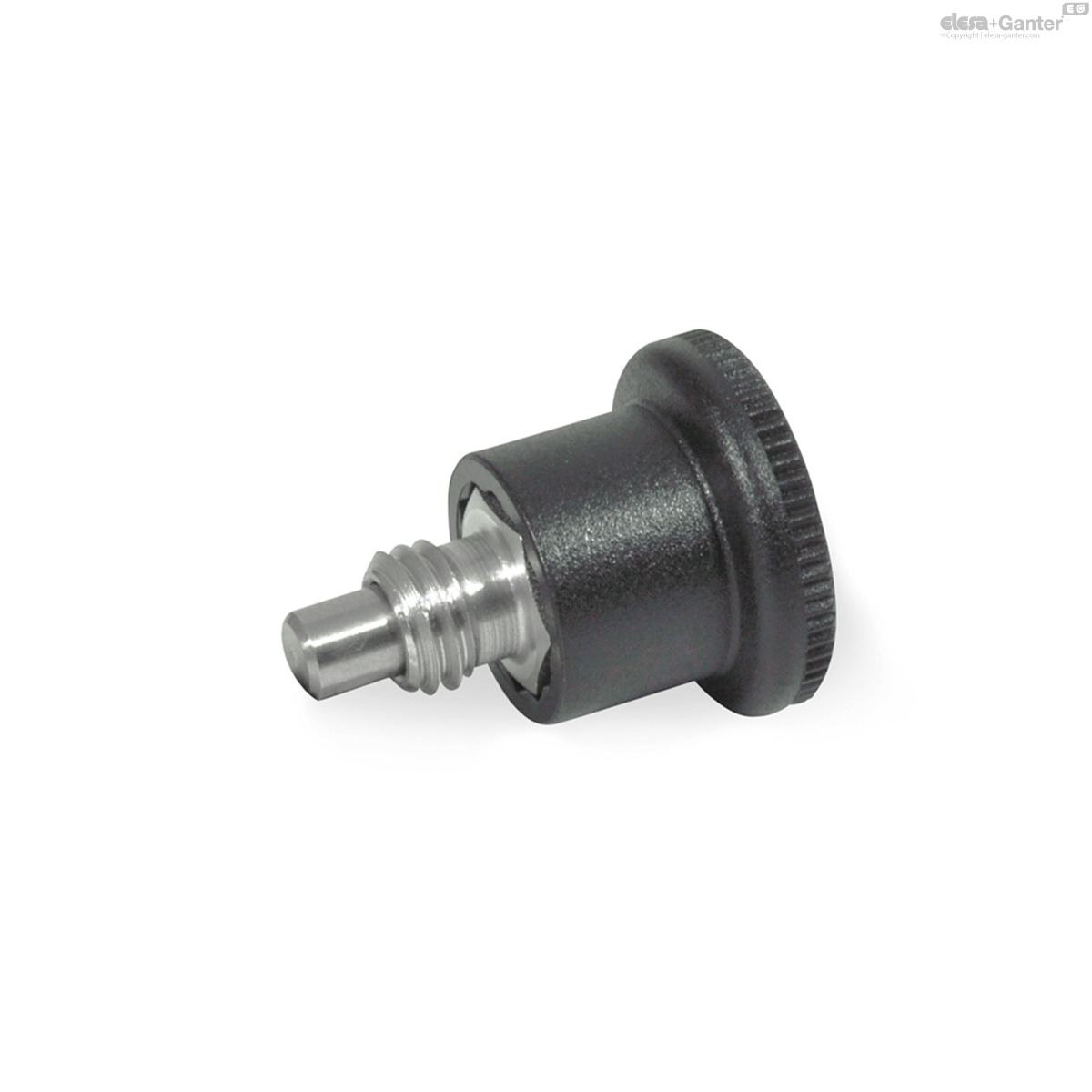

Mini indexing plungers, Stainless Steel / Plastic knob

GN 822.7-NI

Stainless Steel-Mini indexing plungers

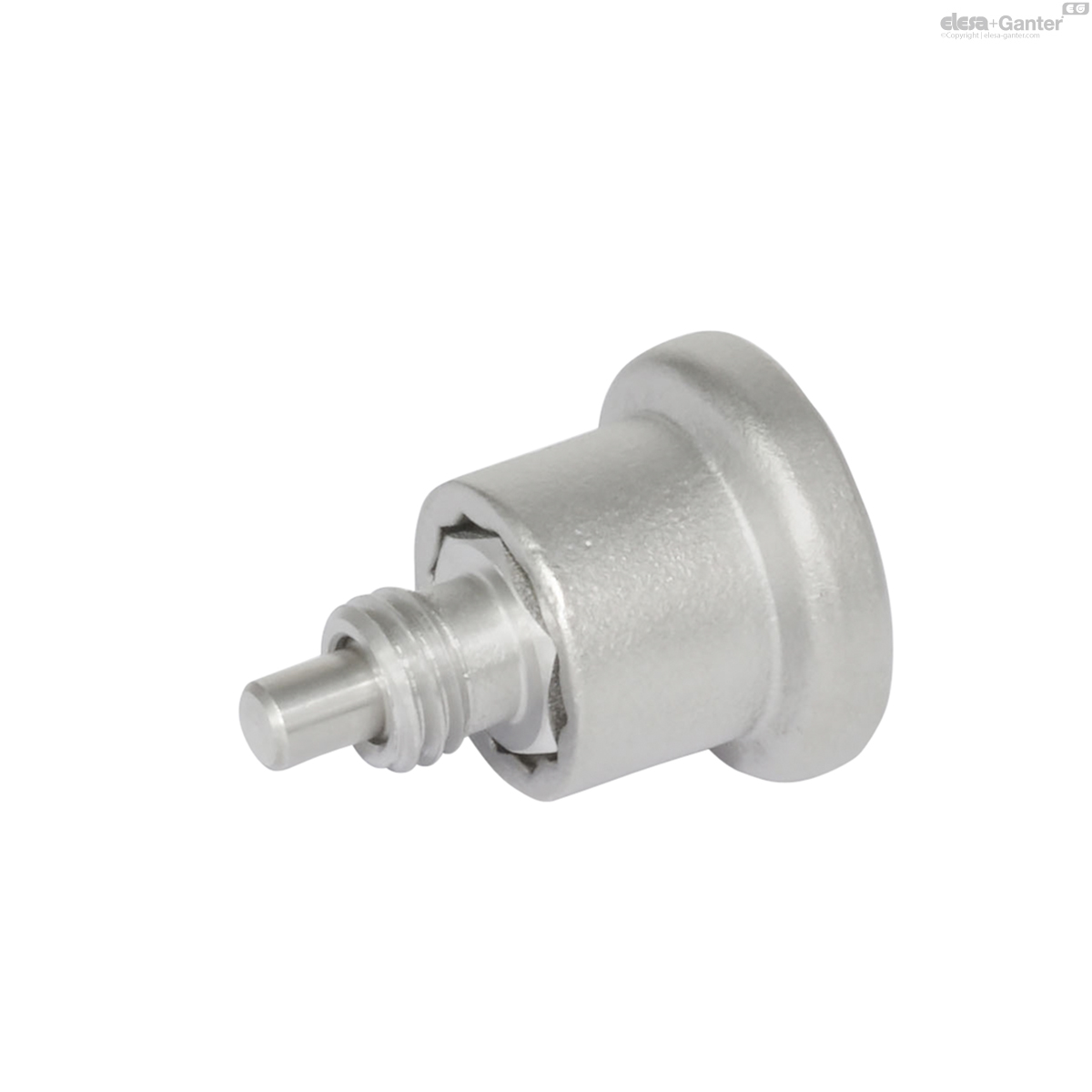

Mini indexing plungers, Stainless Steel

Description

Specification

Types

Type B: without rest position, with plastic knob

Type BN: without rest position, with Stainless Steel-Knob

Type C: with rest position, with plastic knob

Type CN: with rest position, with Stainless Steel-Knob

Guide / Pin

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Version with Plastic knob

Knob Type B and C

Plastic (Polyamide PA)

black, matt

not removable

Version with Stainless Steel knob

Knob Type BN and CN

Stainless Steel AISI CF-8

matt blasted

not removable

Information

Mini indexing plungers GN 822.7 are distinguished for their small dimensions.

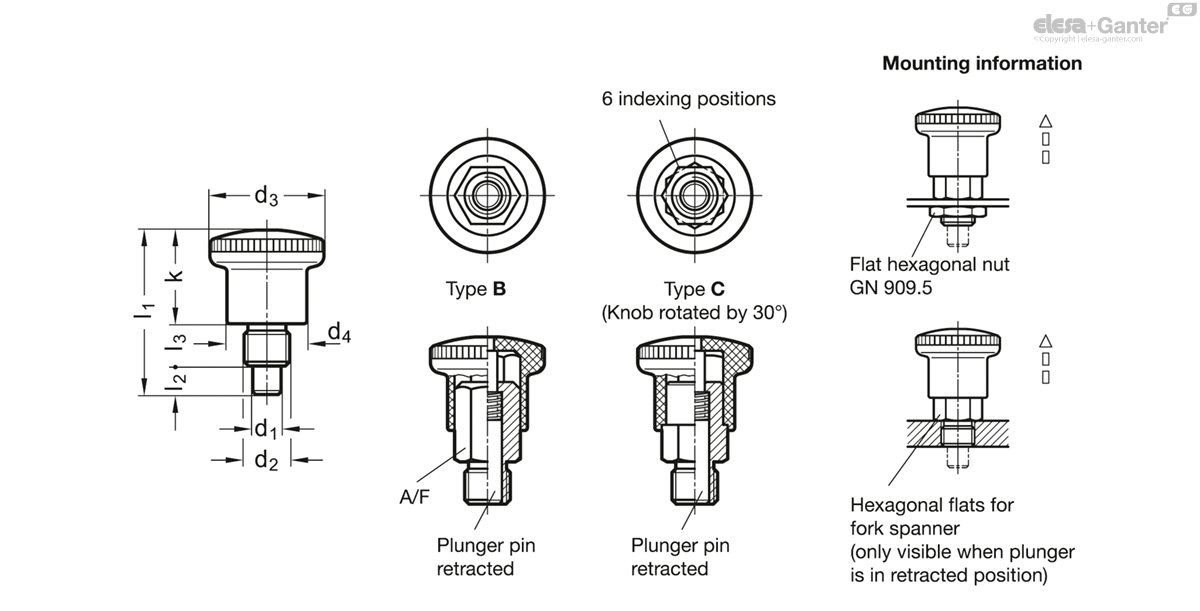

Based on the principle of the GN 822 mini indexing plungers, this model combines their clever type of construction with a complete series of all current sizes of bolts and threads. They provide a reasonably priced alternative to the GN 607/ GN 607.1 indexing plungers of the appropriate sizes. To mount, first turn the mini indexing plunger in with the knurled button. Pulling the indexing pin will release the hexagon nut which can then be tightened with an open-end spanner.

The spanner flats on the lock nut are revealed when retracting the pin, so that the mini indexing plunger can be easily tightened by means of a fork spanner.

In types C and CN, the button can be turned by 30° after retracting the indexing pin, holding it in the “retraced” position using the indexing lock.

Range of indexing plungers

On request

with red knob

Technical information

Stainless Steel characteristics

Plastic characteristics

ISO-Fundamental tolerances

Load rating information

GN 822.7

	d₁ Bore +0.03/+0.08 Pin h9	d₂	d₃	d₄	l₁	l₂ min.	l₃	k	A/F	Spring load in N ≈ initial	Spring load in N ≈ end
Code													Actions
GN 822.7-4-M8-B	4	M 8	21	15	27.5	5	6	16.5	10	4	12	14
GN 822.7-4-M8-C	4	M 8	21	15	27.5	5	6	16.5	10	4	12	14
GN 822.7-4-M8x1-B	4	M 8 x 1	21	15	27.5	5	6	16.5	10	4	12	14
GN 822.7-4-M8x1-C	4	M 8 x 1	21	15	27.5	5	6	16.5	10	4	12	14
GN 822.7-5-M10-B	5	M 10	25	18	34	6	8	20	12	6	16	25
GN 822.7-5-M10-C	5	M 10	25	18	34	6	8	20	12	6	16	24
GN 822.7-5-M10x1-B	5	M 10 x 1	25	18	34	6	8	20	12	6	16	26
GN 822.7-5-M10x1-C	5	M 10 x 1	25	18	34	6	8	20	12	6	16	25
GN 822.7-6-M10-B	6	M 10	25	18	34	6	8	20	12	6	16	24
GN 822.7-6-M10-C	6	M 10	25	18	34	6	8	20	12	6	16	24
GN 822.7-6-M10x1-B	6	M 10 x 1	25	18	34	6	8	20	12	6	16	26
GN 822.7-6-M10x1-C	6	M 10 x 1	25	18	34	6	8	20	12	6	16	25
GN 822.7-6-M12-B	6	M 12	28	20	40.5	7	10	23.5	14	10	23	40
GN 822.7-6-M12-C	6	M 12	28	20	40.5	7	10	23.5	14	10	23	40
GN 822.7-6-M12x1,5-B	6	M 12 x 1.5	28	20	40.5	7	10	23.5	14	10	23	41
GN 822.7-6-M12x1,5-C	6	M 12 x 1.5	28	20	40.5	7	10	23.5	14	10	23	39
GN 822.7-7-M12-B	7	M 12	28	20	40.5	7	10	23.5	14	10	23	40
GN 822.7-7-M12-C	7	M 12	28	20	40.5	7	10	23.5	14	10	23	39
GN 822.7-7-M12x1,5-B	7	M 12 x 1.5	28	20	40.5	7	10	23.5	14	10	23	41
GN 822.7-7-M12x1,5-C	7	M 12 x 1.5	28	20	40.5	7	10	23.5	14	10	23	40
GN 822.7-8-M16-B	8	M 16	33	23	47.5	10	12	25.5	17	11	35	67
GN 822.7-8-M16-C	8	M 16	33	23	47.5	10	12	25.5	17	11	35	65
GN 822.7-8-M16x1,5-B	8	M 16 x 1.5	33	23	47.5	10	12	25.5	17	11	35	68
GN 822.7-8-M16x1,5-C	8	M 16 x 1.5	33	23	47.5	10	12	25.5	17	11	35	65
GN 822.7-10-M16-B	10	M 16	33	23	47.5	10	12	25.5	17	11	35	69
GN 822.7-10-M16-C	10	M 16	33	23	47.5	10	12	25.5	17	11	35	67
GN 822.7-10-M16x1,5-B	10	M 16 x 1.5	33	23	47.5	10	12	25.5	17	11	35	70
GN 822.7-10-M16x1,5-C	10	M 16 x 1.5	33	23	47.5	10	12	25.5	17	11	35	60
