GN 820.6

Toggle Clamps

Steel / Stainless Steel, Operating Lever with T-Handle

Enquire Now

Description

Specification

Types

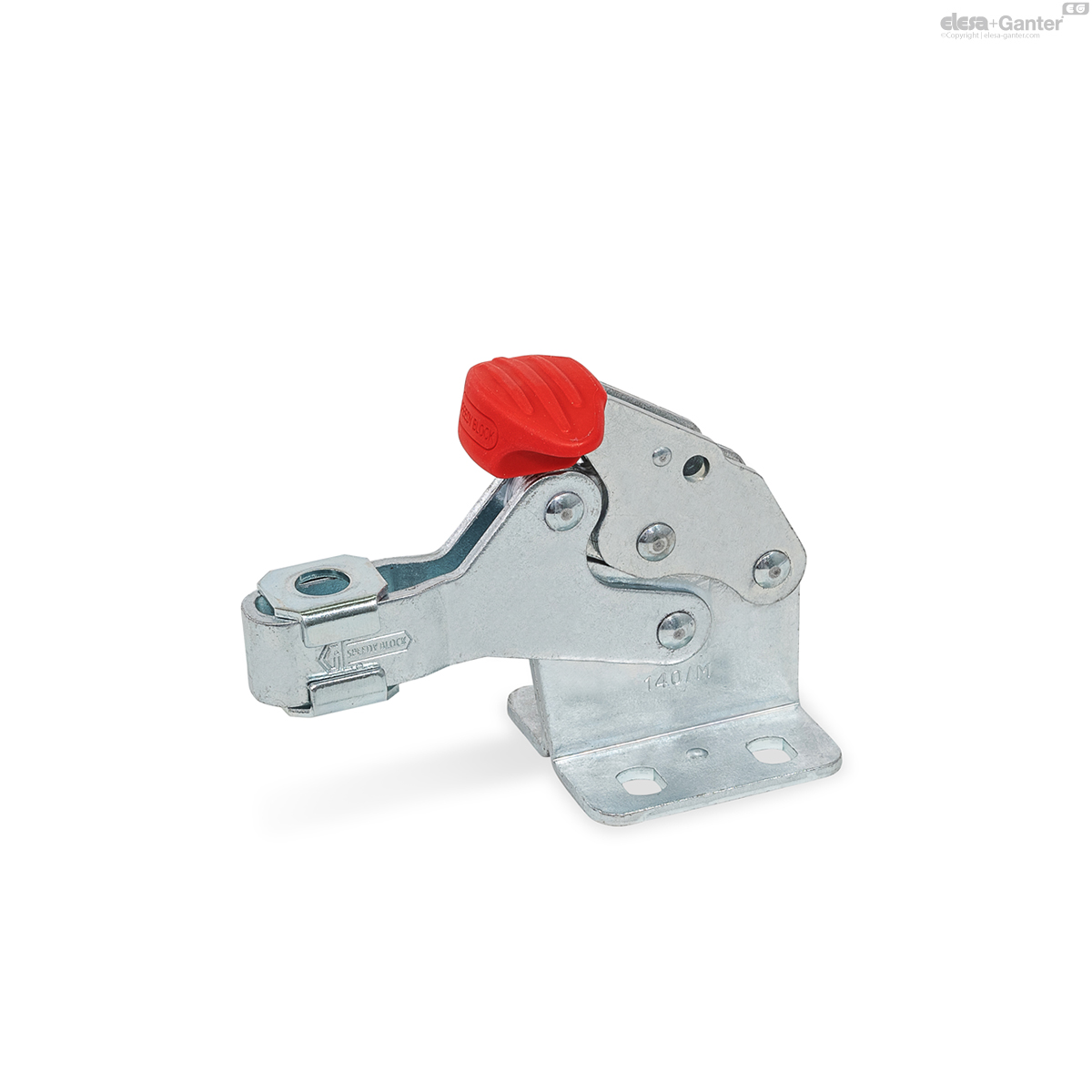

Type M: Without lock mechanism, with two flanged washers

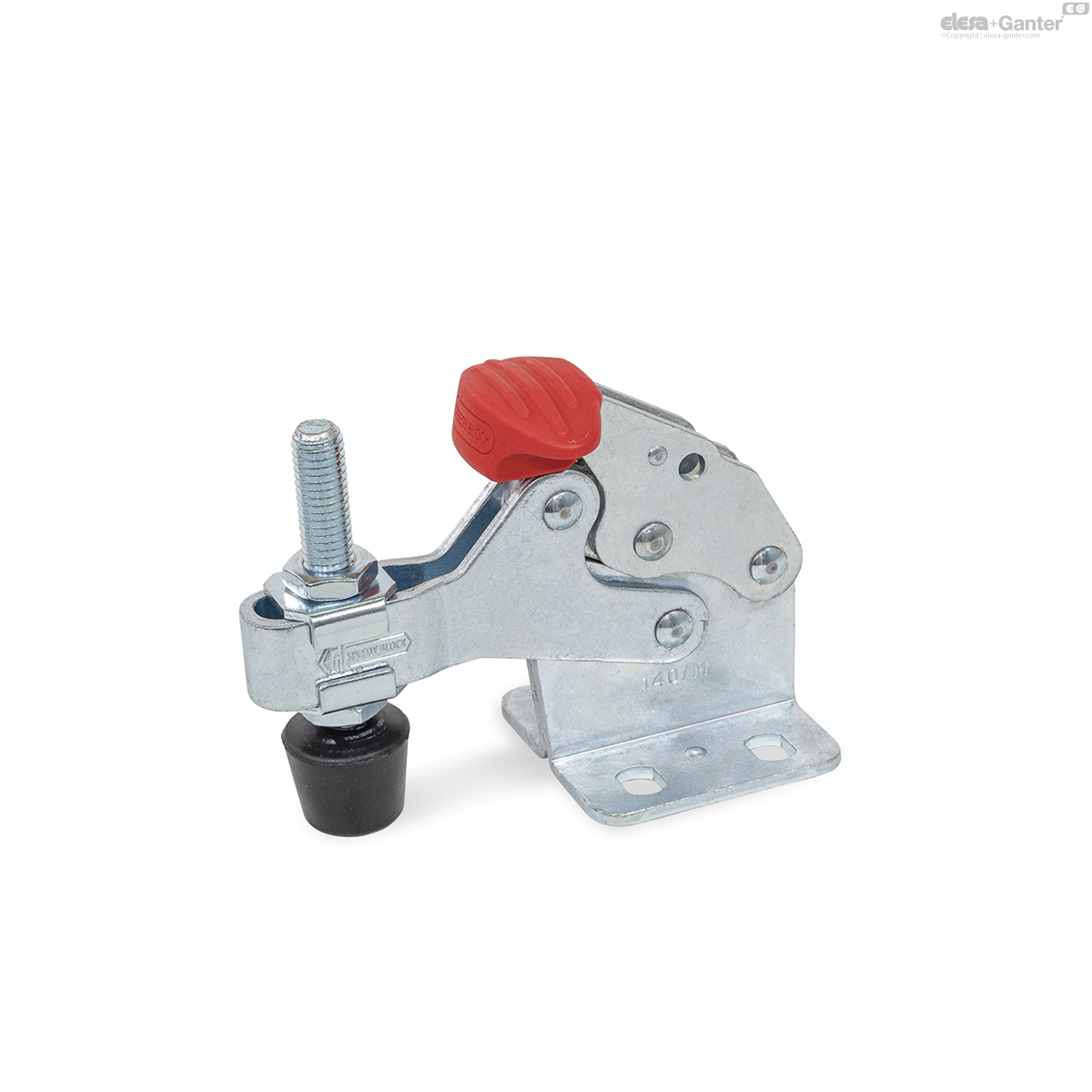

Type MC: Without lock mechanism, with two flanged washers and clamping screw GN 708.1

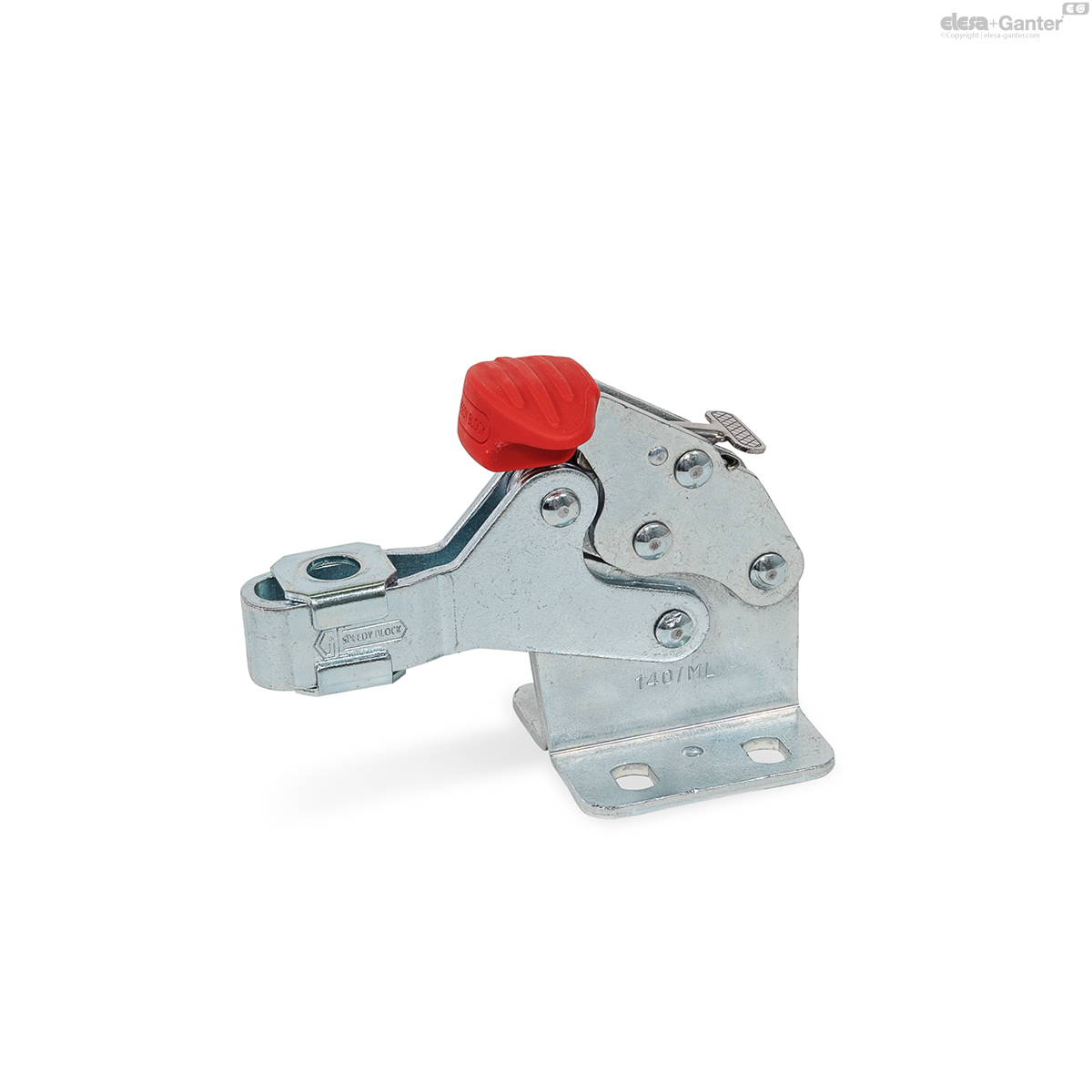

Type ML: With lock mechanism, with two flanged washers
Type MLC: With lock mechanism, with two flanged washers and clamping screw GN 708.1

Tensioning mechanism

Steel ST

Sheet metal parts

Case-hardened steel C10, zinc plated, blue passivated

Bearing pins tempered

Bearing rivets case-hardened

Moving parts lubricated with special grease

Stainless steel NI

Sheet metal parts AISI 304

Bearing pins, bearing rivets AISI 304

Moving parts lubricated with special grease

Handle

Plastic

Red, oil resistant

Flanged washers GN 898

Steel, zinc plated, blue passivated for ST
Stainless steel AISI 304 for NI

Clamping screws GN 708.1 for type MC / MLC

Steel, zinc plated, blue passivated for ST

Stainless steel AISI 304 for NI

Rubber tip

85 Shore A

Type A (flat pressure area)

Information

Toggle clamps GN 820.6 feature a very compact design.

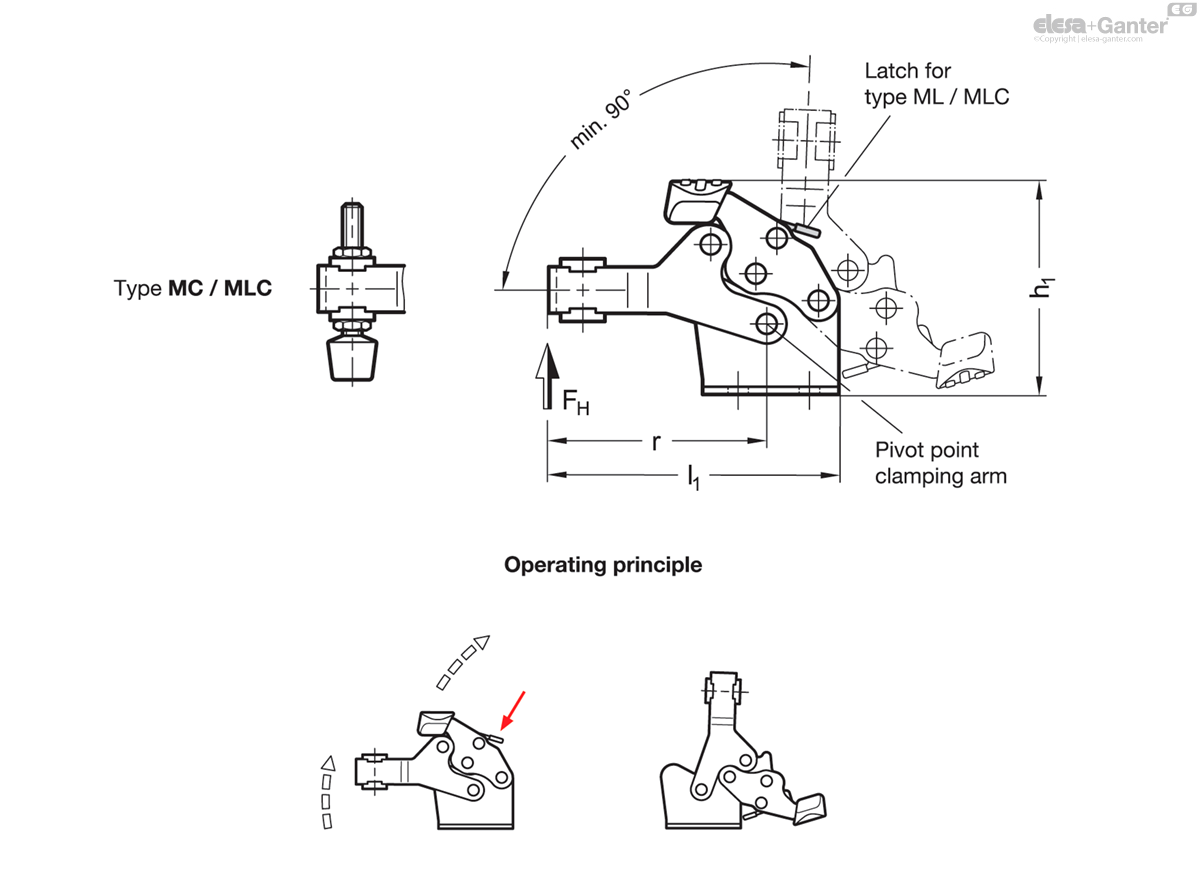

Types ML / MLC are securely locked while in the clamped position to prevent loosening by accident or due to vibrations. The lock can be released by one hand operation.

Accessory

GN 801.1 Clamping Arm Extenders (Rigid)
GN 801.2 Clamping Arm Extenders (with Joint)

Technical information

General Information for Toggle Clamps
Stainless Steel Characteristics

GN 820.6-ST

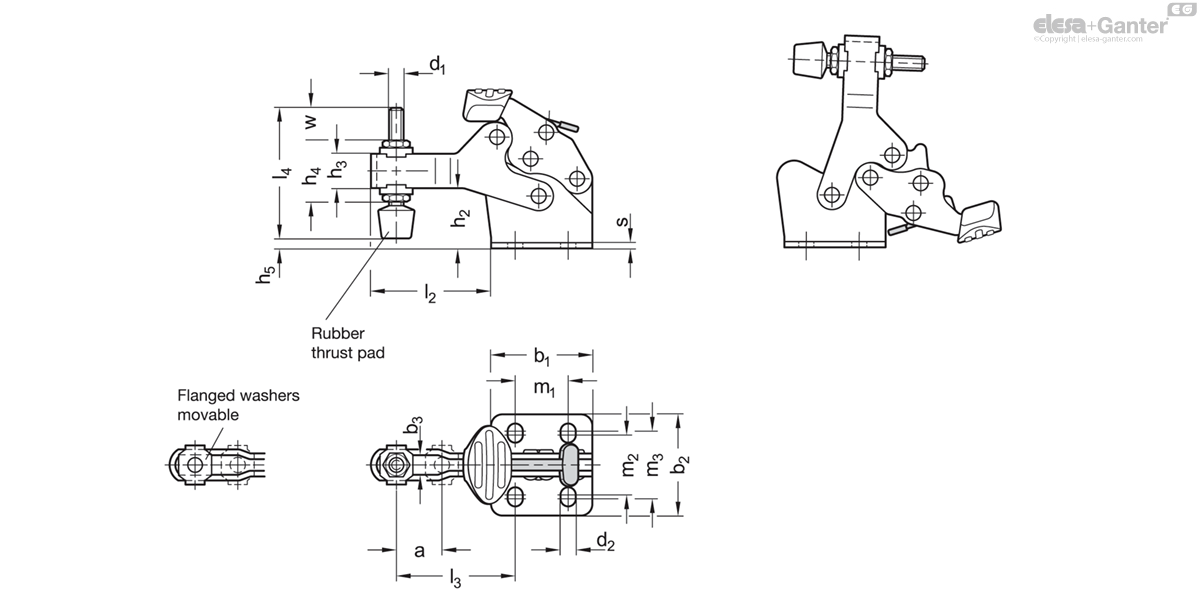

	Color	Size	F_H in N	a ≈	b₁	b₂	b₃	d₁	d₂	h₁ ≈	h₂	h₃	h₄ ≈	h₅ ≈	l₁ ≈	l₂	l₃ ≈	l₄	m₁	m₂	m₃	r	s	w ≈ Adjustable range
Code																										Actions
GN 820.6-80-M-ST	M	80	900	10	26	26	5.5	-	4.5	46	18	9	-	-	57	31	32.5	-	13.5	15.5	16.5	38	2	-	67
GN 820.6-80-MC-ST	MC	80	900	10	26	26	5.5	M 5	4.5	46	18	9	16.5	3.2	57	31	32.5	45	13.5	15.5	16.5	38	2	17.6	77
GN 820.6-80-ML-ST	ML	80	900	10	26	26	5.5	-	4.5	46	18	9	-	-	57	31	32.5	-	13.5	15.5	16.5	38	2	-	67
GN 820.6-80-MLC-ST	MLC	80	900	10	26	26	5.5	M 5	4.5	46	18	9	16.5	3.2	57	31	32.5	45	13.5	15.5	16.5	38	2	17.6	77
GN 820.6-140-M-ST	M	140	1300	17	44	44	8.5	-	6.6	69	26	15	-	-	96	49	52.6	-	23	26	29.5	62.5	2.5	-	217
GN 820.6-140-MC-ST	MC	140	1300	17	44	44	8.5	M 8	6.6	69	26	15	26	2.6	96	49	52.6	68	23	26	29.5	62.5	2.5	24	80
GN 820.6-140-ML-ST	ML	140	1300	17	44	44	8.5	-	6.6	69	26	15	-	-	96	49	52.6	-	23	26	29.5	62.5	2.5	-	217
GN 820.6-140-MLC-ST	MLC	140	1300	17	44	44	8.5	M 8	6.6	69	26	15	26	2.6	96	49	52.6	68	23	26	29.5	62.5	2.5	24	80
GN 820.6-250-M-ST	M	250	2400	24	64	64	10.5	-	8.7	96	34	20	-	-	131	67	72.6	-	35	37.5	38.5	89	3	-	528
GN 820.6-250-MC-ST	MC	250	2400	24	64	64	10.5	M 10	8.7	96	34	20	35	6	131	67	72.6	77	35	37.5	38.5	89	3	21.2	583
GN 820.6-250-ML-ST	ML	250	2400	24	64	64	10.5	-	8.7	96	34	20	-	-	131	67	72.6	-	35	37.5	38.5	89	3	-	528
GN 820.6-250-MLC-ST	MLC	250	2400	24	64	64	10.5	M 10	8.7	96	34	20	35	6	131	67	72.6	77	35	37.5	38.5	89	3	21.2	583
