GN 820.3

Toggle Clamps

Steel / Stainless Steel, Operating Lever Horizontal, with Lock Mechanism, with Horizontal Mounting Base

Enquire Now

Description

Specification

Types

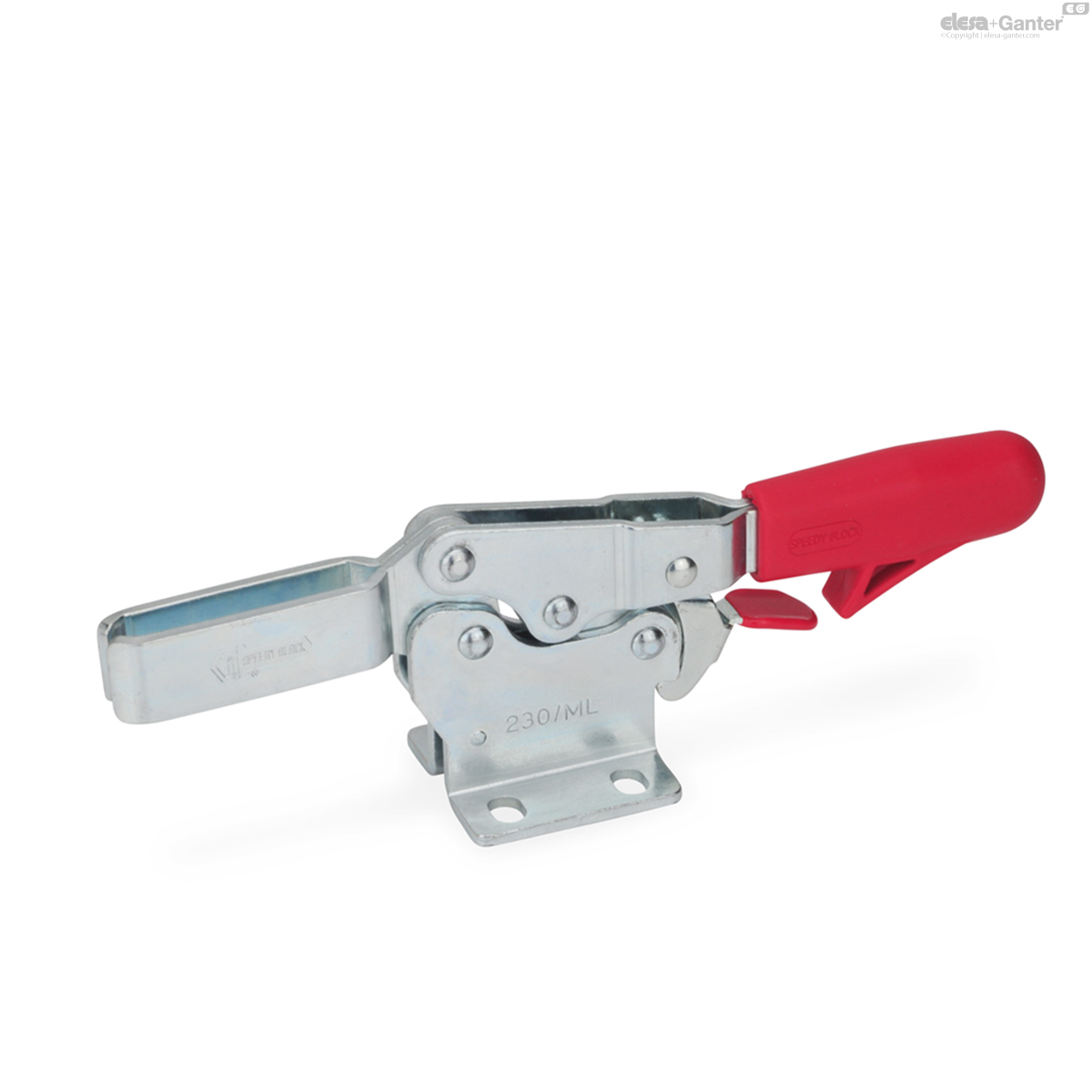

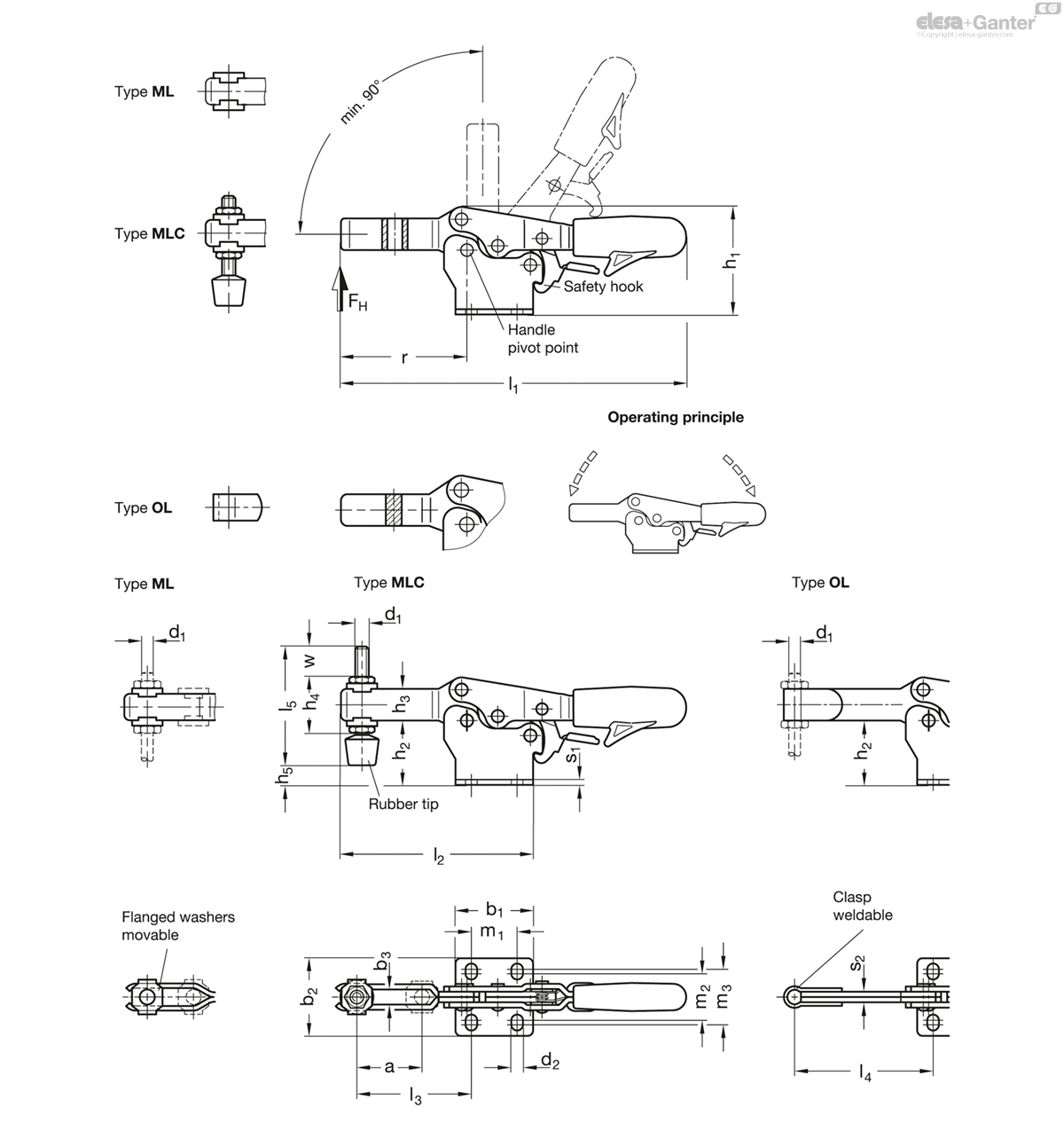

Type ML: Forked clamping arm, with two flanged washers

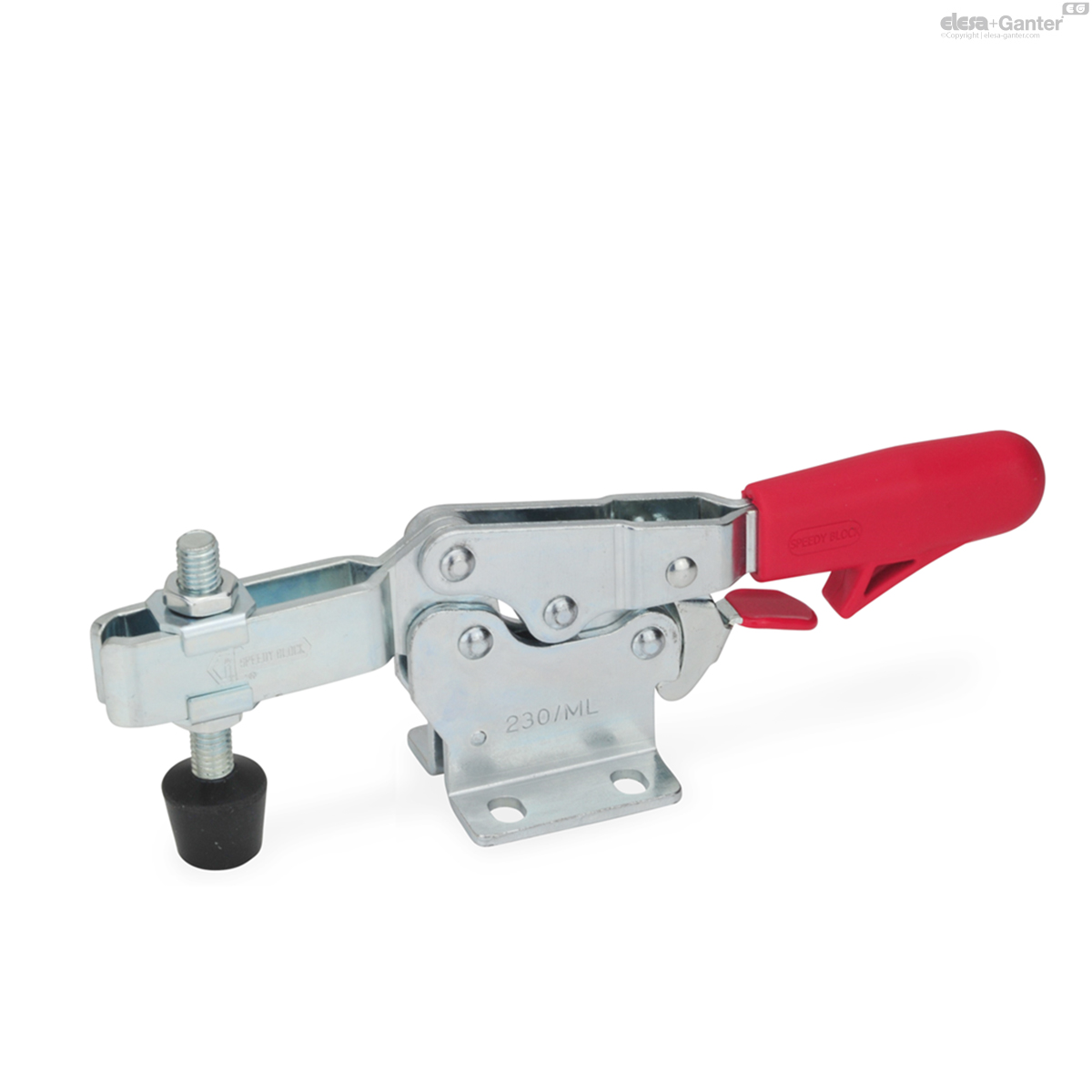

Type MLC: Forked clamping arm, with two flanged washers and clamping screw GN 708.1

Type OL: Solid clamping arm, with clasp for welding

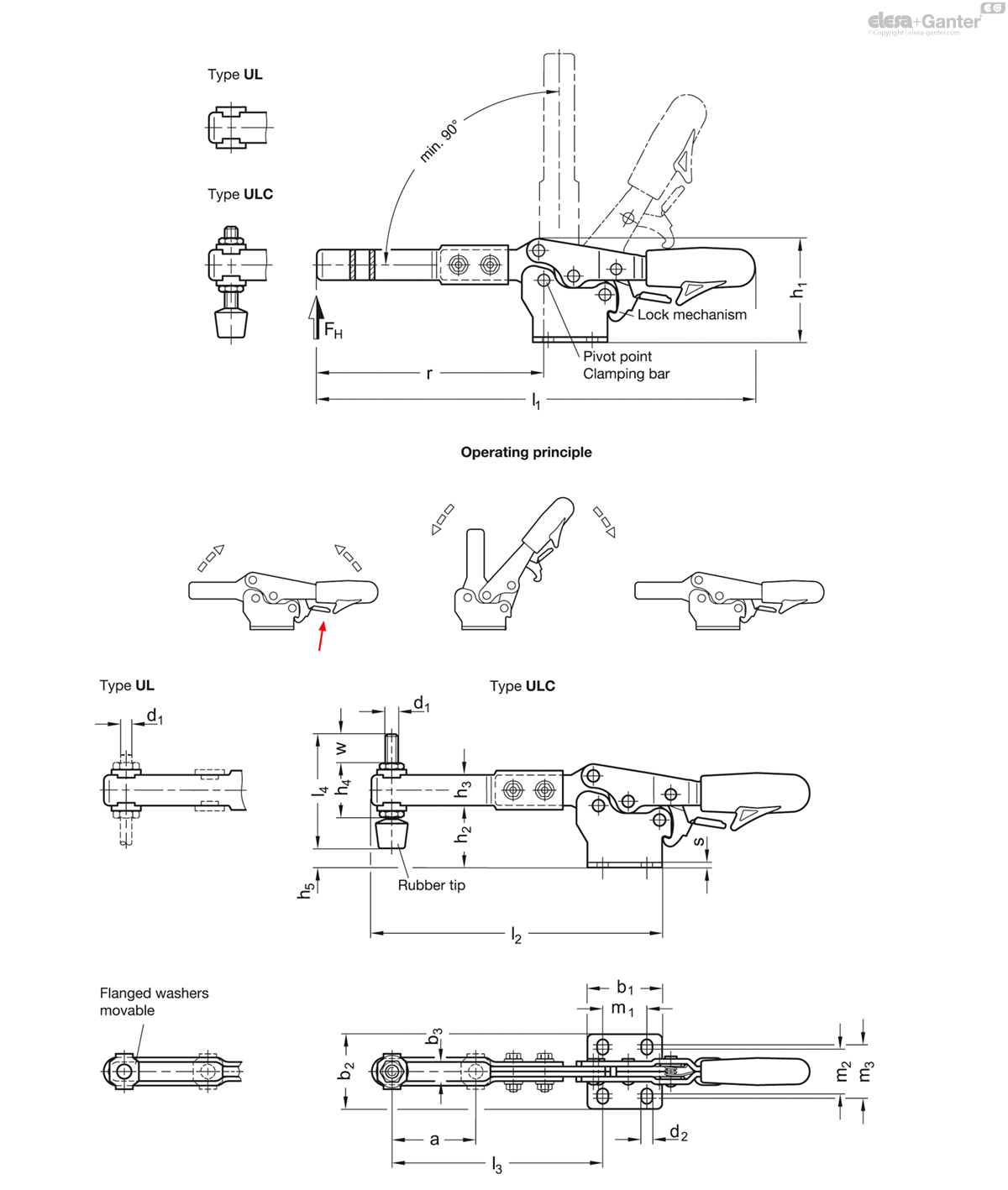

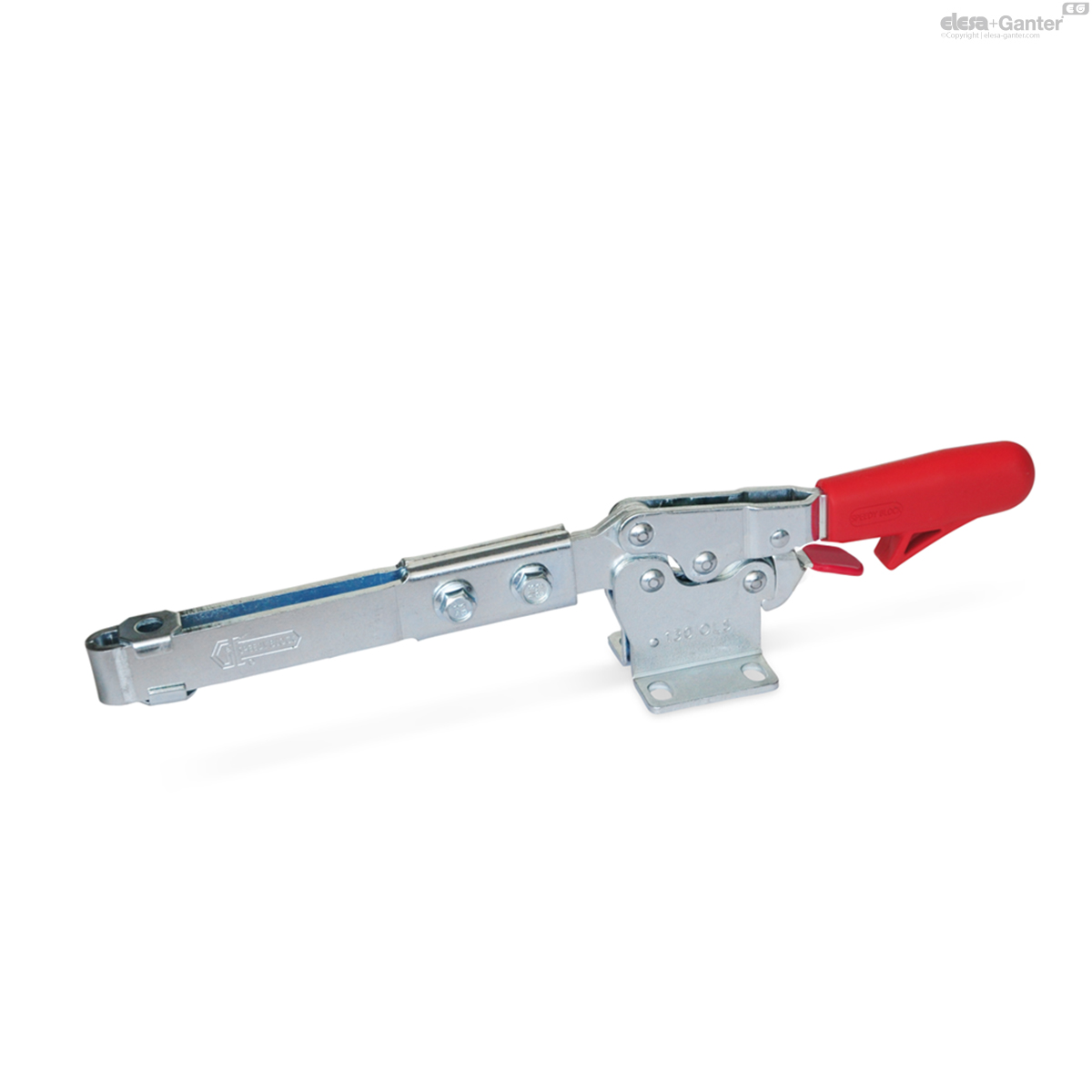

Type UL: Clamping arm extended, with slotted hole and with two flanged washers (Version in Steel)

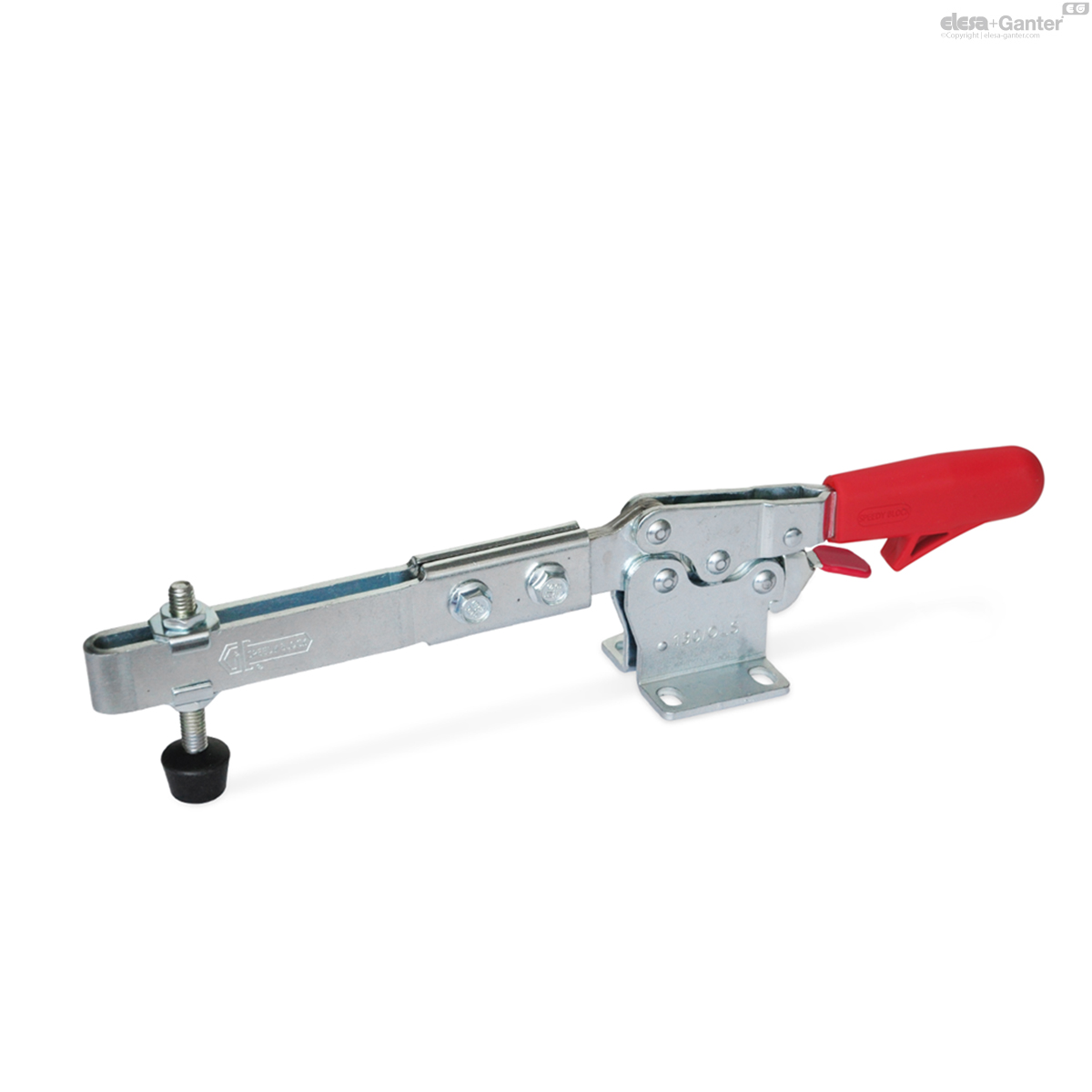

Type ULC: Clamping arm extended, with slotted hole, two flanged washers and clamping screw GN 708.1 (Version in Steel)

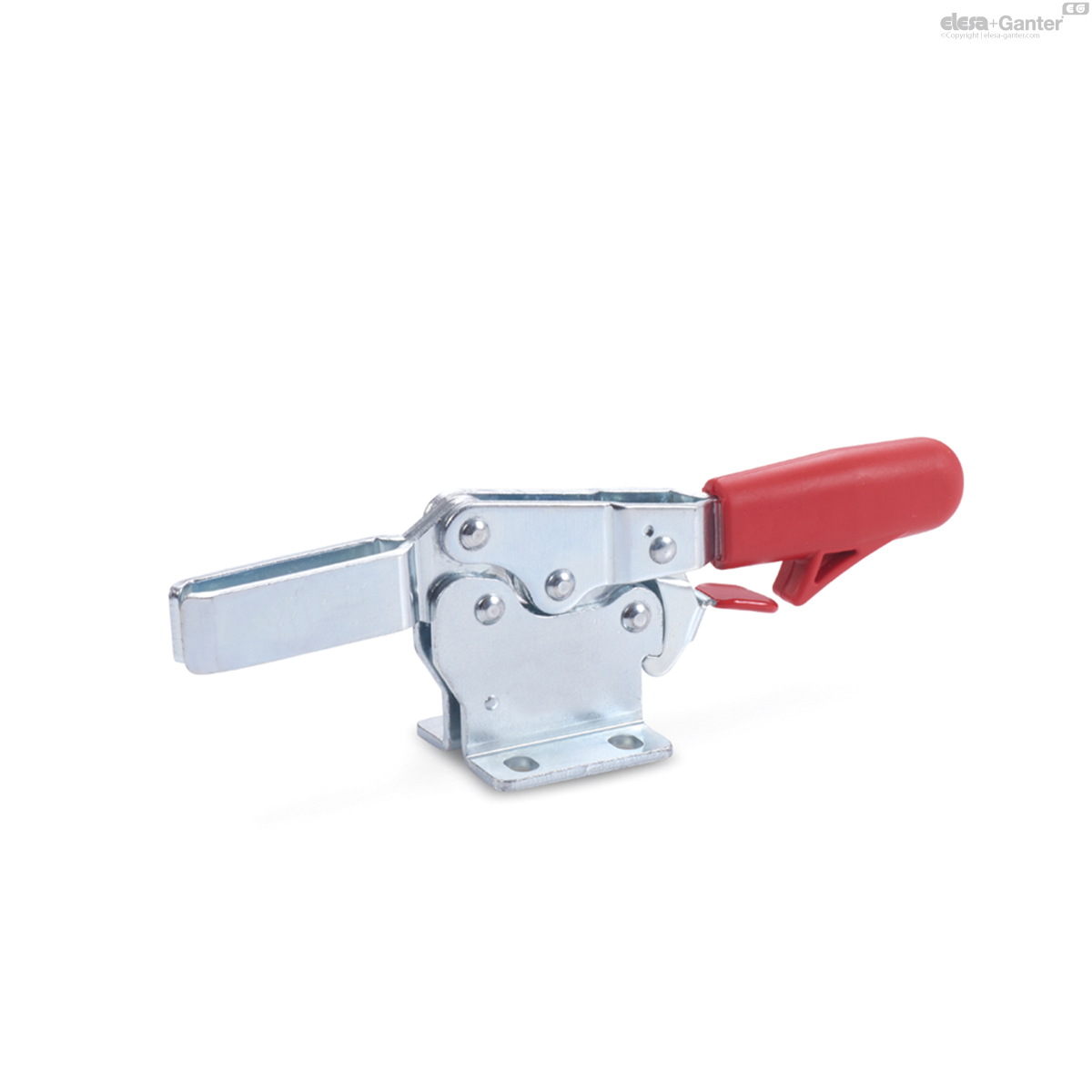

Version in Steel

Case-hardened Steel C10

Zinc plated, blue passivated

Bearing pins tempered

Bearing rivets (for size 355 and up), case-hardened

All moving parts

Lubricated with special grease

Solid designed plastic handle

Red, oil resistant

Clamping screw GN 708.1, type A

Steel, zinc plated, blue passivated

Rubber thrust pad 85 Shore A

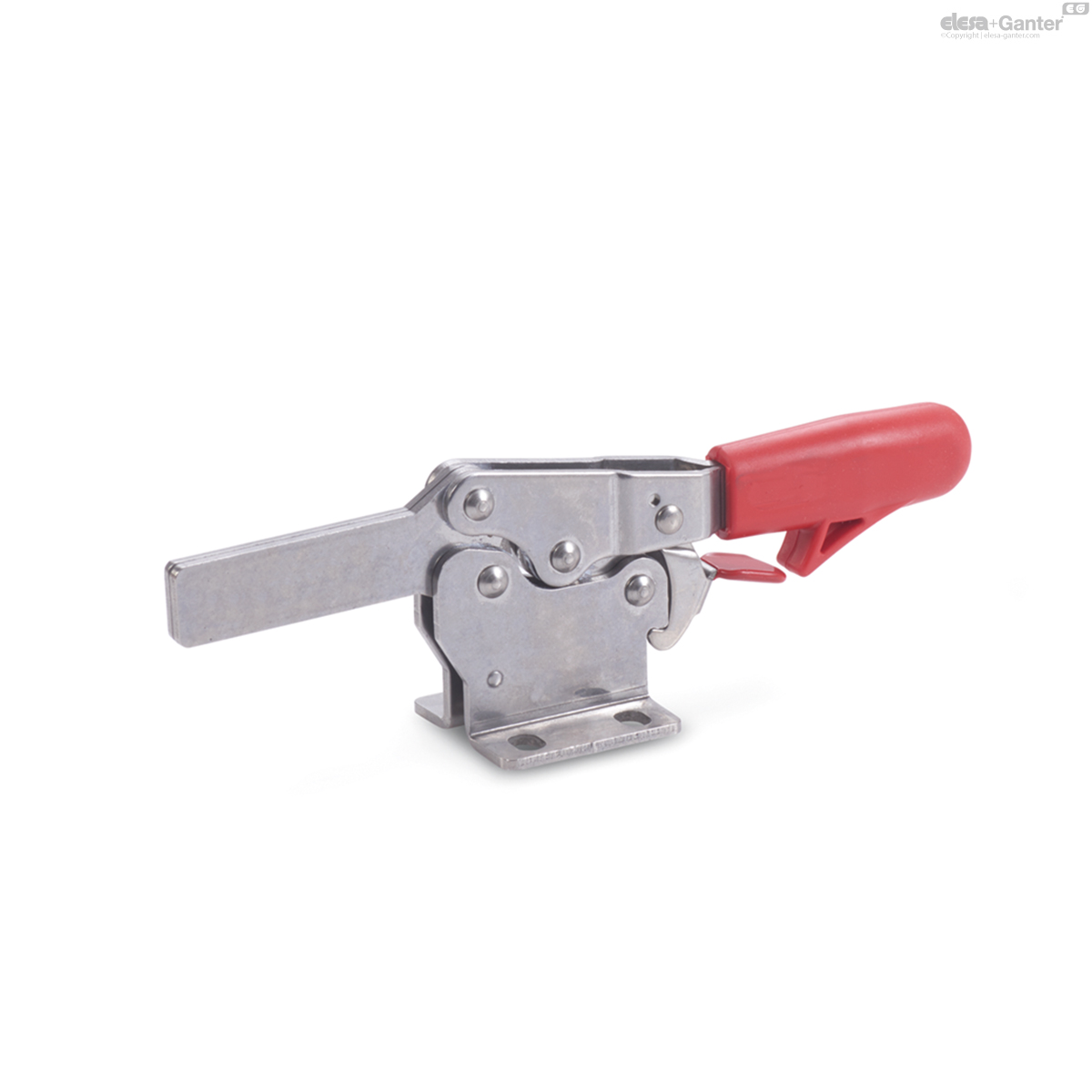

Version in Stainless Steel NI

Stainless steel AISI 304

All moving parts

Lubricated with special grease

Solid designed plastic handle

Red, oil resistant

Clamping screw GN 708.1, type A

Stainless steel AISI 304

Rubber thrust pad 85 Shore A

Information

Toggle clamps GN 820.3 have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).

They work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action.

Toggle clamps in the with forked clamping arm, with two flanged washers (type ML) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type MLC.

Toggle clamps in the type OL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 holders for clamping screws to hold the work piece in place.

Toggle clamps in the U-bar version with two flanged washers (Type UL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type ULC.

General information for toggle clamps

Technical information

Stainless Steel Characteristics

Accessory

Clamping Screws

Holders for Clamping Screws GN 801 (for Type ML and UL)

Holders for Clamping Screws GN 809 (for Type OL)

Clamping Arm Extenders GN 809.1 (for Type OL)

Clamping Arm Extenders GN 801.1 (for Type ML and UL)

Clamping Arm Extenders GN 801.2 (for Type ML and UL)

GN 820.3

	Color	F_H in N	Size	F_h in N	a ≈	b₁	b₂	b₃	d₁	d₂	d₂ ≈	h₁ ≈	h₂	h₃	h₄	h₅	h₅ max.	l₁ ≈	l₂ ≈	l₃ ≈	l₄	l₄ ≈	l₄ max.	l₅	m₁	m₂	m₃	r	s	s₁	s₂	w
Code																																		Actions
GN 820.3-75-ML	ML	-	75	900	20	28	26	5.3	M 5	4.5	4.5	37	20	11	-	-	-	118	67	40	-	-	-	-	13.5	16	19	42.5	-	2	-	-	95
GN 820.3-75-MLC	MLC	-	75	900	20	28	26	5.3	M 5	4.5	4.5	37	20	11	19	5	5	118	67	40	-	-	-	45	13.5	16	19	42.5	-	2	-	15	100
GN 820.3-75-OL	OL	900	75	900	-	28	26	-	M 5	4.5	4.5	37	20	11	-	-	-	118	67	-	-	49.5	49.5	-	26	22.4	28.4	62.5	-	2.5	5	-	90
GN 820.3-130-ML	ML	-	130	1000	32	36	40	6.3	M 6	5.6	5.6	51	30.5	16	-	-	-	172	92.5	54	-	-	-	-	26	22.4	28.4	62.5	-	2.5	-	-	200
GN 820.3-130-MLC	MLC	-	130	1000	32	36	40	6.3	M 6	5.6	5.6	51	30.5	16	25.5	14	14	172	92.5	54	-	-	-	55	26	22.4	28.4	62.5	-	2.5	-	17.5	230
GN 820.3-130-OL	OL	-	130	1000	-	36	40	-	M 6	5.6	5.6	51	30.5	16	-	-	-	172	92.5	-	-	65	65	-	26	26	31.5	71.5	-	3	6	-	200
GN 820.3-130-UL	UL	-	130	600	67.5	36	40	6.3	M 6	5.6	5.6	51	30.5	16	-	-	-	250	171	133	-	-	-	-	26	22.4	28.4	141	2.5	-	-	-	295
GN 820.3-130-ULC	ULC	-	130	600	67.5	36	40	6.3	M 6	5.6	5.6	51	30.5	16	25.5	14	14	250	171	133	55	-	-	-	26	22.4	28.4	141	2.5	-	-	17.5	311
GN 820.3-230-ML	ML	-	230	1700	37	44	44	8.5	M 8	6.6	6.6	61.5	36.5	18	-	-	-	196	109	64.5	-	-	-	-	26	26	31.5	71.5	-	3	-	-	320
GN 820.3-230-MLC	MLC	-	230	1700	37	44	44	8.5	M 8	6.6	6.6	61.5	36.5	18	30	12.5	12.5	196	109	64.5	-	-	-	68	26	26	31.5	71.5	-	3	-	20	380
GN 820.3-230-OL	OL	-	230	1700	-	44	44	-	M 8	6.6	6.6	61.5	36.5	18	-	-	-	196	109	-	-	79	79	-	41	38.8	43	109	-	3.5	7	-	330
GN 820.3-230-UL	UL	-	230	1100	71.5	44	44	8.2	M 8	6.6	6.6	61.5	36.5	18	-	-	-	283	196	152.5	-	-	-	-	26	26	31.5	158.5	3	-	-	-	485
GN 820.3-230-ULC	ULC	-	230	1100	71.5	44	44	8.2	M 8	6.6	6.6	61.5	36.5	18	30	12.5	12.5	283	196	152.5	68	-	-	-	26	26	31.5	158.5	3	-	-	20	519
GN 820.3-355-ML	ML	-	355	1800	58	60	58	10.5	M 10	8.6	8.6	83	50	22	-	-	-	270	160	98.5	-	-	-	-	41	38.8	43	109	-	3.5	-	-	730
GN 820.3-355-MLC	MLC	-	355	1800	58	60	58	10.5	M 10	8.6	8.6	83	50	22	37	21.5	21.5	270	160	98.5	-	-	-	77	41	38.8	43	109	-	3.5	-	19	800
GN 820.3-355-OL	OL	-	355	1800	-	60	58	-	M 10	8.6	8.6	83	50	22	-	-	-	270	160	-	-	116	116	-	41.5	40	43	126	-	4	10	-	750
GN 820.3-455-ML	ML	-	455	3200	65	70	65	12.5	M 12	8.7	8.7	99	60	26	-	-	-	305	184	116	-	-	-	-	41.5	40	43	126	-	4	-	-	1200
GN 820.3-455-MLC	MLC	-	455	3200	65	70	65	12.5	M 12	8.7	8.7	99	60	26	43	27.5	27.5	305	184	116	-	-	-	100	41.5	40	43	126	-	4	-	33	1330
GN 820.3-455-OL	OL	-	455	3200	-	70	65	-	M 12	8.7	8.7	99	60	26	-	-	-	305	184	-	-	136	136	-	13.5	16	19	42.5	-	2	4	-	1220
