Horizontal Acting Toggle Clamps

Steel / Stainless Steel, Operating Lever Horizontal, with Horizontal Mounting Base

Enquire Now

GN 820

Horizontal Acting Toggle Clamps

Steel

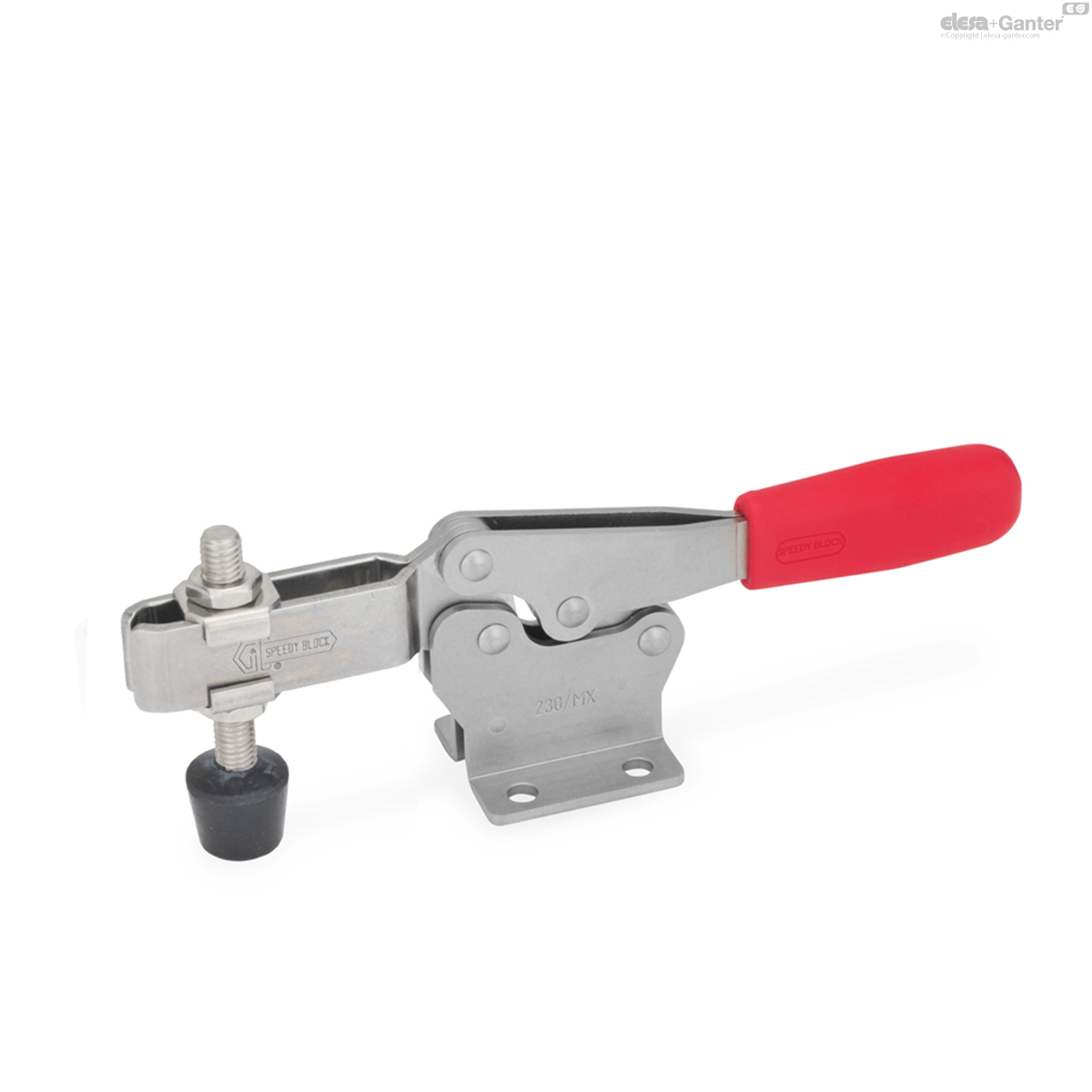

GN 820-NI

Horizontal Acting Toggle Clamps

Stainless Steel

Description

Specification

Types

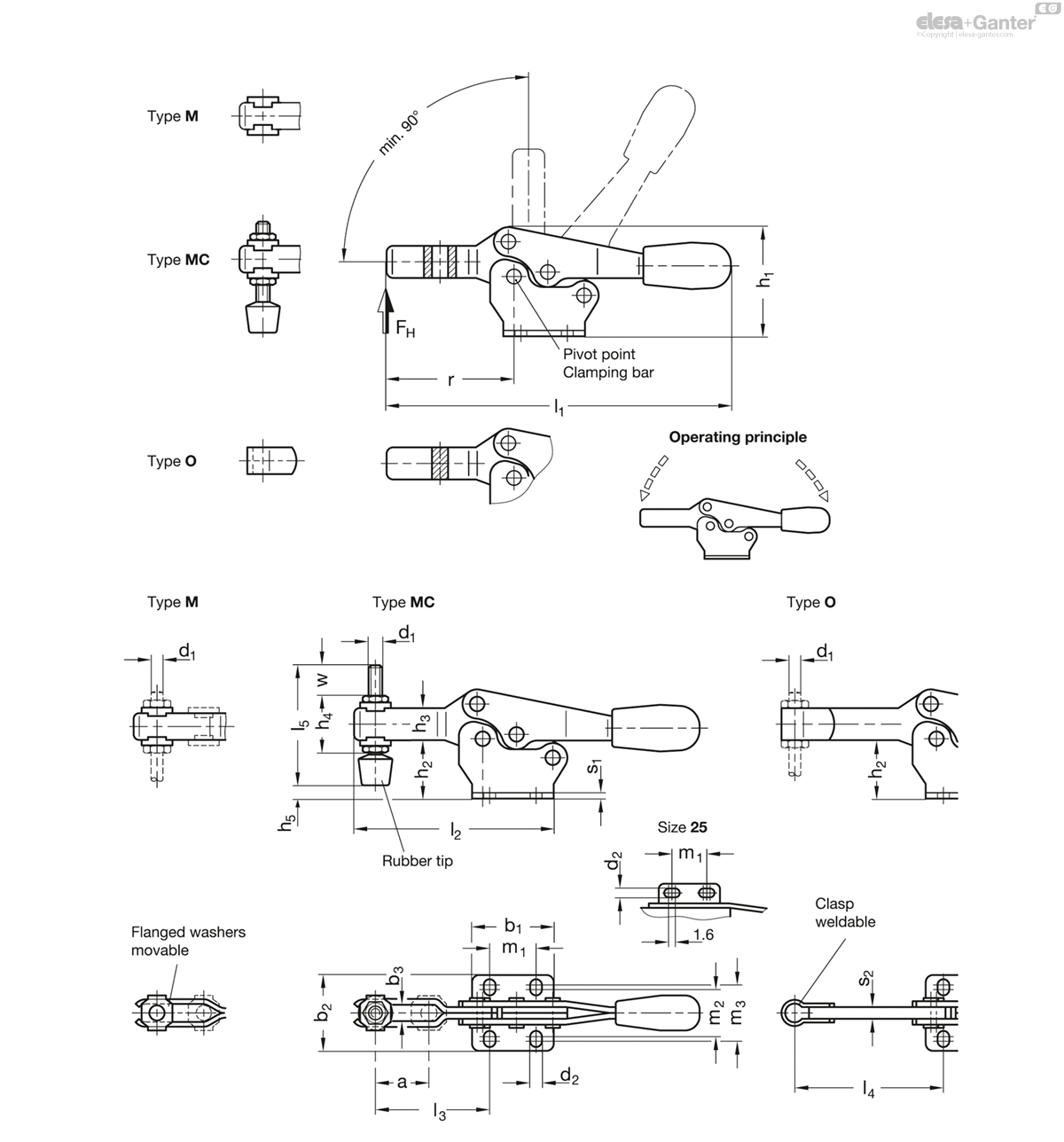

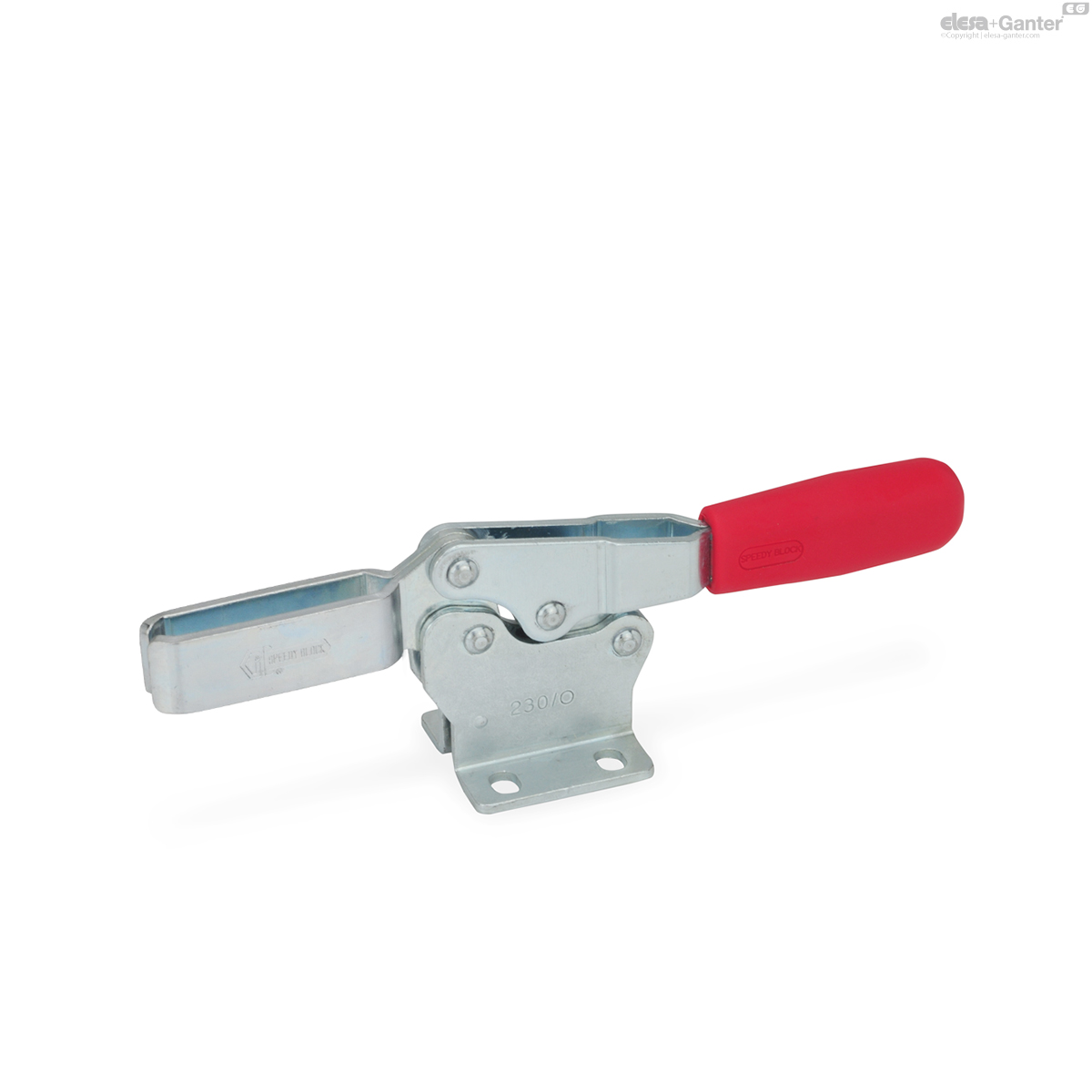

Type M: Forked clamping arm, with two flanged washers

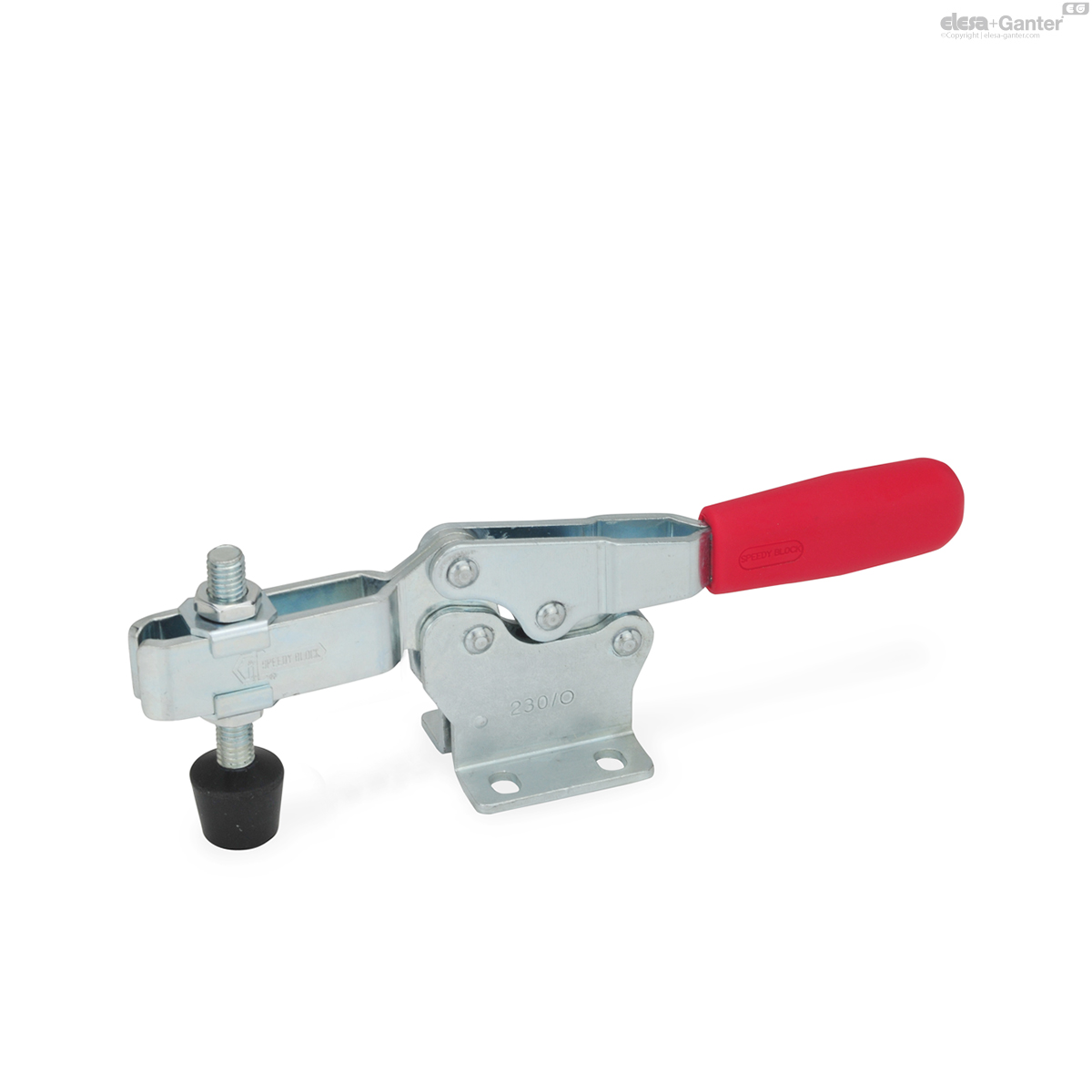

Type MC: Forked clamping arm, with two flanged washers and clamping screw GN 708.1

Type O: Solid clamping arm, with clasp for welding

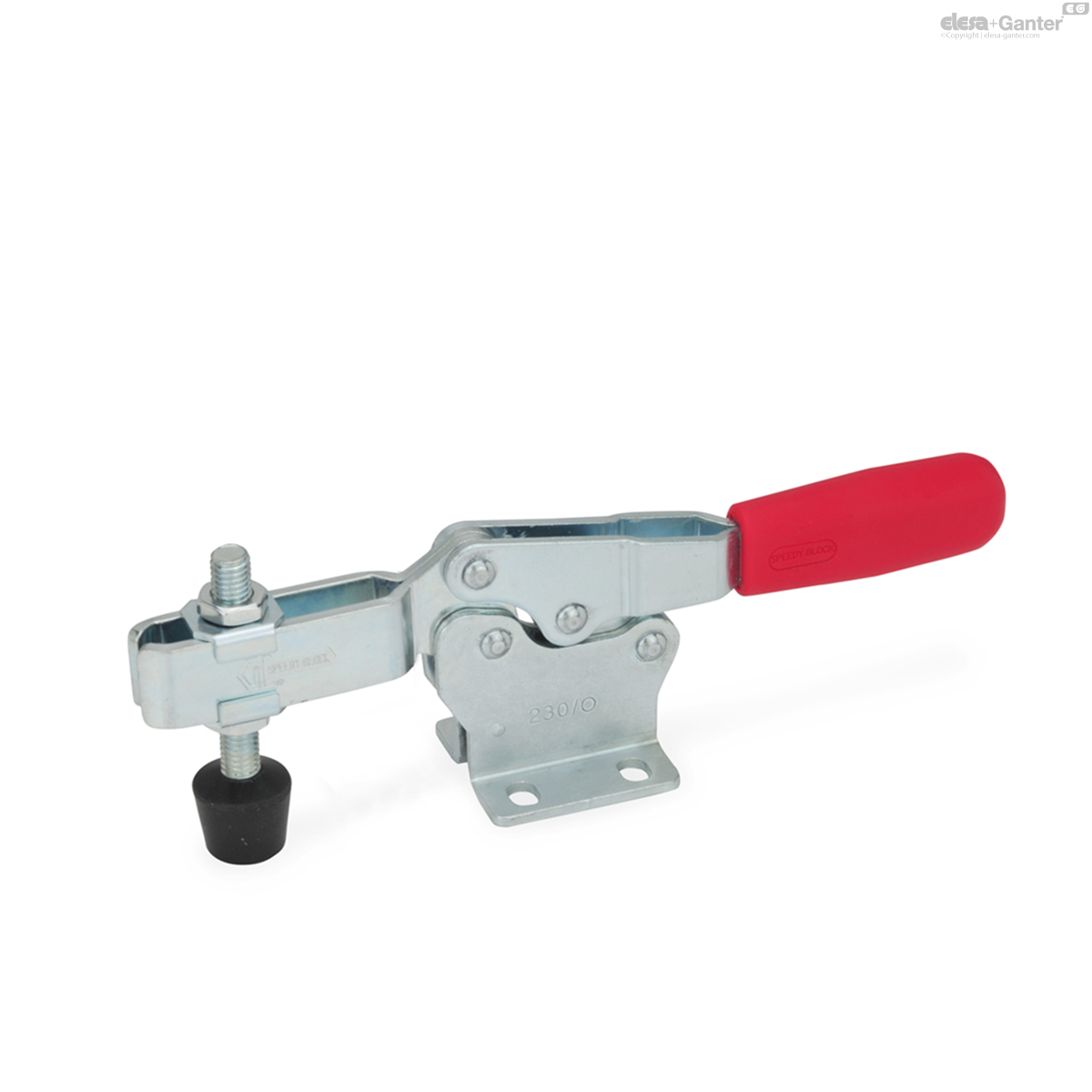

Version in Steel

Case-hardened steel C10

Zinc plated, blue passivated

Bearing pins tempered

Bearing rivets (for size 355 and up), case-hardened

All moving parts

Lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Clamping screw GN 708.1, type A

Steel, zinc plated

Rubber tip 85 Shore A

Version in Stainless Steel NI

Stainless Steel AISI 304

All moving parts

Lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Clamping screw GN 708.1, Type A

Stainless Steel AISI 304

Rubber tip 85 Shore A

Information

GN 820 Toggle clamps work according to the toggle principle: lever and clamping bar move in the opposite direction.

They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position.

Toggle clamps in the U-bar version with two flanged washers (type M) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tipis also included for type MC.

Toggle clamps in the type O version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 holders for clamping screws to hold the work piece in place.

General information for toggle clamps

Technical information

Stainless Steel characteristics

Accessory

Spindle assemblies

Holders for clamping screws GN 801 (for type M)

Holders for clamping screws GN 809 (for type O)

Clamping arm extenders GN 801.1 (for type M)

Clamping arm extenders GN 801.2 (for type M)

Clamping arm extenders GN 809.1 (for type O)
