GN 817.4

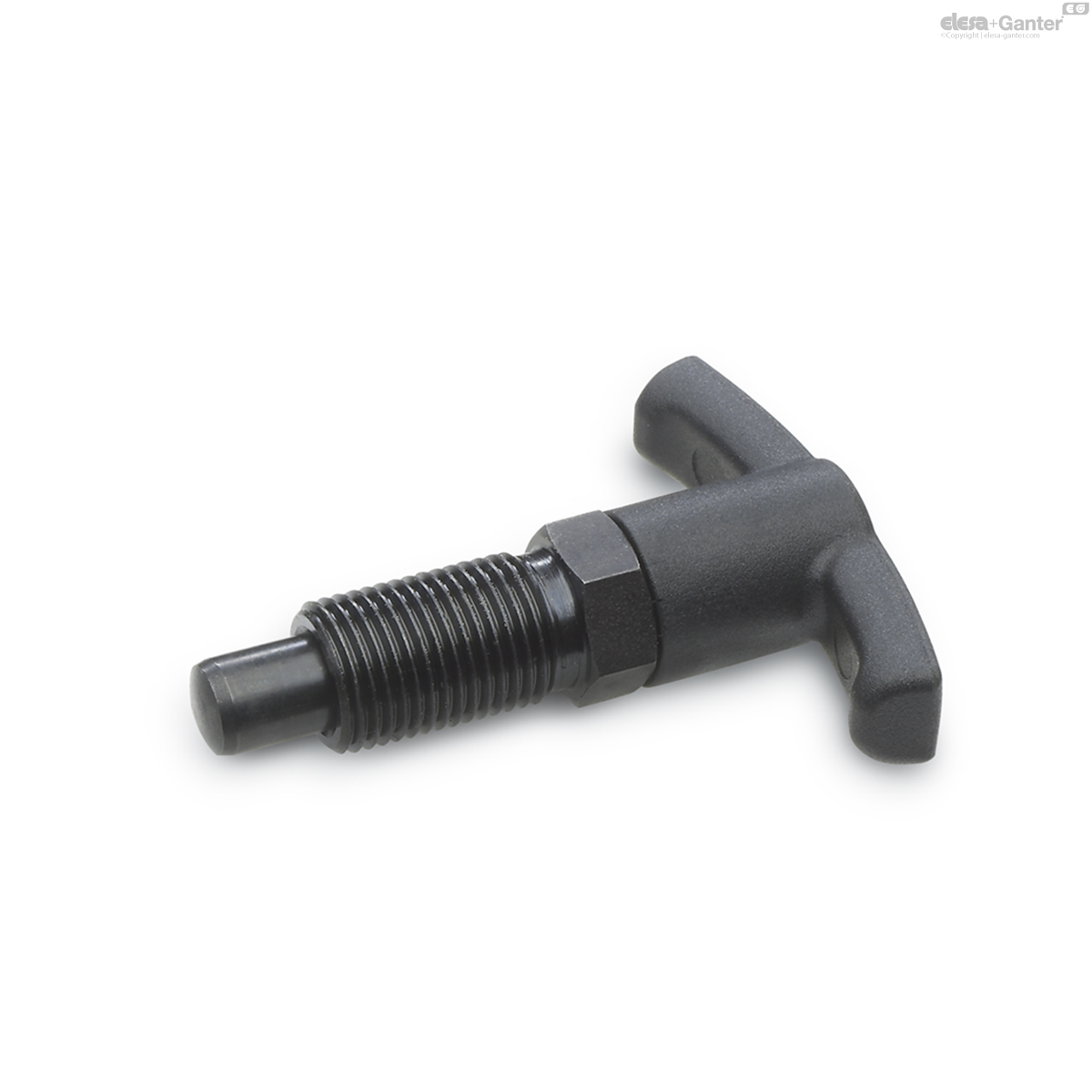

Indexing plungers

Steel / Stainless Steel, with T-Handle, with and without rest position

Enquire Now

GN 817.4

Indexing plungers

Indexing plungers, Steel

GN 817.4-NI

Indexing plungers

Indexing plungers, Stainless Steel

Description

Specification

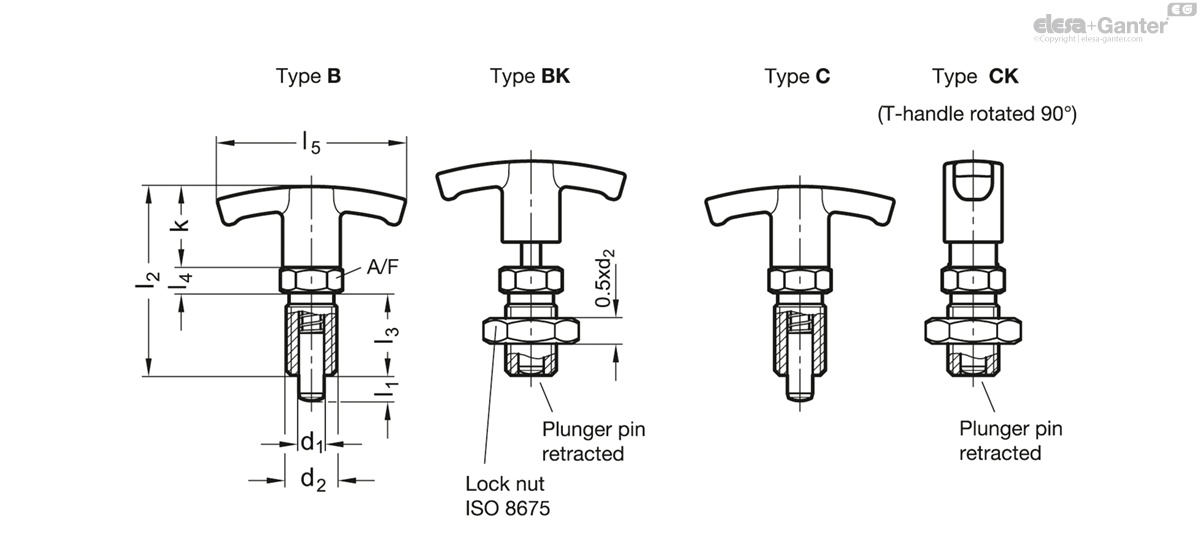

Types

Type B: without rest position, without lock nut

Type BK: without rest position, with lock nut

Type C: with rest position, without lock nut

Type CK: with rest position, with lock nut

Version in Steel

blackened

Pin hardened and grounded

Version in Stainless Steel NI

AISI 303

Pin chemically nickel plated

T-Handle

Plastic Polyamide (PA)

not removable

black, matt

Information

Indexing plungers GN 817.4 are similar to GN 817 but with a T-handle instead of a round head.

This shape allows better visual orientation of the indexing position of Type C and is advantageouse when greater unlocking forces occur.

Type C with rest position is used in such applications where the plunger must not protrude continually. In that case the knob is retracted and afterwards turned by 90°. A notch keeps the plunger in this position.

Range of indexing plungers

Technical information

ISO-Fundamental Tolerances -

Stainless Steel characteristics

Plastic characteristics

GN 817.4

	d₁ Pin -0.02/-0.05 Bore H7	l₁	d₂	k	l₂	l₃	l₄	l₅	A/F	Spring load in N ≈ initial	Spring load in N ≈ end
Code													Actions
GN 817.4-6-6-B	6	6	M 12 x 1.5	20	48	22	6	54	14	6.5	19	32
GN 817.4-6-6-BK	6	6	M 12 x 1.5	20	48	22	6	54	14	6.5	19	44
GN 817.4-6-6-C	6	6	M 12 x 1.5	20	48	22	6	54	14	6.5	19	34
GN 817.4-6-6-CK	6	6	M 12 x 1.5	20	48	22	6	54	14	6.5	19	46
GN 817.4-6-9-B	6	9	M 12 x 1.5	20	48	22	6	54	14	6	25	32
GN 817.4-6-9-BK	6	9	M 12 x 1.5	20	48	22	6	54	14	6	25	44
GN 817.4-6-9-C	6	9	M 12 x 1.5	20	48	22	6	54	14	6	25	35
GN 817.4-6-9-CK	6	9	M 12 x 1.5	20	48	22	6	54	14	6	25	47
GN 817.4-8-8-B	8	8	M 16 x 1.5	25	59	26	8	59	17	8.5	26	63
GN 817.4-8-8-BK	8	8	M 16 x 1.5	25	59	26	8	59	17	8.5	26	83
GN 817.4-8-8-C	8	8	M 16 x 1.5	25	59	26	8	59	17	8.5	26	68
GN 817.4-8-8-CK	8	8	M 16 x 1.5	25	59	26	8	59	17	8.5	26	88
GN 817.4-8-12-B	8	12	M 16 x 1.5	25	59	26	8	59	17	8.5	28	64
GN 817.4-8-12-BK	8	12	M 16 x 1.5	25	59	26	8	59	17	8.5	28	84
GN 817.4-8-12-C	8	12	M 16 x 1.5	25	59	26	8	59	17	8.5	28	71
GN 817.4-8-12-CK	8	12	M 16 x 1.5	25	59	26	8	59	17	8.5	28	91
GN 817.4-10-12-B	10	12	M 16 x 1.5	25	59	26	8	59	17	9.5	38	63
GN 817.4-10-12-BK	10	12	M 16 x 1.5	25	59	26	8	59	17	9.5	38	83
GN 817.4-10-12-C	10	12	M 16 x 1.5	25	59	26	8	59	17	9.5	38	71
GN 817.4-10-12-CK	10	12	M 16 x 1.5	25	59	26	8	59	17	9.5	38	91
GN 817.4-12-15-B	12	15	M 20 x 1.5	25	68	33	10	59	22	11.5	40	119
GN 817.4-12-15-BK	12	15	M 20 x 1.5	25	68	33	10	59	22	11.5	40	155
GN 817.4-12-15-C	12	15	M 20 x 1.5	25	68	33	10	59	22	11.5	40	130
GN 817.4-12-15-CK	12	15	M 20 x 1.5	25	68	33	10	59	22	11.5	40	166
