GN 817.3

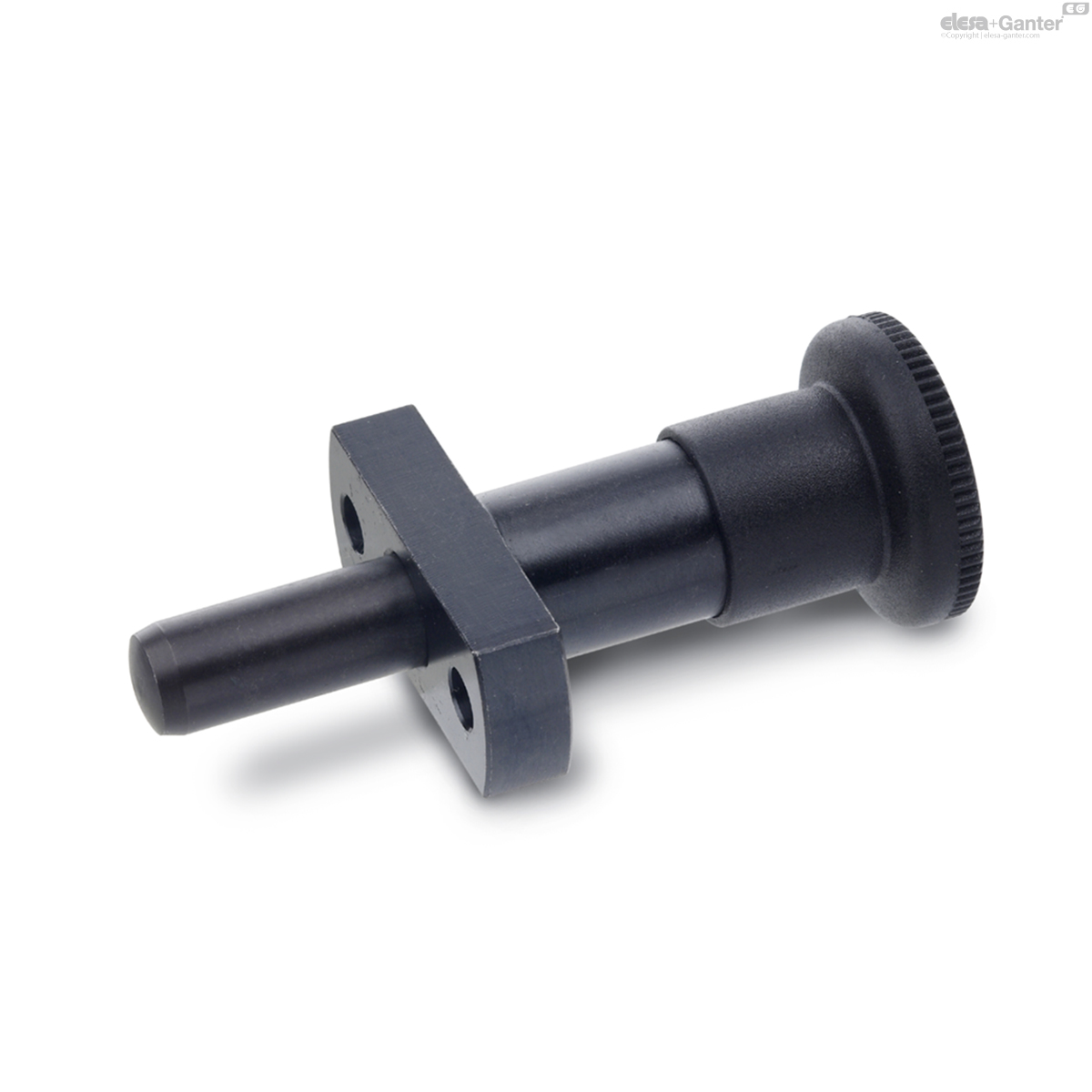

Indexing plungers

for precision locating, plunger cylindrical

Enquire Now

Description

Specification

Types

Type B: without rest position

Type C: with rest position

Steel

blackened

Pin hardened and grounded

Knob Plastic (Polyamide PA)

black, matt

not removable

Information

Indexing plungers GN 817.3 realize a reasonable priced precision locating when guide bushings DIN 179 are used.

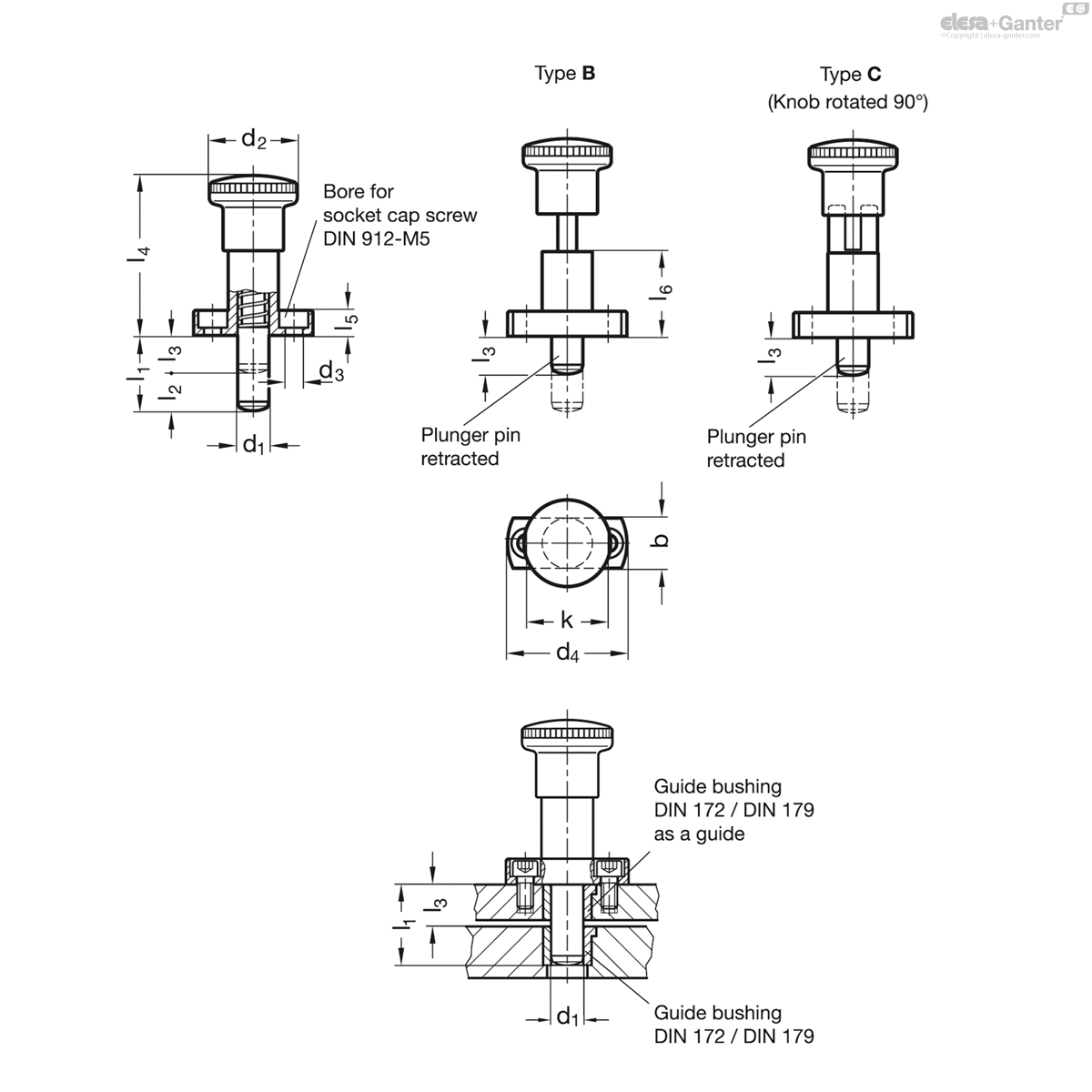

For this purpose a guide bushing DIN 179 is used as guide, whereby the dimension l₃ of the plunger determines the length of the bushing.

The precise location is, therefore, not dependent on the guide pin in the plunger, but on the accuracy of the guide bush (bore tolerance F7) and the plunger (tolerance h7). Both components are hardened and ground. It goes without saying that the bush length also influences the accuracy of the positioning.

Type C is used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

Range of indexing plungers

Accessory

Guide bushings DIN 179

Technical information

ISO-Fundamental Tolerances -

Plastic characteristics

Construction and assembly instructions

Two different plunger pin lengths l₁ are available for each indexing plunger diameter d₁.

The length l₃ must ensure that the indexing pin fully disengages, bushing length and plate thickness plus any gap can then be selected within certain margins.

For mounting bushings with tolerance n6, a hole with tolerance H7 corresponding to the external diameter is usually provided.

A selection of suitable guide bushings DIN 172 and DIN 179 is given.

GN 817.3

	d₁ h7	l₁	l₂	l₃	b	d₂	d₃	d₄	k	l₄	l₅	l₆	Spring load in N ≈ initial	Spring load in N ≈ end
Code																Actions
GN 817.3-6-18-B	6	18	9	9	13	23	4.3	34	23	45	6	25	6	25	43
GN 817.3-6-18-C	6	18	9	9	13	23	4.3	34	23	45	6	25	6	25	47
GN 817.3-6-24-B	6	24	9	15	13	23	4.3	34	23	45	6	25	6	25	45
GN 817.3-6-24-C	6	24	9	15	13	23	4.3	34	23	45	6	25	6	25	48
GN 817.3-8-20-B	8	20	10	10	16	28	5.5	38	26	51	8	27	8.5	28	74
GN 817.3-8-20-C	8	20	10	10	16	28	5.5	38	26	51	8	27	8.5	28	80
GN 817.3-8-26-B	8	26	10	16	16	28	5.5	38	26	51	8	27	8.5	28	77
GN 817.3-8-26-C	8	26	10	16	16	28	5.5	38	26	51	8	27	8.5	28	83
GN 817.3-10-24-B	10	24	12	12	16	28	5.5	38	26	51	8	27	9.5	38	77
GN 817.3-10-24-C	10	24	12	12	16	28	5.5	38	26	51	8	27	9.5	38	84
GN 817.3-10-32-B	10	32	12	20	16	28	5.5	38	26	51	8	27	9.5	38	80
GN 817.3-10-32-C	10	32	12	20	16	28	5.5	38	26	51	8	27	9.5	38	100
