GN 817.1

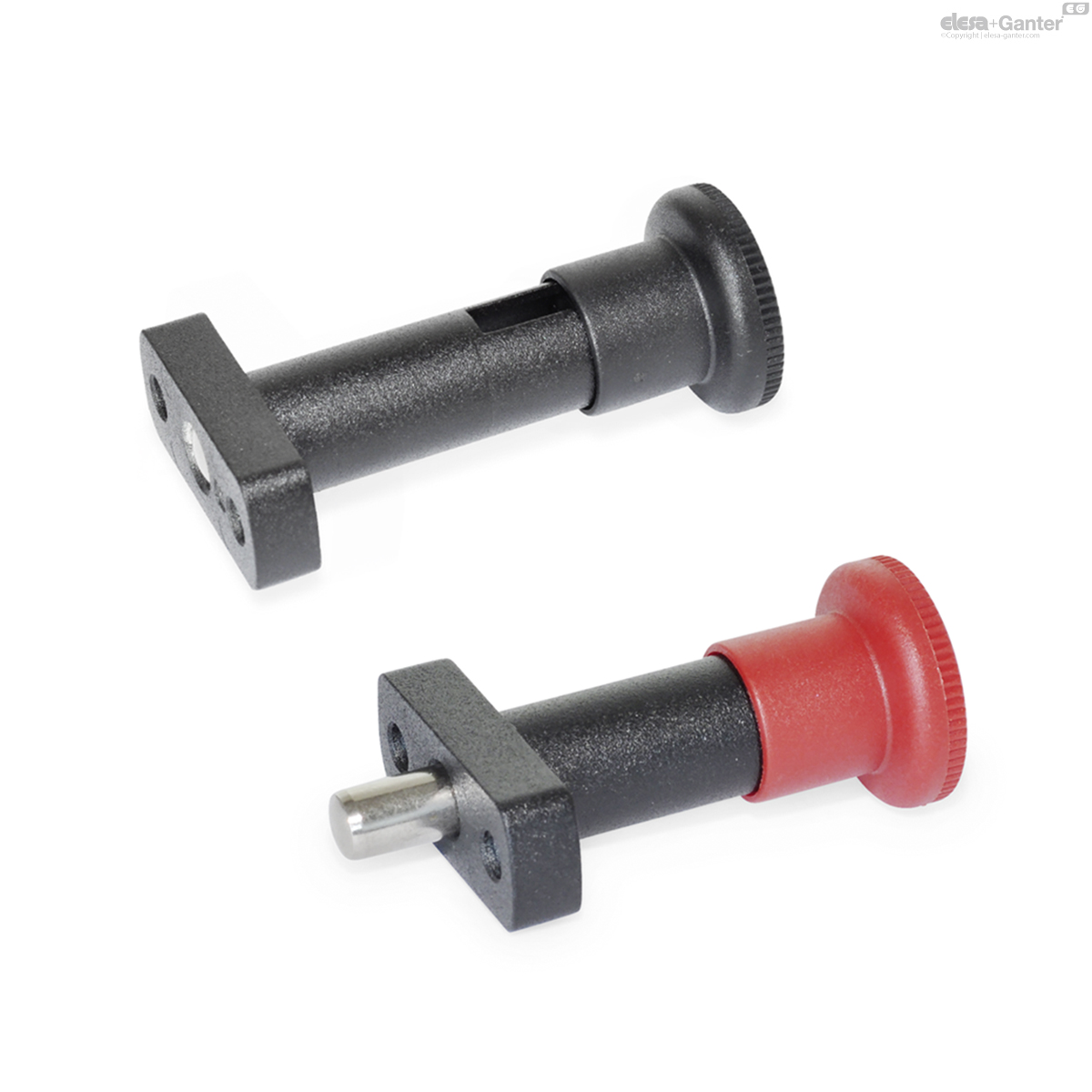

Indexing plungers

with flange for surface mounting, with or without rest position

Enquire Now

Description

Specification

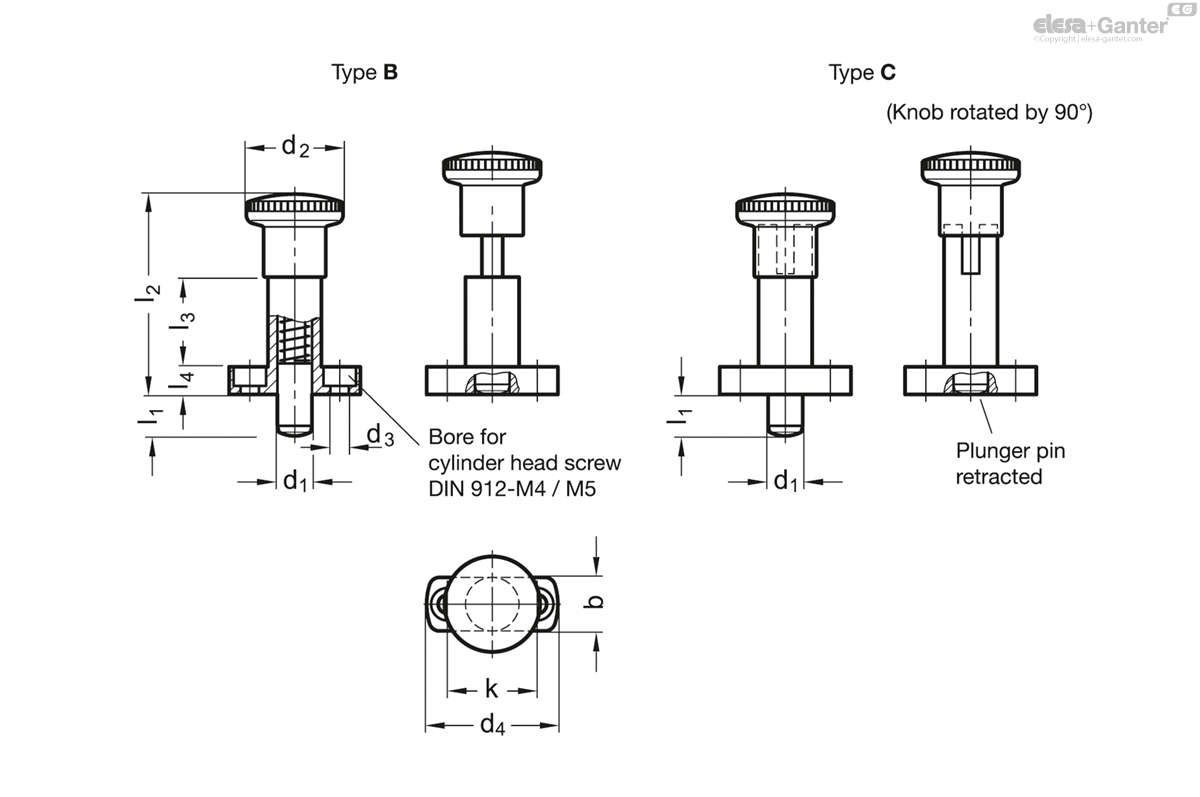

Types

Type B: without rest position

Type C: with rest position

Guide

Zinc die casting

plastic coated

black, matt textured finish

Stainless Steel AISI 303

chemically nickel plated

Knob

Plastic (Polyamide PA)

black, matt

red RT RAL 3000, add RT on order code

not removable

Information

Indexing plungers GN 817.1 (Type C) are used for such applications wehere the plunger has to stay in its retracted position. To achieve this, the knob is rotated 90° degrees after being retracted. A notch keeps the plunger in this position.

On request

Indexing plungers with T-Handle

Technical information

Plastic characteristics -

Stainless Steel characteristics

GN 817.1

	d₁ Pin -0.02/-0.05 Bore +0.10/+0.03	l₁	b	d₂	d₃	d₄	k	l₂	l₃	l₄	Spring load in N ≈ initial	Spring load in N ≈ end
Code														Actions
GN 817.1-6-6-B	6	6	13	23	4.3	34	22	48	22	6	6.5	19	39
GN 817.1-6-6-B-RT	6	6	13	23	4.3	34	22	48	22	6	6.5	19	39
GN 817.1-6-6-C	6	6	13	23	4.3	34	22	48	22	6	6.5	19	41
GN 817.1-6-6-C-RT	6	6	13	23	4.3	34	22	48	22	6	6.5	19	41
GN 817.1-6-9-B	6	9	13	23	4.3	34	22	48	22	6	6	25	39
GN 817.1-6-9-B-RT	6	9	13	23	4.3	34	22	48	22	6	6	25	39
GN 817.1-6-9-C	6	9	13	23	4.3	34	22	48	22	6	6	25	42
GN 817.1-6-9-C-RT	6	9	13	23	4.3	34	22	48	22	6	6	25	42
GN 817.1-8-8-B	8	8	16	28	5.3	38	26	58	26	8	8.5	26	67
GN 817.1-8-8-B-RT	8	8	16	28	5.3	38	26	58	26	8	8.5	26	67
GN 817.1-8-8-C	8	8	16	28	5.3	38	26	58	26	8	8.5	26	70
GN 817.1-8-8-C-RT	8	8	16	28	5.3	38	26	58	26	8	8.5	26	70
GN 817.1-8-12-B	8	12	16	28	5.3	38	26	58	26	8	8.5	28	68
GN 817.1-8-12-B-RT	8	12	16	28	5.3	38	26	58	26	8	8.5	28	68
GN 817.1-8-12-C	8	12	16	28	5.3	38	26	58	26	8	8.5	28	72
GN 817.1-8-12-C-RT	8	12	16	28	5.3	38	26	58	26	8	8.5	28	72
GN 817.1-10-12-B	10	12	16	28	5.3	38	26	58	26	8	9.5	38	71
GN 817.1-10-12-B-RT	10	12	16	28	5.3	38	26	58	26	8	9.5	38	71
GN 817.1-10-12-C	10	12	16	28	5.3	38	26	58	26	8	9.5	38	74
GN 817.1-10-12-C-RT	10	12	16	28	5.3	38	26	58	26	8	9.5	38	74
