Home Indexing and Positioning Elements Indexing plungers GN 816.1

GN 816.1

Locking plungers

Pin in normal position retracted

Enquire Now

Description

Specification

Types

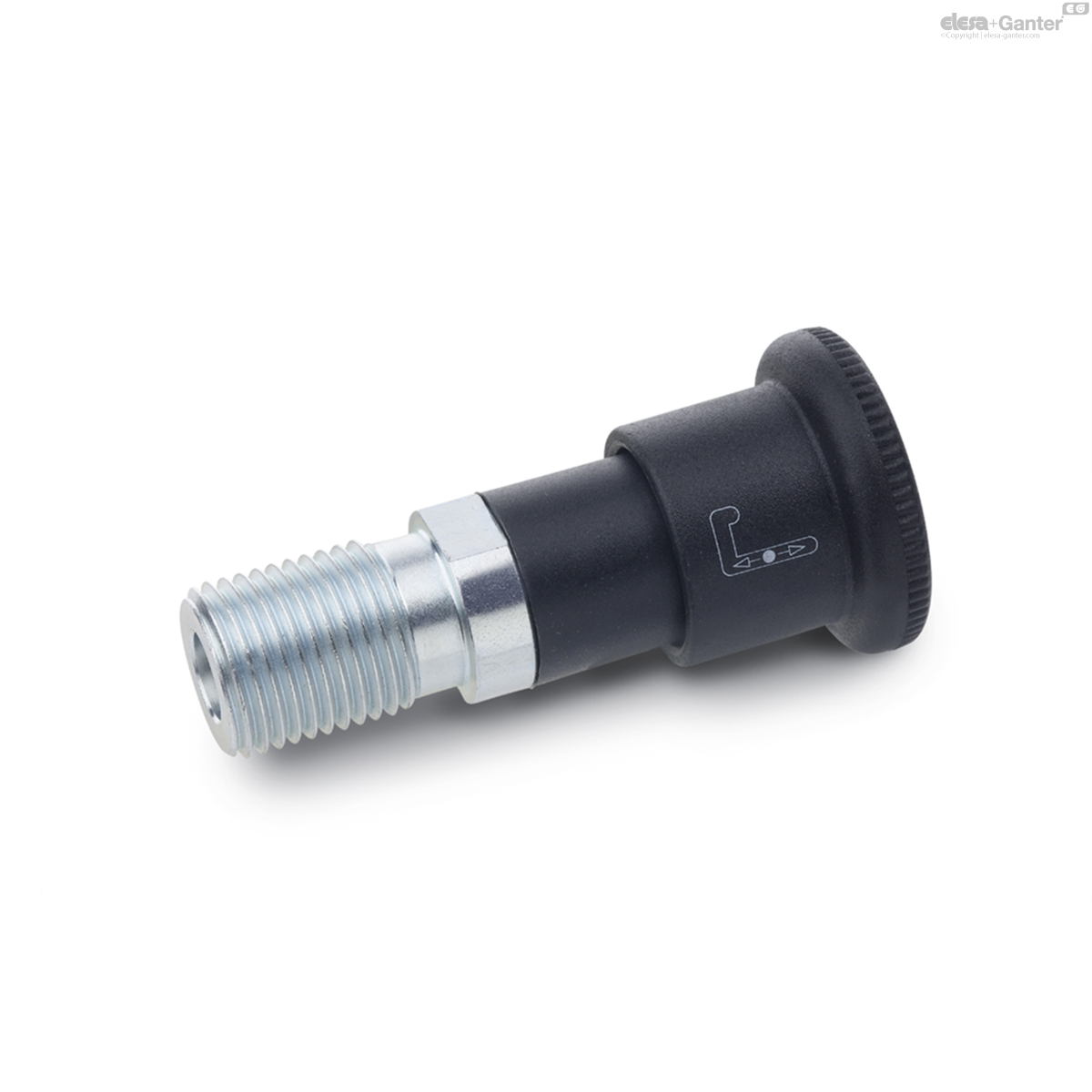

Type A: Operation with knob, sleeve black, without lock nut

Type AK: Operation with knob, sleeve black, with lock nut

Type AR: Operation with knob, sleeve red, without lock nut

Type ARK: Operation with knob, sleeve red, with lock nut

Type B: Operation with key, sleeve black without lock nut

Type BK: Operation with key, sleeve black, with lock nut

Threaded body

Steel zinc plated, blue passivated

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Knob

Plastic (Polyamide PA)

black, matt

not removable

Sleeve

Plastic (Polyamid PA)

black, matt or red

not removable

Information

If not operated, the plunger of the locking plungers GN 816.1 protrudes. To retract, move against the spring force and hold in the end position by turning by 90°.

The shape of the cam curve secures the plunger against accidental operation.

When operating button (Type AR / ARK), the visible red covering sleeve indicates the locking status: Indexing pin does not protrude.

For the execution with operation with key (Type B / BK) a key is required to move the plunger. In this execution, a cover sleeve provides additional security and safety from unauthorized removal of the locking plunger. The cover sleeve also provides additional protection against malfunction caused by dirt.

Range of indexing plungers

Accessory

Keys GN 816.1-K

Plastic (Polyamide PA)

(All locking plungers have the same key)

Technical information

Stainless Steel characteristics

Plastic characteristics

Load rating information

Assembly instruction

Version with key (Type B / Type BK)

GN 816.1

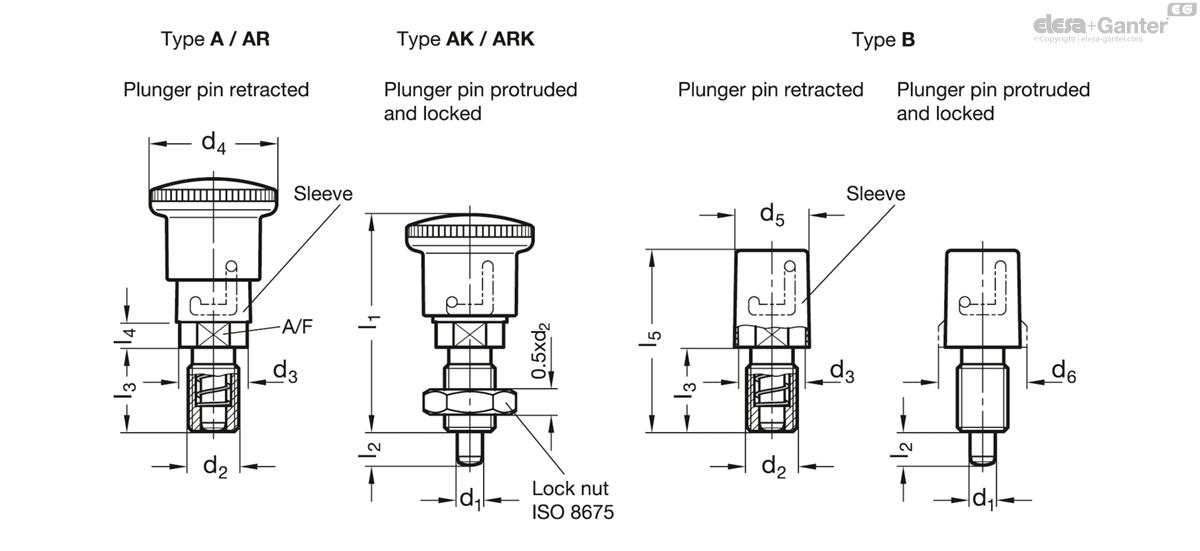

	d₁ Pin 0/-0.05 Bore +0.15/+0.07	d₂	d₃	d₄	d₅	d₆	l₁ ≈	l₂	l₃	l₄ ≈	l₅	A/F	Spring load in N ≈ initial	Spring load in N ≈ end
Code																Actions
GN 816.1-6-M12x1,5-A	6	M 12 x 1.5	16	28	-	-	51.5	8	20	6	-	14	12	27	50
GN 816.1-6-M12x1,5-AK	6	M 12 x 1.5	16	28	-	-	51.5	8	20	6	-	14	12	27	55
GN 816.1-6-M12x1,5-AR	6	M 12 x 1.5	16	28	-	-	51.5	8	20	6	-	14	12	27	40
GN 816.1-6-M12x1,5-ARK	6	M 12 x 1.5	16	28	-	-	51.5	8	20	6	-	14	12	27	55
GN 816.1-6-M12x1,5-B	6	M 12 x 1.5	16	-	17	-	-	8	20	-	43	14	12	27	20
GN 816.1-6-M12x1,5-BK	6	M 12 x 1.5	16	-	17	-	-	8	20	-	43	14	12	27	43
GN 816.1-8-M16x1,5-A	8	M 16 x 1.5	18	28	-	-	54.5	10	22	6	-	16	12	35	58
GN 816.1-8-M16x1,5-AK	8	M 16 x 1.5	18	28	-	-	54.5	10	22	6	-	16	12	35	80
GN 816.1-8-M16x1,5-AR	8	M 16 x 1.5	18	28	-	-	54.5	10	22	6	-	16	12	35	50
GN 816.1-8-M16x1,5-ARK	8	M 16 x 1.5	18	28	-	-	54.5	10	22	6	-	16	12	35	80
GN 816.1-8-M16x1,5-B	8	M 16 x 1.5	18	-	17	20	-	10	22	-	48	16	12	35	50
GN 816.1-8-M16x1,5-BK	8	M 16 x 1.5	18	-	17	20	-	10	22	-	48	16	12	35	70
