GN 813
Heavy duty vertical acting toggle clamps
with vertical mounting base
Description
Specification
Type
- Type F: Solid bar version
Bearing pins and clamping lever
Steel St 60
blackened
Other parts
Steel St 37
- weldable
- blackened
Bearing pins and rivets
case-hardened
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
Information

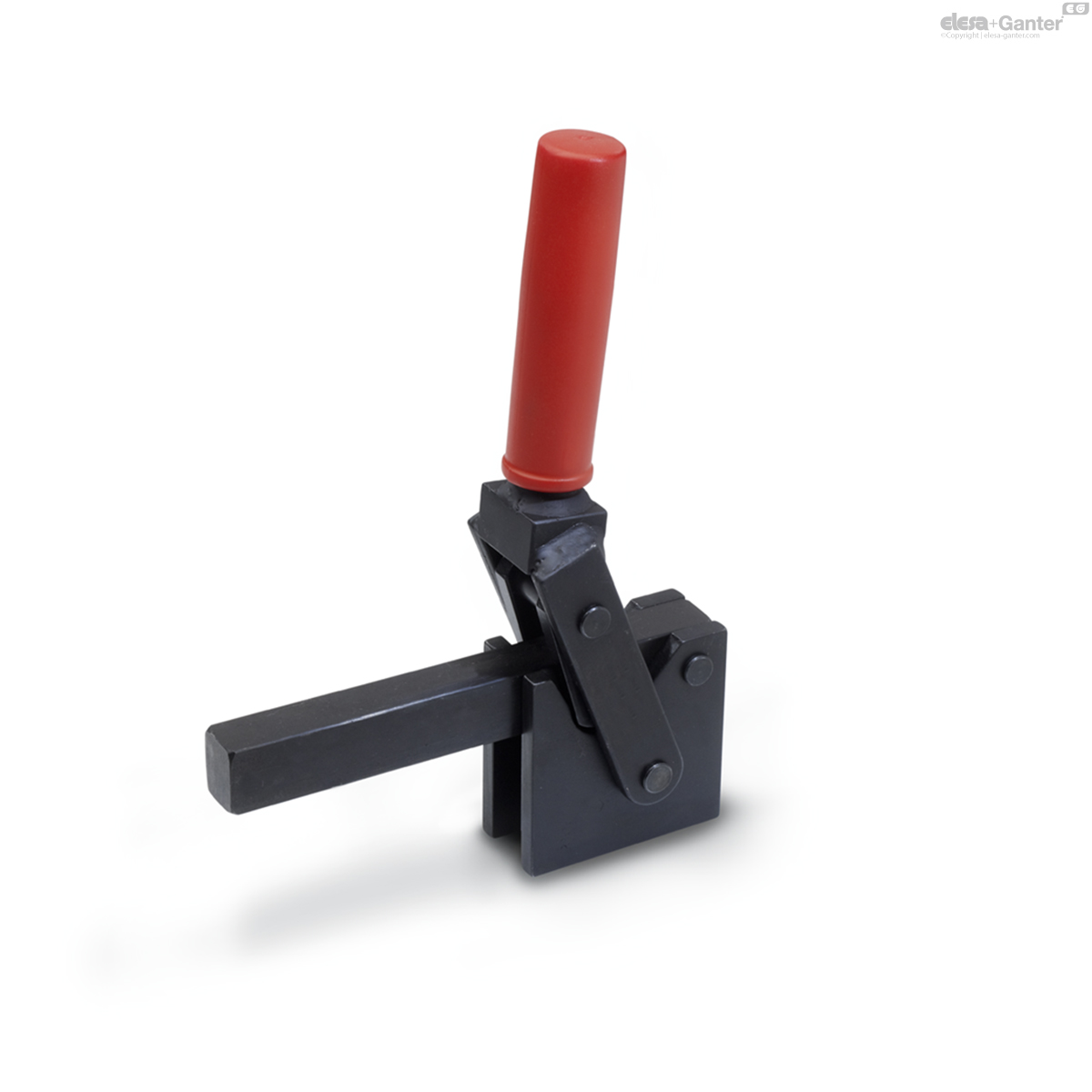

GN 813 vertical acting toggle clamps are used for applications where a very high holding force is required such as closing of foam molds.
These clamps have been designed for easy dismantling: i.e. the bearing pins are locked with circlips.
After dismantling the individual parts, they can be modified to suit individual applications.
- General information for toggle clamps
GN 813

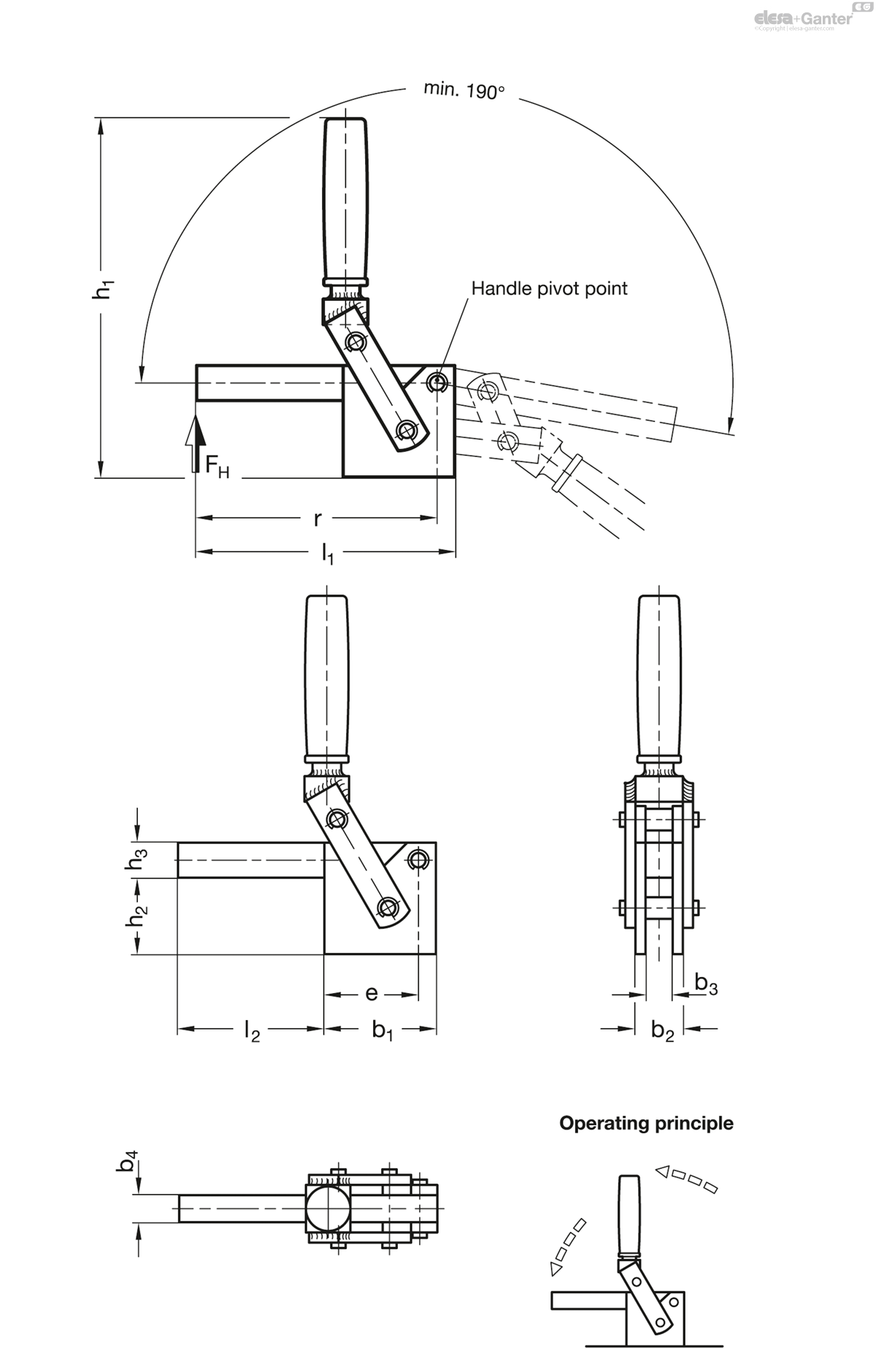

| Size | FH in N | b1 | b2 | b3 | b4 | e | h1 | h2 | h3 | l1 | l2 | r |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||
| GN 813-1000-F | 1000 | 10000 | 80 | 36 | 20 | 20 | 67 | 265 | 55 | 25 | 190 | 110 | 177 | 2400 |
|
| GN 813-2000-F | 2000 | 20000 | 100 | 36 | 20 | 20 | 82 | 297 | 65 | 35 | 220 | 120 | 202 | 3540 |
|
| GN 813-3000-F | 3000 | 30000 | 110 | 45 | 25 | 25 | 90 | 320 | 80 | 40 | 250 | 140 | 230 | 5500 |
|
