GN 810.18
Bushings
Steel, Accessory for Knee Lever Modules GN 810.12 / GN 810.13
Description
Specification
Steel
Information

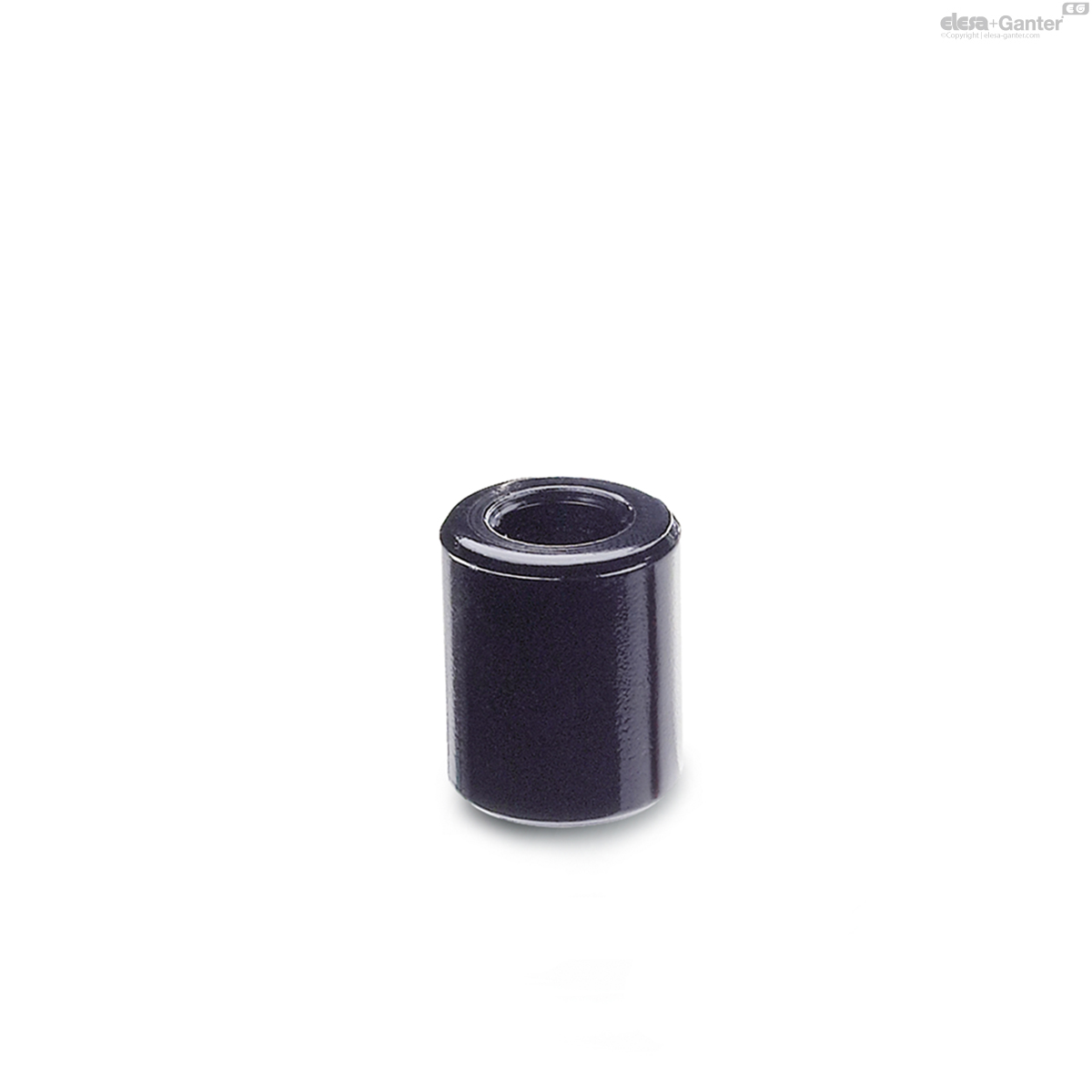

Bushings GN 810.18 are accessory for knee lever modules GN 810.12 / GN 810.13.
GN 810.18

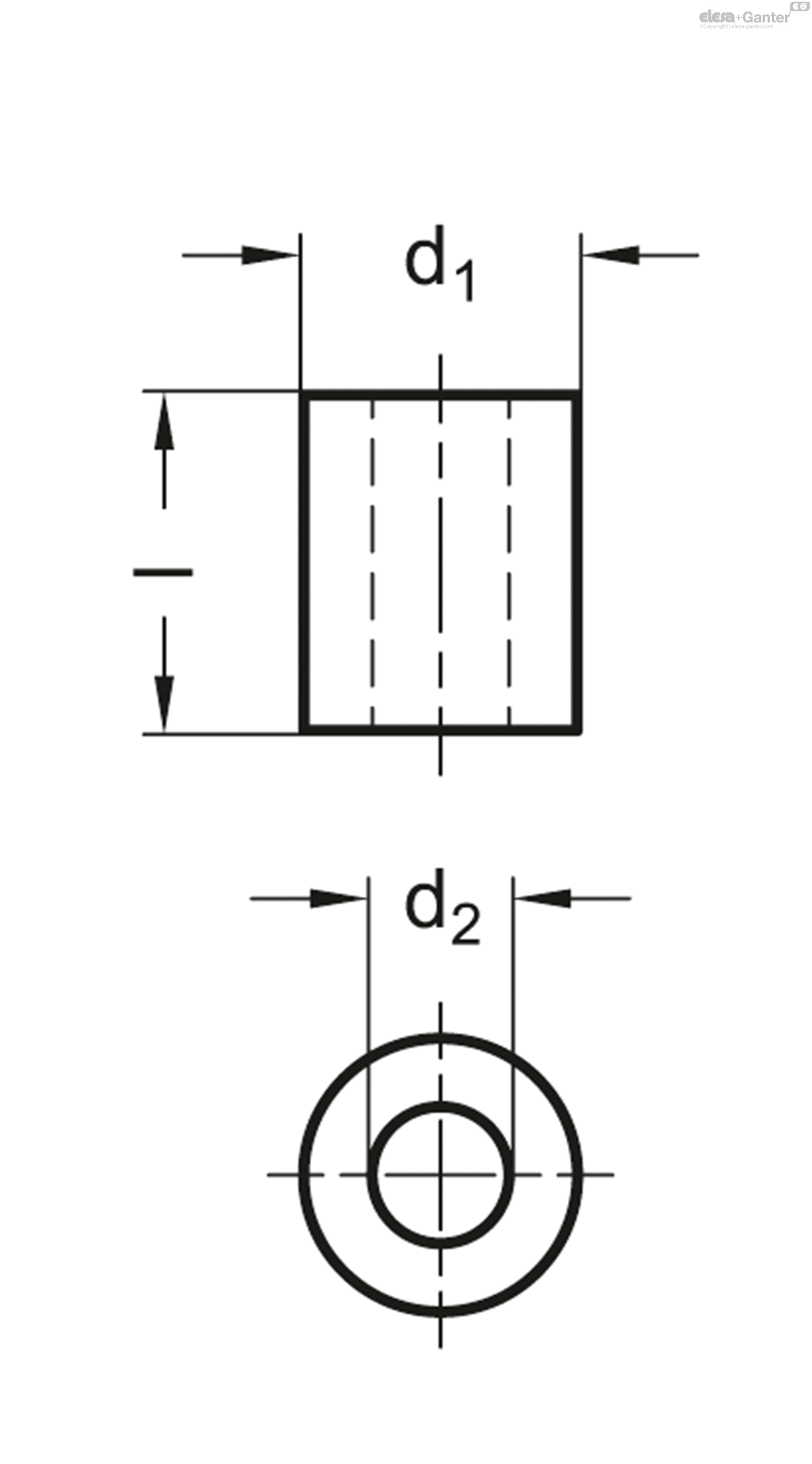

| Size | d1 | d2 | l |  |
||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| GN 810.18-220 | 220 | 13 | 6.5 | 16 | 13 |
|
| GN 810.18-440 | 440 | 20 | 10.5 | 24 | 42 |
|
| GN 810.18-850 | 850 | 24 | 12.5 | 30 | 76 |
|
| GN 810.18-1540 | 1540 | 32 | 16.5 | 35 | 162 |
|
