GN 810.1

Vertical acting toggle clamps

Steel / Stainless Steel, with vertical mounting base

Enquire Now

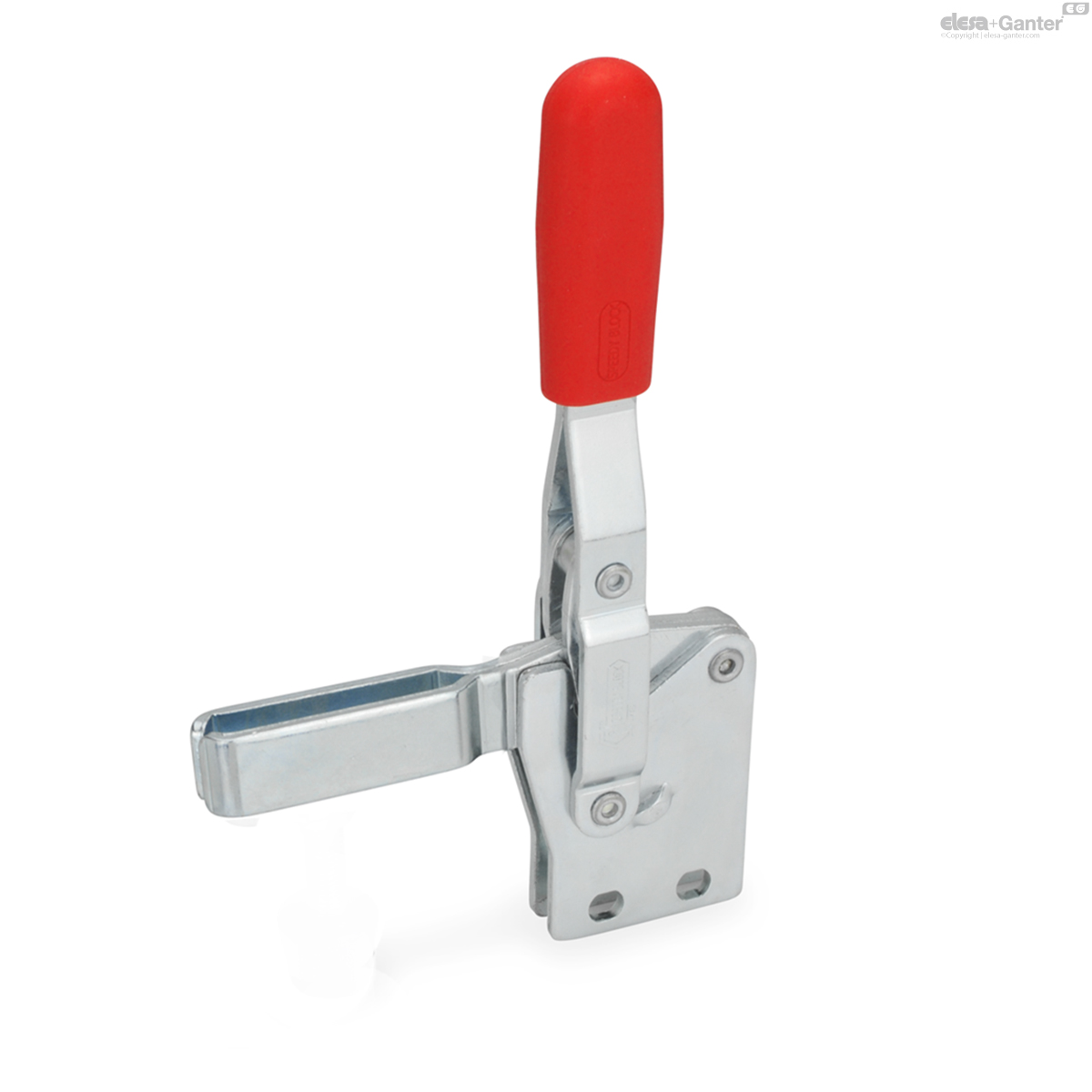

GN 810.1

Vertical acting toggle clamps

Steel

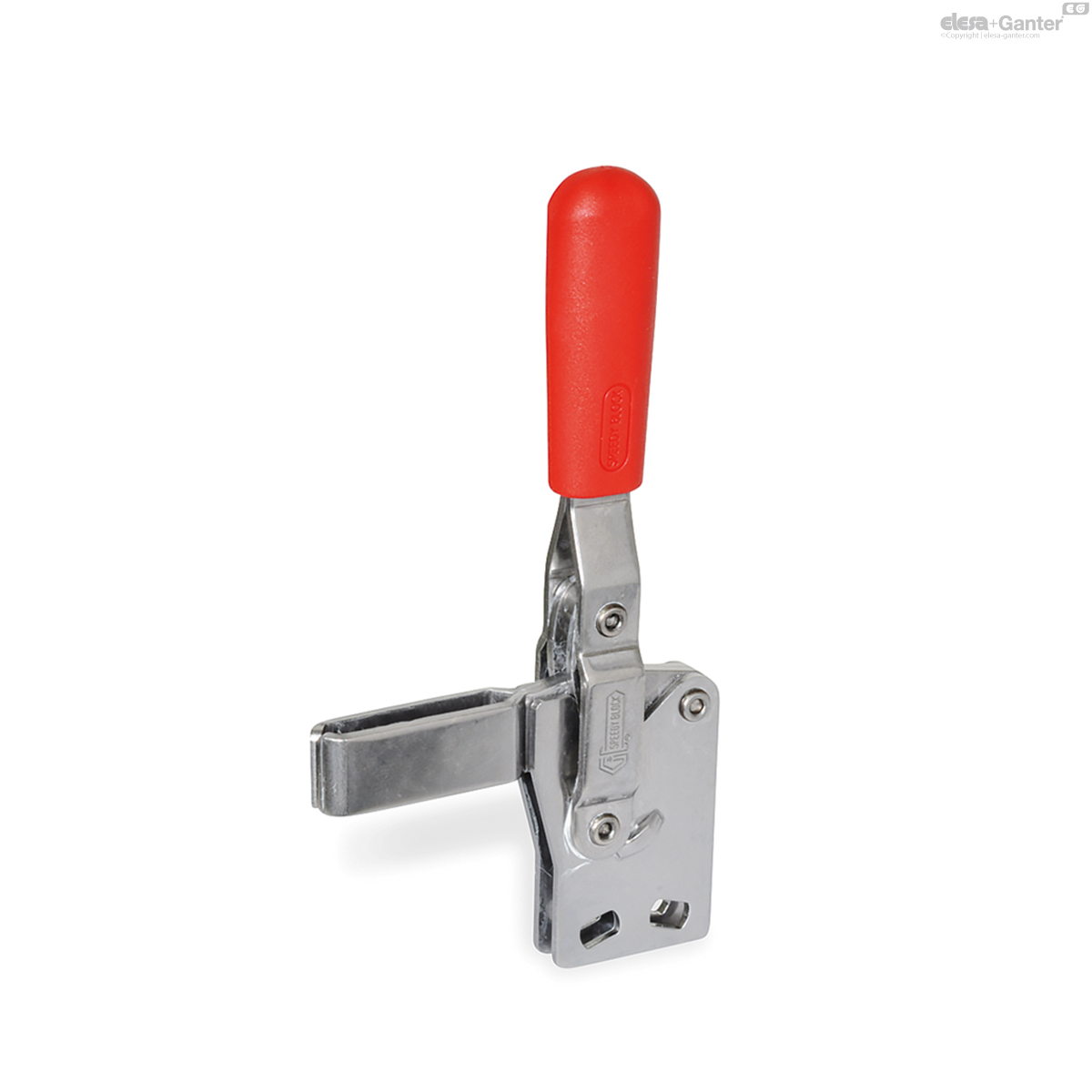

GN 810.1-NI

Vertical acting toggle clamps

Stainless Steel

Description

Specification

Types

Type B: U-bar version, with two flanged washers

Type BC: U-bar version, with two flanged washers and GN 708.1 spindle assembly

Type F: Solid bar version, with clasp

Version in Steel

Case-hardened Steel C10, zinc plated, blue passivated

Bearing pins tempered

Bearing rivets (for size 230 and up), case-hardened

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A-

Steel, zinc plated

Rubber tip 85 Shore A

Version in Stainless Steel NI

Stainless Steel AISI 304

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

Stainless Steel AISI 304

Rubber tip 85 Shore A

Information

GN 810.1 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Vertical acting toggle clamps in the U-bar version with two flanged washers (Type B) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type BC.

Type F version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 clamp mounts to hold the work piece in place.

General information for toggle clamps

Accessory

Spindle assemblies-

GN 801 clamp mounts for toggle clamps (for Type B)

GN 809 clamp mounts for toggle clamps (for Type F)

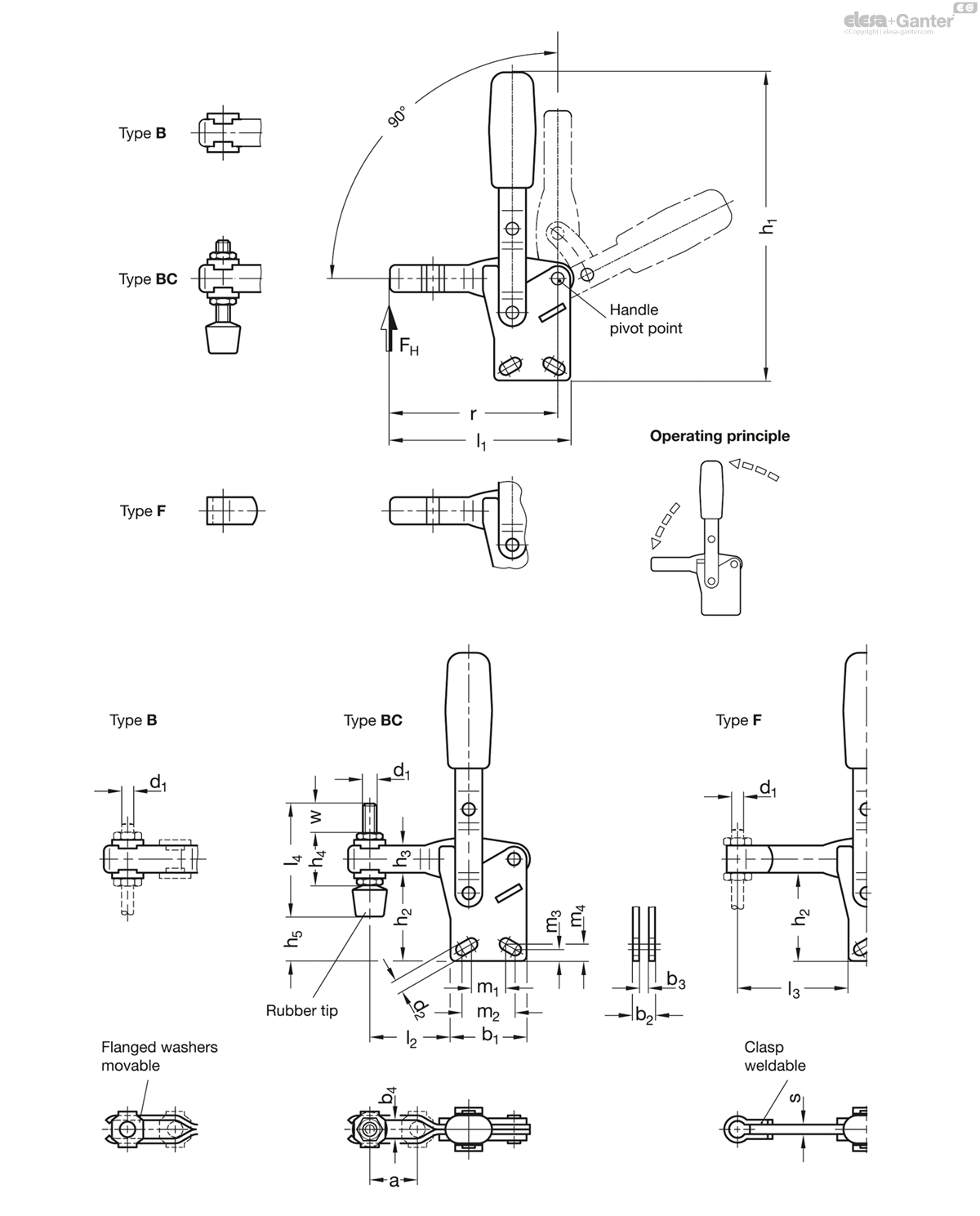

GN 810.1

	Size	F_H in N	a ≈	b₁	b₂	b₃	b₄	d₁	d₂ ≈	h₁ ≈	h₂	h₃	h₄	h₅ max.	l₁ ≈	l₂ ≈	l₃ max.	l₄	m₁	m₂	m₃	m₄	r ≈	s	w
Code																											Actions
GN 810.1-75-B	75	750	20	29	8	4	5.2	M 5	4.5	109	32	11	-	-	66.5	31.5	-	-	15	16	5	5	62.5	-	-	100
GN 810.1-75-BC	75	750	20	29	8	4	5.2	M 5	4.5	109	32	11	19	17	66.5	31.5	-	45	15	16	5	5	62.5	-	15	110
GN 810.1-75-F	75	750	-	29	8	4	-	M 5	4.5	109	32	11	-	-	67	-	41	-	15	16	5	5	62.5	4	-	102
GN 810.1-130-B	130	1050	28	35	10	5	6.2	M 6	5.5	156	41.5	16	-	-	85	42	-	-	12.5	19	6.5	7.5	79	-	-	229
GN 810.1-130-BC	130	1050	28	35	10	5	6.2	M 6	5.5	156	41.5	16	25.5	25	85	42	-	55	12.5	19	6.5	7.5	79	-	17.5	200
GN 810.1-130-F	130	1050	-	35	10	5	-	M 6	5.5	156	41.5	16	-	-	86	-	54	-	12.5	19	6.5	7.5	79	5	-	235
GN 810.1-230-B	230	2000	40	43	12	6	8.5	M 8	6.5	183	48	18	-	-	110.5	58	-	-	19	20	6.5	6.5	104	-	-	380
GN 810.1-230-BC	230	2000	40	43	12	6	8.5	M 8	6.5	183	48	18	30	24	110.5	58	-	68	19	20	6.5	6.5	104	-	20	400
GN 810.1-230-F	230	2000	-	43	12	6	-	M 8	6.5	183	48	18	-	-	112	-	73	-	19	20	6.5	6.5	104	6	-	401
GN 810.1-330-B	330	2400	43	50	14	7	10.5	M 10	8.5	218	66	22	-	-	129	66	-	-	28.7	32.3	10	9.5	122	-	-	550
GN 810.1-330-BC	330	2400	43	50	14	7	10.5	M 10	8.5	218	66	22	37	39.5	129	66	-	77	28.7	32.3	10	9.5	122	-	19	650
GN 810.1-330-F	330	2400	-	50	14	7	-	M 10	8.5	218	66	22	-	-	130.5	-	86	-	28.7	32.3	10	9.5	122	7	-	600
GN 810.1-430-B	430	2800	64	58	18	10	12.5	M 12	8.5	268	77.5	26	-	-	164	88	-	-	32	32	10	10	156	-	-	1140
GN 810.1-430-BC	430	2800	64	58	18	10	12.5	M 12	8.5	268	77.5	26	43	45	164	88	-	100	32	32	10	10	156	-	33	1100
GN 810.1-430-F	430	2800	-	58	18	10	-	M 12	8.5	268	77.5	26	-	-	166	-	114	-	32	32	10	10	156	10	-	1100
GN 810.1-530-B	530	4500	90	77	18	10	12.5	M 12	12.5	337	117.5	32	-	-	223	128	-	-	50	51	12.5	12.5	212	-	-	1870
GN 810.1-530-BC	530	4500	90	77	18	10	12.5	M 12	12.5	337	117.5	32	49	85	223	128	-	100	50	51	12.5	12.5	212	-	27	1960
GN 810.1-530-F	530	4500	-	77	18	10	-	M 12	12.5	337	117.5	32	-	-	225	-	155	-	50	51	12.5	12.5	212	10	-	1900
