GN 80i
Transport and Base Plates
Zinc Die Casting, for Aluminum Profiles (i-Modular System)
Description
Specification
Type
- Type A: Without screws
Zinc die casting, black ZS
Information

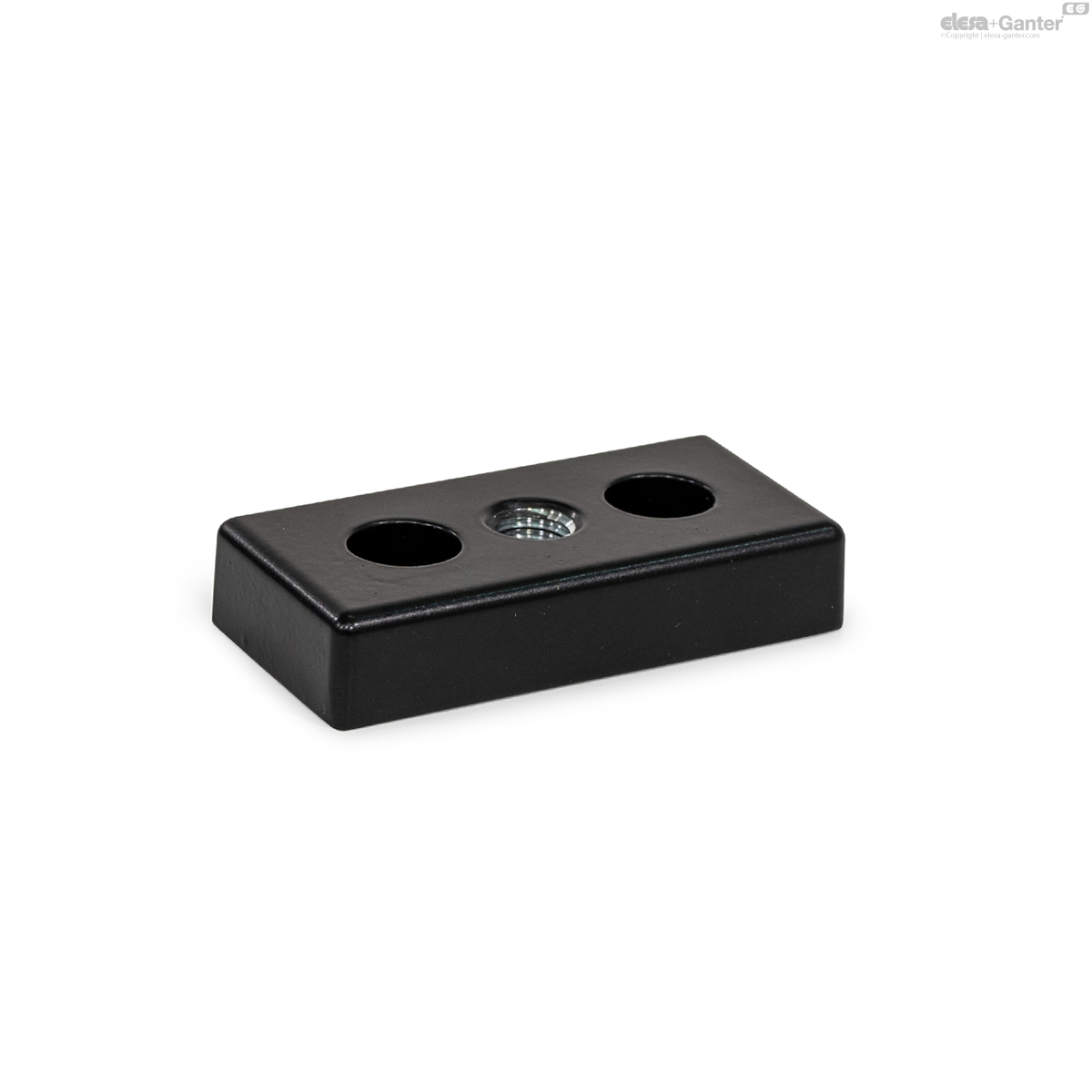

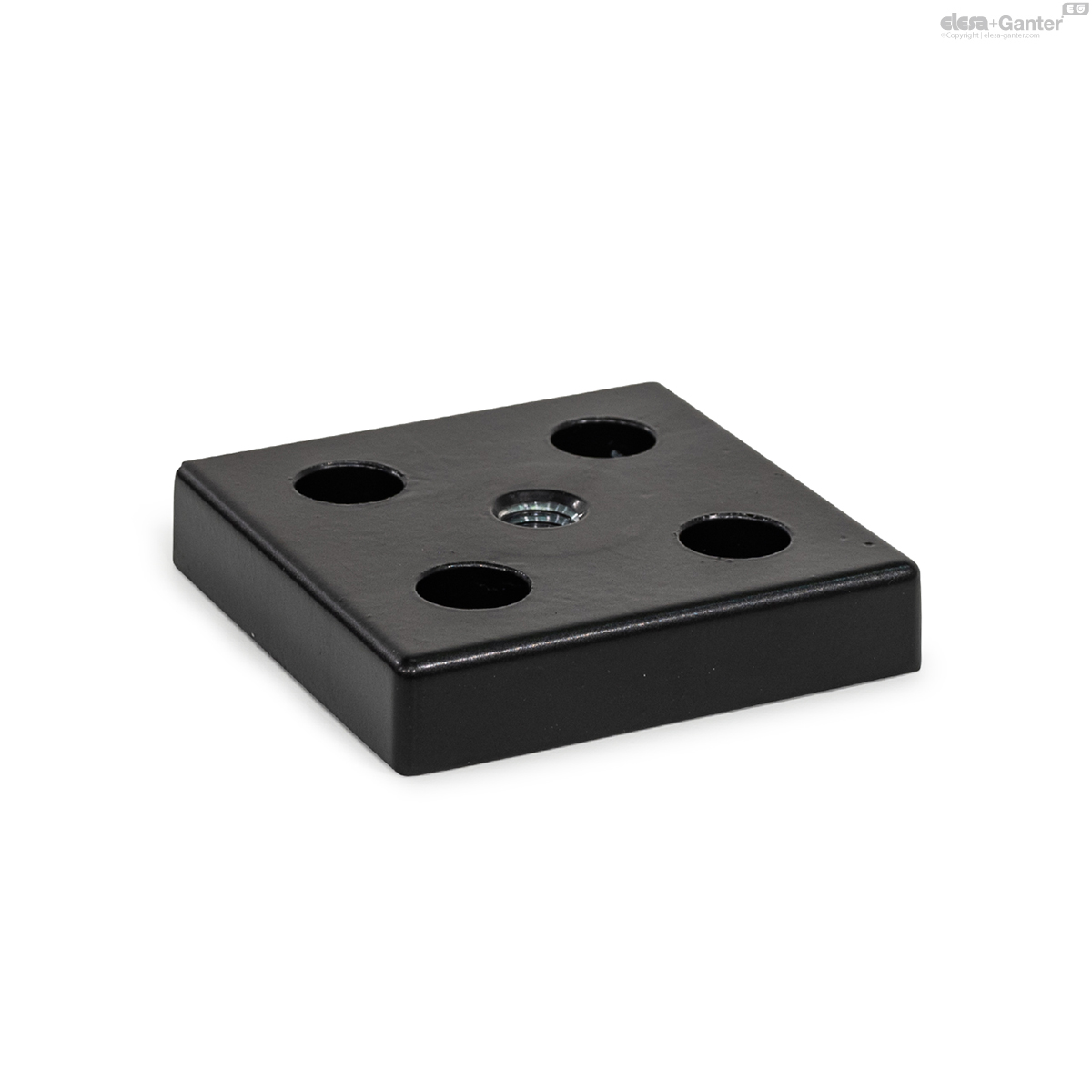

Transport and base plates GN 80i affix attachments such as leveling feet or castors to aluminum profiles.

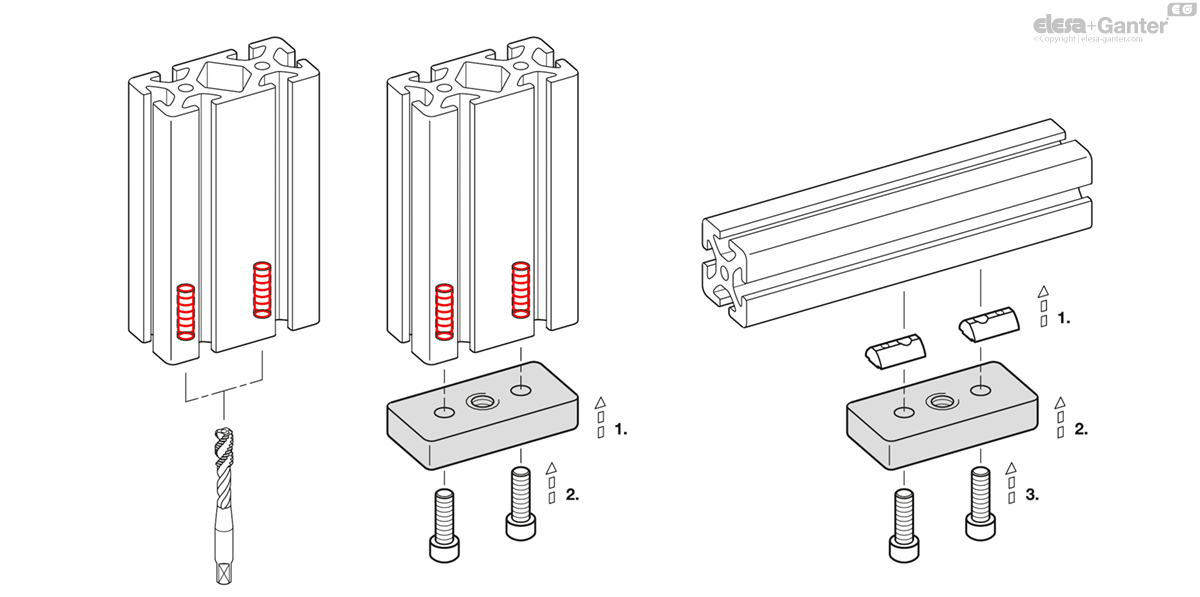

They are installed in the profile holes on the end faces using suitably tapped threaded holes or thread-forming screws. Transport and base plates can also be fastened lengthwise in the profile slot.
Accessory
- T-Nuts GN 50i
Assembly Instructions / Profile Machining

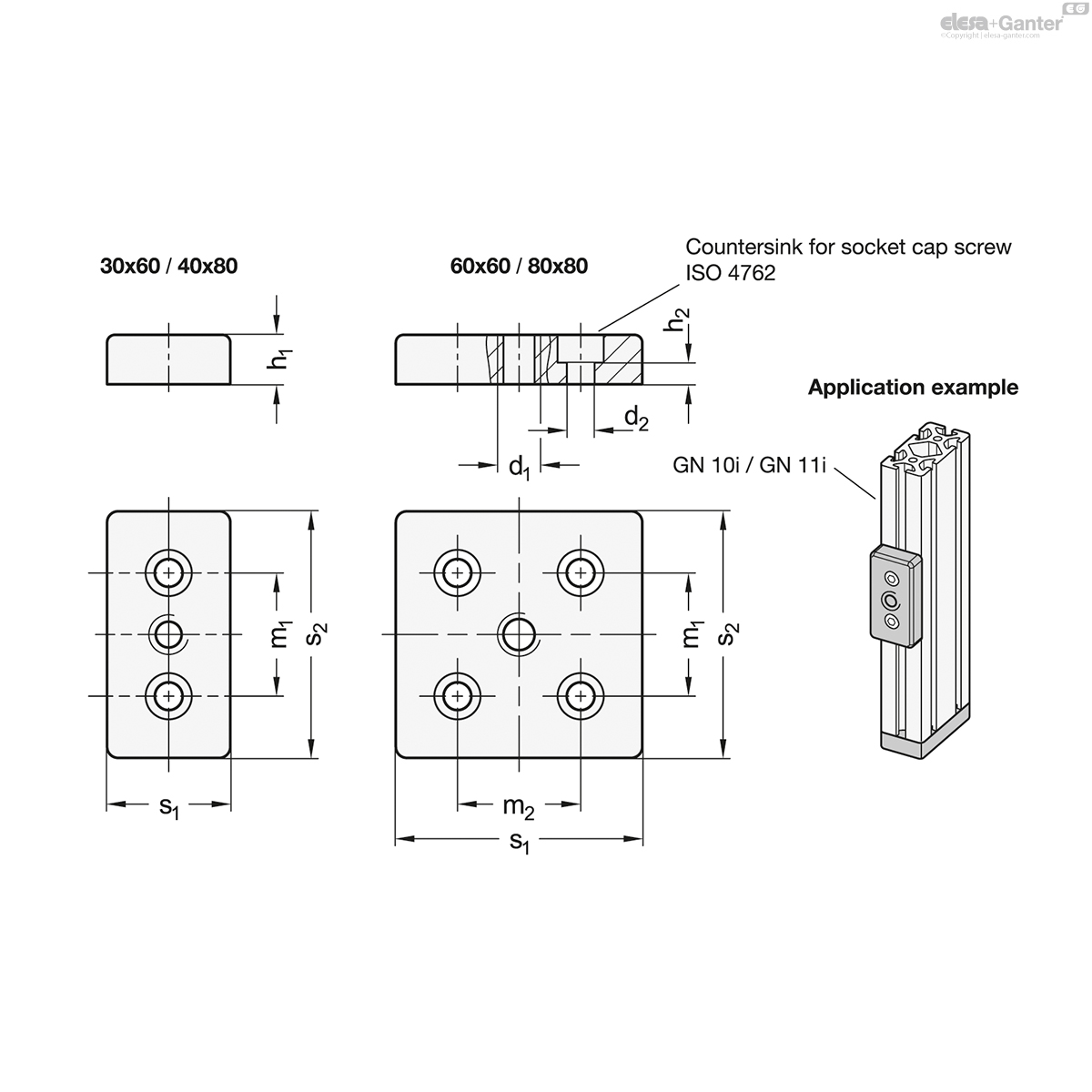

 GN 80i
| Color | s1 | s2 | n | d1 | d2 For screw | h1 | h2 | m1 | m2 | Grid size |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 80i-30606M8-A-ZS | 30x60/40x80 | 30 | 60 | 6 | M 8 | M 6 | 12 | 5 | 30 | - | 30 | 103 |
|
| GN 80i-30606M10-A-ZS | 30x60/40x80 | 30 | 60 | 6 | M 10 | M 6 | 12 | 5 | 30 | - | 30 | 102 |
|
| GN 80i-40808M10-A-ZS | 30x60/40x80 | 40 | 80 | 8 | M 10 | M 8 | 16 | 6.5 | 40 | - | 40 | 211 |
|
| GN 80i-40808M12-A-ZS | 30x60/40x80 | 40 | 80 | 8 | M 12 | M 8 | 16 | 6.5 | 40 | - | 40 | 209 |
|
| GN 80i-60606M10-A-ZS | 60x60/80x80 | 60 | 60 | 6 | M 10 | M 6 | 12 | 5 | 30 | 30 | 30 | 193 |
|
| GN 80i-60606M12-A-ZS | 60x60/80x80 | 60 | 60 | 6 | M 12 | M 6 | 12 | 5 | 30 | 30 | 30 | 192 |
|
| GN 80i-80808M12-A-ZS | 60x60/80x80 | 80 | 80 | 8 | M 12 | M 8 | 16 | 6.5 | 40 | 40 | 40 | 443 |
|
| GN 80i-80808M16-A-ZS | 60x60/80x80 | 80 | 80 | 8 | M 16 | M 8 | 16 | 6.5 | 40 | 40 | 40 | 425 |
|
