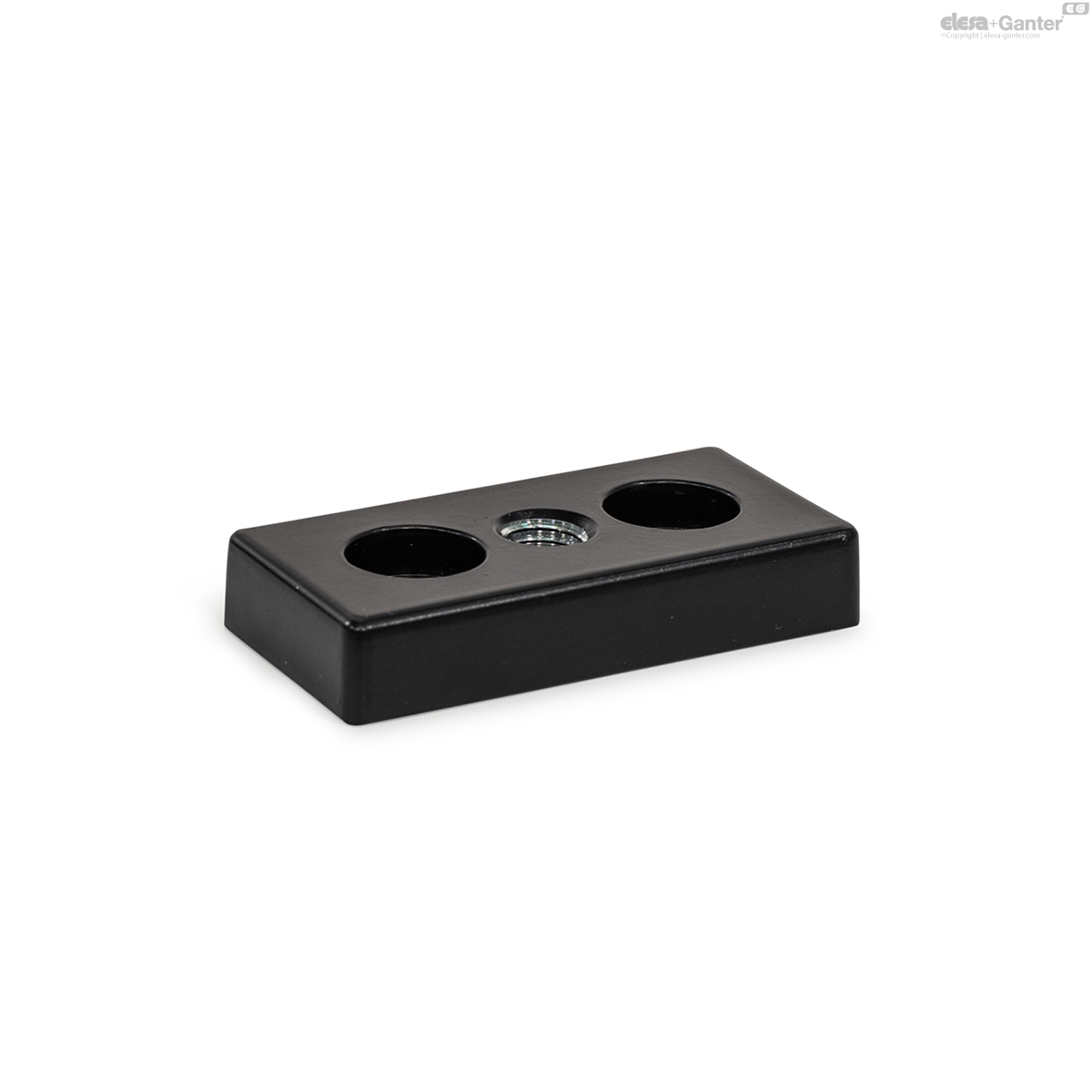

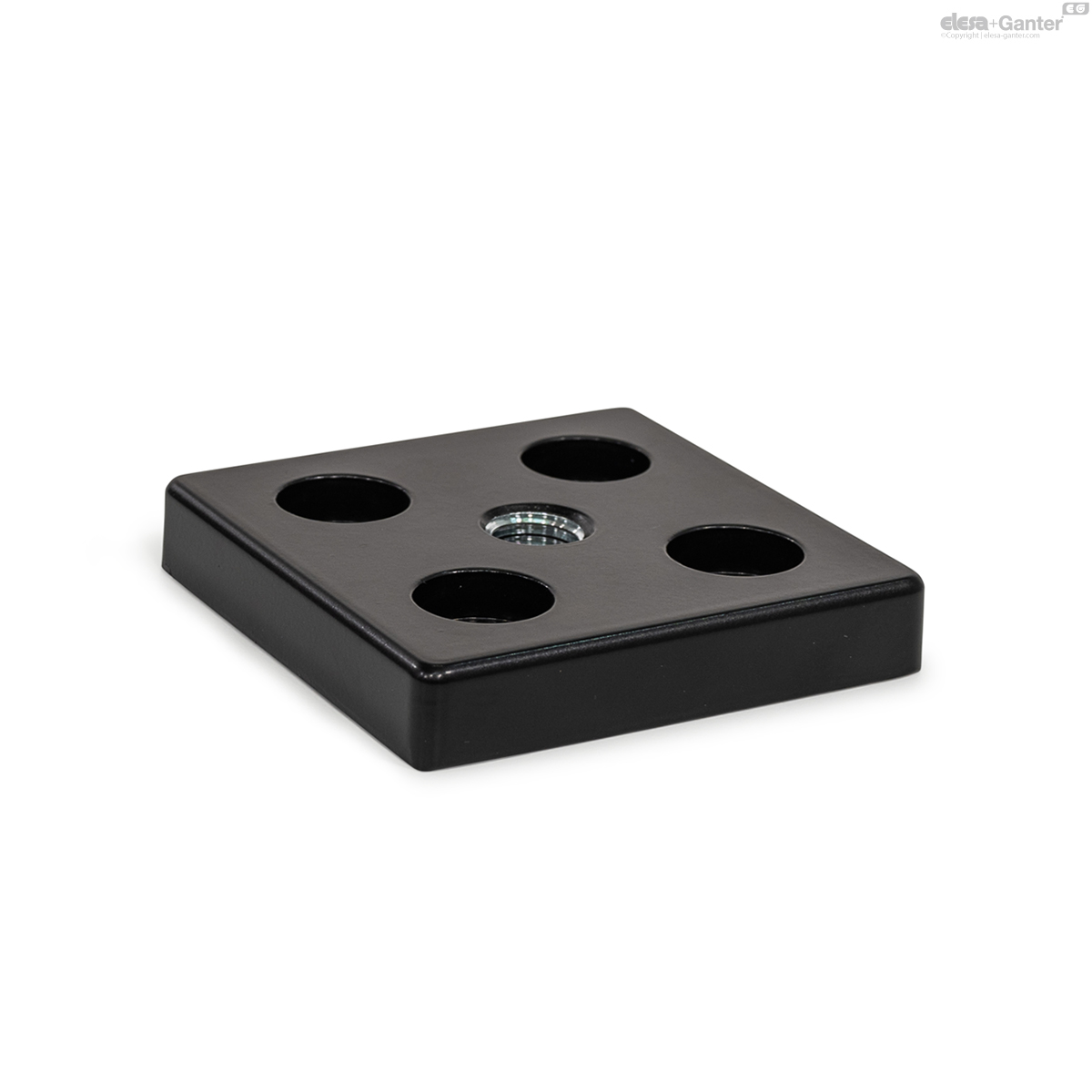

GN 80b
Transport and Base Plates
Zinc Die Casting, for Aluminum Profiles (b-Modular System)
Description
Specification
Type
- Type A: Without screws
Zinc die casting, black ZS
Information
Transport and base plates GN 80b affix attachments such as leveling feet or castors to aluminum profiles.
They are installed in the profile holes on the end faces using suitably tapped threaded holes or thread-forming screws.
Accessory
- Central Screws GN 21b

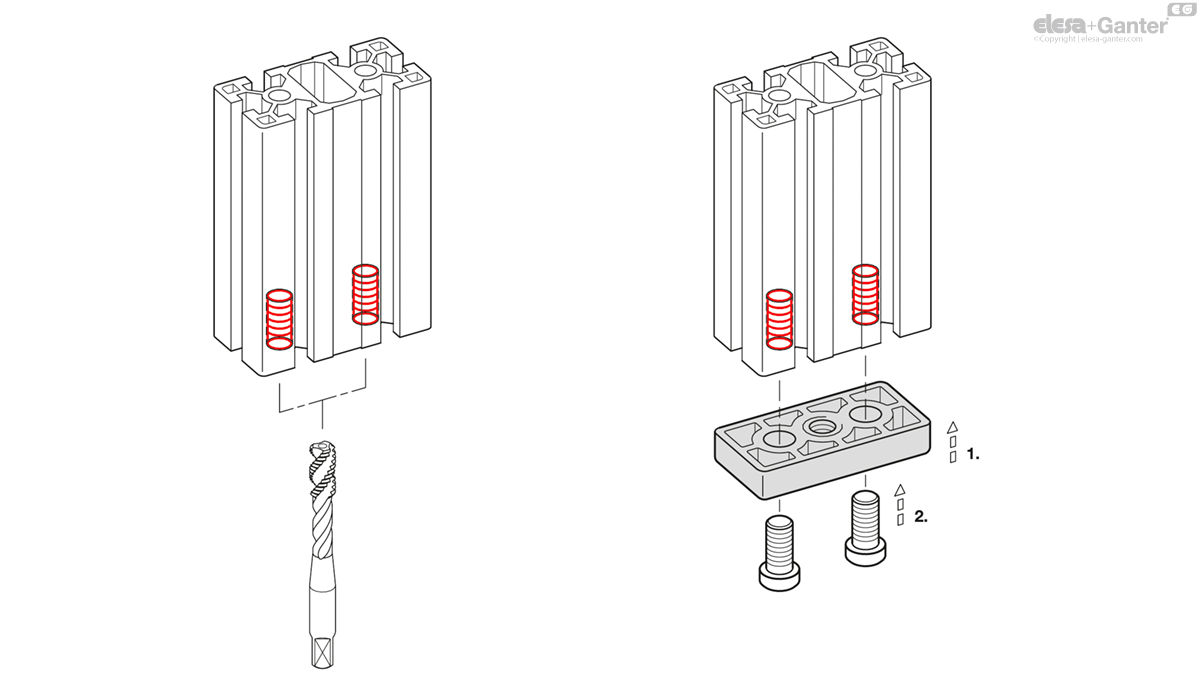

Assembly Instructions / Profile Machining

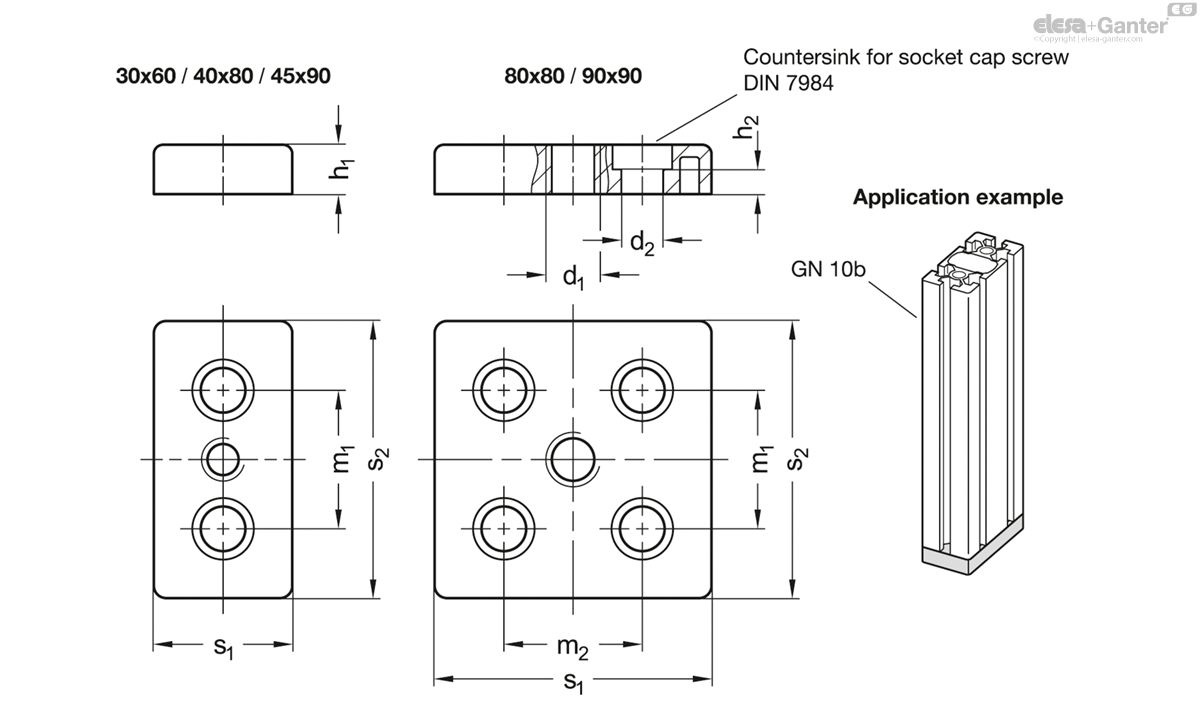

 GN 80b
| Color | s1 | s2 | n | d1 | d2 For screw | h1 | h2 | m1 | m2 | Grid size |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 80b-30608M10-A-ZS | 30x60/40x80/45x90 | 30 | 60 | 8 | M 10 | M 8 / S 8 | 12 | 3.2 | 30 | - | 30 | 98 |
|
| GN 80b-30608M12-A-ZS | 30x60/40x80/45x90 | 30 | 60 | 8 | M 12 | M 8 / S 8 | 12 | 3.2 | 30 | - | 30 | 96 |
|
| GN 80b-408010M10-A-ZS | 30x60/40x80/45x90 | 40 | 80 | 10 | M 10 | M 12 / S 12 | 16 | 8 | 40 | - | 40 | 190 |
|
| GN 80b-408010M12-A-ZS | 30x60/40x80/45x90 | 40 | 80 | 10 | M 12 | M 12 / S 12 | 16 | 8 | 40 | - | 40 | 188 |
|
| GN 80b-459010M12-A-ZS | 30x60/40x80/45x90 | 45 | 90 | 10 | M 12 | M 12 / S 12 | 16 | 8 | 45 | - | 45 | 257 |
|
| GN 80b-459010M14-A-ZS | 30x60/40x80/45x90 | 45 | 90 | 10 | M 14 | M 12 / S 12 | 16 | 8 | 45 | - | 45 | 255 |
|
| GN 80b-808010M12-A-ZS | 80x80/90x90 | 80 | 80 | 10 | M 12 | M 12 / S 12 | 16 | 8 | 40 | 40 | 40 | 380 |
|
| GN 80b-808010M16-A-ZS | 80x80/90x90 | 80 | 80 | 10 | M 16 | M 12 / S 12 | 16 | 8 | 40 | 40 | 40 | 380 |
|
| GN 80b-909010M16-A-ZS | 80x80/90x90 | 90* | 90 | 10 | M 16 | M 12 / S 12 | 16 | 8 | 40 | 40 | 40 | 471 |
|
| GN 80b-909010M20-A-ZS | 80x80/90x90 | 90* | 90 | 10 | M 20 | M 12 / S 12 | 16 | 8 | 40 | 40 | 40 | 463 |
|
