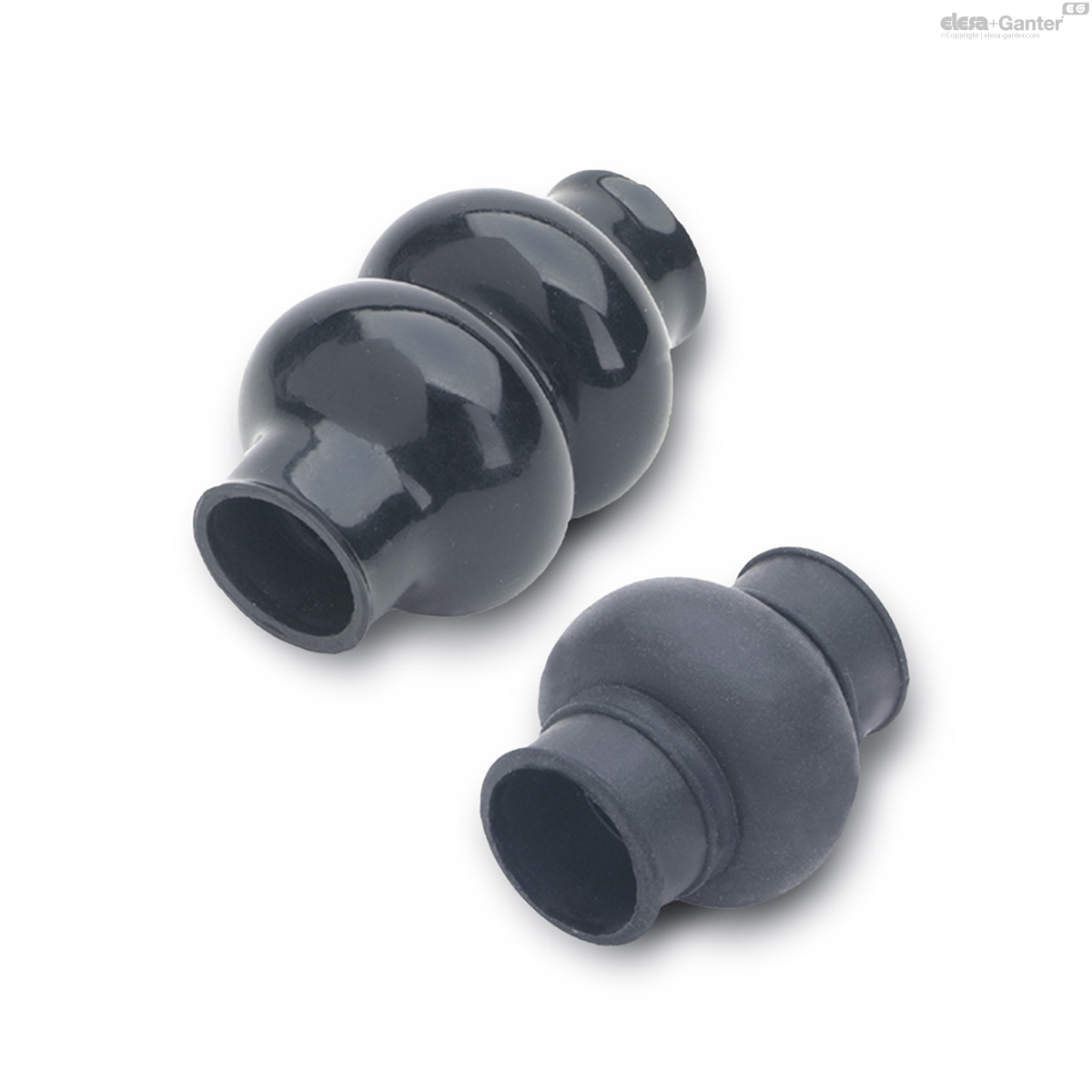

GN 808.1
Gaiters
for universal joints DIN 808
Description
Specification
Types
- Type E: for single joints
- Type D: for double joints
Type E
Rubber (CR)
black
Type D
Elastomer plastic
smooth PVC
black
Information
Gaiters GN 808.1 give universal joints full protection against ingress of dirt.
At the same time they can be filled with grease which gives long term lubrication for friction bearings.
The gaiters are secured at each end with two cable ties, which are supplied each sleeve.
Technical information
- Elastomer characteristicsÂ
GN 808.1

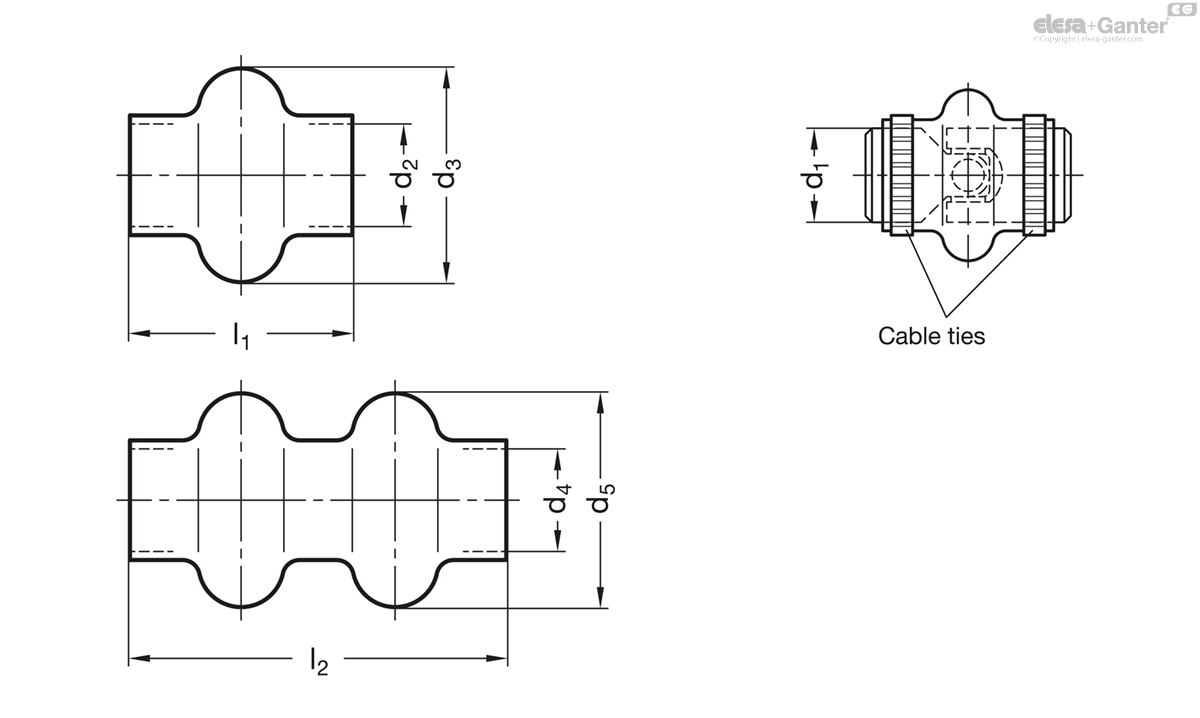

| d1 | d2 | d3 | d4 | d5 | l1 | l2 |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 808.1-16-D | 16 | - | - | 16 | 35 | - | 55 | 10 |
|
| GN 808.1-16-E | 16 | 15 | 28 | - | - | 34 | - | 7 |
|
| GN 808.1-22-D | 22 | - | - | 20 | 36 | - | 65 | 12 |
|
| GN 808.1-22-E | 22 | 20.5 | 40 | - | - | 45 | - | 15 |
|
| GN 808.1-25-D | 25 | - | - | 24 | 44 | - | 70 | 25 |
|
| GN 808.1-25-E | 25 | 24.5 | 48 | - | - | 50 | - | 10 |
|
| GN 808.1-28-D | 28 | - | - | 28 | 51 | - | 80 | 25 |
|
| GN 808.1-28-E | 28 | 27.5 | 52 | - | - | 56 | - | 20 |
|
| GN 808.1-32-D | 32 | - | - | 32 | 62 | - | 90 | 51 |
|
| GN 808.1-32-E | 32 | 30.5 | 56 | - | - | 65 | - | 23 |
|
| GN 808.1-36-E | 36 | 35.5 | 66 | - | - | 72 | - | 25 |
|
| GN 808.1-42-D | 42 | - | - | 40 | 73 | - | 120 | 84 |
|
| GN 808.1-42-E | 42 | 40 | 75 | - | - | 82 | - | 40 |
|
| GN 808.1-45-E | 45 | 45 | 84 | - | - | 95 | - | 50 |
|
| GN 808.1-50-D | 50 | - | - | 50 | 90 | - | 155 | 101 |
|
| GN 808.1-50-E | 50 | 50 | 92 | - | - | 108 | - | 67 |
|
| GN 808.1-58-E | 58 | 56 | 100 | - | - | 122 | - | 72 |
|
