Home Toggle Clamps Toggle clamps GN 807

GN 807

Clamping Screws

Steel / Stainless Steel, with / without Protective Cap

__logo__INOX__

__logo__RoHS__

Enquire Now

gn-807

Clamping Screws

gn-807-ni

Clamping Screws

Stainless Steel

Description

Specification

Types

Type A: Without protective cap

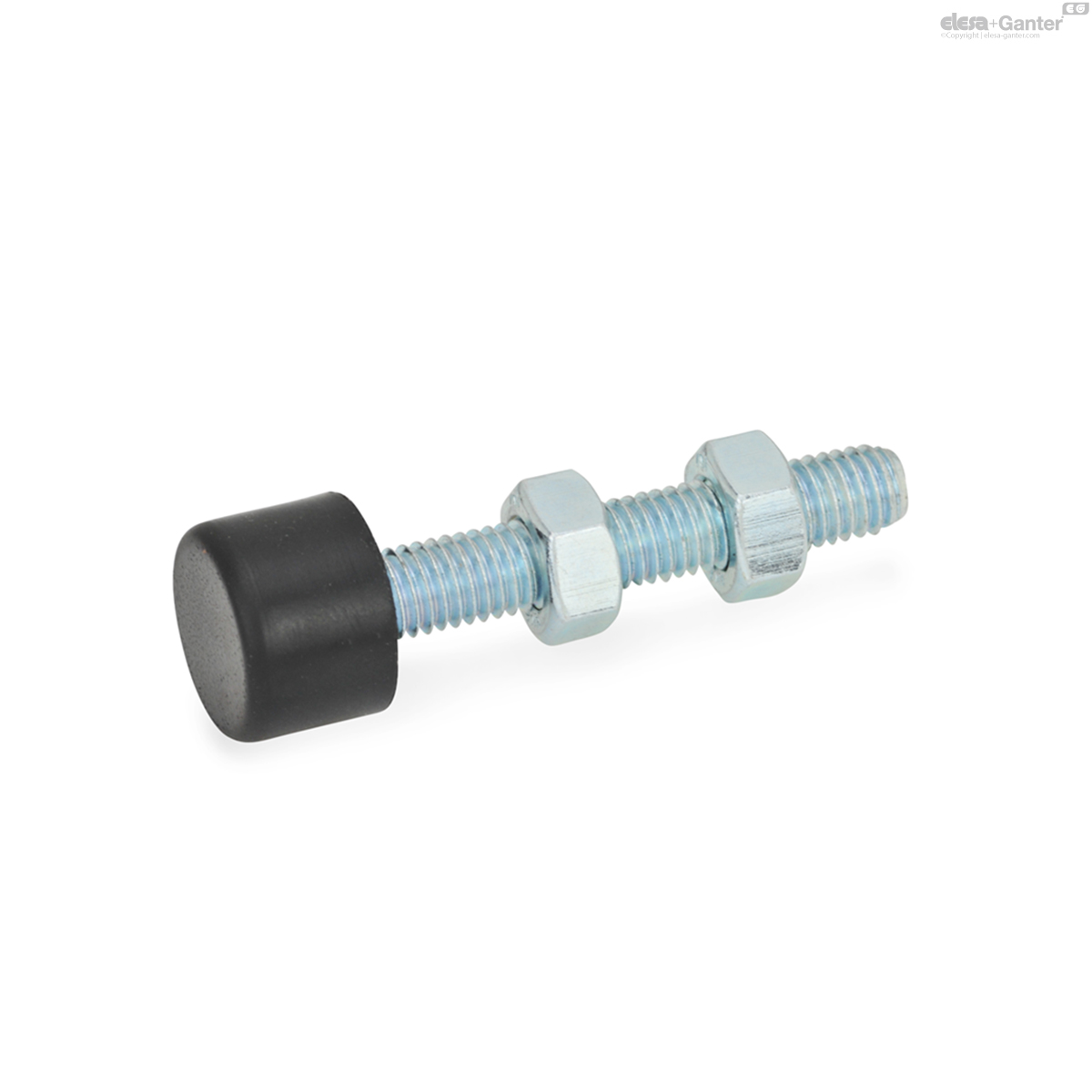

Type B: With protective cap

Version in Steel

Hex head screw ISO 4017 / DIN 933

Property class 8.8

Zinc plated, blue passivated

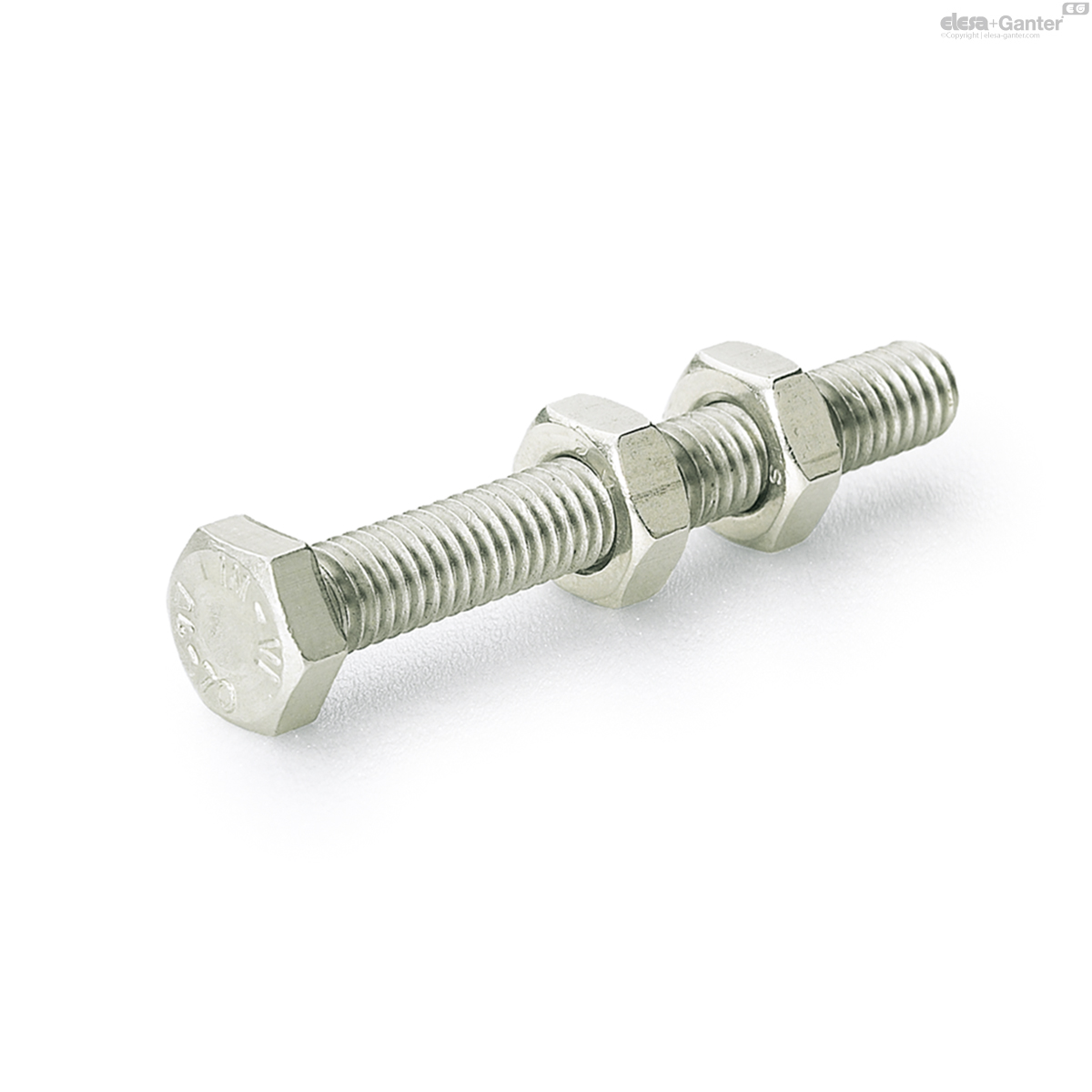

Version in Stainless Steel

Stainless steel AISI 304 NI

Hex head screw ISO 4017 / DIN 933

Hex nuts ISO 4032

Information

The two hex nuts are included parts of the order.

Technical information

Protective Caps GN 806

Stainless Steel Characteristics

Strength values of screws / nuts

GN 807-NI

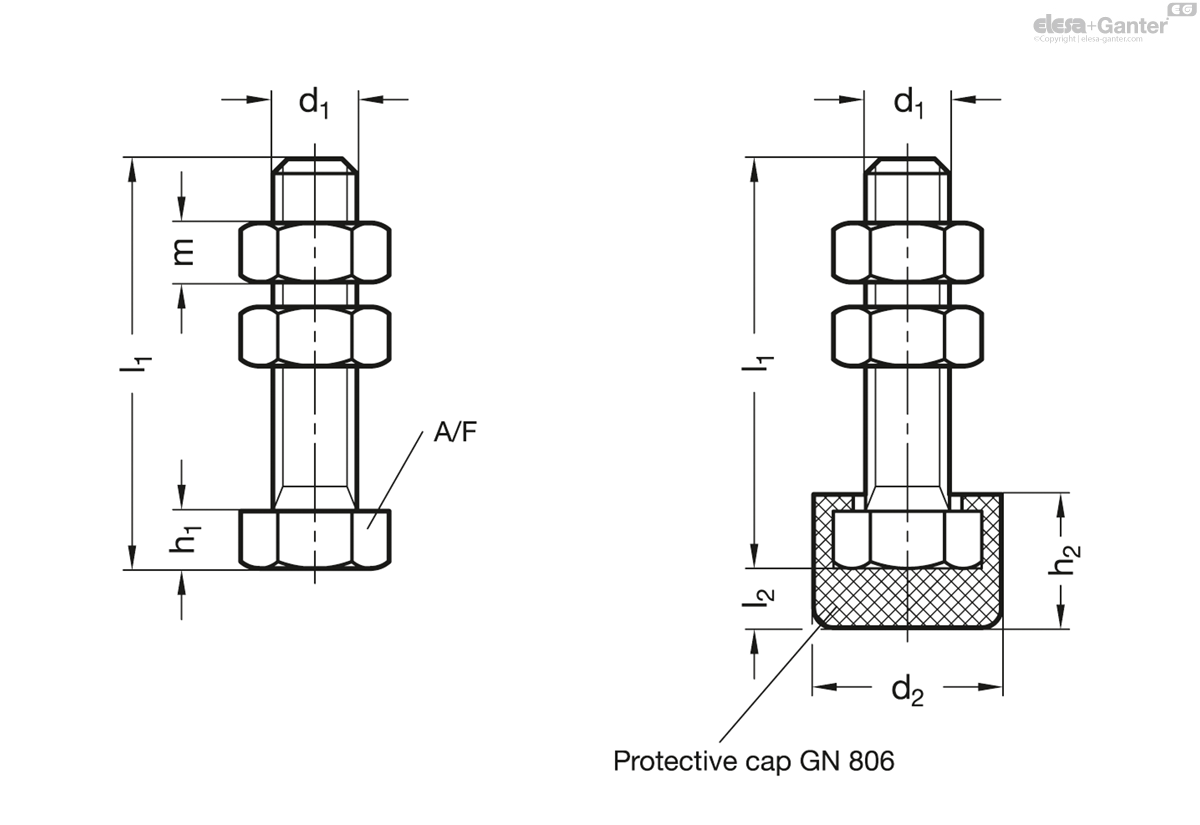

	d₁	l₁	d₂	h₁	h₂	l₂	m	A/F
Code										Actions
GN 807-M4-23-A-NI	M 4	23	11	3	6.5	2.5	3.2	7	4
GN 807-M4-23-B-NI	M 4	23	11	3	6.5	2.5	3.2	7	4
GN 807-M5-38-A-NI	M 5	38	12.5	3.5	8	2.5	4.7	8	8
GN 807-M5-38-B-NI	M 5	38	12.5	3.5	8	2.5	4.7	8	10
GN 807-M6-29-A-NI	M 6	29	15	4	10	4	5.2	10	11
GN 807-M6-29-B-NI	M 6	29	15	4	10	4	5.2	10	14
GN 807-M6-49-A-NI	M 6	49	15	4	10	4	5.2	10	17
GN 807-M6-49-B-NI	M 6	49	15	4	10	4	5.2	10	19
GN 807-M8-36-A-NI	M 8	36	19	5.5	13	5.5	6.8	13	24
GN 807-M8-36-B-NI	M 8	36	19	5.5	13	5.5	6.8	13	28
GN 807-M8-56-A-NI	M 8	56	19	5.5	13	5.5	6.8	13	30
GN 807-M8-56-B-NI	M 8	56	19	5.5	13	5.5	6.8	13	34
GN 807-M8-96-A-NI	M 8	96	19	5.5	13	5.5	6.8	13	43
GN 807-M8-96-B-NI	M 8	96	19	5.5	13	5.5	6.8	13	47
