GN 801.1

Clamping arm extenders

rigid, for toggle clamps with forked clamping arm

Enquire Now

Description

Specification

Steel ST

zinc plated, blue passivated

Information

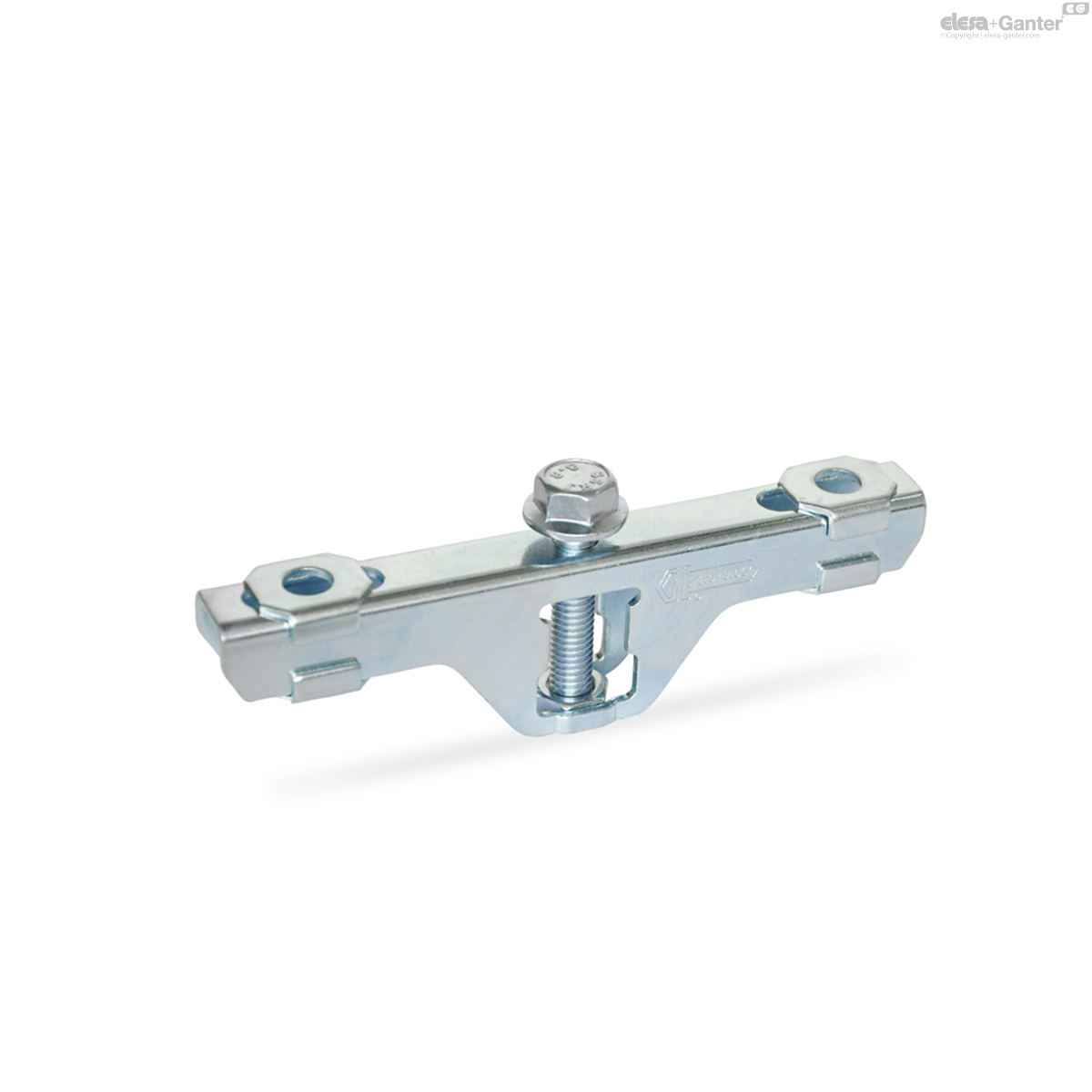

Clamping arm extenders GN 801.1 are used together with toggle clamps with “forked clamping arm” to clamp something simultaneously at two points in parallel, such as with clamping screws. These are mounted to the clamping arm and affixed in the desired position along the slot.

The side position of the clamping screws can also be selected via the slots, a symmetrical arrangement/setting encourages a balanced clamping result.

All parts are supplied in a non-assembled set. Four flanged washers are included for fastening the clamping screw.

GN 801.1

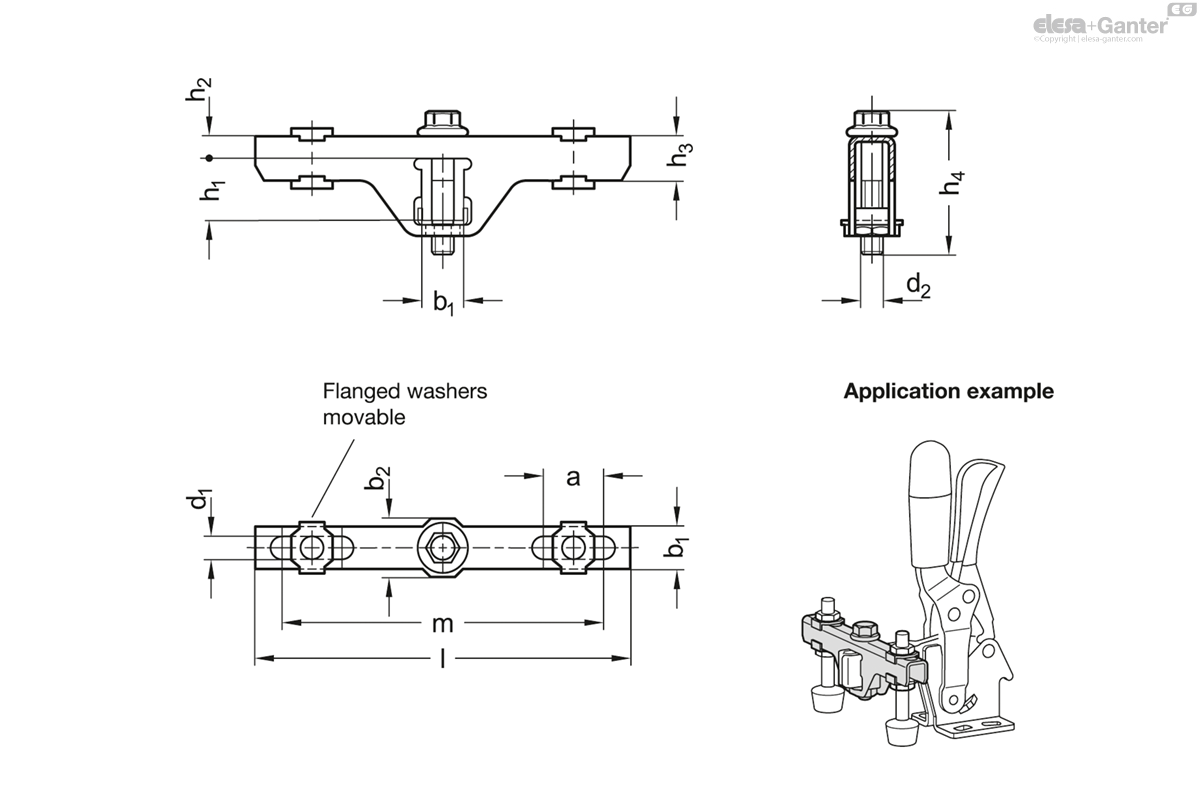

	m	h₁	a	b₁	b₂	d₁	d₂	h₂ ≈	h₃	h₄	l	For toggle clamps GN 810 GN 810.1 GN 810.3 GN 810.4	For toggle clamps GN 820 GN 820.1 GN 820.2 GN 820.3 GN 820.4	For toggle clamps GN 860	For toggle clamps GN 842
Code																	Actions
GN 801.1-85-16-ST	85	16	25	11.5	15	6.2	M 6	5.7	12	37	100	130	130	125	70	62
GN 801.1-100-18-ST	100	18	30	14	18	8.2	M 8	6.3	15.5	43	120	230	230	200	360	118
