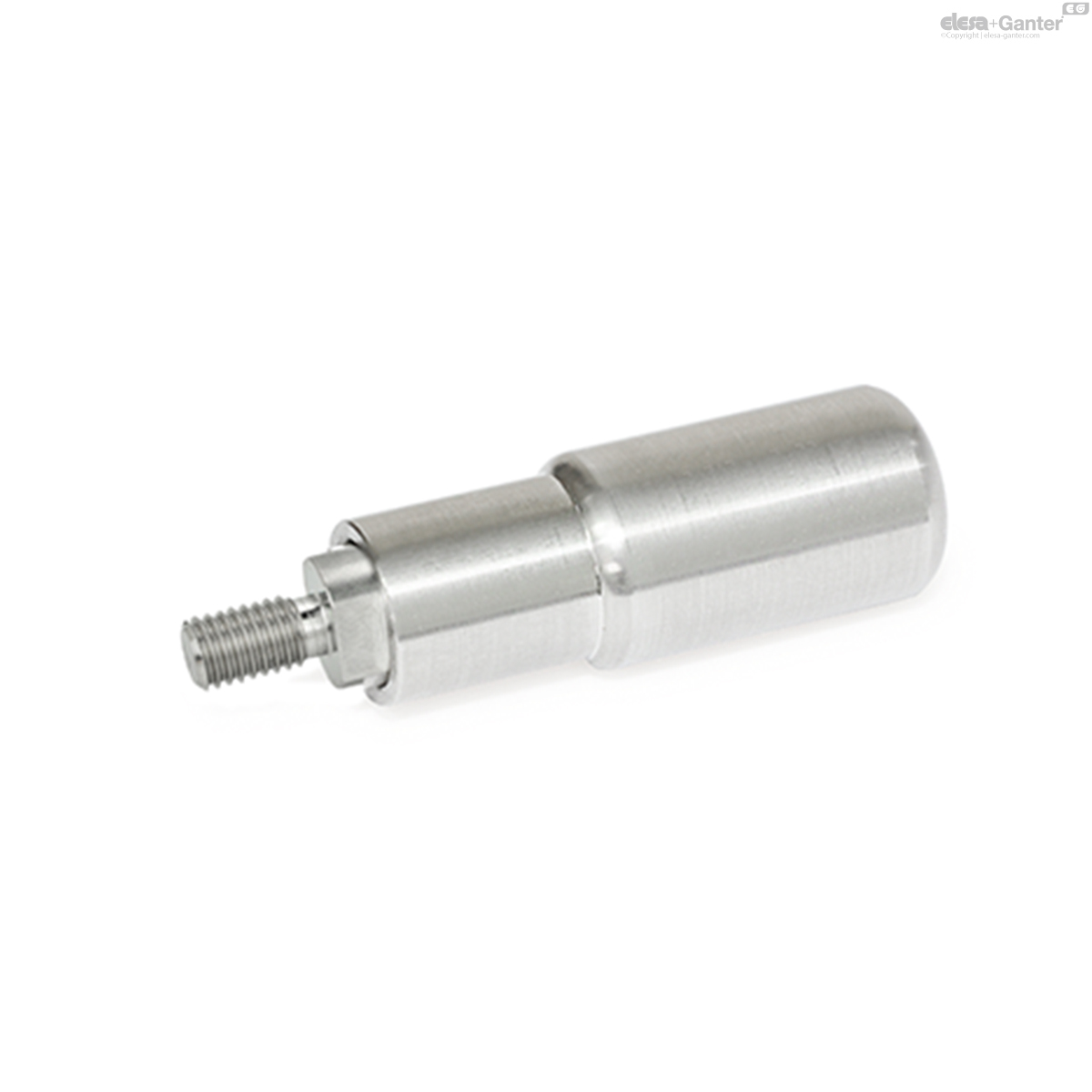

GN 798.4

Revolving Handles
Stainless Steel, Spindle Stainless Steel, Mounting from the Operator‘s Side
__logo__INOX__ __logo__RoHS__
Enquire Now
  • GN 798.4 Revolving Handles
  • GN 798.4 Revolving Handles

Description

Specification

Handle

  • Stainless steel AISI 303 NI
  • Fine turned, plain
Spindle

Stainless steel AISI 303

Information

The design of the revolving handles GN 798.4 is characterized by their shape, consisting of two cylinders. It gives the hand an excellent grip.

Technical information
  • Stainless Steel Characteristics

GN 798.4

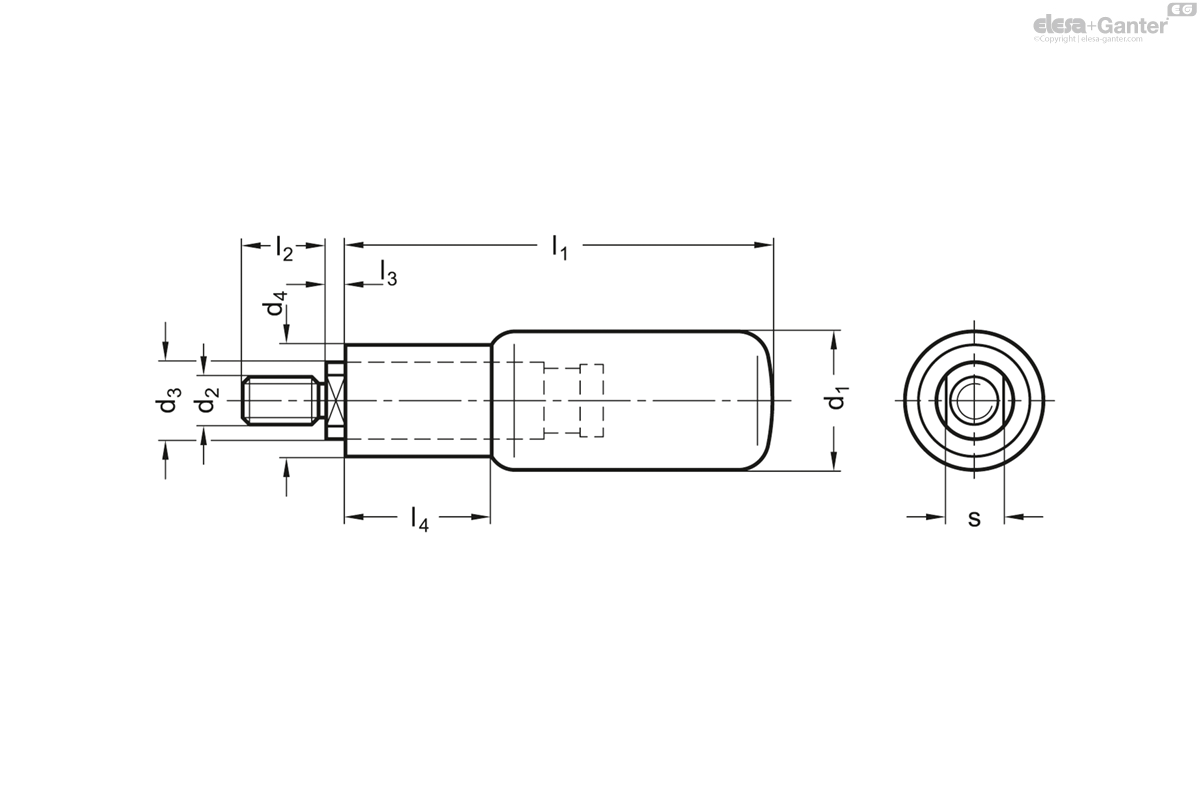

d1 d2 d3 d4 l1 l2 l3 ≈ l4 s __logo__weight__
Code Actions
GN 798.4-NI-18-M6 18 M 6 10 14.5 56 13 4 19 8 88 cart-icon
GN 798.4-NI-22-M8 22 M 8 14 18.5 59 14 5.2 21 11 157 cart-icon
GN 798.4-NI-24-M10 24 M 10 14 18.5 74 16 5.2 27 11 209 cart-icon
