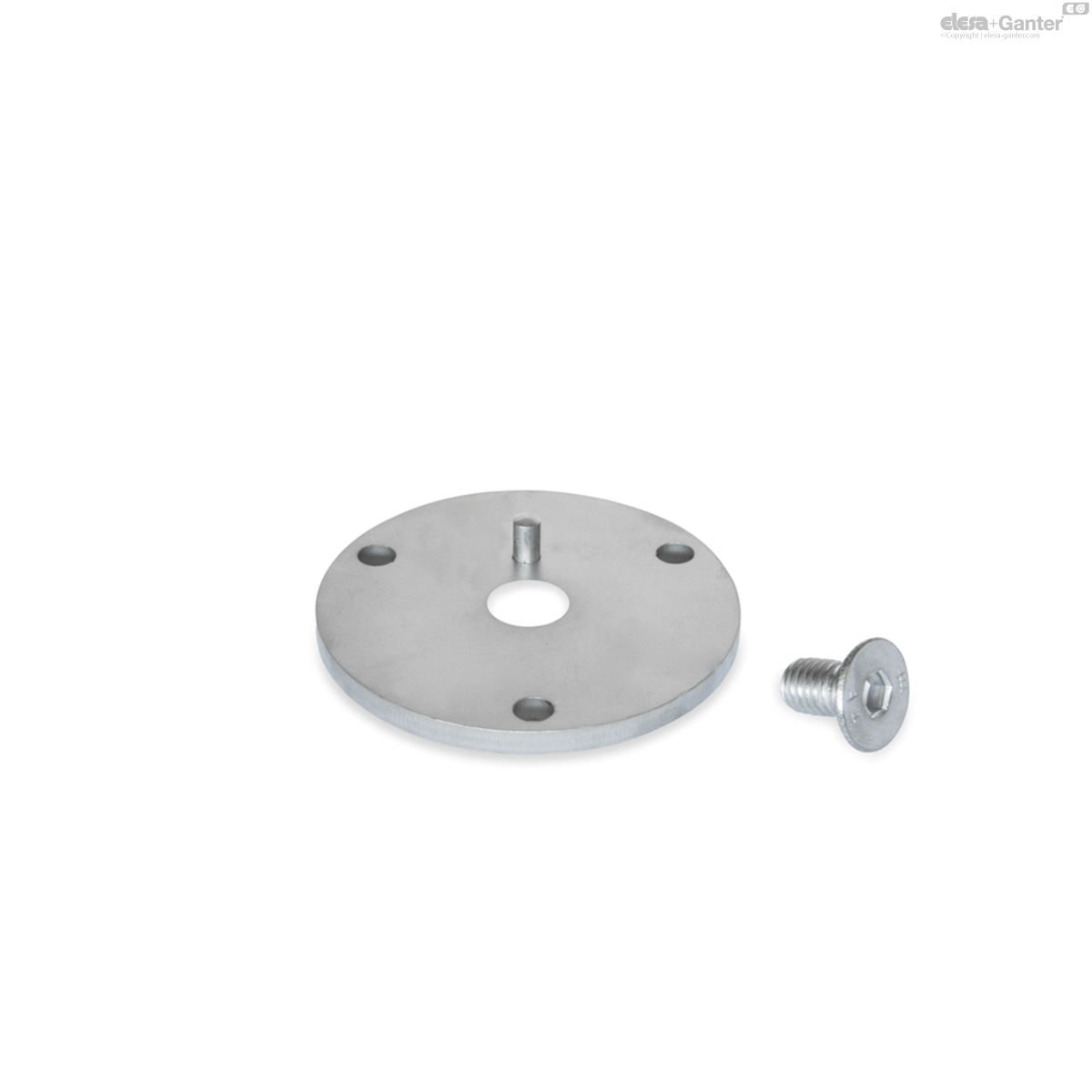

GN 784.1
Flanges
for mounting clamps with swivel ball joint GN 784
Description
Specification
Stainless Steel AISI 304
matte, tumbled finish MT
Countersunk screw DIN 7991
Stainless Steel AISI 304
Half-length tapered groove pin DIN 8745
Stainless Steel AISI 304
Information
The GN 784.1 flanges are mounted from below onto the GN 784mounting clamps with swivel ball joint. A half-length tapered groove pin prevents any rotation.Â
The flange enables the swivel ball joints to be mounted on the upper surface. The d2 section with the three d3 drill holes is configured so that standard screws with washers can be used.
The half-length tapered groove pin is mounted on the flange. The countersunk screw is included separately.
Technical information
- Stainless Steel characteristicsÂ

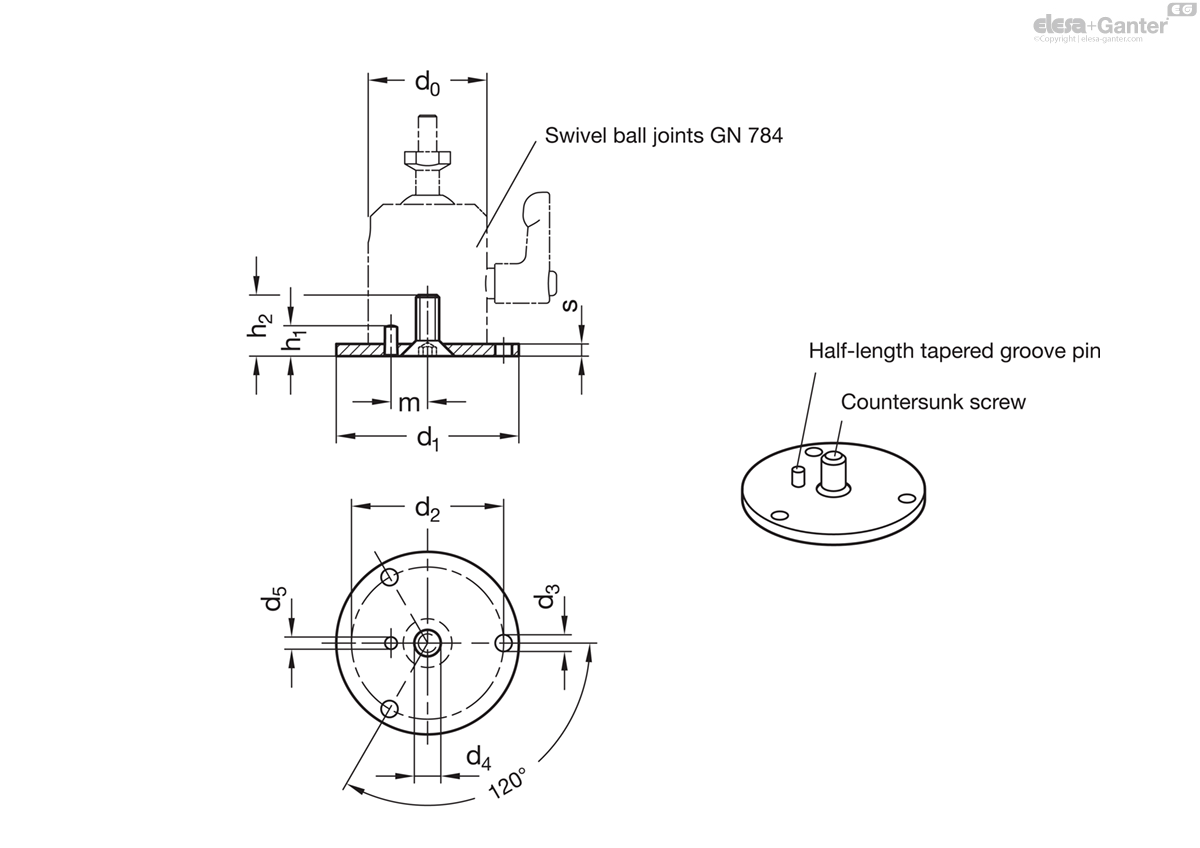

GN 784.1
| d0 | d1 | d2 | d3 | d4 | d5 | h1 | h2 | m | s |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 784.1-42-MT | 23 | 42 | 32.5 | 4.5 | M5 | 2 | 6 | 8.5 | 7 | 2.5 | 29 |
|
| GN 784.1-49-MT | 31 | 49 | 40 | 4.5 | M6 | 3 | 6 | 10.5 | 9 | 3 | 47 |
|
| GN 784.1-60-MT | 39 | 60 | 50 | 5.5 | M8 | 4 | 10 | 14.6 | 12 | 4 | 91 |
|
| GN 784.1-70-MT | 49 | 70 | 60 | 5.5 | M8 | 4 | 10 | 14.6 | 16 | 4 | 123 |
|
