Ball Joints

Steel / Stainless Steel

Enquire Now

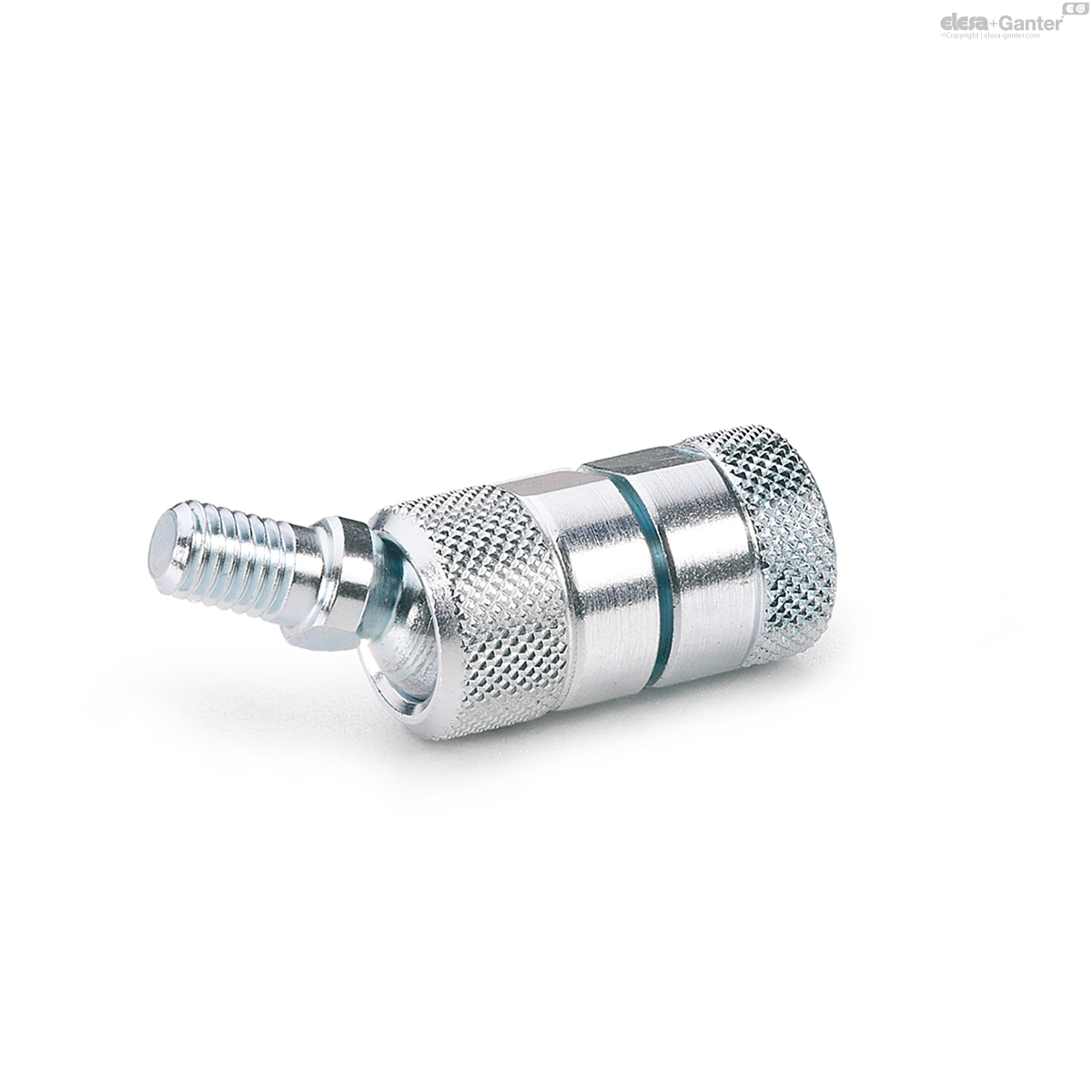

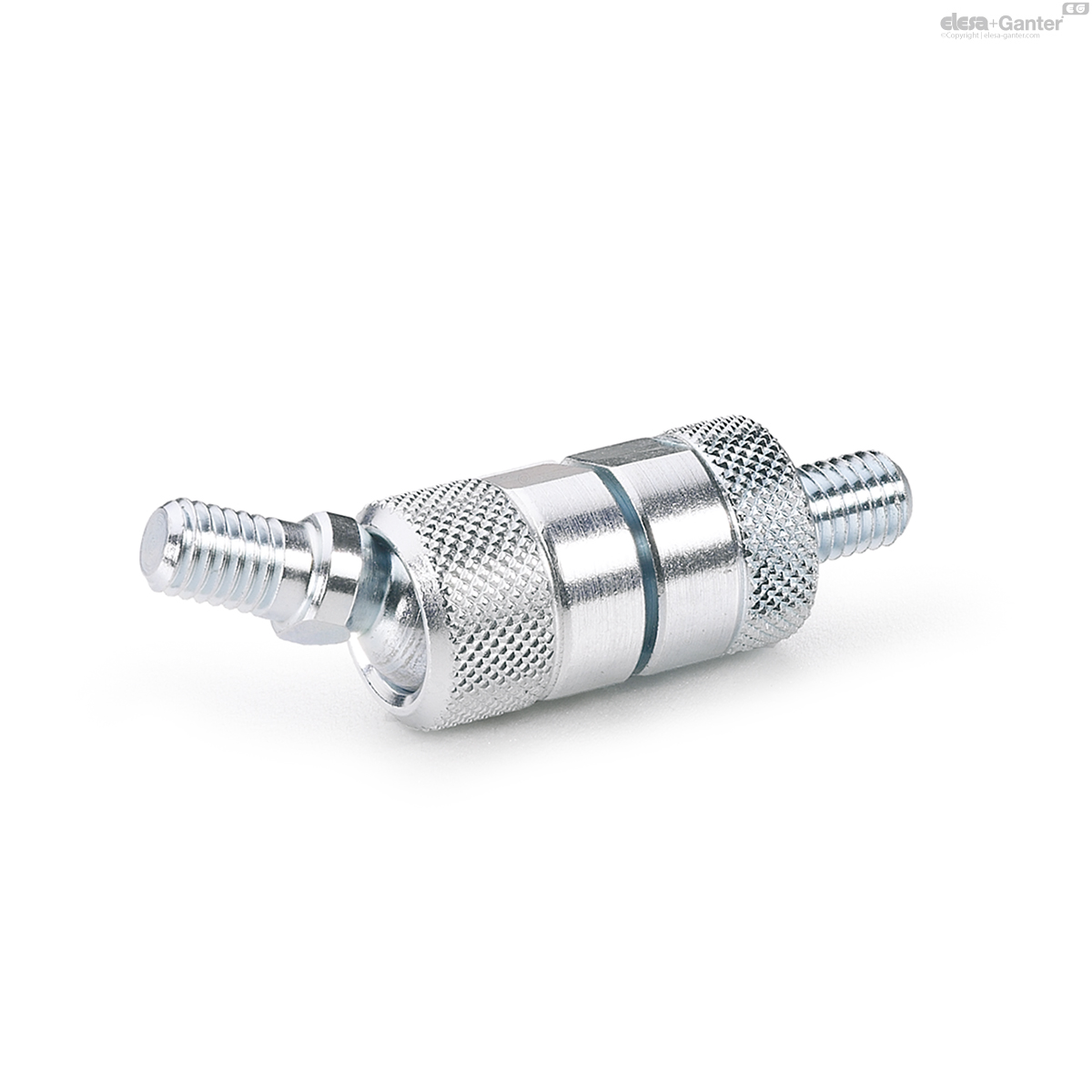

Type KS, Stainless Steel

Type KI, Stainless Steel

Description

Specification

Types

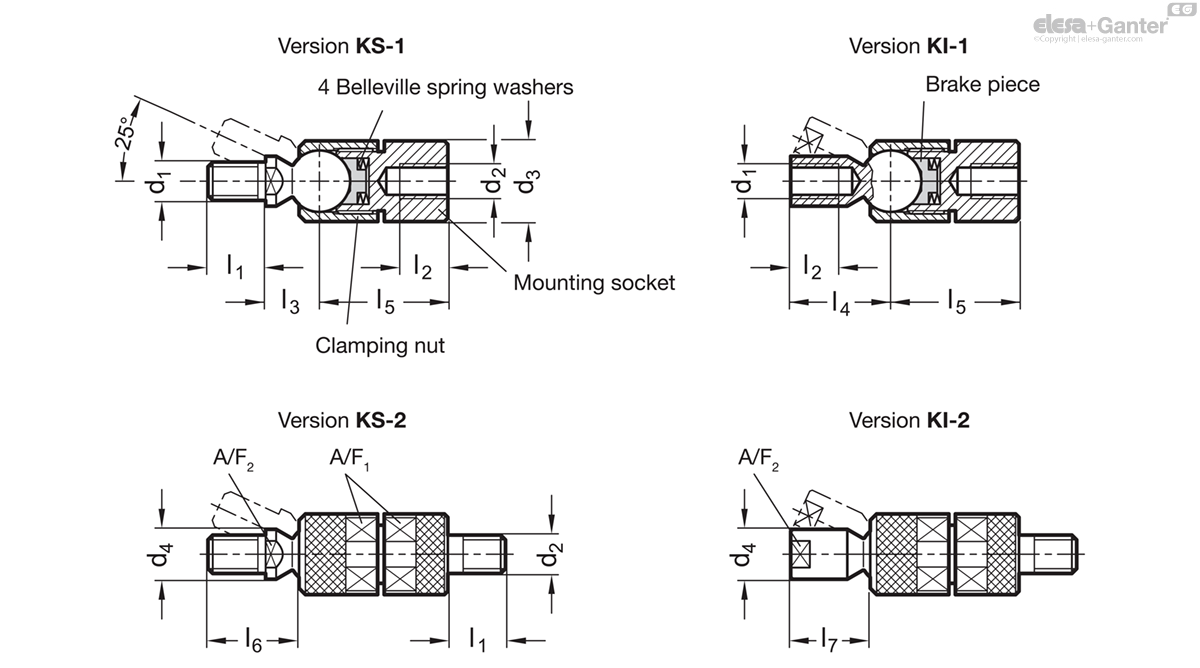

Type KS: Ball with threaded stud

Type KI: Ball with internal thread

Identification no.

No. 1: Mounting socket with internal thread

No. 2: Mounting socket with external thread

Steel

Zinc plated, blue passivated

Stainless steel AISI 303 NI

Brake piece

Plastic

Polyacetal (POM)

Information

The clamping nut of the ball joints GN 782 can be set to give a required thrust on the Belleville spring washers in order to increase the resistance to the ball movement.

At the same time the Belleville spring washers act as safety washers for the screws.

Once the max. thrust to the Belleville spring washers is reached the ball arm is firmly immobilised in position over the clamping nut and screw. The maximum tightening torque specified in the table may not be exceeded.

Technical information

Plastic Characteristics

Stainless Steel Characteristics

GN 782-KS-ST

	Color	d₁	d₂	d₃	d₄	l₁	l₂	l₃	l₅ +1.0/-0.3	l₆ ≈	A/F ₁	A/F ₂	Recommended tightening torque in Nm ≈
Code															Actions
GN 782-M6-KS-1	Identification No. 1	M 6	M 6	17	8.5	10	8	11	25	16.8	15	7	15	46
GN 782-M6-KS-2	Identification No. 2	M 6	M 6	17	8.5	10	-	11	25	16.8	15	7	15	46
GN 782-M8-KS-1	Identification No. 1	M 8	M 8	19	11	12	10	12.5	29.5	19.5	17	9	20	68
GN 782-M8-KS-2	Identification No. 2	M 8	M 8	19	11	12	-	12.5	29.5	19.5	17	9	20	75
GN 782-M10-KS-1	Identification No. 1	M 10	M 10	21	13	15	12	14	33.5	23.5	19	11	35	80
GN 782-M10-KS-2	Identification No. 2	M 10	M 10	21	13	15	-	14	33.5	23.5	19	11	35	112
GN 782-M12-KS-1	Identification No. 1	M 12	M 12	28	16	18	15	20	44	31.5	25	14	45	220
GN 782-M12-KS-2	Identification No. 2	M 12	M 12	28	16	18	-	20	44	31.5	25	14	45	252
