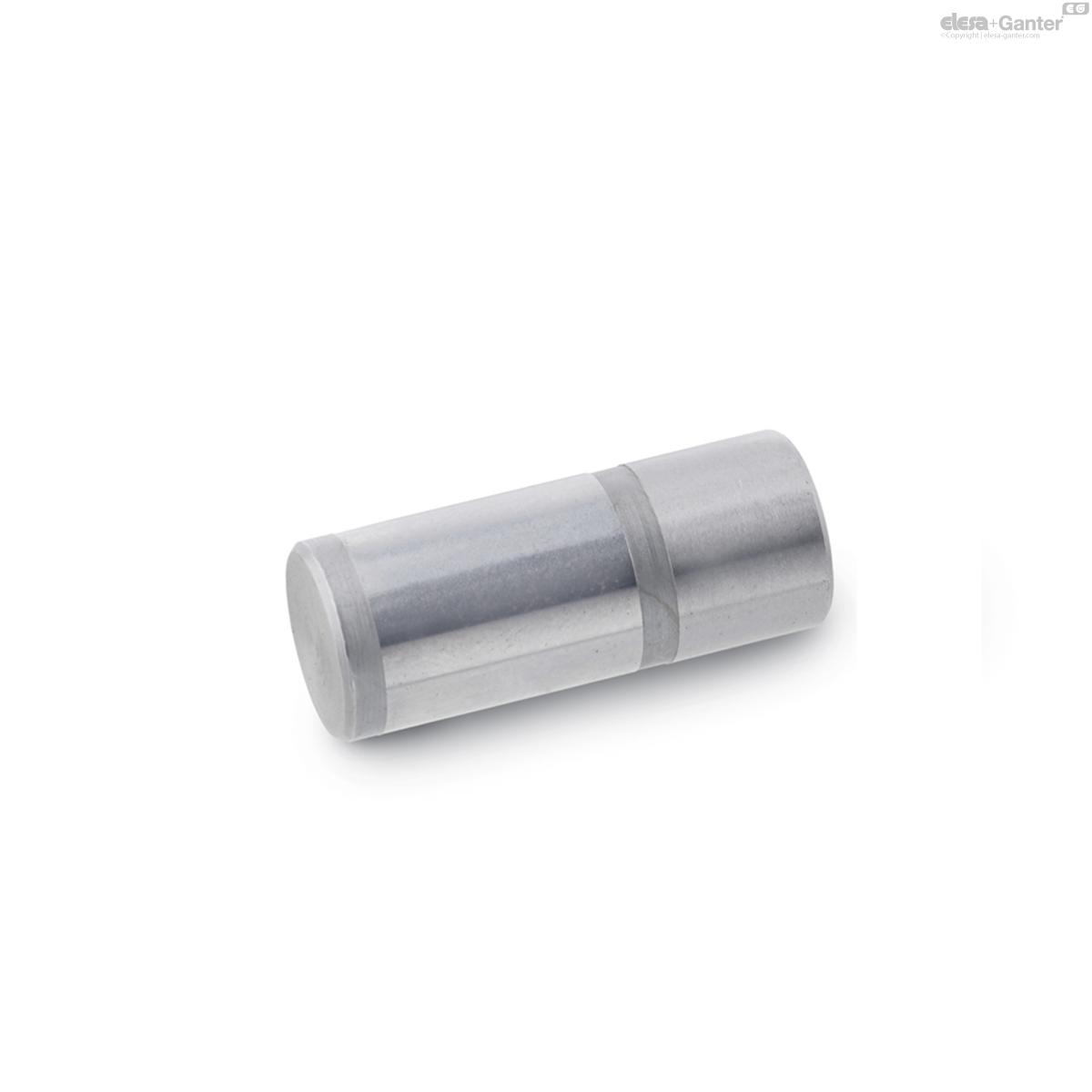

GN 771.1
Guide pins
cylindrical, for guide bushings DIN 172 / DIN 179
Description
Specification
Steel
- hardened (HRC 60 ±2)
- Fit sizes d p6 / d h6 ground
Information
Guide pins GN 771.1 are used in combination with DIN 172 / DIN 179  guide bushings.

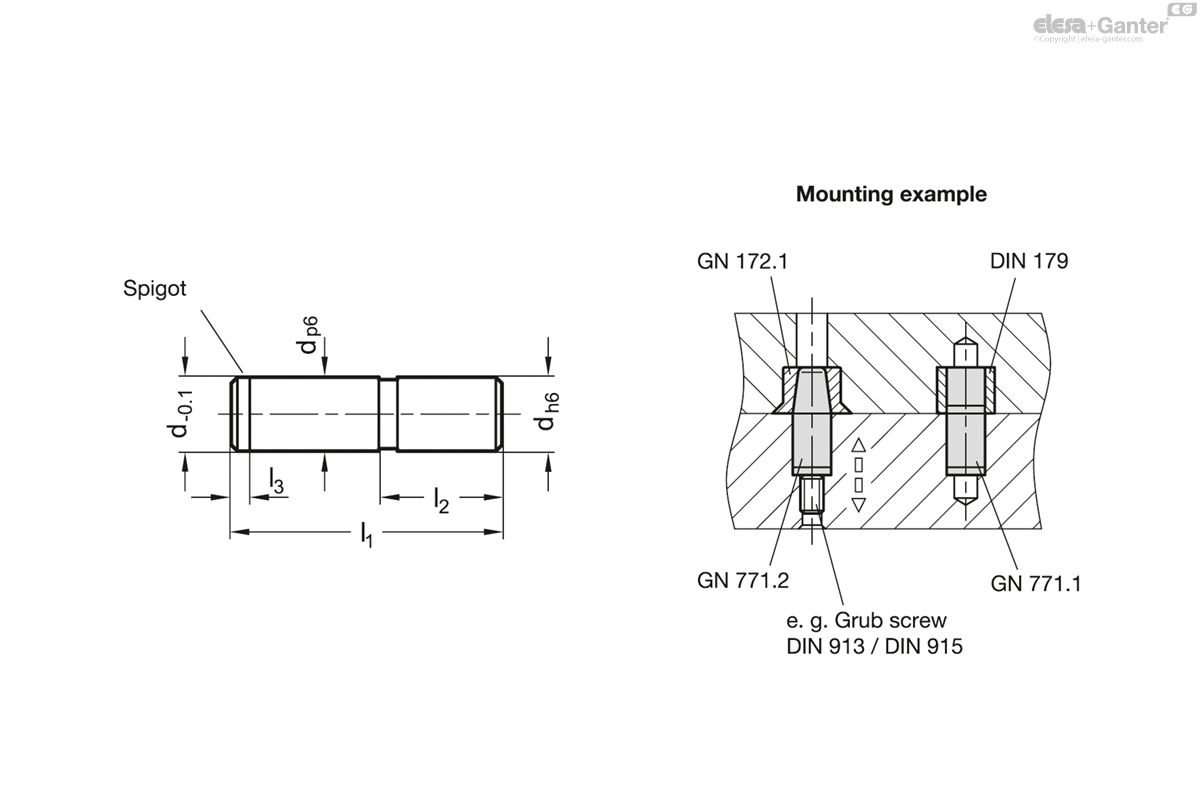

The shaft tolerance p6 guarantees a perfect pressfit in a mounting borehole H7. The spigot l3 makes the installation easier.
Technical information
- ISO-Fundamental TolerancesÂ
GN 771.1
| d p6/h6 | l1 | l2 | l3 |  |
||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| GN 771.1-4-16-8 | 4 | 16 | 8 | 1.5 | 2 |
|
| GN 771.1-5-18-8 | 5 | 18 | 8 | 1.5 | 3 |
|
| GN 771.1-6-22-10 | 6 | 22 | 10 | 1.5 | 5 |
|
| GN 771.1-8-24-10 | 8 | 24 | 10 | 2 | 9 |
|
| GN 771.1-10-28-12 | 10 | 28 | 12 | 2 | 15 |
|
| GN 771.1-12-30-12 | 12 | 30 | 12 | 2.5 | 26 |
|
| GN 771.1-16-36-16 | 16 | 36 | 16 | 2.5 | 59 |
|
