GN 754
Fork Heads
Steel, with External Thread

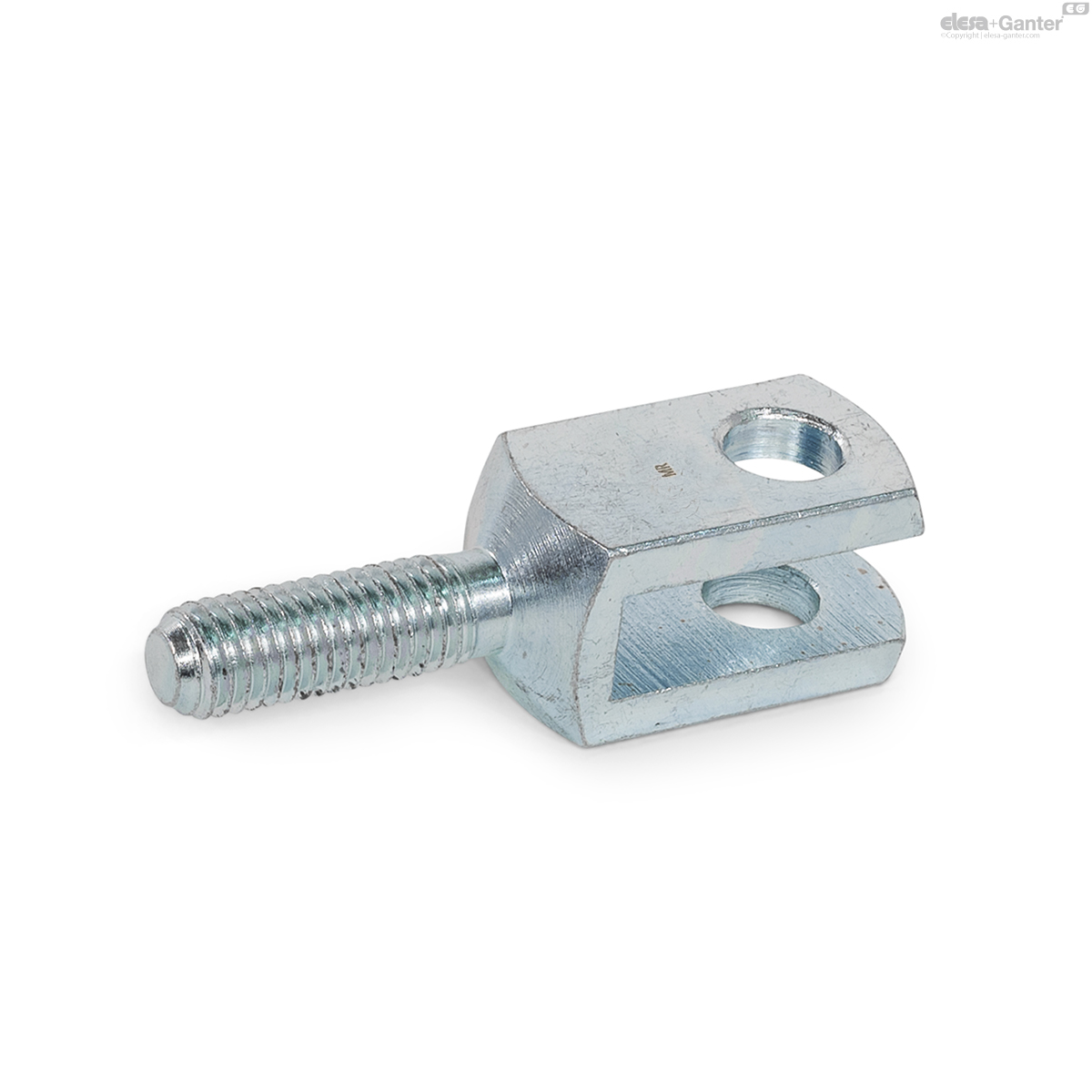

GN 754-A
Fork Heads
Without pin

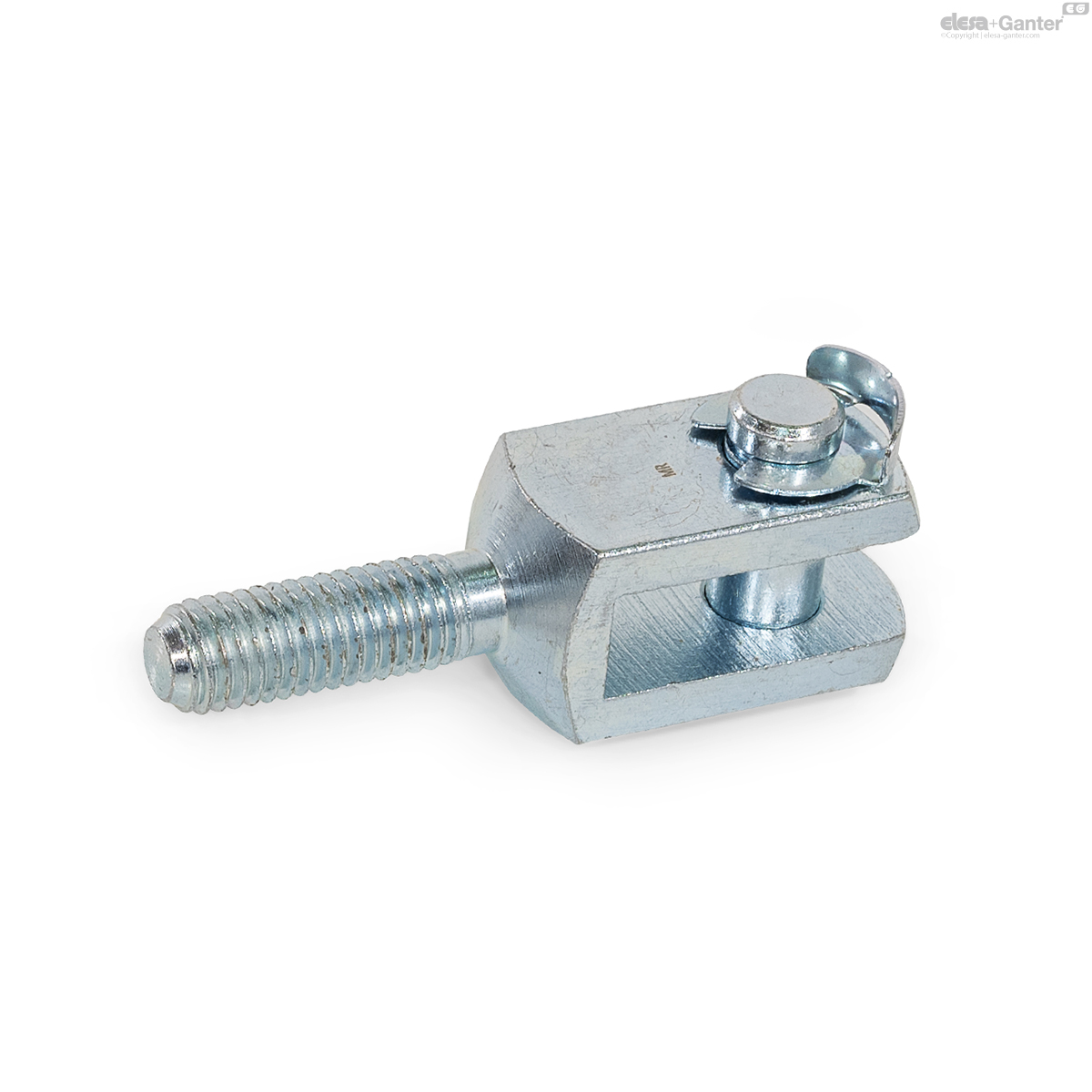

GN 754-KL
Fork Heads
Pin with KL retaining clip

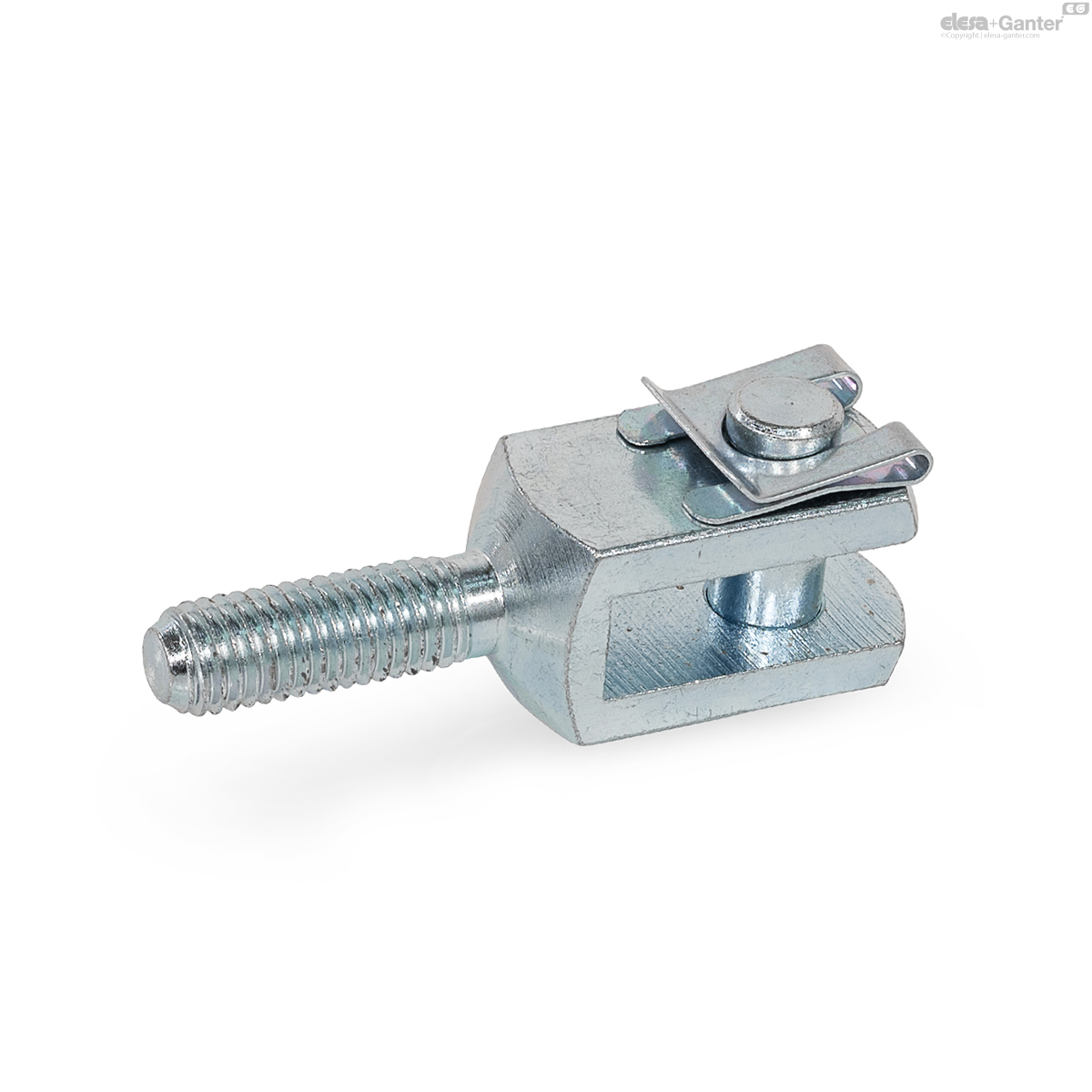

GN 754-SL
Fork Heads
Pin with SL retaining clip
Description
Specification
Types
- Type A: Without pin
- Type KL: Pin with KL retaining clip
- Type SL: Pin with SL retaining clip
Fork head
Steel ST
Zinc plated, blue passivated
Pin for type KL / SL
Steel
Zinc plated, blue passivated
Retaining clip for type KL / SL
Spring steel
- Hardened and tempered
- Zinc plated, blue passivated
Information
Fork heads GN 754 transmit tensile and shearing forces, such as from rods, levers or cable pulls. The length of the external thread enables a significantly larger adjusting range than fork heads with internal thread.
The versions with pins can be combined with brackets or joint pieces GN 752 to create fork joints, which can be quickly and easily assembled and disassembled without tools, especially with type KL.
Fork heads GN 754 are dimensioned according to DIN 71752.
Accessory
- GN 752Â Joint Pieces
On request
- Stainless steel
Technical information
- ISO-Fundamental Tolerances
GN 754-A

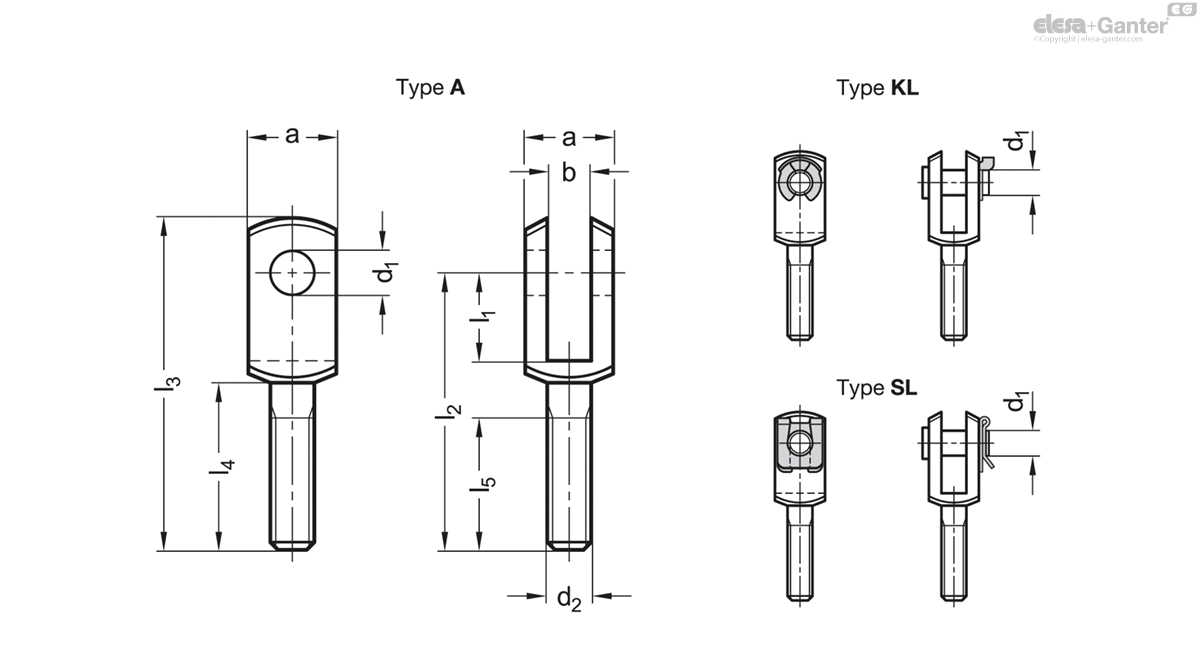

| d1 H9/h11 | l1 | d2 | a | b | l2 | l3 | l4 | l5 min. |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 754-6-12-M6-A-ST | 6 | 12 | M 6 | 12 | 6 | 37 | 44 | 20 | 15 | 15 |
|
| GN 754-8-16-M8-A-ST | 8 | 16 | M 8 | 16 | 8 | 47 | 57 | 25 | 20 | 36 |
|
| GN 754-10-20-M10-A-ST | 10 | 20 | M 10 | 20 | 10 | 57 | 69 | 30 | 25 | 68 |
|
| GN 754-12-24-M12-A-ST | 12 | 24 | M 12 | 24 | 12 | 68 | 82 | 35 | 30 | 122 |
|
| GN 754-14-28-M14-A-ST | 14 | 28 | M 14 | 27 | 14 | 78 | 94 | 40 | 35 | 171 |
|
| GN 754-16-32-M16-A-ST | 16 | 32 | M 16 | 32 | 16 | 89 | 108 | 45 | 40 | 288 |
|
