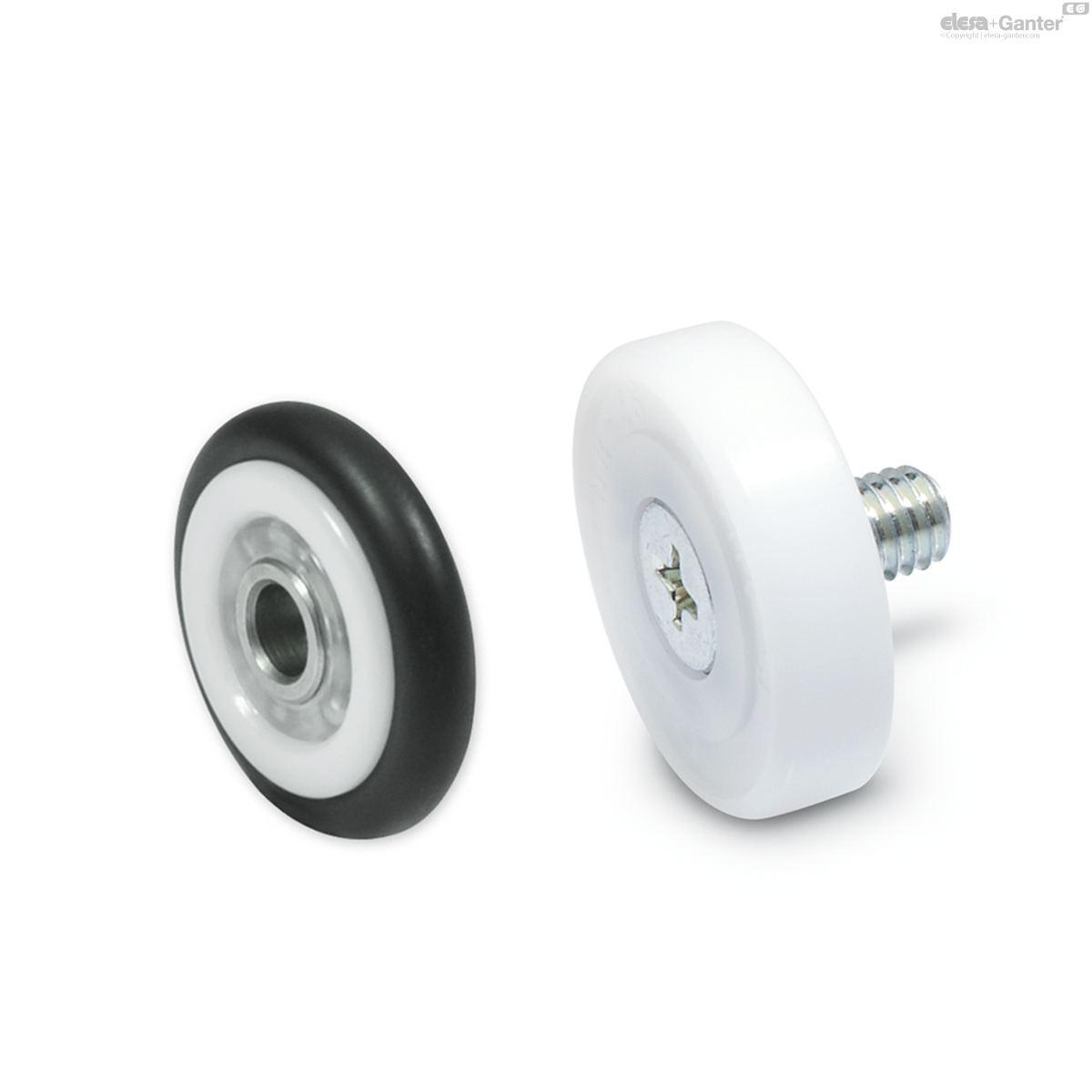

Guide Rollers

Plastic

Enquire Now

Description

Specification

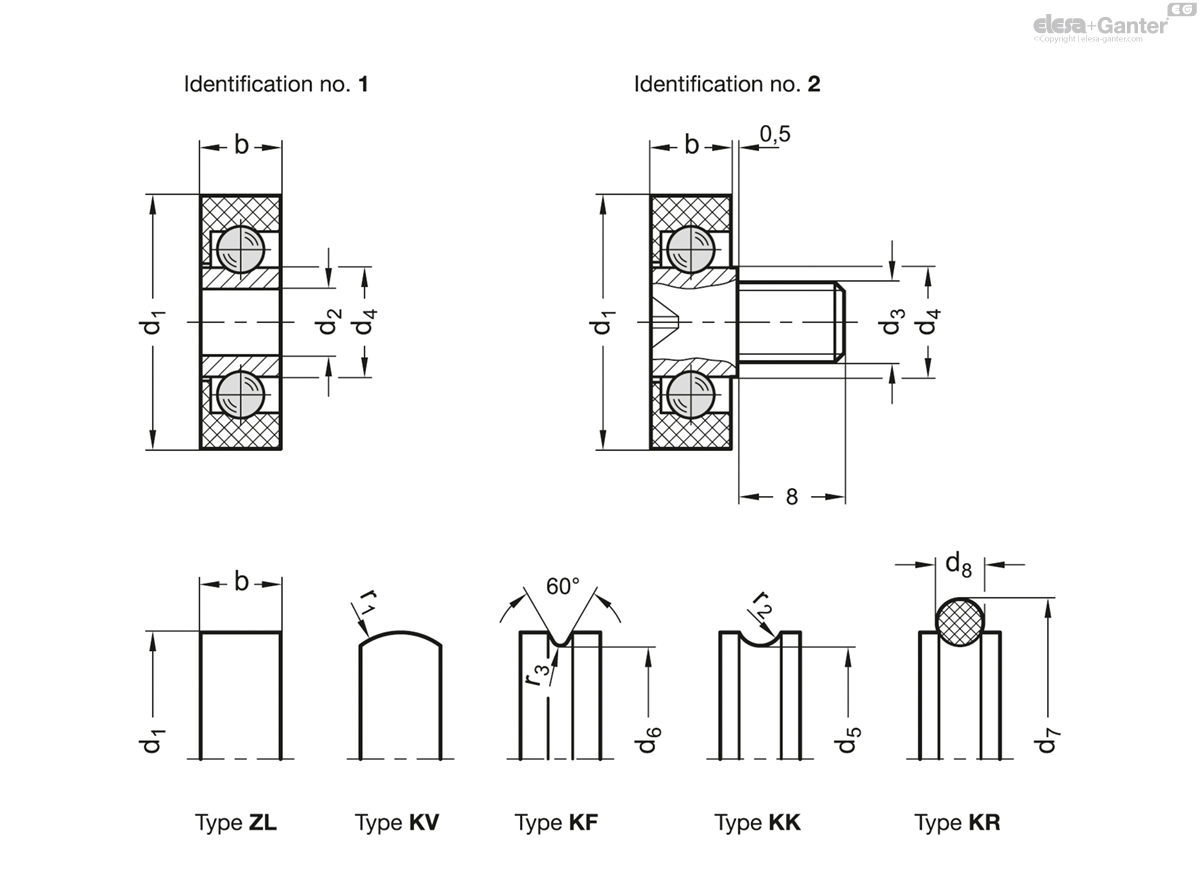

Types

Type ZL: cylindrical

Type KV: convex

Type KF: wedge-shaped

Type KK: concave

Type KR: circular (O-ring)

Identification no.

Version 1: with bore

Version 2: with threaded stud

Outer ring

Plastic (Polyacetal POM)

Working temperature: 0° ... 40 °C

Inner ring / balls

Steel, blank

Threaded stud

Steel, zinc plated

O-ring rubber

NBR (Perbunan)

70 Shore A

Information

Guide rollers GN 753 are suitable for moving or guiding smaller loads. They are commonly used in drive engineering.

With the radial load bearing capacity given in the table, the guide rollers reach a minimum run time of 1 million revolutions. In general, the guide rollers should not be used under axial load.

Accessory

Mounting Accessories GN 753.2 (for Guide Rollers)

On request

Guide rollers with rivet spigot
