GN 75
Mushroom Shaped Knobs
Steel
Description
Specification
Types
- Type D: With internal thread
- Type E: With threaded stud
Steel
Fine turned
- Blackened
- Zinc plated, blue passivated ZB
Information
Mushroom shaped knobs GN 75 have a compact and timeless design. Their non-scooping geometry combats dirt build-up and makes cleaning easier.
Mushroom shaped knobs GN 75 in steel are mainly used in mechanical engineering.
GN 75-E
| Color | d1 | d3 | d4 | h | l | t min. |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||

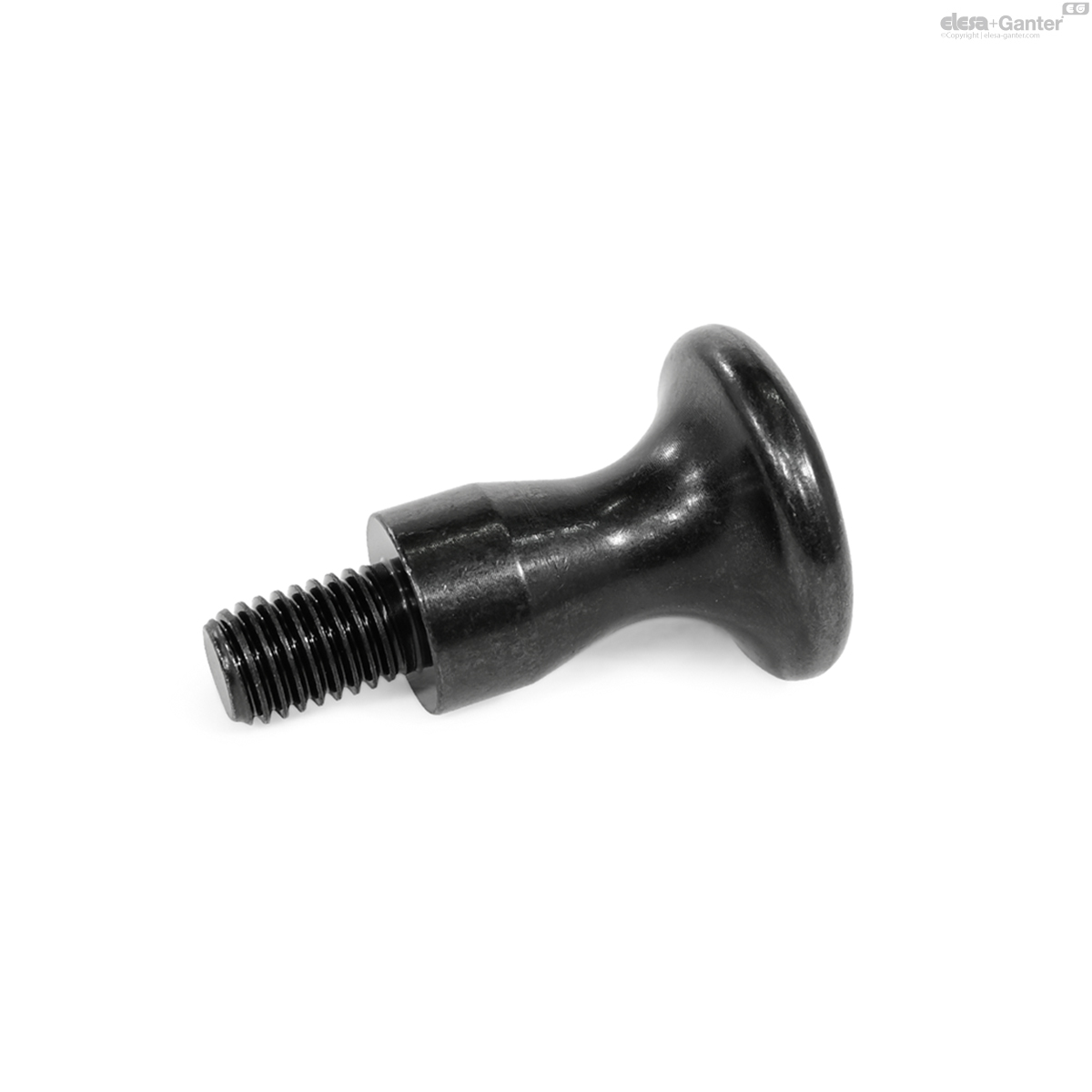

| GN 75-16-M6-E | Steel, blackened | 16 | M 6 | 10 | 18 | 10 | 7 | 14 |
|

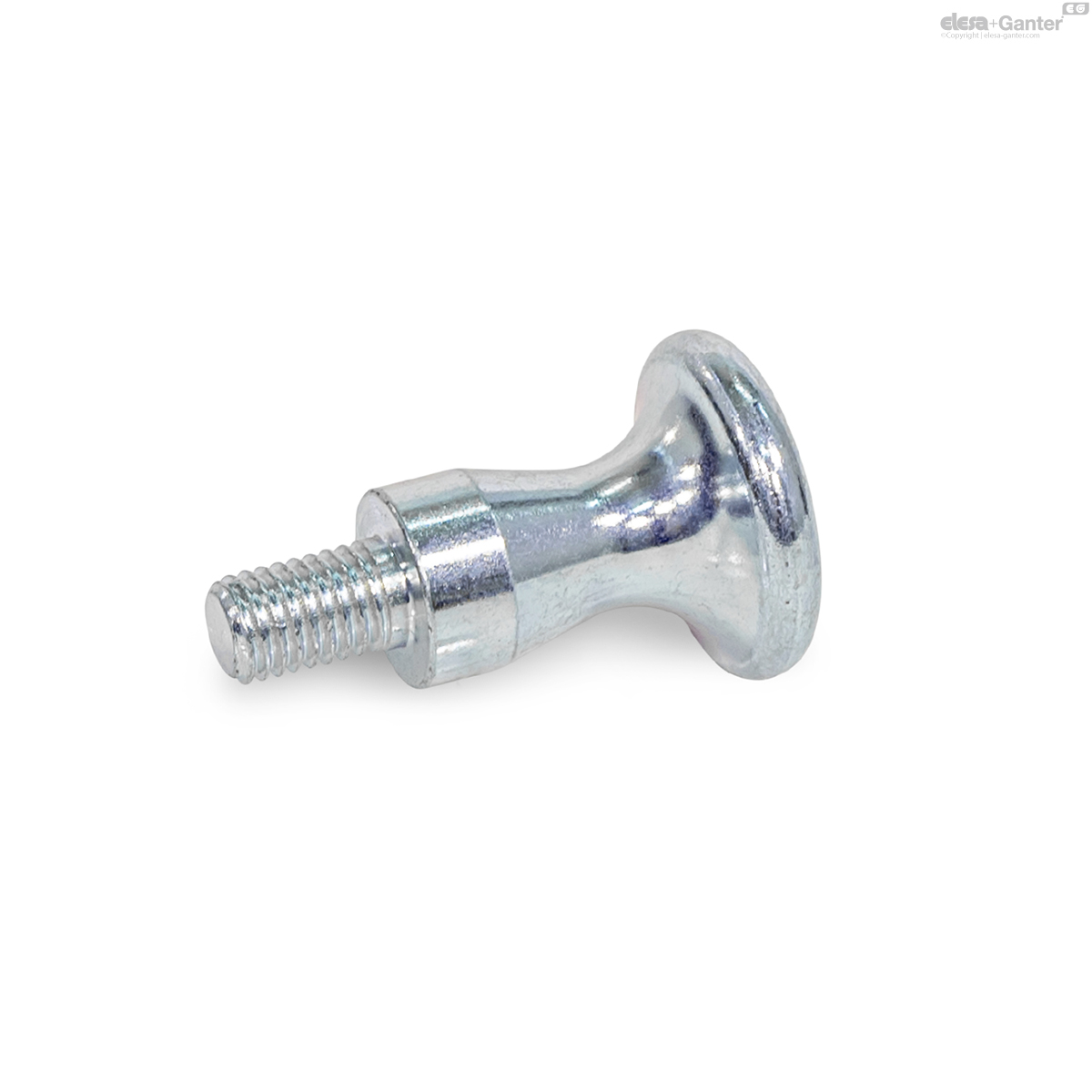

| GN 75-16-M6-E-ZB | Steel, zinc plated | 16 | M 6 | 10 | 18 | 10 | 7 | 15 |
|
| GN 75-20-M8-E | Steel, blackened | 20 | M 8 | 12 | 24 | 12 | 9 | 29 |
|
| GN 75-20-M8-E-ZB | Steel, zinc plated | 20 | M 8 | 12 | 24 | 12 | 9 | 28 |
|
| GN 75-25-M8-E | Steel, blackened | 25 | M 8 | 14 | 29 | 14 | 9 | 46 |
|
| GN 75-25-M8-E-ZB | Steel, zinc plated | 25 | M 8 | 14 | 29 | 14 | 9 | 50 |
|
| GN 75-32-M10-E | Steel, blackened | 32 | M 10 | 18 | 37 | 16 | 12 | 87 |
|
| GN 75-32-M10-E-ZB | Steel, zinc plated | 32 | M 10 | 18 | 37 | 16 | 12 | 99 |
|
| GN 75-36-M12-E | Steel, blackened | 36 | M 12 | 20 | 42 | 18 | 15 | 138 |
|
| GN 75-36-M12-E-ZB | Steel, zinc plated | 36 | M 12 | 20 | 42 | 18 | 15 | 145 |
|
