GN 75.5

Mushroom Shaped Knobs

Stainless Steel

Enquire Now

Description

Specification

Stainless steel AISI 304

Information

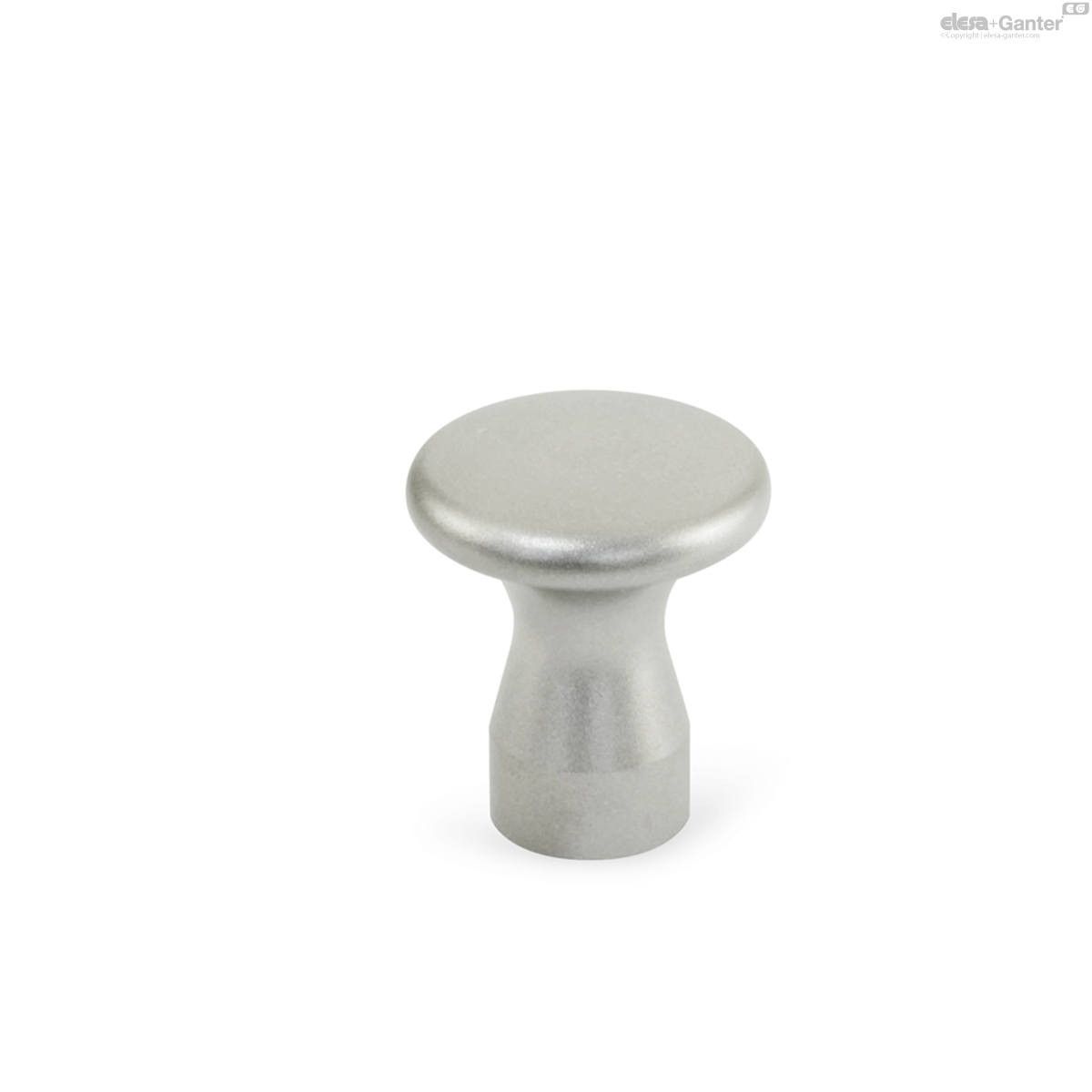

Mushroom shaped knobs GN 75.5 have a compact and timeless design. Their non-scooping geometry combats dirt build-up and makes cleaning easier.

Mushroom shaped knobs GN 75.5 can be used in aggressive environments thanks to the stainless steel used.

On request

Technical information

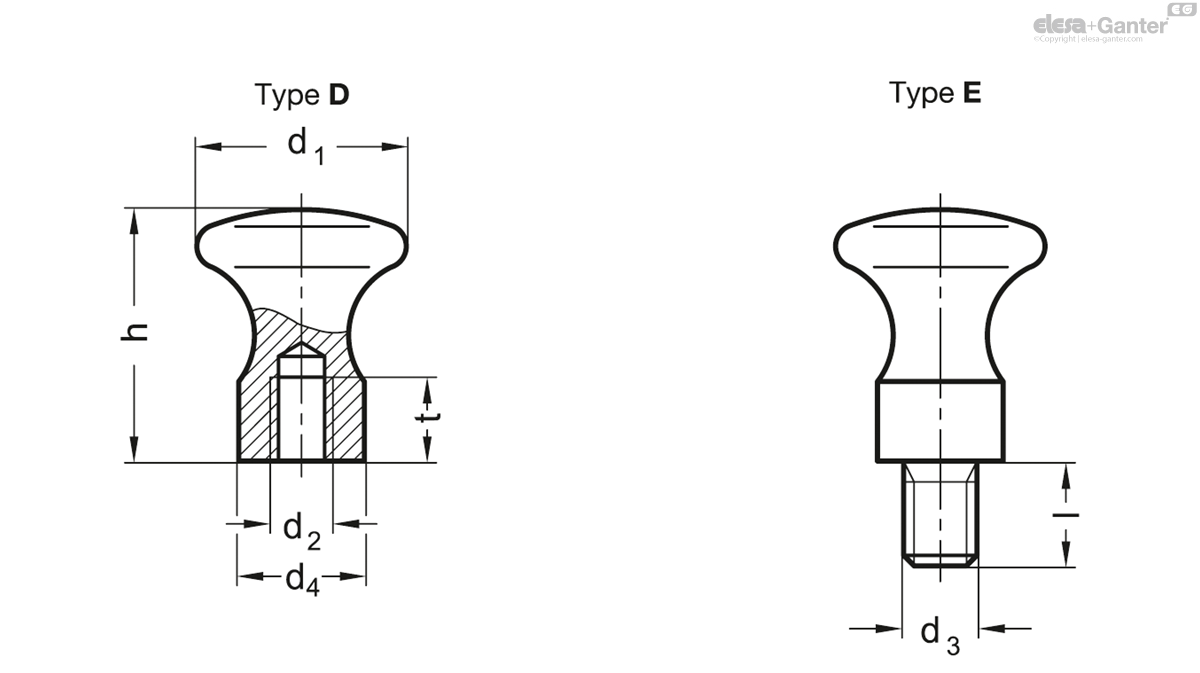

	Color	d₁	d₂	d₄	h	l	t min.
Code									Actions

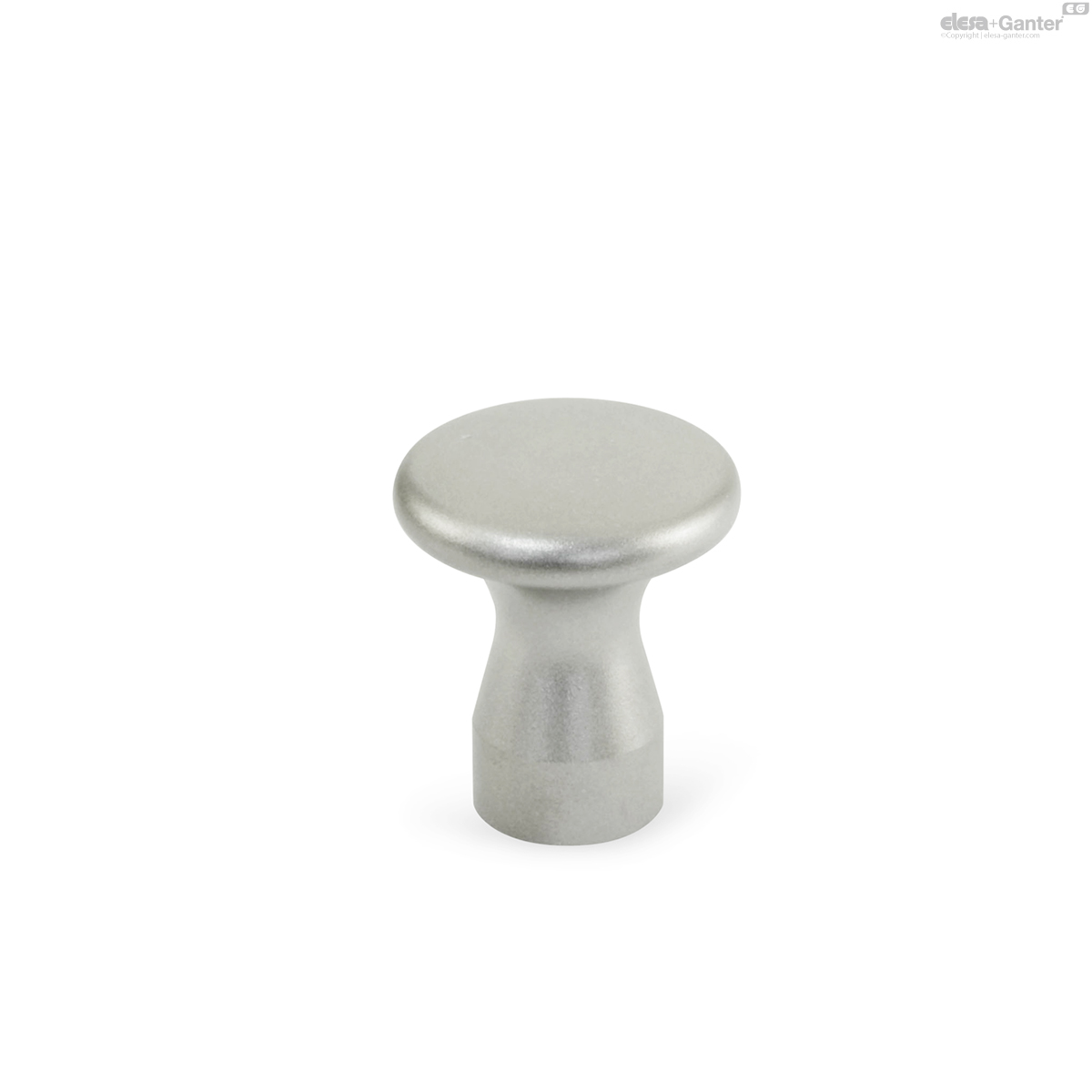

GN 75.5-16-M5-D-MT	MT - Matte finish	16	M 5	10	18	10	7	11

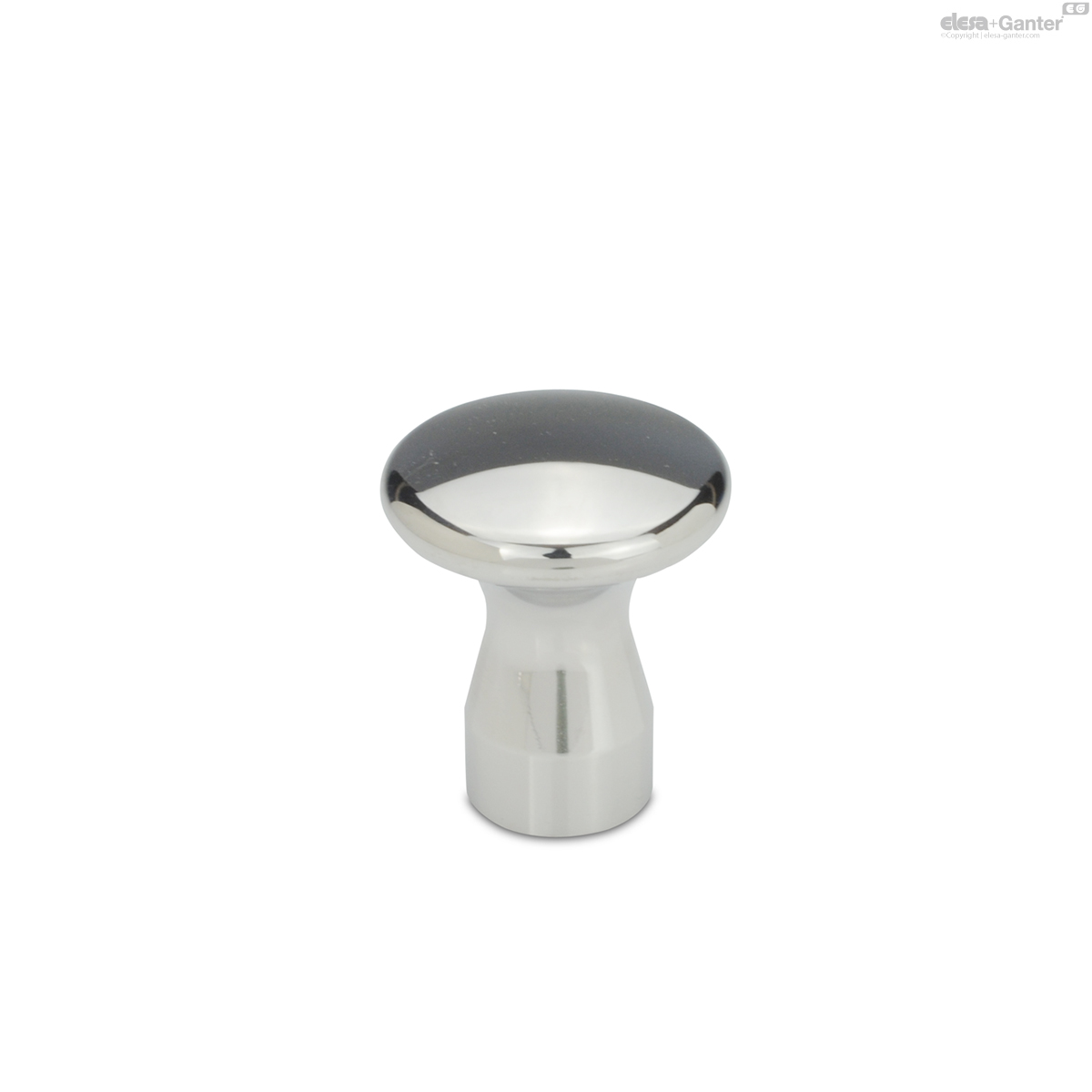

GN 75.5-16-M5-D-PL	PL - Polished	16	M 5	10	18	10	7	12
GN 75.5-20-M6-D-MT	MT - Matte finish	20	M 6	12	24	12	9	23
GN 75.5-20-M6-D-PL	PL - Polished	20	M 6	12	24	12	9	23
GN 75.5-25-M6-D-MT	MT - Matte finish	25	M 6	14	29	14	9	43
GN 75.5-25-M6-D-PL	PL - Polished	25	M 6	14	29	14	9	43
GN 75.5-32-M8-D-MT	MT - Matte finish	32	M 8	18	37	16	12	83
GN 75.5-32-M8-D-PL	PL - Polished	32	M 8	18	37	16	12	83
GN 75.5-36-M10-D-MT	MT - Matte finish	36	M 10	20	42	18	15	119
GN 75.5-36-M10-D-PL	PL - Polished	36	M 10	20	42	18	15	119
