GN 744

Oil level sight glasses

Aluminum / crystal-clear plastic

Enquire Now

Description

Specification

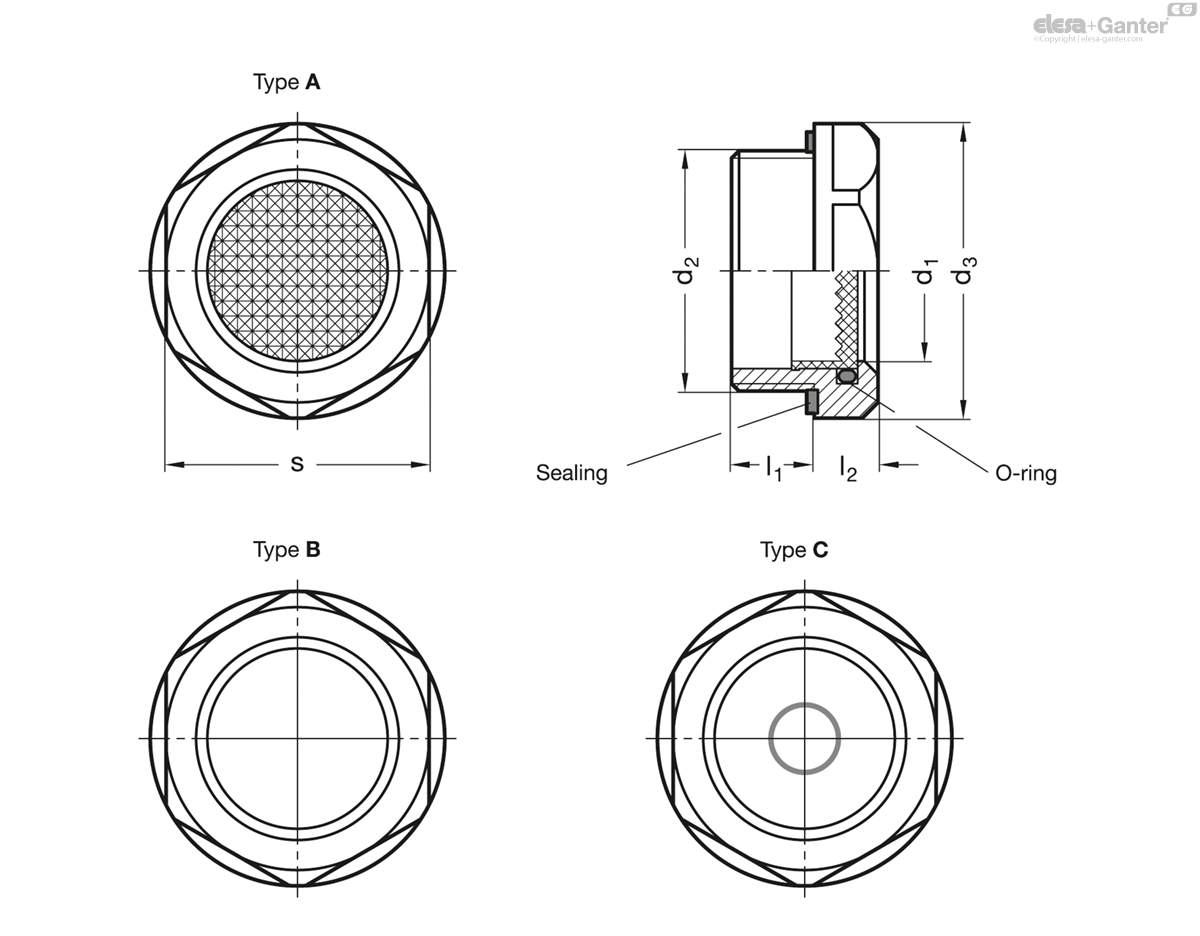

Types

Type A: with prismatic effect (only d₁ = 14/18/24)

Type B: without contrast screen (all sizes)

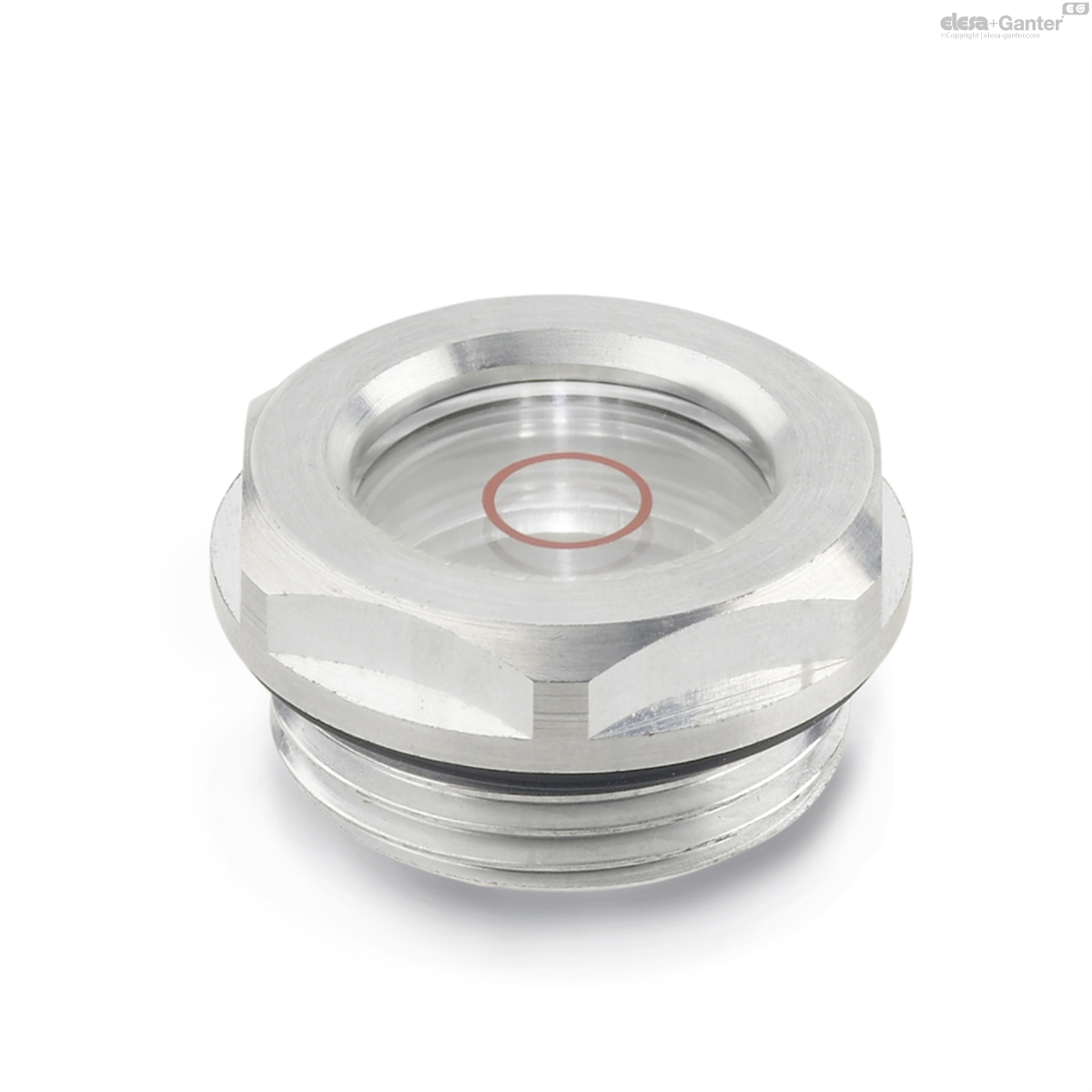

Type C: with red marking ring (only d₁ = 11/14/18/24)

Body

Aluminium

fine turned

Sight glass

Plastic

crystal-clear Polymide (PA-T)

temperature resistant up to 110 °C

Red marking ring

pad printing

Sealing ring

Rubber NBR (Perbunan^®)

Information

Oil level sight glasses GN 744 use the so called prismatic effect of a cat’s eye to display the oil level unaffected by oil colour or oil viscosity. The advantage of this effect is particularly obvious in the case of under or overfilling or for inspection under unfavourable light conditions.

The seal is housed in a radial groove in the aluminium body and hence cannot be lost. In addition it cannot be extruded when thigtening the sight glass.

Oil level sight glasses GN 744 can also be used on pressurised tanks. Data of pressure an vacuum pressure tests is available.

Assembly instruction:

For mounting on walls of less than 4 mm thickness please use a fixing nut GH.-

Accessory

Fixing nut GH.-

On request

EPDM seal

Technical information

Elastomer characteristics -

Plastic characteristics

GN 744

	d₁	d₂	d₃	l₁	l₂	s
Code								Actions
GN 744-7-G1/4-B	7	G 1/4	20	7.5	6.5	18	5
GN 744-7-M12x1,5-B	7	M 12 x 1.5	20	7.5	6.5	18	5
GN 744-11-G3/8-B	11	G 3/8	22	8	7.5	20	6
GN 744-11-G3/8-C	11	G 3/8	22	8	7.5	20	6
GN 744-11-M16x1,5-B	11	M 16 x 1.5	22	8	7.5	20	6
GN 744-11-M16x1,5-C	11	M 16 x 1.5	22	8	7.5	20	6
GN 744-14-G1/2-A	14	G 1/2	26	8.5	7.5	23	12
GN 744-14-G1/2-B	14	G 1/2	26	8.5	7.5	23	8
GN 744-14-G1/2-C	14	G 1/2	26	8.5	7.5	23	8
GN 744-14-M20x1,5-A	14	M 20 x 1.5	26	8.5	7.5	23	5
GN 744-14-M20x1,5-B	14	M 20 x 1.5	26	8.5	7.5	23	8
GN 744-14-M20x1,5-C	14	M 20 x 1.5	26	8.5	7.5	23	8
GN 744-18-G3/4-A	18	G 3/4	32	9	8	30	15
GN 744-18-G3/4-B	18	G 3/4	32	9	8	30	15
GN 744-18-G3/4-C	18	G 3/4	32	9	8	30	15
GN 744-18-M26x1,5-A	18	M 26 x 1.5	32	9	8	30	15
GN 744-18-M26x1,5-B	18	M 26 x 1.5	32	9	8	30	15
GN 744-18-M26x1,5-C	18	M 26 x 1.5	32	9	8	30	15
GN 744-18-M27x1,5-A	18	M 27 x 1.5	32	9	8	30	16
GN 744-18-M27x1,5-B	18	M 27 x 1.5	32	9	8	30	16
GN 744-18-M27x1,5-C	18	M 27 x 1.5	32	9	8	30	16
GN 744-24-G1-A	24	G 1	40	11	8.5	36	25
GN 744-24-G1-B	24	G 1	40	11	8.5	36	22
GN 744-24-G1-C	24	G 1	40	11	8.5	36	22
GN 744-24-M33x1,5-A	24	M 33 x 1.5	40	11	8.5	36	23
GN 744-24-M33x1,5-B	24	M 33 x 1.5	40	11	8.5	36	24
GN 744-24-M33x1,5-C	24	M 33 x 1.5	40	11	8.5	36	24
