GN 743.10

Stainless Steel Oil Sight Glasses

AISI 316L, Temperature Resistant to 180 °C

Enquire Now

GN 743.10-AK

Stainless Steel Oil Sight Glasses

With plastic reflector

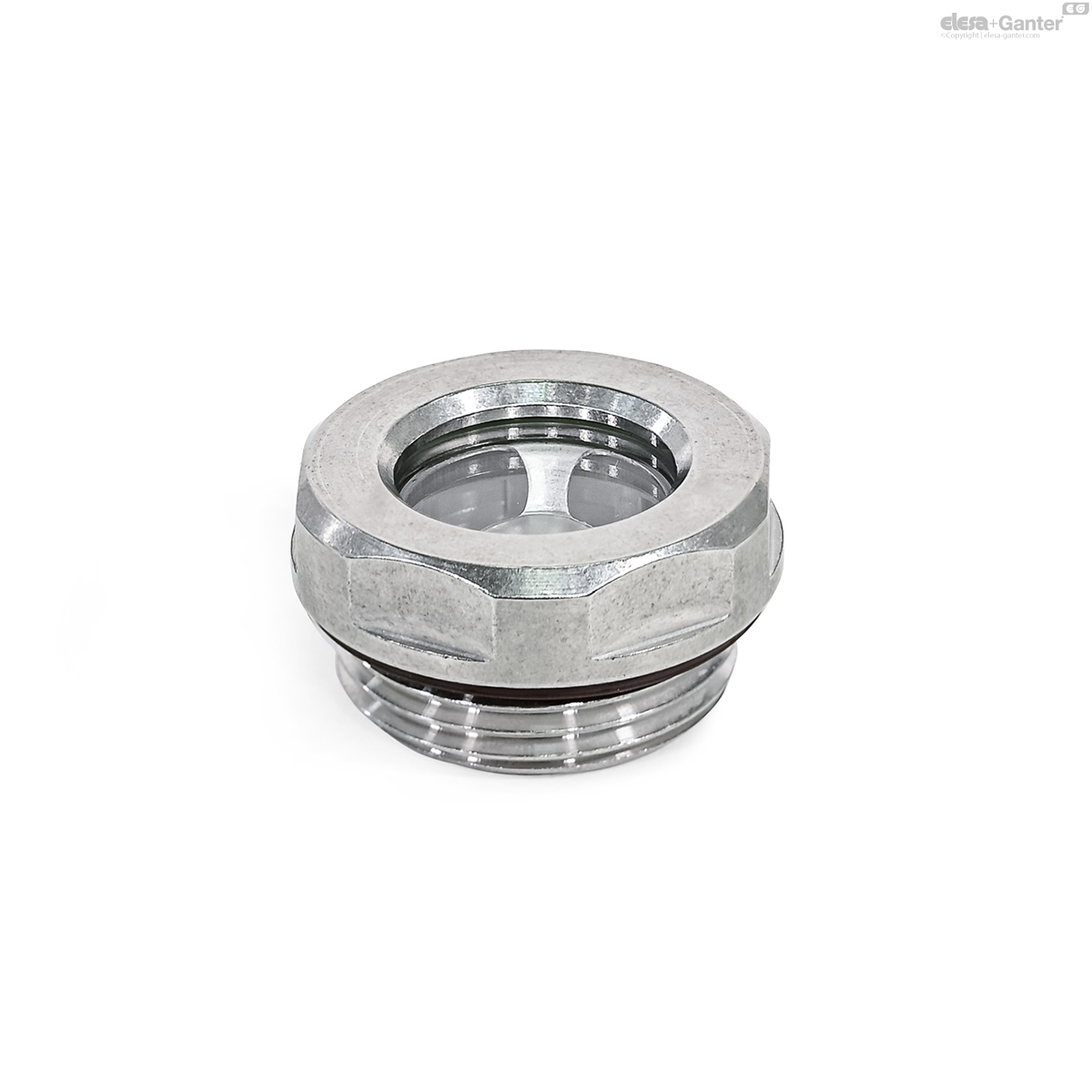

GN 743.10-AN

Stainless Steel Oil Sight Glasses

With stainless steel reflector

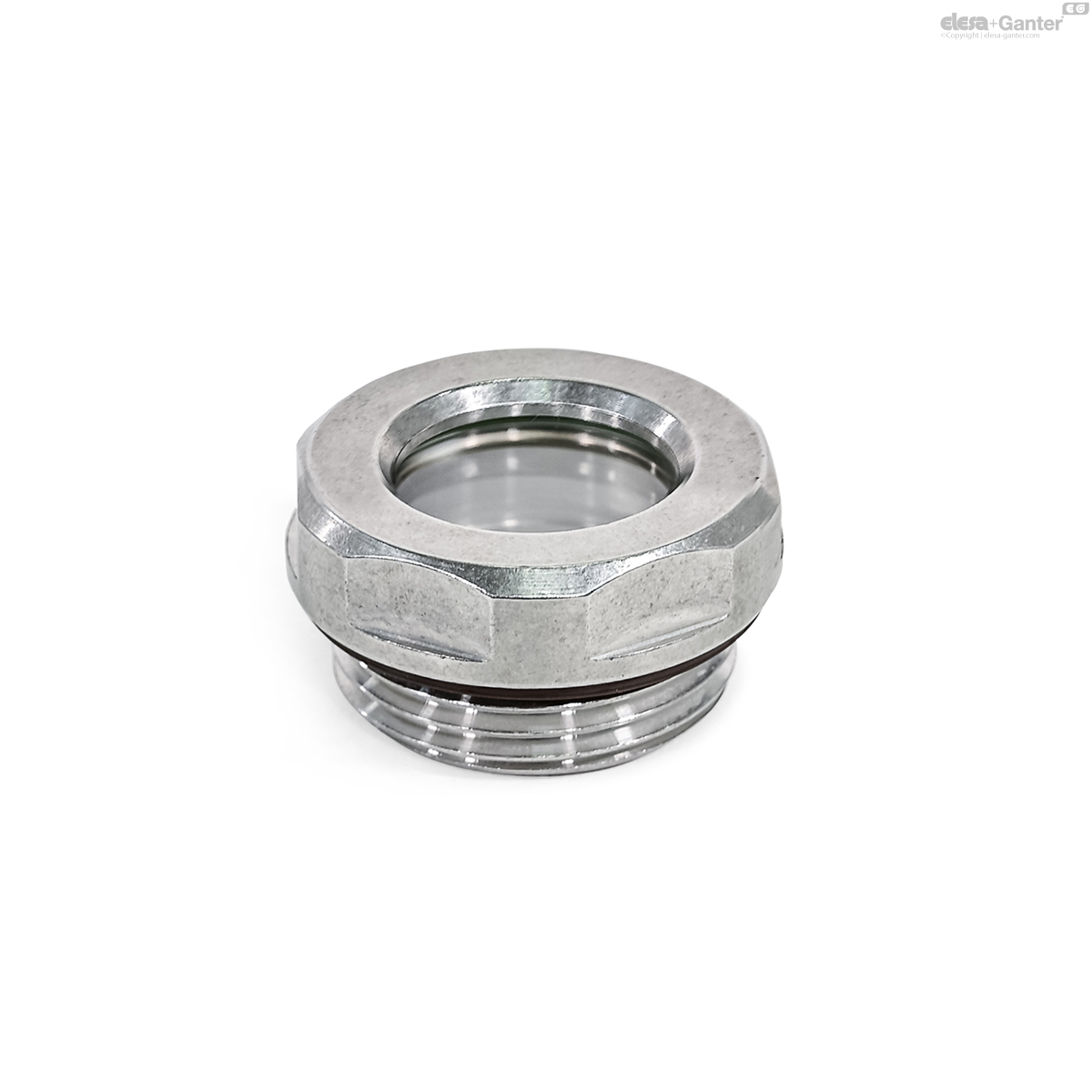

GN 743.10-B

Stainless Steel Oil Sight Glasses

Without reflector

Description

Specification

Types

Type AK: With plastic reflector

Type AN: With stainless steel reflector

Type B: Without reflector

Body

Stainless steel AISI 316L

Sight glass

Security glass (ESG)

Reflector

Type AK: Technopolymer (Polysulfone)

Type AN: Stainless steel AISI 316L

Snap ring (type B)

Stainless steel, non-rusting, 316Ti

Seals

Rubber FPM (Viton^®)

Identification by not black finish of the seal

Temperature resistant up to 180 °C

Information

The robust, scratch-proof glass of the stainless steel oil sight glass GN 743.10 is sealed at the edges by an O-ring. The sealing effect is independent of the axial pressure. The sight glasses can also be used in particularly aggressive environments thanks to the materials used.

The outside diameter of the oil level sight glasses with recessed hex matches the mounting holes for pipe fittings according to DIN 3852.

The outer seal is embedded in a radial recess. In addition, this groove prevents the seal from being ejected when the sight glass is tightened.

Stainless steel oil level sight glasses GN 743.10 can be used on pressurized tanks. Tests regarding maximum pressure are available.

Assembly instructions:

For mounting on walls of less than 4 mm thickness, please use a mounting nut GN 7430

Accessory

Mounting Nuts GN 7430

On request

Seals of NBR rubber and sight glass of float glass GN 743.9

Seals of EPDM

Technical information

Elastomer Characteristics

Plastic Characteristics

Stainless Steel Characteristics

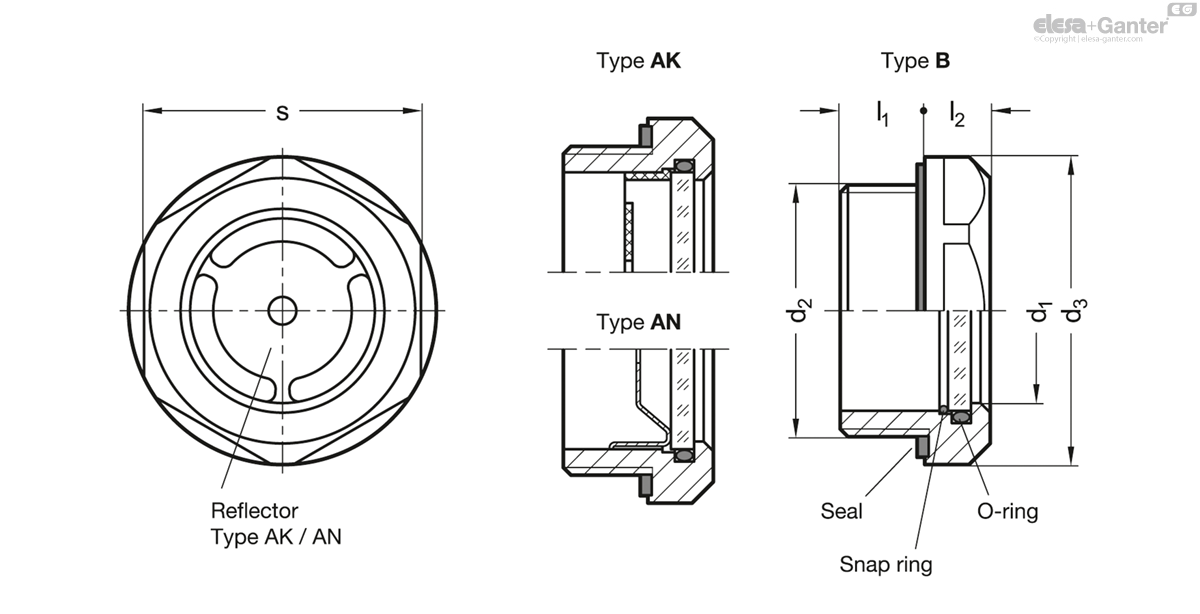

GN 743.10-AK

	d₁	d₂	d₃	l₁	l₂	s
Code								Actions
GN 743.10-11-G3/8-AK	11	G 3/8	22	8	7.5	20	19
GN 743.10-11-M16x1,5-AK	11	M 16 x 1.5	22	8	7.5	20	18
GN 743.10-14-G1/2-AK	14	G 1/2	26	8.5	7.5	23	24
GN 743.10-14-M20x1,5-AK	14	M 20 x 1.5	26	8.5	7.5	23	22
GN 743.10-18-G3/4-AK	18	G 3/4	32	9	8	30	44
GN 743.10-18-M26x1,5-AK	18	M 26 x 1.5	32	9	8	30	43
GN 743.10-24-G1-AK	24	G 1	40	11	8.5	36	68
GN 743.10-24-M33x1,5-AK	24	M 33 x 1.5	40	11	8.5	36	67
GN 743.10-32-G11/4-AK	32	G 1 1/4	50	12	9	46	109
GN 743.10-32-M42x1,5-AK	32	M 42 x 1.5	50	12	9	46	109
