GN 742.5

Stainless Steel Threaded Plugs

AISI 316L

__logo__INOX__

__logo__RoHS__

__logo__g18030__

Enquire Now

gn-742-5-o

Stainless Steel Threaded Plugs

gn-742-5-e

Stainless Steel Threaded Plugs

With DIN fill symbol

gn-742-5-a

Stainless Steel Threaded Plugs

With DIN drain symbol

Description

Specification

Types

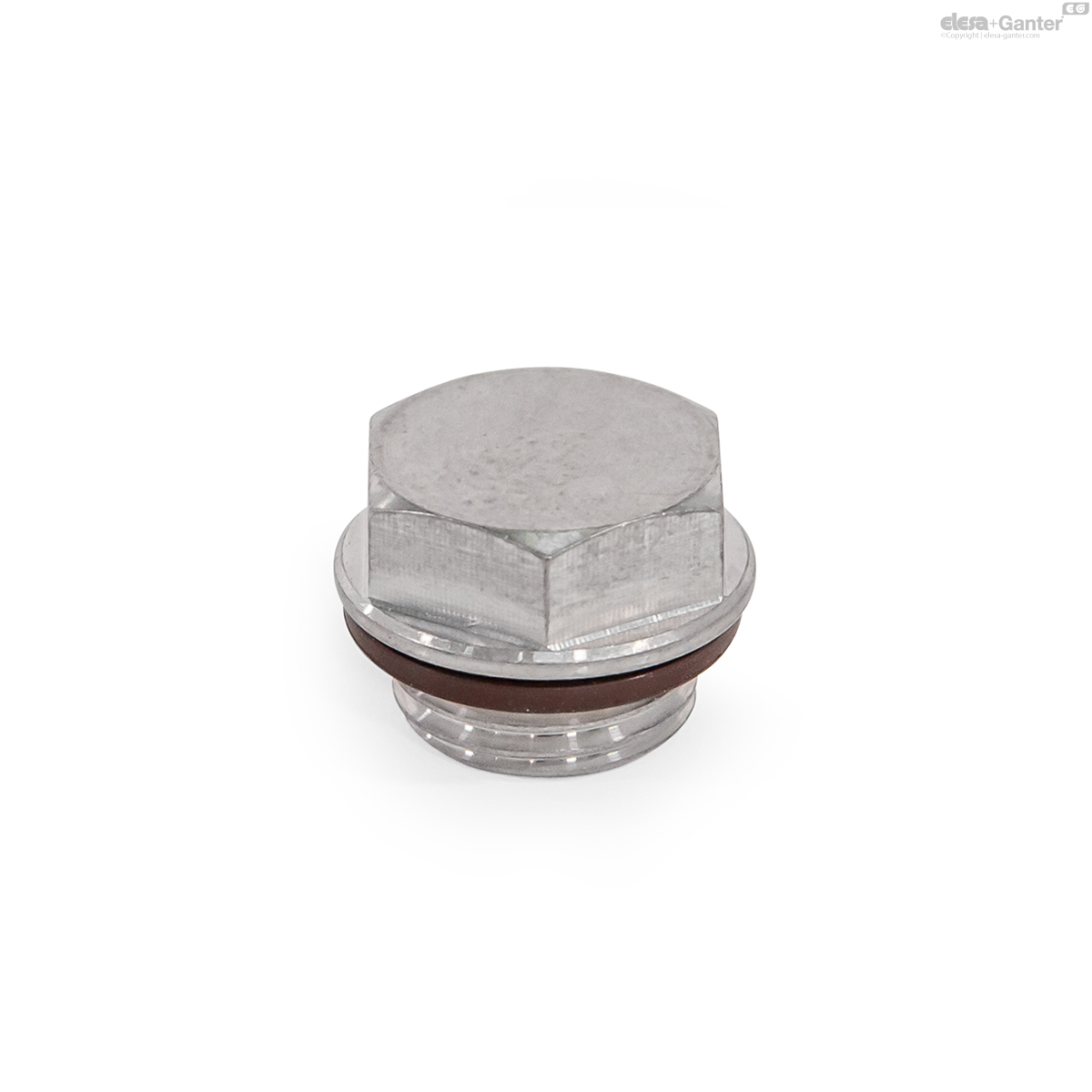

Type O: Neutral

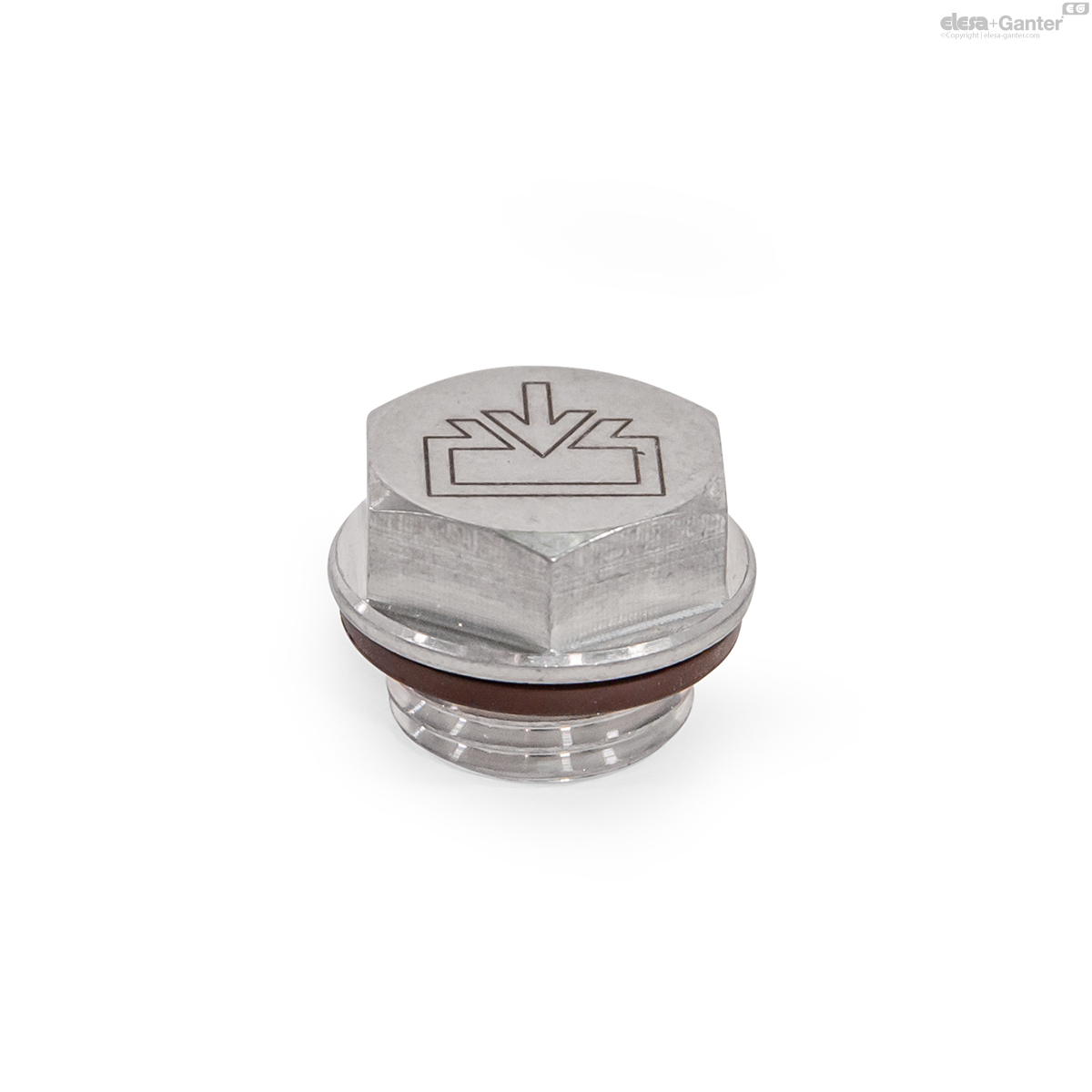

Type E: With DIN fill symbol

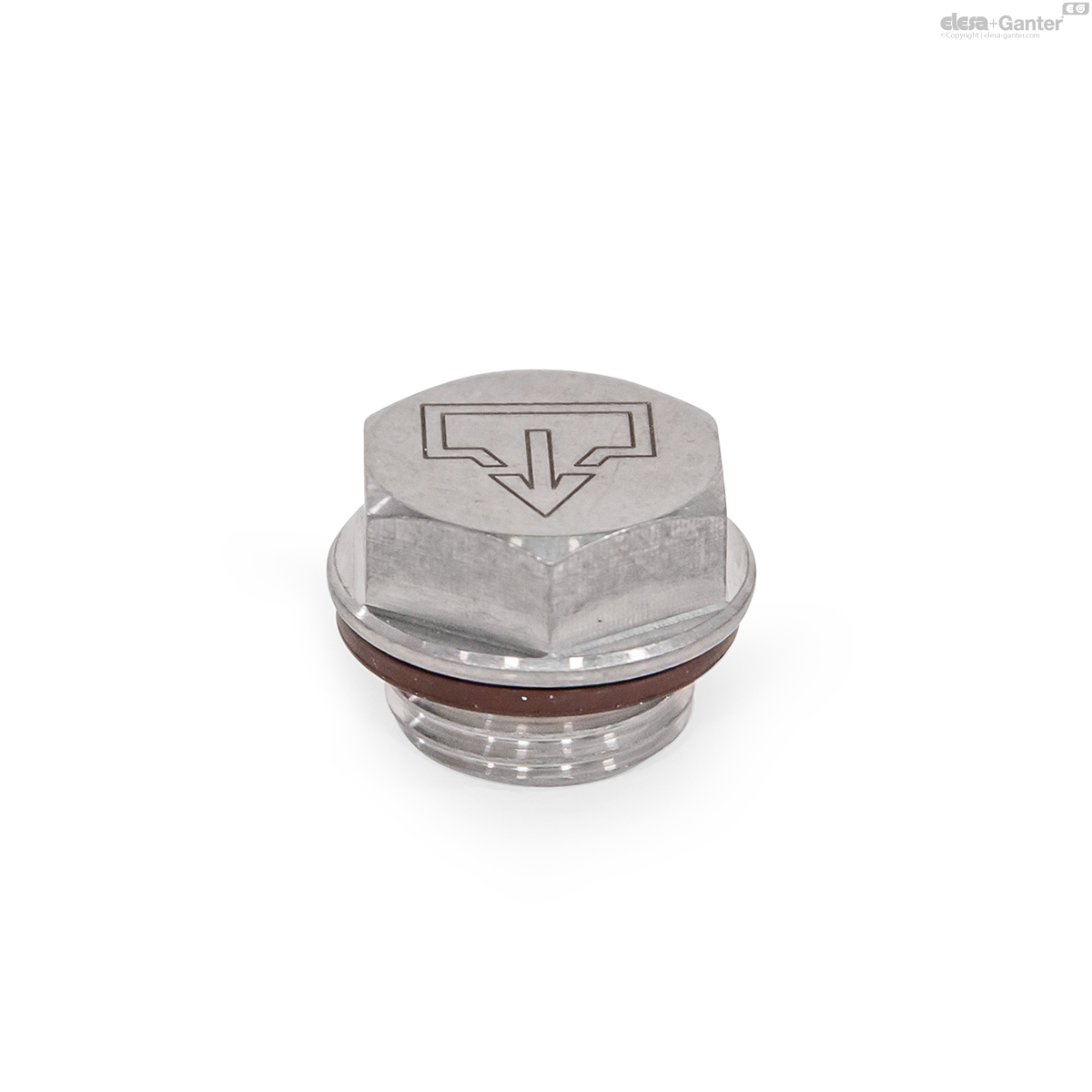

Type A: With DIN drain symbol

Identification no.

No. 1: Without vent drilling

Stainless steel AISI 316L

Precision turned, plain finish

Seal

Fluoro-elastomer (FPM / FKM)

Brown

Temperature resistant up to 180 °C

Information

Stainless steel threaded plugs GN 742.5 can be used in particularly aggressive environments thanks to the material used.

The seal is embedded in a radial recess and thus cannot be lost, squeezed out or overloaded during tightening.

The outer diameter d₁ of the stainless steel threaded plugs GN 742.5 is matched to screw-in holes for pipe fittings according to DIN 3852.

On request

Other thread sizes

With dipstick

With acrylonitrile butadiene rubber (NBR) seal GN 741.5

Technical information

Elastomer Characteristics

Stainless Steel Characteristics

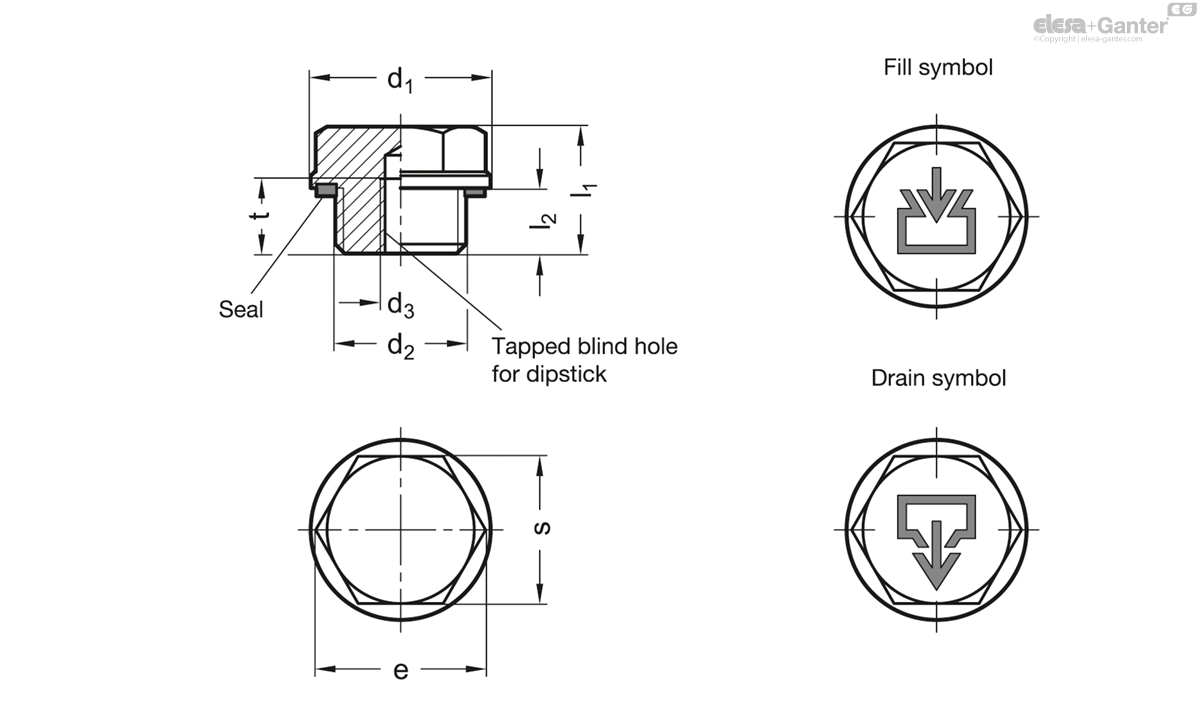

GN 742.5-O

	d₁	d₂	d₃	e ≈	l₁	l₂	s	t
Code										Actions
GN 742.5-19-G1/4-O-1	19	G 1/4	M 5	17.3	15.5	8	15	8	20
GN 742.5-19-M14x1,5-O-1	19	M 14 x 1,5	M 5	17.3	15.5	8	15	8	20
GN 742.5-22-G3/8-O-1	22	G 3/8	M 5	20.8	15.5	8	18	8	29
GN 742.5-22-M16x1,5-O-1	22	M 16 x 1,5	M 5	20.8	15.5	8	18	8	29
GN 742.5-26-G1/2-O-1	26	G 1/2	M 5	24.3	16	8.5	21	8	44
GN 742.5-26-M20x1,5-O-1	26	M 20 x 1,5	M 5	24.3	16	8.5	21	8	44
GN 742.5-32-G3/4-O-1	32	G 3/4	M 5	31.2	17	9	27	8	78
GN 742.5-32-M26x1,5-O-1	32	M 26 x 1,5	M 5	31.2	17	9	27	8	78
GN 742.5-40-G1-O-1	40	G 1	M 5	37	19.5	11	32	8	136
GN 742.5-40-M33x1,5-O-1	40	M 33 x 1,5	M 5	37	19.5	11	32	8	136
