GN 736.1

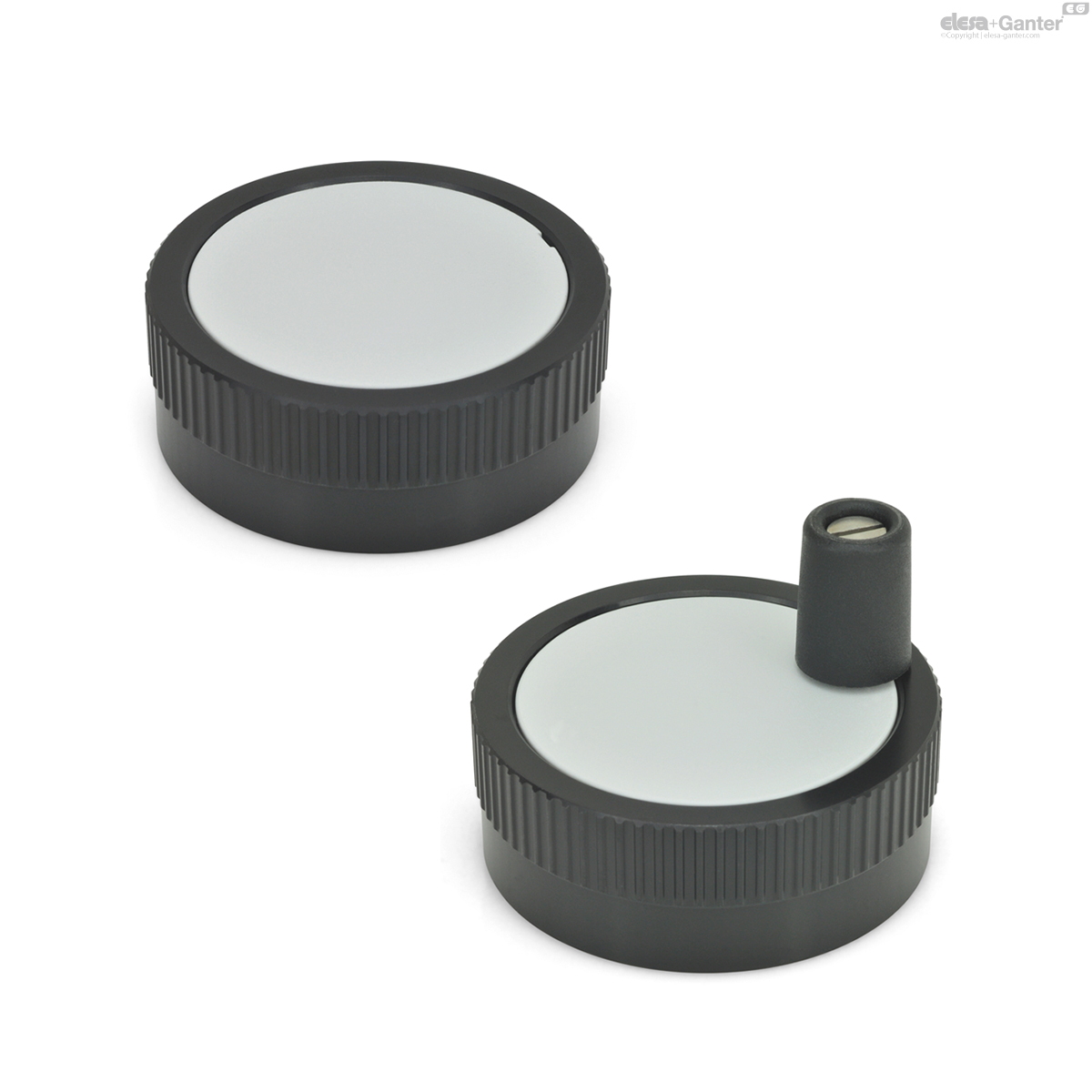

Control handwheels with scale lug

Aluminium black, anodized

Enquire Now

GN 736.1

Control handwheels with scale lug

Aluminium

GN 736.1-S

Control handwheels with scale lug

Aluminium, with standard scale

Description

Specification

Types

Type A: without handle

Type D: with revolving handle

Bore codes

Version B: without keyway

Version K: with keyway

Version Z: with collet

Coding

Coding S: with standard scale 0...90, 100 graduations acc. scale scheme d₁/100 A RA 0-10 20...90/10 (only for bore code Z)

Aluminium

anodized, black

Hub cover

Plastic, light grey

Collet / Hexagon nut

Brass

Revolving cylindrical handles

Plastic, technopolymer, black matt

Spindle, Stainless Steel AISI 303

Information

Control handwheels GN 736.1 are used for setting operations with low torque. Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the knob.

The model fitted with collet offers an absolutely reliable mounting on the shaft and at the same time allows an easy setting of the adjustable scale ring wheel. The scale is wear resistant and easily legible since the engraved alu coloured numbers contrast with the black anodized surface. Besides the standard scale (Coding S) the control handwheels can be supplied with any type of graduation.

Full details of the available graduations, numbering sequence, number position and type of scale see under 'How to order graduations' .

Technical information

Stainless Steel characteristics

Keyway P9 DIN 6885

Cross holes GN 110

ISO-Fundamental Tolerances

GN 736.1

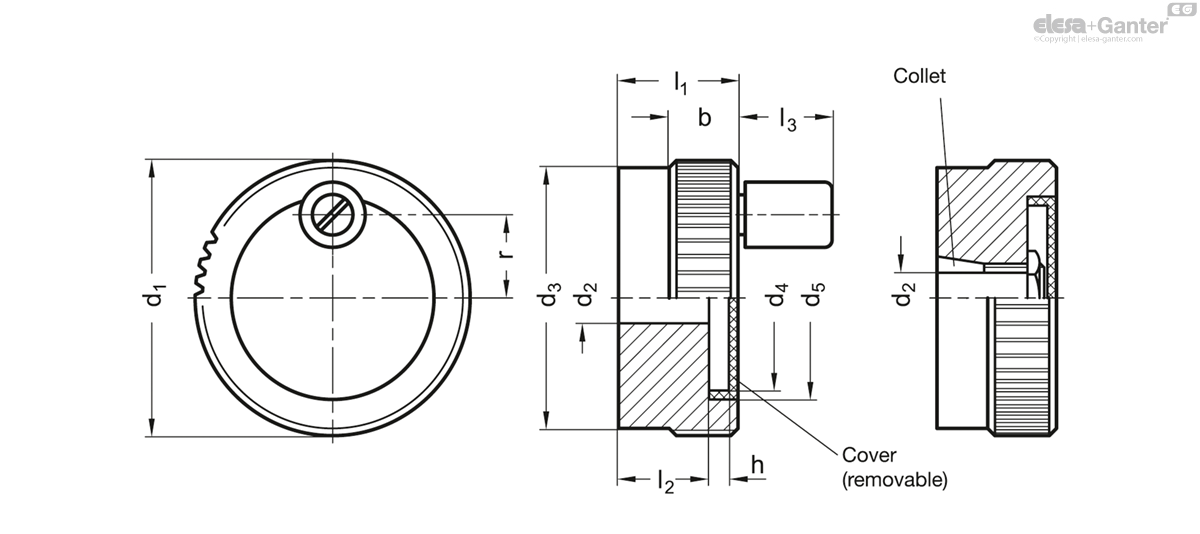

	d₁	d₂ H8	d₃	d₄	d₅	b -0.5	h	l₁	l₂	l₃ ≈	r	Ø Handle
Code														Actions
GN 736.1-52-B10-A	52	10	50	37	39.5	13	3.8	23	17	19	15.5	13	100
GN 736.1-52-B10-D	52	10	50	37	39.5	13	3.8	23	17	19	15.5	13	113
GN 736.1-52-K10-A	52	10	50	37	39.5	13	3.8	23	17	19	15.5	13	99
GN 736.1-52-K10-D	52	10	50	37	39.5	13	3.8	23	17	19	15.5	13	112
GN 736.1-52-Z10-A	52	10	50	37	39.5	13	3.8	23	17	19	15.5	13	111
GN 736.1-52-Z10-D	52	10	50	37	39.5	13	3.8	23	17	19	15.5	13	120
GN 736.1-62-B10-A	62	10	60	47	49.5	13	3.8	23	17	21	20.5	14	142
GN 736.1-62-B10-D	62	10	60	47	49.5	13	3.8	23	17	21	20.5	14	156
GN 736.1-62-K10-A	62	10	60	47	49.5	13	3.8	23	17	21	20.5	14	141
GN 736.1-62-K10-D	62	10	60	47	49.5	13	3.8	23	17	21	20.5	14	155
GN 736.1-62-Z10-A	62	10	60	47	49.5	13	3.8	23	17	21	20.5	14	154
GN 736.1-62-Z10-D	62	10	60	47	49.5	13	3.8	23	17	21	20.5	14	165
