GN 7336.8

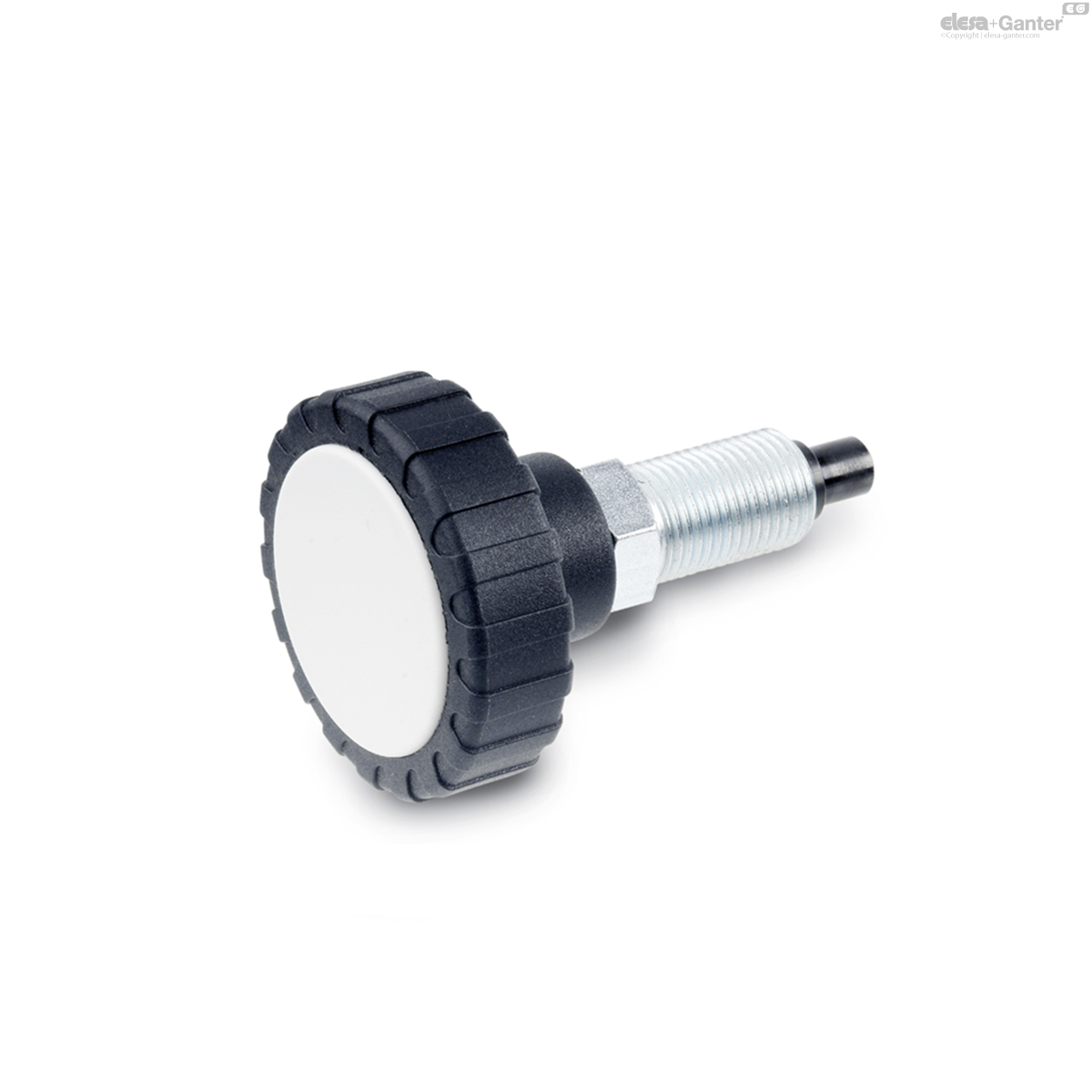

Clamping indexing plungers

with safety function

Enquire Now

Description

Specification

Knurled knob

Plastic (Polyamide PA)

black, matt

Cover

Plastic (Polyamide PA)

light grey, matt

Fixing thread

Steel zinc plated, blue passivated

Plunger pin

Steel nitrided and blackened

Information

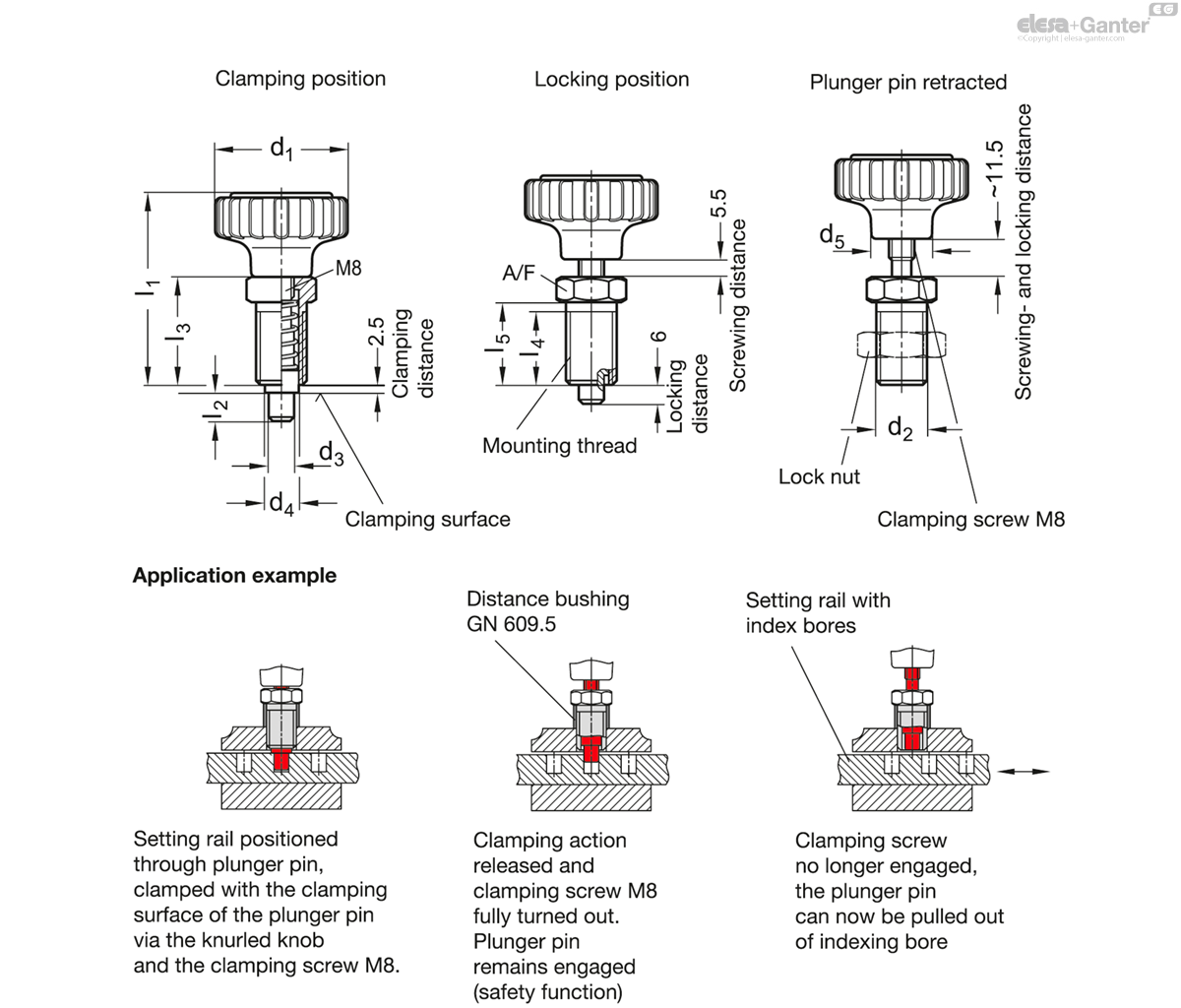

Clamping indexing GN 7336.8 plungers are an advanced development of the GN 7336.7 clamping knobs with indexing plunger.

Like the latter, they are used for positioning, securing and clamping adjusting elements at the same time. This configuration ensures that the indexing pin cannot be pulled from the indexing bore by turning the knurled knob, but only be deliberately pulling the handle (safety function).

Range of indexing plungers

Technical information

ISO-Fundamental Tolerances

Plastic characteristics

Load rating information

GN 7336.8

	d₁	d₂	d₃ Pin -0.02/-0.04 Bore G7	d₄	d₅	l₁	l₂	l₃	l₄ min.	l₅	A/F	Spring load in N ≈ initial	Spring load in N ≈ end
Code															Actions
GN 7336.8-42-M16x1,5-6	42	M 16 x 1.5	6	11	19	60	9	34	23	26	19	14	26	90
GN 7336.8-42-M16x1,5-8	42	M 16 x 1.5	8	11	19	60	9	34	23	26	19	14	26	96
GN 7336.8-53-M16x1,5-6	53	M 16 x 1.5	6	11	24	66	9	34	23	26	19	14	26	120
GN 7336.8-53-M16x1,5-8	53	M 16 x 1.5	8	11	24	66	9	34	23	26	19	14	26	120
