GN 7336.7

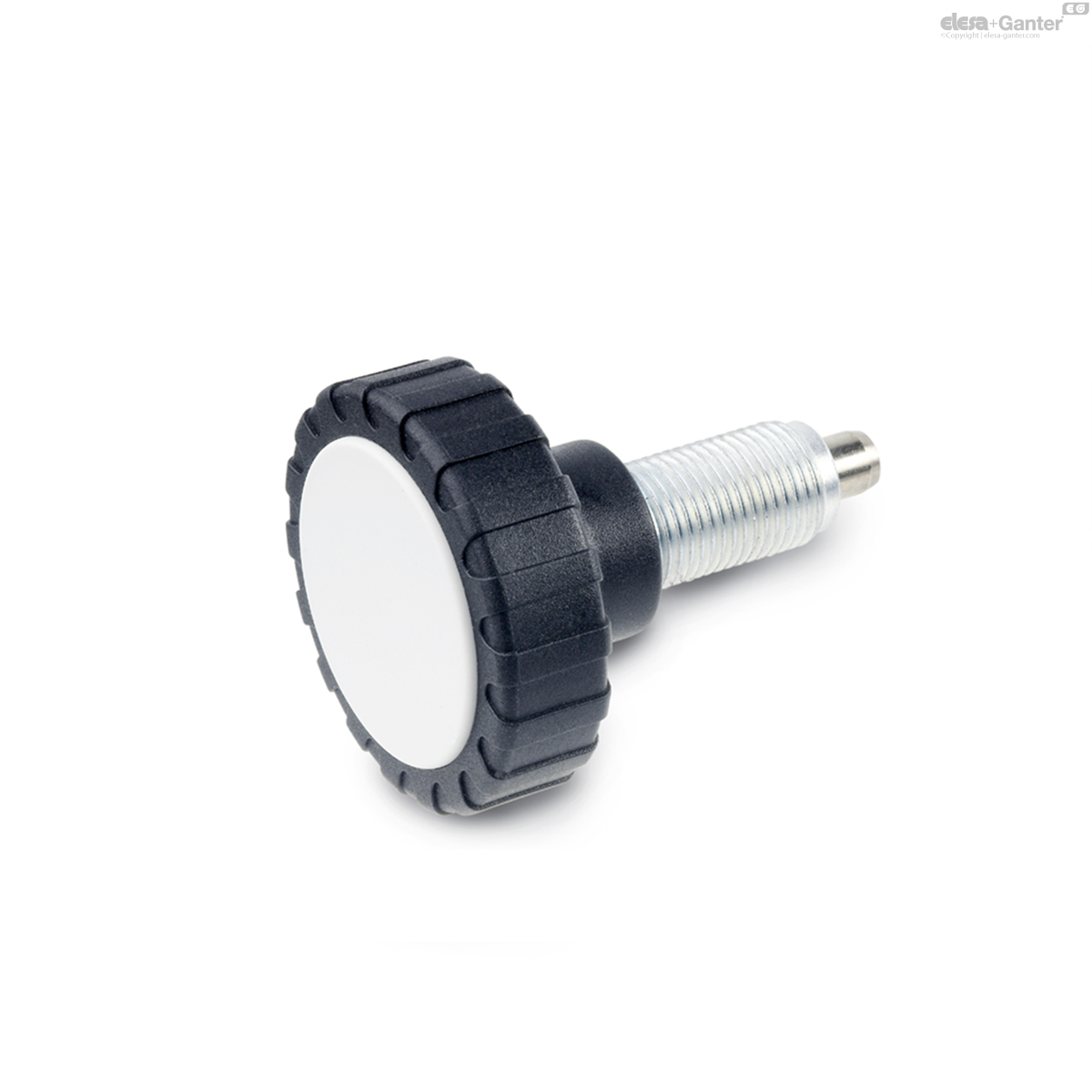

Clamping knobs with indexing plungers

Enquire Now

Description

Specification

Knurled knob GN 7336

Plastic (Polyamide PA)

black, matt

Cover

Plastic (Polyamide PA)

light grey, matt

Fixing thread

Steel zinc plated, blue passivated

Plunger pin

Stainless Steel AISI 303

Information

Clamping knobs with indexing plunger GN 7336.7 are used for positioning, securing and clamping adjusting elements at the same time.

The axial movement of the handle (pulling) pulls the indexing pin from the engaged position against the spring force, with the star knob at the same time remaining connected with form-lock to the clamping screw via a hexagonal element, allowing both clamping and releasing.

Range of indexing plungers

Technical information

ISO-Fundamental Tolerances

Stainless Steel characteristics

Plastic characteristics

Load rating information

GN 7336.7

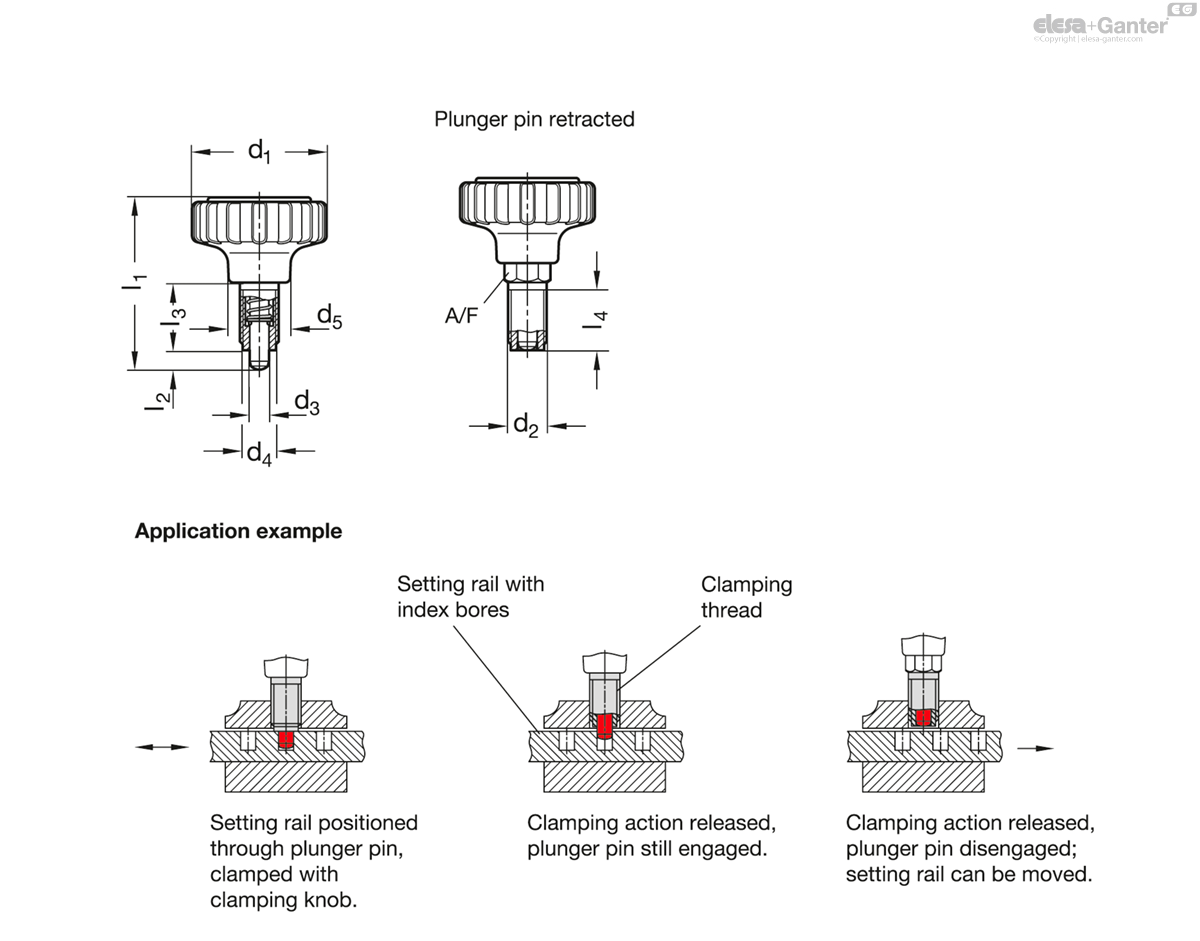

	d₁	d₂	d₃ Pin -0.02/-0.04 Bore G7	d₄	d₅	l₁	l₂	l₃	l₄ min.	A/F	Spring load in N ≈ initial	Spring load in N ≈ end
Code														Actions
GN 7336.7-34-M10x1-5	34	M 10 x 1	5	8.6	15.5	45	5	19	17	10	7	17	25
GN 7336.7-42-M12x1,5-6	42	M 12 x 1.5	6	9.9	19	53	6	21	19	12	9	24	41
GN 7336.7-53-M12x1,5-6	53	M 12 x 1.5	6	9.9	22.5	59	6	21	19	12	9	24	60
GN 7336.7-53-M16x1,5-8	53	M 16 x 1.5	8	13.9	22.5	68	8	28	26	16	11	30	93
