GN 7332
Gripping Trays
Stainless Steel, Screw-In Type
GN 7332-A-1
Gripping Trays
Mounting from the operator‘s side, without seal
GN 7332-A-2
Gripping Trays
Mounting from the operator‘s side, with seal, black
GN 7332-C-1
Gripping Trays
Mounting from the back, without seal
GN 7332-C-2
Gripping Trays
Mounting from the back, with seal, black
GN 7332-C-3
Gripping Trays
Mounting from the back, with seal, blue
Description
Specification
Types
- Type A: Mounting from the operator‘s side (for identification no. 2 with four countersunk sealing screws)
- Type C: Mounting from the back
Identification no.
- No. 1: Without seal
- No. 2: With seal, black
- No. 3: With seal, blue (only type C)
Handle
Stainless steel AISI 304
- Matte shot-blasted finish GS
- Electropolished EP
Housing seal
Rubber, glued
- NBR, black for identification no. 2
- Silicone, blue for identification no. 3
- FDA compliant
Countersunk sealing screws for type A, id. no. 2
DIN 7991-M5x16
Stainless steel
Polyamide coating on head
Grub screws for type C
Stainless steel AISI 304
Welded
Protection class IP 66
Information
Gripping trays GN 7332 can be easily and quickly installed from the front using countersunk screws or from the back with grub screws.
Gripping trays with housing seal (identification no. 2 and 3) prevent the penetration of any dirt or liquids into the housing interior. The FDA-compliant version also allows use in areas where food or pharmaceutical products are produced.
Type A is supplied with four additional countersunk sealing screws, which feature a polyamide coating on the head to create a tight seal.
Technical information
- IP Protection ClassesÂ
- Stainless Steel CharacteristicsÂ
GN 7332-A-1

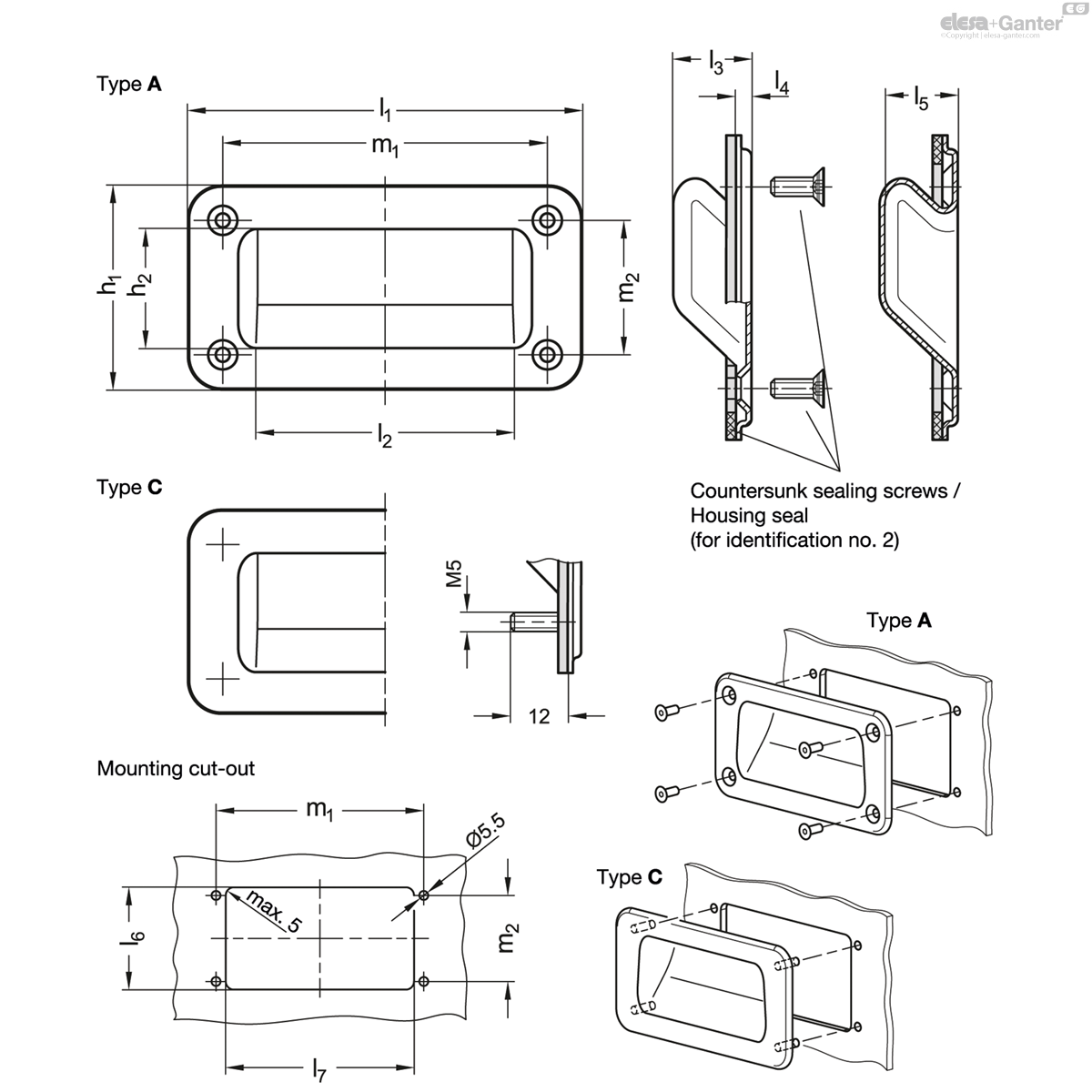

| Color | l1 | h1 | h2 | l2 | l3 | l4 | l5 | l6 +1 | l7 +1 | m1 | m2 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||

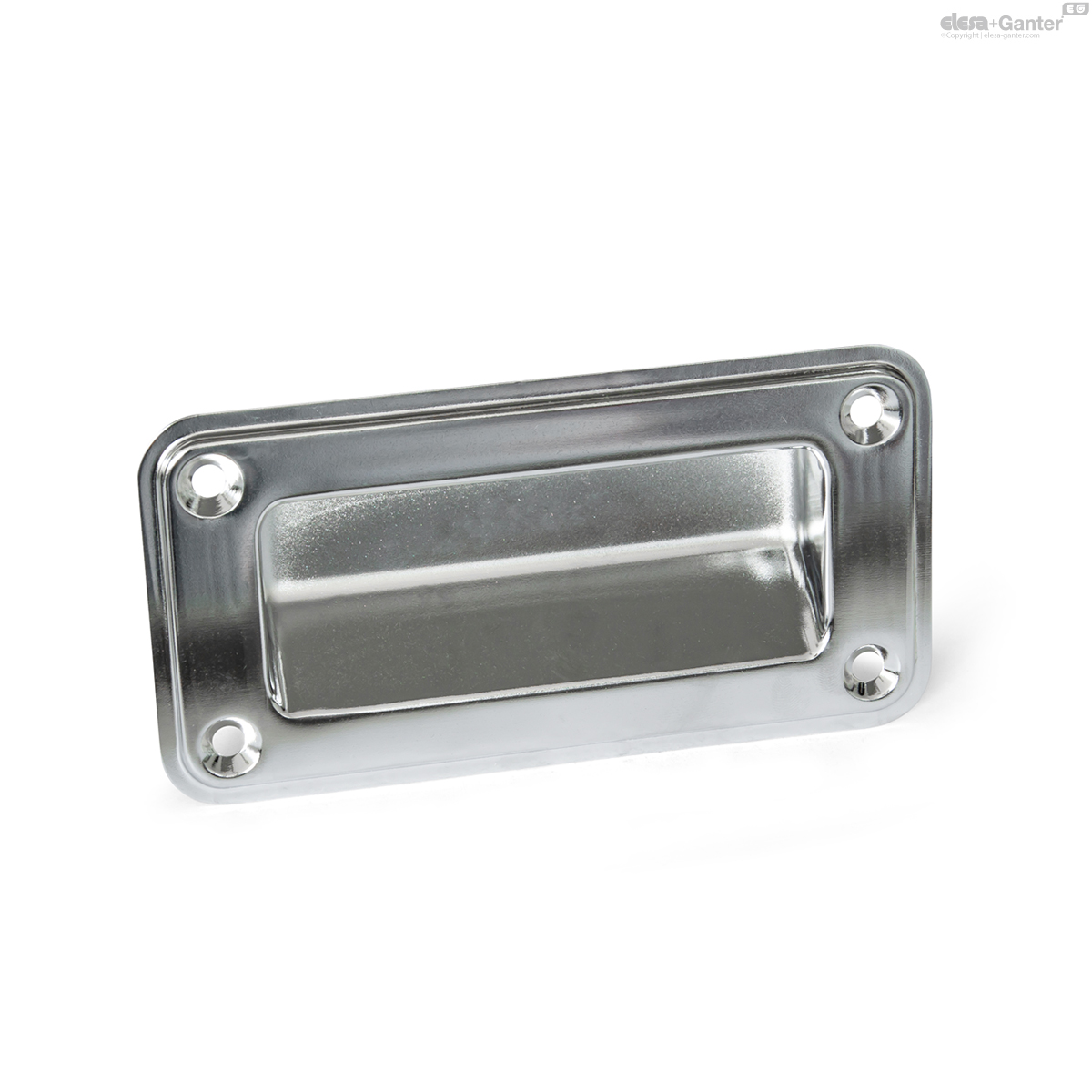

| GN 7332-155-A-1-EP | EP - Electropolished | 155 | 80 | 42 | 109 | 20 | 3.5 | 19.2 | 60 | 115 | 128 | 53 | 92 |
|

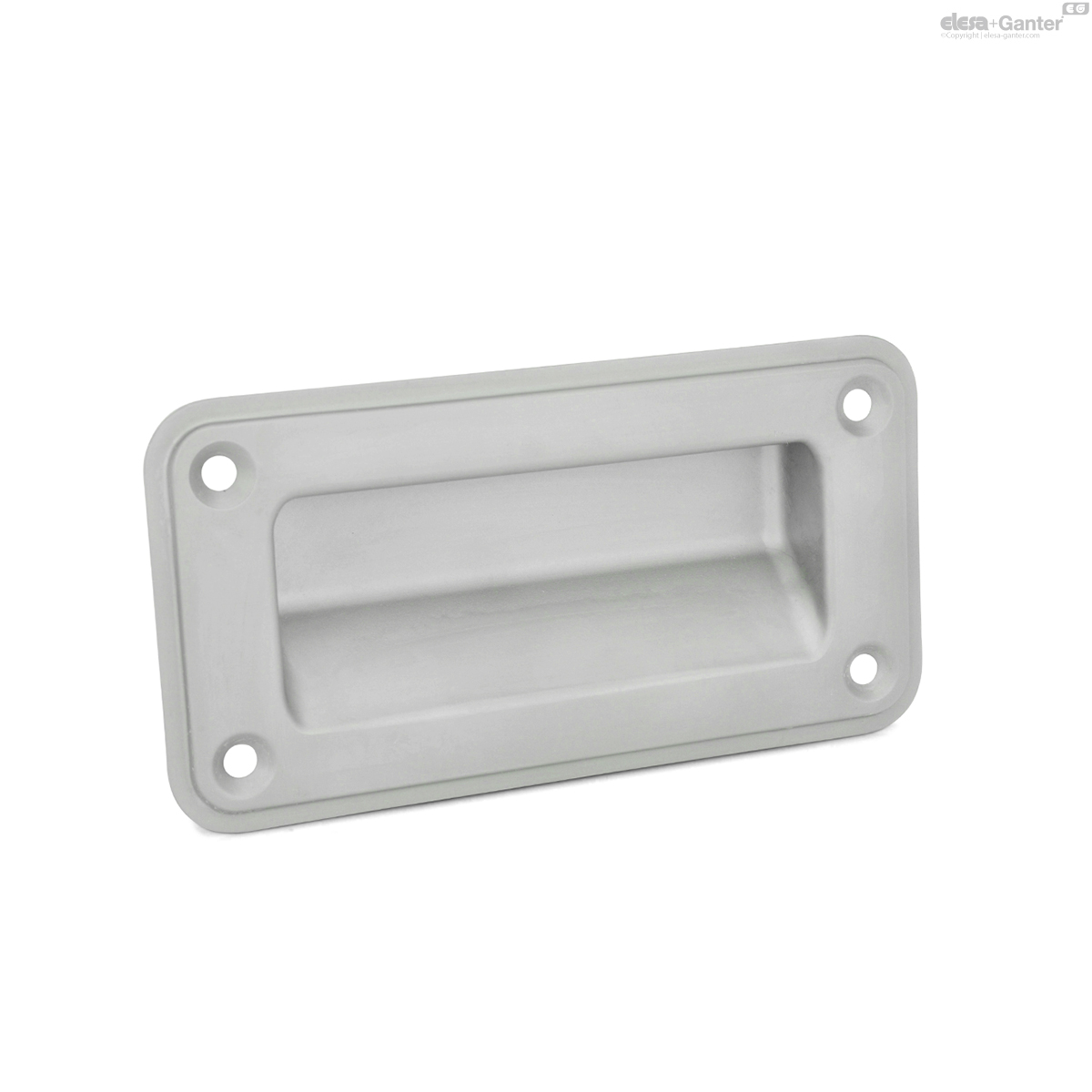

| GN 7332-155-A-1-GS | GS - Matte shot-blasted | 155 | 80 | 42 | 109 | 20 | 3.5 | 19.2 | 60 | 115 | 128 | 53 | 92 |
|
